These durable custom hitches are manufactured for 2018-2023 Honda Odyssey and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2023 | Honda Odyssey | With Fuse Provisions |
Yes, the 2018-2023 Honda Odyssey With Fuse Provisions Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76170-118781) is designed to fit the 2018-2023 Honda Odyssey.
The 2018-2023 Honda Odyssey With Fuse Provisions Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76170-118781) fits 2018-2023 Honda Odyssey models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2018-2023 Honda Odyssey With Fuse Provisions Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76170-118781) fits the following vehicles: 2018-2023 Honda Odyssey. Always verify your specific year, make, and model before ordering.
The 2018-2023 Honda Odyssey With Fuse Provisions Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76170-118781) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The 76170 hitch is designed for 2018-Current Honda Odyssey models. Visit the Cequent website for the most up-to-date information regarding specific application years and trim levels.
The 76170 is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb. (1589 kg) and maximum tongue weight of 525 lb. (238 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, 10 mm and 19 mm sockets, 6-inch socket extension, panel removal tool, plastic trim tools, Phillips screwdriver, 3/16-inch or 5 mm hex bits, tape, utility knife, and exhaust removal pliers.
Fastener Kit 76170F includes: (6) conical washers 1/2-inch (Part #01292008) and (6) M12 bolts 1.25 x 35, CL8.8. These fasteners attach the hitch to the vehicle frame rails via welded nuts.
No drilling is required. The hitch uses existing welded nuts on the frame rails. However, you must trim the bumper fascia (3.5 inches tall by 5.5 inches wide) and bottom appearance panel to clear the hitch.
The exhaust pipe must be temporarily lowered, not fully removed. Use exhaust removal pliers to lower it, and support the muffler with a bungee cord or support to prevent damage. The hitch is then carefully slid over the passenger side exhaust pipe first.
All M12 fasteners must be tightened to 76 Lb.-Ft. (103 N·M) using a torque wrench.
You must remove: (1) bottom appearance panel and mud flaps (if present) from the driver side using a Phillips screwdriver, panel removal tool, and 10 mm socket to remove 4 rivets and 2 screws; (2) bumper fascia by removing 2 plastic rivets from the center (or 6 if hands-free liftgate model), 3 screws from each wheel well liner, 2 flat head screws from inside the trunk on each side, and disconnecting any fascia wiring; (3) temporarily lower the exhaust pipe. All removed parts must be reinstalled after hitch installation.
Locate the center of the bottom bumper fascia and trim a 3.5 inches tall by 5.5 inches wide area. The bottom appearance panel must also be trimmed as shown in the manual (1.0 inch from the edge, 10.0 inches wide).
First, loosely install the M12 bolts and conical washers to the hitch while it is positioned over the frame rails. The conical washer teeth side must face against the hitch. Once all fasteners are loosely installed, tighten them to 76 Lb.-Ft. (103 N·M) using a torque wrench.
The hitch must be carefully slid over the passenger side exhaust pipe first, then positioned and fastened to the frame rails.
The average installation time for professional installers is 80 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, contact a professional installer.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability while towing.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. Periodically verify that the hitch is securely mounted to your vehicle and that all fasteners remain tight.
No. Do not cut, weld, or modify this receiver. Doing so may compromise the structural integrity and safety of the hitch.
The 76170 hitch is covered by a Limited Lifetime Warranty from Cequent Performance Products, Inc. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are installed, maintained, and used according to the manufacturer's instructions. To make a warranty claim, contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290. You must provide the product model number and purchase receipt.
Yes. When removing the bumper fascia, models with a hands-free liftgate have (6) plastic rivets at the bottom center, while models without a hands-free liftgate have only (2) plastic rivets. All other installation steps remain the same.
Keep the bottom panel and mud flaps for reinstallation. After the hitch is installed and the bumper fascia and appearance panel are trimmed, reinstall all fasteners, wiring, fascia, exhaust, appearance bottom panel, and mud flaps that were removed in the initial steps.
The conical washer teeth side must face against the hitch. This ensures proper fastening and load distribution.
The 76170 is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb. (1589 kg) and maximum tongue weight of 525 lb. (238 kg). Weight-distributing hitch specifications are listed as N/A in the manual, indicating this product is not available as a weight-distributing model.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt while towing.
If a mud flap is present on either side of the vehicle, remove it during Step 1 using a Phillips screwdriver, panel removal tool, and 10 mm socket. Keep the mud flap for reinstallation after the hitch is installed.
During Step 2(e), if wiring is present on the fascia, disconnect it from each side before removing the plastic fascia. The manual does not provide specific wiring details, so consult the vehicle's service manual or contact a professional installer if you are unfamiliar with the wiring connections.
Follow this sequence: (1) Use a panel removal tool to remove plastic rivets from the bottom center fascia (2 rivets for standard models, 6 for hands-free liftgate models); (2) Use a Phillips screwdriver to remove 3 screws from the wheel well liner on each side; (3) Open the trunk and use 3/16-inch or 5 mm hex bits to remove 2 flat head screws from each side; (4) Using plastic trim tools, gently remove the plastic fascia starting at the outer edges near the wheel wells; (5) Disconnect any wiring from the fascia on each side if present.
Yes. You must trim the bumper fascia 3.5 inches tall by 5.5 inches wide at the center bottom, and trim the bottom appearance panel as shown in the manual (1.0 inch from edge, 10.0 inches wide) to clear the hitch.
The manual states that the average installation time for professional installers is 80 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, contact a professional installer.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The 76170 hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
To remove the bottom appearance panel, use a Phillips screwdriver, panel removal tool, and 10 mm socket to remove 4 rivets and 2 screws from the driver side.
Use a Phillips screwdriver to remove 3 screws from the wheel well liner on each side of the vehicle.
Use 3/16-inch or 5 mm hex bits to remove 2 flat head screws from each side of the trunk.
Use a support or bungee cord to keep the muffler from getting damaged when temporarily lowering the exhaust pipe.
Using plastic trim tools, gently remove the plastic fascia starting at the outer edges near the wheel wells. This prevents damage to the fascia and surrounding components.
For technical assistance, contact Cequent Performance Products, Inc. at 800-632-3290 or email TechnicalSupport@cequentgroup.com. You can also visit www.cequentgroup.com for additional information and step-by-step photo installation instructions.

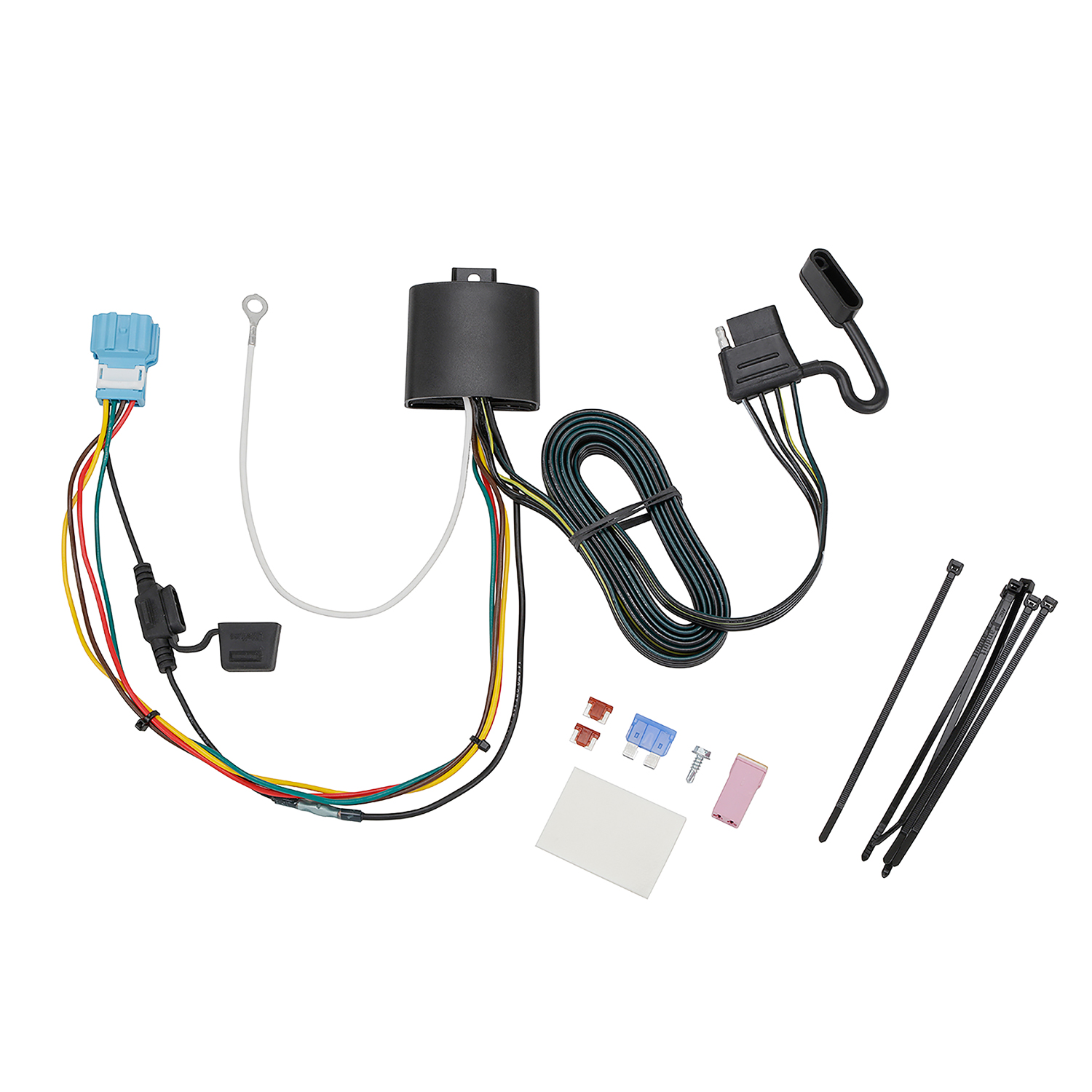

The T-One® T-Connector (part number 118781-037) is a trailer wiring harness installation kit for Honda Odyssey vehicles. It provides a connection point for trailer lighting and electrical systems by integrating with the vehicle's existing wiring harness and fuse box.
Yes, the T-One® T-Connector model 118781-037 is designed specifically for Honda Odyssey vehicles. The manual does not specify which model years are compatible, so contact the manufacturer or check the product packaging for year-specific fitment information.
You will need: trim panel remover, 10mm socket & ratchet or 10mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and a test-probe. These tools are required to access panels, remove fasteners, drill the grounding hole, and test the installation.
The kit includes: a blue tow plug, white grounding wire with eyelet and screw, double-sided tape, cable ties, a 15-amp fuse for the fuse holder, one 30-amp Slo-Blo fuse for fuse box position #12, and two 7.5-amp mini fuses for positions #10 and #11. The 4-Flat connector is also part of the system and should be stored in the rear cargo area when not in use.
You must temporarily remove the vehicle's access panel on the passenger side to gain access to the vehicle's trailer wiring harness. You will also need to access the driver's side access panel to locate the fuse box and mount the T-Connector black box. The rear hatch must be opened and the rear seat pushed forward to begin installation.
Locate the blue tow plug by opening the access panel inside the storage compartment, where it is taped to the vehicle wiring harness. Insert the tow plug into the connector carefully, ensuring you do not damage the locking tabs. Push the connectors fully in until the locking tabs are completely in place.
Yes, drilling is required. You must drill a 3/32" hole to secure the white grounding wire to a suitable grounding point near the connector, such as the vehicle's frame or crossmember. Do not drill into the vehicle floor or bed. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill any exposed surfaces.
Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before drilling the 3/32" hole. The white wire is then secured using the eyelet and screw provided.
Use a 3/32" drill bit to create the hole for the white grounding wire. This hole is drilled into a suitable grounding point such as the vehicle's frame or crossmember.
Install the following fuses in the driver's side fuse box: one 30-amp Slo-Blo fuse in position #12, one 7.5-amp mini fuse in position #10, and one 7.5-amp mini fuse in position #11. Additionally, install a 15-amp fuse into the fuse holder on the T-Connector black box.
Mount the T-Connector black box using the double-sided tape provided. Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would cut, pinch, or melt the wire.
Near the access panel, push the trim panel out slightly to route the 4-Flat to the cargo area by routing it out and underneath the trim panel. Store the 4-Flat in the rear cargo area when not in use.
Always wear safety glasses during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces or the vehicle floor or bed. Secure all wiring with cable ties to prevent damage, rattling, or areas where the wire could be cut, pinched, or melted. Do not exceed the stated product ratings or the towing manufacturer rating to avoid overloading circuits, which can cause fires.
All connections must be complete for the T-One® T-Connector to function properly. Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Do not exceed the lower of two ratings: the towing manufacturer rating (including the rating in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires. The kit includes a 30-amp Slo-Blo fuse and two 7.5-amp mini fuses as part of the system protection.
Yes, it is designed specifically for Honda Odyssey. Check the product packaging or contact the manufacturer for specific model year compatibility.
One 15-amp fuse for the T-Connector fuse holder, one 30-amp Slo-Blo fuse for fuse box position #12, and two 7.5-amp mini fuses for positions #10 and #11.
Do not exceed the lower of the towing manufacturer rating (in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires.
