These durable custom hitches are manufactured for 2018-2023 Honda Odyssey and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2023 | Honda Odyssey | Without Fuse Provisions |

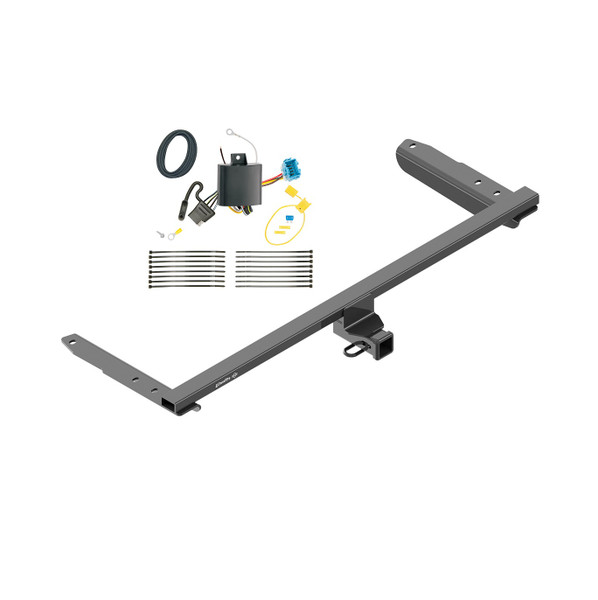

The 2018-2023 Honda Odyssey Without Fuse Provisions Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76170-118753) fits 2018-2023 Honda Odyssey models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2018-2023 Honda Odyssey Without Fuse Provisions Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76170-118753) is designed to fit the 2018-2023 Honda Odyssey.
The 2018-2023 Honda Odyssey Without Fuse Provisions Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76170-118753) fits the following vehicles: 2018-2023 Honda Odyssey. Always verify your specific year, make, and model before ordering.
The 2018-2023 Honda Odyssey Without Fuse Provisions Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76170-118753) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The 76170 hitch is designed for 2018-Current Honda Odyssey models. Visit the Cequent website for the most up-to-date information regarding specific application years and trim levels.
The 76170 is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb. (1589 kg) and maximum tongue weight of 525 lb. (238 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, 10 mm and 19 mm sockets, 6-inch socket extension, panel removal tool, plastic trim tools, Phillips screwdriver, 3/16-inch or 5 mm hex bits, tape, utility knife, and exhaust removal pliers.
Fastener Kit 76170F includes: (6) conical washers 1/2-inch (Part #01292008) and (6) M12 bolts 1.25 x 35, CL8.8. These fasteners attach the hitch to the vehicle frame rails via welded nuts.
No drilling is required. The hitch uses existing welded nuts on the frame rails. However, you must trim the bumper fascia (3.5 inches tall by 5.5 inches wide) and bottom appearance panel to clear the hitch.
The exhaust pipe must be temporarily lowered, not fully removed. Use exhaust removal pliers to lower it, and support the muffler with a bungee cord or support to prevent damage. The hitch is then carefully slid over the passenger side exhaust pipe first.
All M12 fasteners must be tightened to 76 Lb.-Ft. (103 N·M) using a torque wrench.
You must remove: (1) bottom appearance panel and mud flaps (if present) from the driver side using a Phillips screwdriver, panel removal tool, and 10 mm socket to remove 4 rivets and 2 screws; (2) bumper fascia by removing 2 plastic rivets from the center (or 6 if hands-free liftgate model), 3 screws from each wheel well liner, 2 flat head screws from inside the trunk on each side, and disconnecting any fascia wiring; (3) temporarily lower the exhaust pipe. All removed parts must be reinstalled after hitch installation.
Locate the center of the bottom bumper fascia and trim a 3.5 inches tall by 5.5 inches wide area. The bottom appearance panel must also be trimmed as shown in the manual (1.0 inch from the edge, 10.0 inches wide).
First, loosely install the M12 bolts and conical washers to the hitch while it is positioned over the frame rails. The conical washer teeth side must face against the hitch. Once all fasteners are loosely installed, tighten them to 76 Lb.-Ft. (103 N·M) using a torque wrench.
The hitch must be carefully slid over the passenger side exhaust pipe first, then positioned and fastened to the frame rails.
The average installation time for professional installers is 80 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, contact a professional installer.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability while towing.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. Periodically verify that the hitch is securely mounted to your vehicle and that all fasteners remain tight.
No. Do not cut, weld, or modify this receiver. Doing so may compromise the structural integrity and safety of the hitch.
The 76170 hitch is covered by a Limited Lifetime Warranty from Cequent Performance Products, Inc. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are installed, maintained, and used according to the manufacturer's instructions. To make a warranty claim, contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290. You must provide the product model number and purchase receipt.
Yes. When removing the bumper fascia, models with a hands-free liftgate have (6) plastic rivets at the bottom center, while models without a hands-free liftgate have only (2) plastic rivets. All other installation steps remain the same.
Keep the bottom panel and mud flaps for reinstallation. After the hitch is installed and the bumper fascia and appearance panel are trimmed, reinstall all fasteners, wiring, fascia, exhaust, appearance bottom panel, and mud flaps that were removed in the initial steps.
The conical washer teeth side must face against the hitch. This ensures proper fastening and load distribution.
The 76170 is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb. (1589 kg) and maximum tongue weight of 525 lb. (238 kg). Weight-distributing hitch specifications are listed as N/A in the manual, indicating this product is not available as a weight-distributing model.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt while towing.
If a mud flap is present on either side of the vehicle, remove it during Step 1 using a Phillips screwdriver, panel removal tool, and 10 mm socket. Keep the mud flap for reinstallation after the hitch is installed.
During Step 2(e), if wiring is present on the fascia, disconnect it from each side before removing the plastic fascia. The manual does not provide specific wiring details, so consult the vehicle's service manual or contact a professional installer if you are unfamiliar with the wiring connections.
Follow this sequence: (1) Use a panel removal tool to remove plastic rivets from the bottom center fascia (2 rivets for standard models, 6 for hands-free liftgate models); (2) Use a Phillips screwdriver to remove 3 screws from the wheel well liner on each side; (3) Open the trunk and use 3/16-inch or 5 mm hex bits to remove 2 flat head screws from each side; (4) Using plastic trim tools, gently remove the plastic fascia starting at the outer edges near the wheel wells; (5) Disconnect any wiring from the fascia on each side if present.
Yes. You must trim the bumper fascia 3.5 inches tall by 5.5 inches wide at the center bottom, and trim the bottom appearance panel as shown in the manual (1.0 inch from edge, 10.0 inches wide) to clear the hitch.
The manual states that the average installation time for professional installers is 80 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, contact a professional installer.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The 76170 hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
To remove the bottom appearance panel, use a Phillips screwdriver, panel removal tool, and 10 mm socket to remove 4 rivets and 2 screws from the driver side.
Use a Phillips screwdriver to remove 3 screws from the wheel well liner on each side of the vehicle.
Use 3/16-inch or 5 mm hex bits to remove 2 flat head screws from each side of the trunk.
Use a support or bungee cord to keep the muffler from getting damaged when temporarily lowering the exhaust pipe.
Using plastic trim tools, gently remove the plastic fascia starting at the outer edges near the wheel wells. This prevents damage to the fascia and surrounding components.
For technical assistance, contact Cequent Performance Products, Inc. at 800-632-3290 or email TechnicalSupport@cequentgroup.com. You can also visit www.cequentgroup.com for additional information and step-by-step photo installation instructions.
Yes, this T-Connector is designed for Honda Odyssey. The installation instructions are specific to this vehicle model.

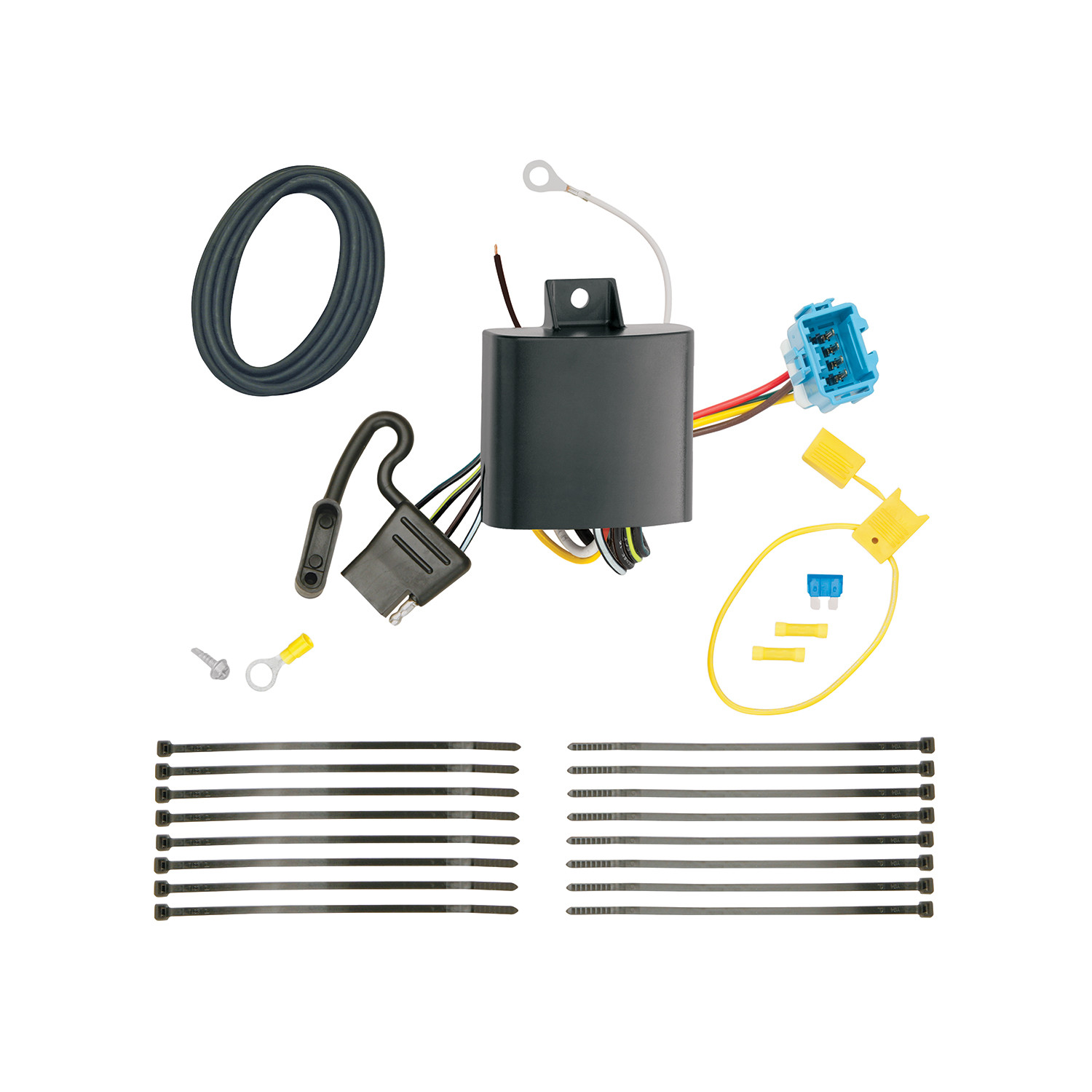

The kit includes: a blue tow plug, a black T-Connector box, a white wire with eyelet and screw for grounding, a black 12 ga. power wire, a yellow fuse holder with 15 amp fuse, a yellow butt connector, double-sided tape, and cable ties. A 4-Flat connector is also routed to the cargo area for storage when not in use.
Required tools are: Trim Panel Remover, 10mm Socket & Ratchet or 10mm Wrench, Drill with 3/32" Drill Bit, 1/4" Socket, Wire Crimpers, Wire Cutters, Philips Head Screwdriver, and Test-probe.
Yes. You must disconnect the vehicle's negative (−) battery cable before connecting the power wire to the battery. The negative cable is reconnected after the fuse holder is attached to the positive battery cable and the 15 amp fuse is installed.
Yes. You must drill a 3/32" hole into the vehicle frame or crossmember to secure the white grounding wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed. Always verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury.
Drill the 3/32" hole into a suitable grounding point near the connector, such as the vehicle's frame or crossmember. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before drilling.
The grounding hole is 3/32" in diameter. It is drilled into the vehicle frame or crossmember and secured with the white wire, eyelet, and screw provided in the kit.
The black power wire is 12 gauge (12 ga.). It connects from the T-Connector black box, routes along the exterior frame or existing wiring to the engine compartment, and terminates at the vehicle's positive (+) battery cable via a yellow butt connector and fuse holder.
The fuse is rated at 15 amperes. It is installed in the yellow fuse holder provided in the kit and connects between the black 12 ga. power wire and the vehicle's positive (+) battery cable.
Disconnect the vehicle's negative (−) battery cable first. Remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire, attach the ring terminal to the vehicle's positive (+) battery cable, and connect the other end of the fuse holder to the black 12 ga. power wire using the yellow butt connector provided. Then reconnect the negative battery cable and install the 15 amp fuse into the fuse holder.
The grounding wire is white. It is secured to the vehicle frame or crossmember using the eyelet and screw provided, after drilling a 3/32" hole.
Route the black 12 ga. power wire along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior of the vehicle, carefully avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
The blue tow plug is located inside the storage compartment, taped to the vehicle wiring harness. Open the access panel inside the storage compartment to locate it. Insert the tow plug into the connector, being careful not to damage the locking tabs and ensuring that connectors are fully inserted with locking tabs in place.
Open the rear hatch and push the rear seat forward. Temporarily remove the vehicle's access panel on the passenger side to gain access to the vehicle's trailer wiring harness.
Mount the T-Connector black box on the driver's side using the double-sided tape provided. Secure the remainder of the T-Connector harness with cable ties provided, being careful to avoid any areas that would cut or pinch the wire.
Near the access panel, push the trim panel out slightly to route the 4-Flat to the cargo area by routing out and underneath the trim panel. Store the 4-Flat in the rear cargo area when not in use.
Always wear safety glasses and use all safety precautions during installation. Verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces. Read and follow all warnings and cautions printed on the tow vehicle's battery. Do not exceed the stated product ratings or the towing manufacturer rating to avoid overloading circuits, which can cause fires.
All connections must be complete for the T-One T-Connector to function properly. Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Do not exceed the lower of the towing manufacturing rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. The fuse provided is 15 amperes. Overloading circuits can cause fires.
Yes, the T-One T-Connector (part 118753-037) is designed for Honda Odyssey.
You need: Trim Panel Remover, 10mm Socket & Ratchet or Wrench, Drill with 3/32" bit, 1/4" Socket, Wire Crimpers, Wire Cutters, Philips Head Screwdriver, and Test-probe.
Yes, disconnect the vehicle's negative (−) battery cable before connecting the power wire. Reconnect it after the fuse holder is attached to the positive cable and the 15 amp fuse is installed.
The T-Connector uses a 15 ampere fuse installed in the yellow fuse holder provided.
Do not exceed the stated product ratings or towing manufacturer rating. Overloading circuits can cause fires. Always wear safety glasses during installation and verify what is behind any surface before drilling.
