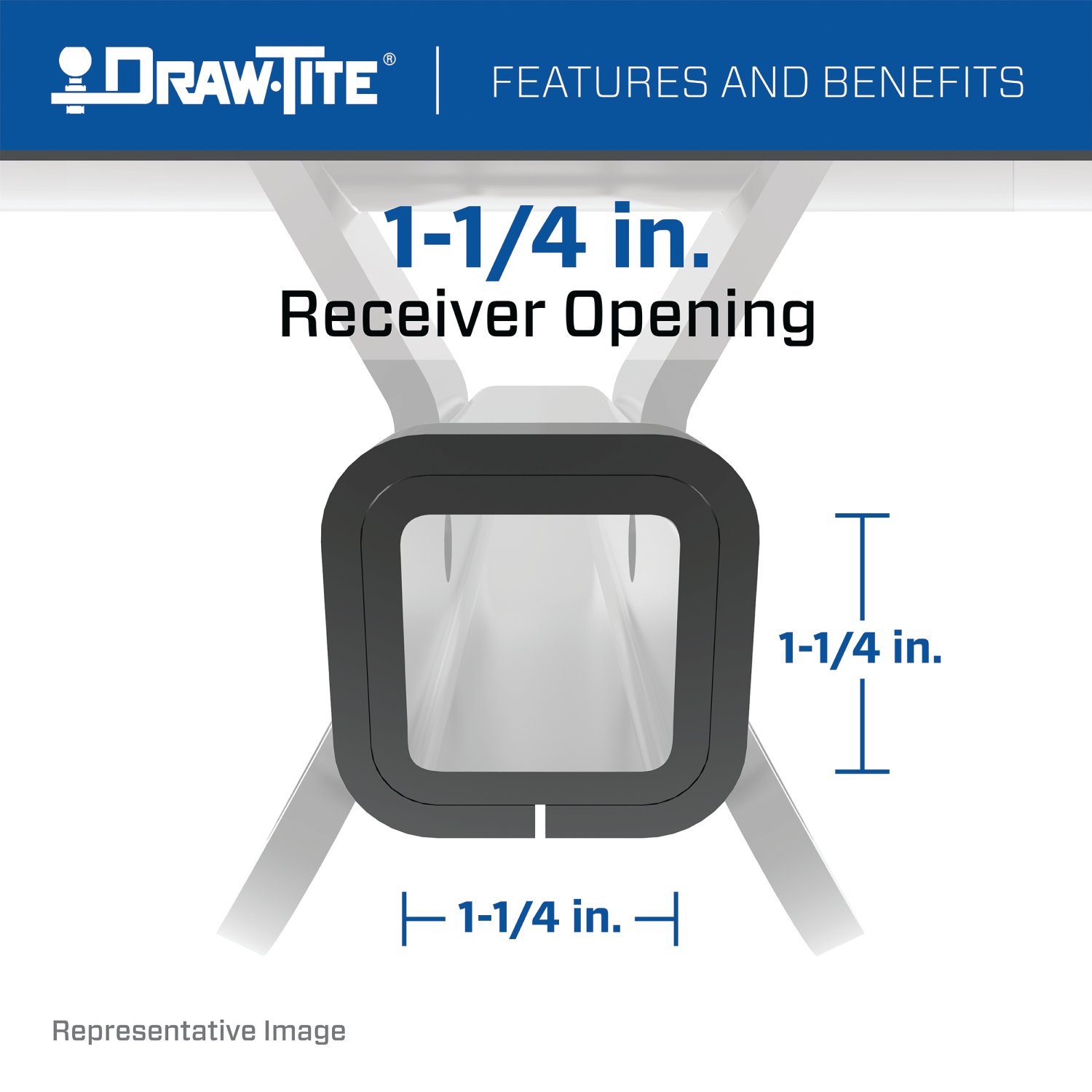

These dependable custom hitches are manufactured for 2019-2022 Subaru Forester and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 2 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.

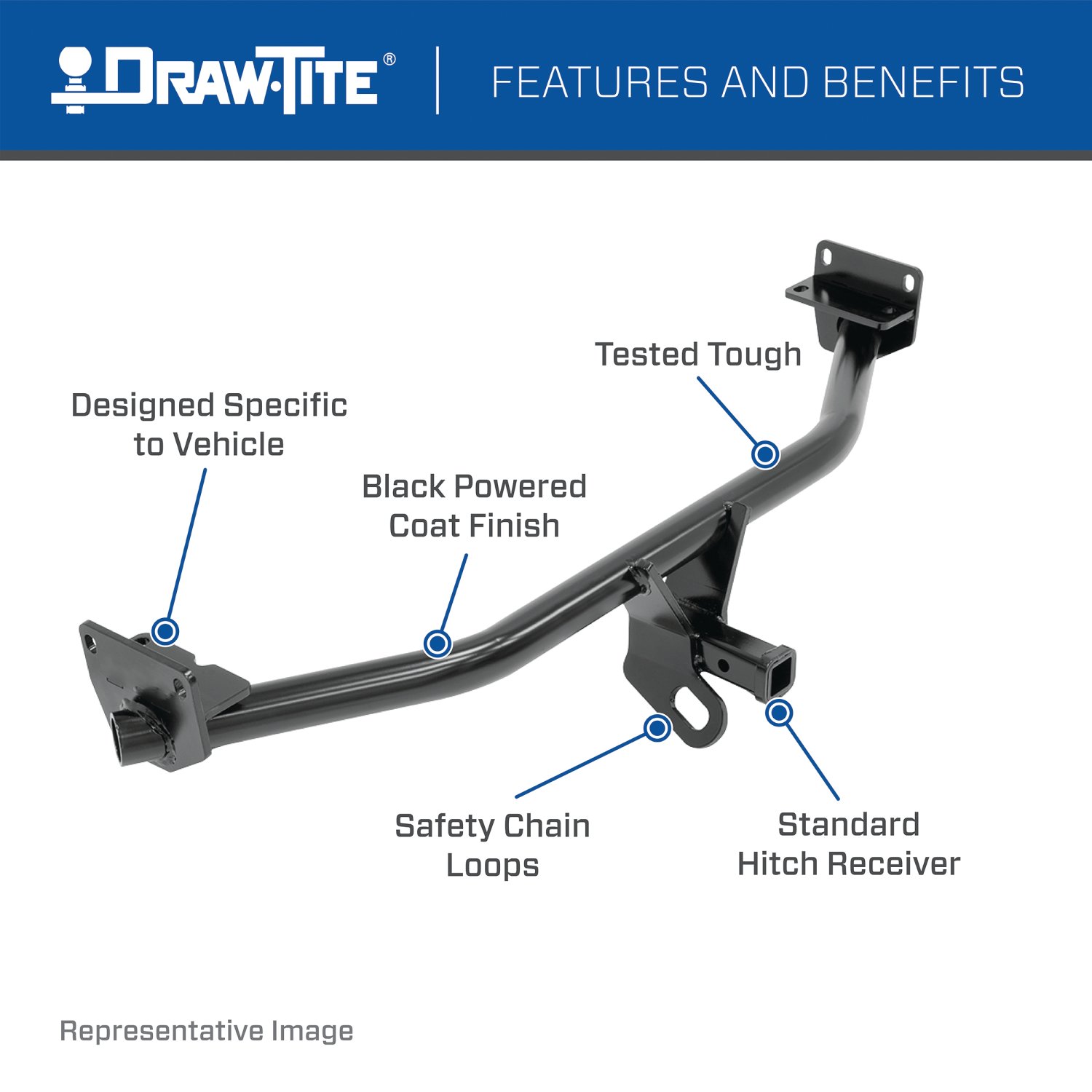

Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1999 - 2005 | Subaru Forester | — |
The 2019-2024 Subaru Forester Draw-Tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36671-118467) fits the following vehicles: 1999-2005 Subaru Forester. Always verify your specific year, make, and model before ordering.
The 2019-2024 Subaru Forester Draw-Tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36671-118467) fits 1999-2005 Subaru Forester models. The 2005 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2019-2024 Subaru Forester Draw-Tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36671-118467) is designed to fit the 1999-2005 Subaru Forester.
The 2019-2024 Subaru Forester Draw-Tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36671-118467) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 36671, 06191, and CQT36671 are designed for 2019-Current Subaru Forester models. Visit the manufacturer's website for the most up-to-date information regarding specific trim levels and model years.
This is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb (1589 kg) and maximum tongue weight of 350 lb (159 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools: ratchet, 10 mm socket, 13/16" socket, 6" socket extension, torque wrench, safety glasses, prybar, exhaust removal pliers, flat-head screwdriver, and tin snips.
Yes. You must lower the exhaust by removing the rubber hangers from in front of the muffler, behind the muffler, and near the rear axle. Support the exhaust to prevent damage. The exhaust is reinstalled after the hitch is mounted.
Yes. Using a 10 mm socket, remove the 4 screws holding the heat shield to the vehicle. Using tin snips, trim the heat shield as shown in the manual figure. Reinstall after trimming, leaving out the rearmost M6 bolt on the frame rail for the heat shield.
Tighten all 7/16" fasteners with a torque wrench to 50 Lb.-Ft. (68 N·M).
The average installation time for professional installers is 30 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, contact a professional installer.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. DO NOT apply your brakes and DO NOT speed up.
The fastener kit (36671F) includes: 6 carriage bolts (7/16-14 X 1.50 Gr5), 6 conical washers (7/16", Part No. 01292007), 6 spacers (Part No. 01204), 6 hex nuts (7/16-14 Gr5), 2 flange hex bolts (M6 x 1.0 x 35mm), and 6 wireform fasteners (7/16", Part No. 5481).
No. This is a weight-carrying hitch only. Weight-distributing capability is listed as N/A for this model.
Remove the 4 hole plugs from each frame rail. Use a wireform fastener (fishwire) to thread the spacers and 7/16" carriage bolts through the access hole and down through the holes in both frame rails. This allows you to position the fasteners before raising the hitch into place.
The conical washers must be installed with the teeth side facing toward the hitch. This orientation is critical for proper fastening.
Remove 2 M6 bolts from the driver side frame rail. The lower underbody panel will be reinstalled over the hitch after installation.
After the hitch is mounted and torqued, reinstall the underbody panel by installing the supplied M6 bolts into the weldnuts for the underbody panel on the frame rail.
After the hitch is mounted and torqued, raise the exhaust back into position and reinstall all rubber hangers that were removed in step 2 (from in front of the muffler, behind the muffler, and near the rear axle).
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. Support the exhaust to prevent damage when lowering it.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue using a damaged hitch.
Load the trailer heavier in front. This helps maintain proper weight distribution and towing stability.
Slow down when towing. Never exceed any posted speed limit.
No. Do not cut, weld, or modify this receiver. Any modifications will compromise the hitch integrity and safety.
This product includes a Limited Lifetime Warranty covering material defects in material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are installed, maintained, and used in accordance with the manufacturer's instructions. Product replacement is the sole remedy. Contact Horizon Global Americas Inc. at 1-800-632-3290 or 47912 Halyard Drive, Suite 100, Plymouth, MI 48170 to make a warranty claim.
The authorized drawbar kit is part number 36071 (sold separately). The drawbar must be used in the RISE position only.
Remove 4 hole plugs from each frame rail (8 total). These provide access for fishwiring the spacers and carriage bolts through to the frame rail holes.
The carriage bolts are 7/16-14 X 1.50 Gr5. Six bolts are supplied in the fastener kit. They are torqued to 50 Lb.-Ft. (68 N·M).
The M6 bolts are flange hex bolts, M6 x 1.0 x 35mm. Two bolts are supplied in the fastener kit. They are installed into the weldnuts on the frame rail to secure the underbody panel.
Use a 10 mm socket to remove the 4 screws holding the heat shield to the vehicle.
Raise the hitch into position over the muffler and over the plastic underbody panel, aligning the attachment holes in the hitch to the holes in the frame rail on both sides.
Always wear your seatbelt when towing.
Check all fasteners periodically to ensure they are tight and the hitch is securely mounted to the vehicle. If fasteners are found to be loose, retighten them with a torque wrench to 50 Lb.-Ft. (68 N·M) for the 7/16" fasteners. Proper torque is needed to keep the hitch secure to the vehicle when towing.
A hitch which has been damaged should be removed and replaced. Do not continue towing with a damaged hitch.
A ball which has been damaged should be removed and replaced. Do not continue towing with a damaged ball.
The T-Connector (part 118467-037) is designed for 2009-2013 Forester, 2010-2019 Outback, 2014-Current Forester, XV Crosstrek, and 2020-Current Outback models. Locate your vehicle model and year in the installation instructions to confirm fitment and identify the location of your vehicle's tow plug housing.

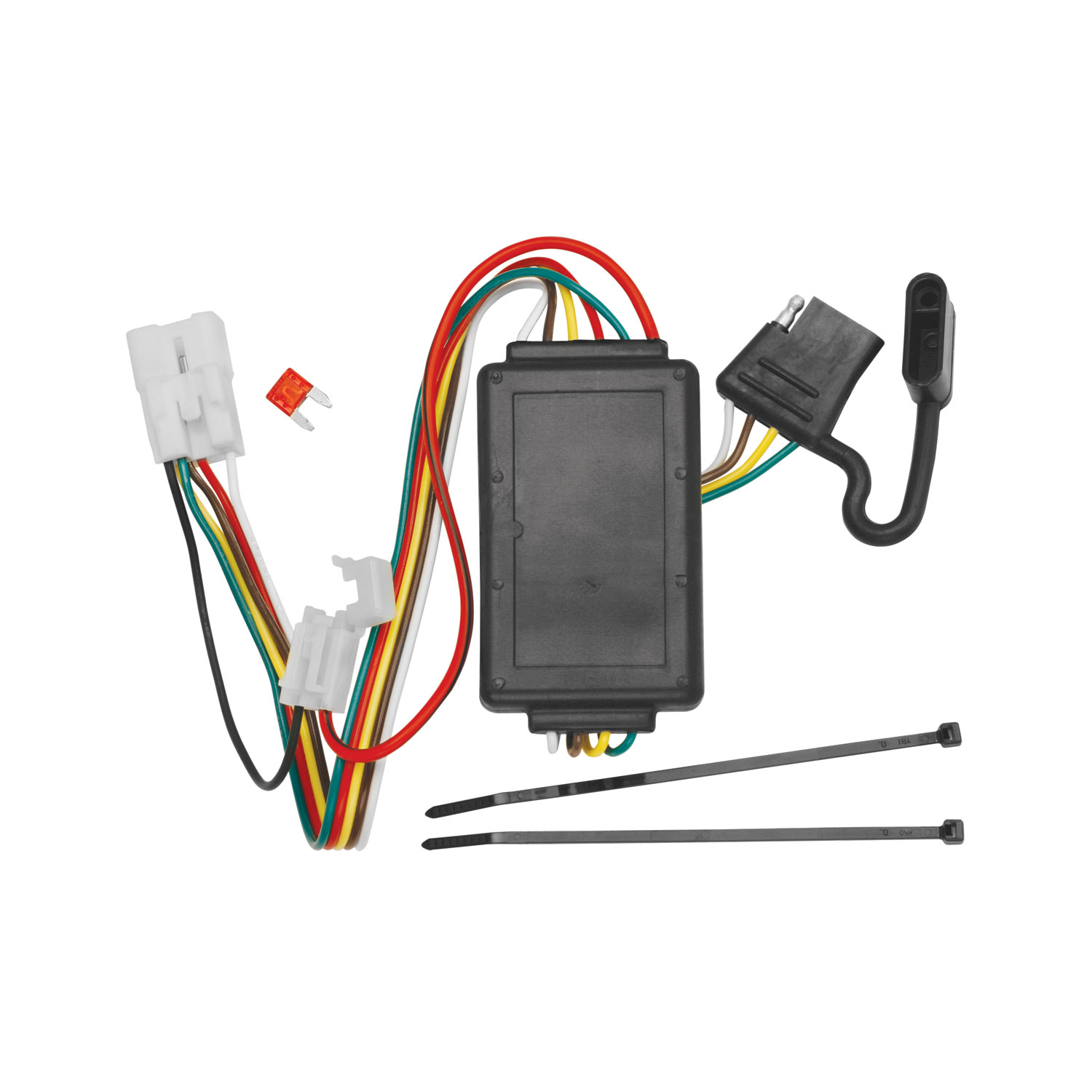

The T-Connector is a harness that connects to your vehicle's factory tow plug to provide trailer lighting connections. It includes a black box mounted on the driver's side and a 4-Flat connector that can be stored in the spare tire compartment when not in use.
You will need a Trim Panel Remover and a Test-probe. The Trim Panel Remover is used to access the tow plug housing behind trim panels on certain models, and the Test-probe is used to verify the installation after completion.
Open the vehicle's rear tailgate and remove cargo nets and cargo floor hatch to access the spare tire area. Remove the driver's side and center foam cargo trays to locate the tow plug housing under the driver's side foam tray.
Open the vehicle's rear tailgate and remove cargo nets and cargo floor hatch. Locate the vehicle's tow plug housing behind the driver's side trim panel. It will be taped to the wire harness with blue tape. Use a Trim Panel Remover to access it.
Open the vehicle's rear tailgate and remove cargo nets and cargo floor hatch. Locate the vehicle's tow plug housing behind the driver's side trim panel. It will be taped to the wire harness with tape. Use a Trim Panel Remover to access it.
Open the vehicle's rear tailgate and remove cargo nets and cargo floor hatch. Temporarily remove the rear threshold plate. Locate the vehicle's tow plug on the passenger side under the rear threshold plate. It will be taped to the harness with tape.
Insert the T-Connector harness into the vehicle's Tow-Plug harness and lock into place. Ensure that the connectors are fully inserted with locking tabs in place. All connections must be complete for the T-Connector to function properly.
On the driver's side, mount the T-Connector black box using the double-sided tape provided. Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling, being careful to avoid any areas that would cut or pinch the wire.
Store the 4-Flat connector in the spare tire compartment when not in use.
Do not exceed the lower of your vehicle manufacturer's rating or these limits: maximum stop/turn light is 1 per side (2.1 amps), and maximum tail lights are 5.6 amps. Overloading the circuit can cause fires. Read your vehicle's owner's manual and instruction sheet for additional information.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition and reinserting it. All connections must be complete for the T-Connector to function properly.
The T-Connector (118467-037) fits 2009-2013 Forester, 2010-2019 Outback, 2014-Current Forester, XV Crosstrek, and 2020-Current Outback.
You need a Trim Panel Remover and a Test-probe.
Do not exceed 2.1 amps per stop/turn light (1 per side) or 5.6 amps for tail lights, whichever is lower than your vehicle manufacturer's rating. Overloading can cause fires.
No drilling or permanent modifications are required. The T-Connector connects to your vehicle's factory tow plug and is mounted using provided double-sided tape and cable ties.
