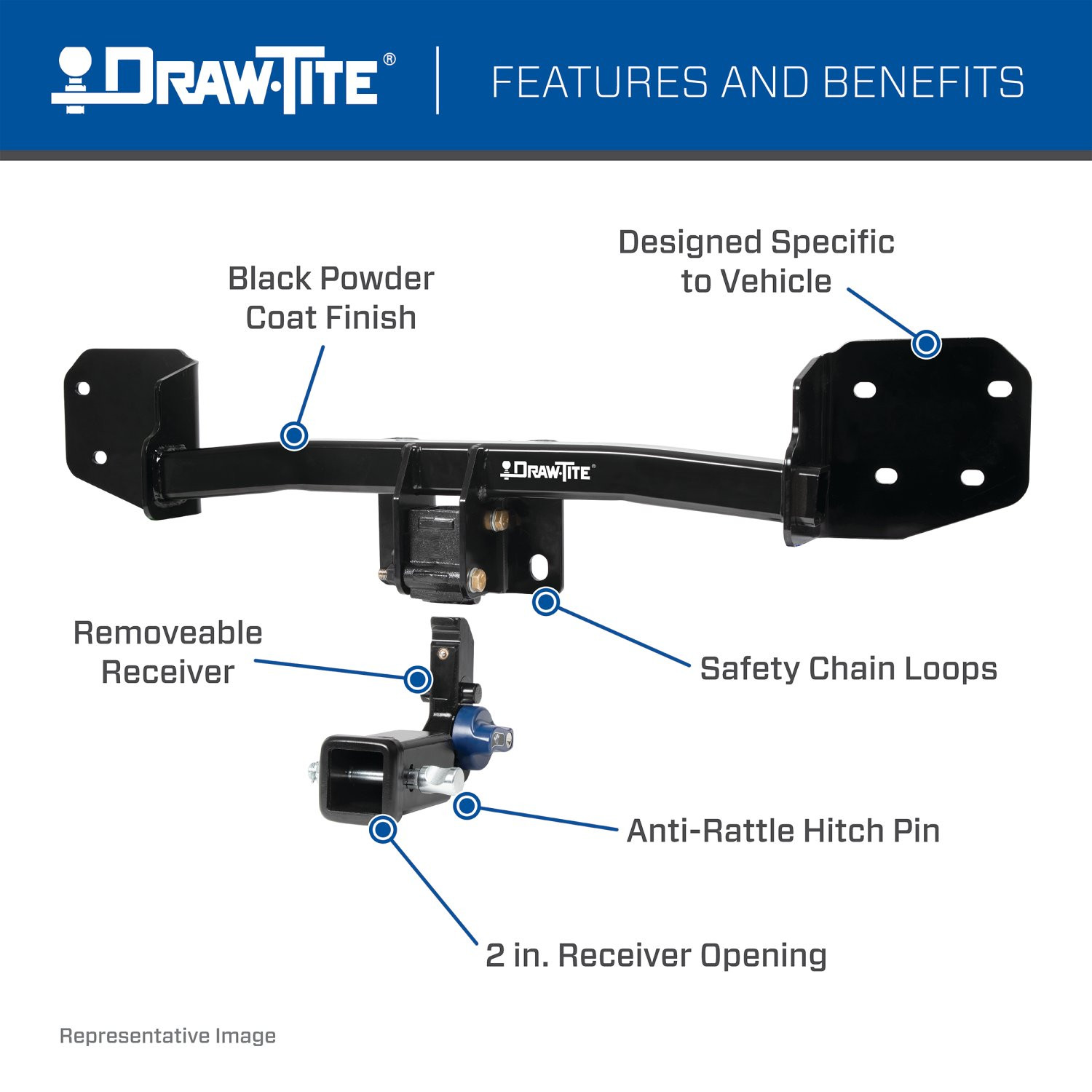

Made from welded steel with a black premium finish, the Hidden Hitch series of hitches are custom designed to ensure a superior fit for each make and model vehicle. Each Hidden Hitch is designed with a two-inch receiver opening to fit a number of different accessory attachments like bike racks, cargo carriers, and more! Draw-Tite Hidden Hitches are rated for 3,500 pounds gross trailer weight (GTW) and are best suited for use with accessories or light-duty towing. The integrated anti-theft lockable receiver ensures added safety when the hitch is in use, while the included anti-rattle hitch pin provides premium performance and security. When you are not using the Hidden Hitch, you can store the removeable receiver, anti-rattle pin, and weather covers in the hard sided carrying case that is included with your purchase.
These dependable, premium custom hitches are manufactured for 2019-2022 Subaru Forester and attach to your vehicle?s frame behind the bumper for a luxuriously clean appearance. Hidden Hitch trailer hitches have a sleek black powder coat finish for superior rust and corrosion resistance and come complete with all the mounting hardware needed for installation. Plus, each hitch is tested to meet - and exceed - V-5 and SAE J684 standards and is backed by a nationwide lifetime limited warranty.
So, take that extra cooler out to the lake, hit the bike trails in the park, or hook up that utility trailer and tackle your honey-do home repairs. When you are done, remove the evidence (i.e., the removeable receiver), and go for a cruise. With the Hidden Hitch, you can do it all! Brought to you by Draw-Tite, North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2024 | Subaru Forester | — |
The 2019-2024 Subaru Forester Draw-Tite Hidden Hitch Completely Hidden Trailer Hitch 2 Inch Removable Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76927-118467) fits 2019-2024 Subaru Forester models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2019-2024 Subaru Forester Draw-Tite Hidden Hitch Completely Hidden Trailer Hitch 2 Inch Removable Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76927-118467) is designed to fit the 2019-2024 Subaru Forester.
The 2019-2024 Subaru Forester Draw-Tite Hidden Hitch Completely Hidden Trailer Hitch 2 Inch Removable Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76927-118467) fits the following vehicles: 2019-2024 Subaru Forester. Always verify your specific year, make, and model before ordering.
The 2019-2024 Subaru Forester Draw-Tite Hidden Hitch Completely Hidden Trailer Hitch 2 Inch Removable Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76927-118467) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 76927 is designed for Subaru Forester models. However, the manual does not specify which model years are compatible. Visit www.horizonglobal.com and search for part 76927 to verify compatibility with your specific year and trim level, or contact technical support at 800-632-3290.

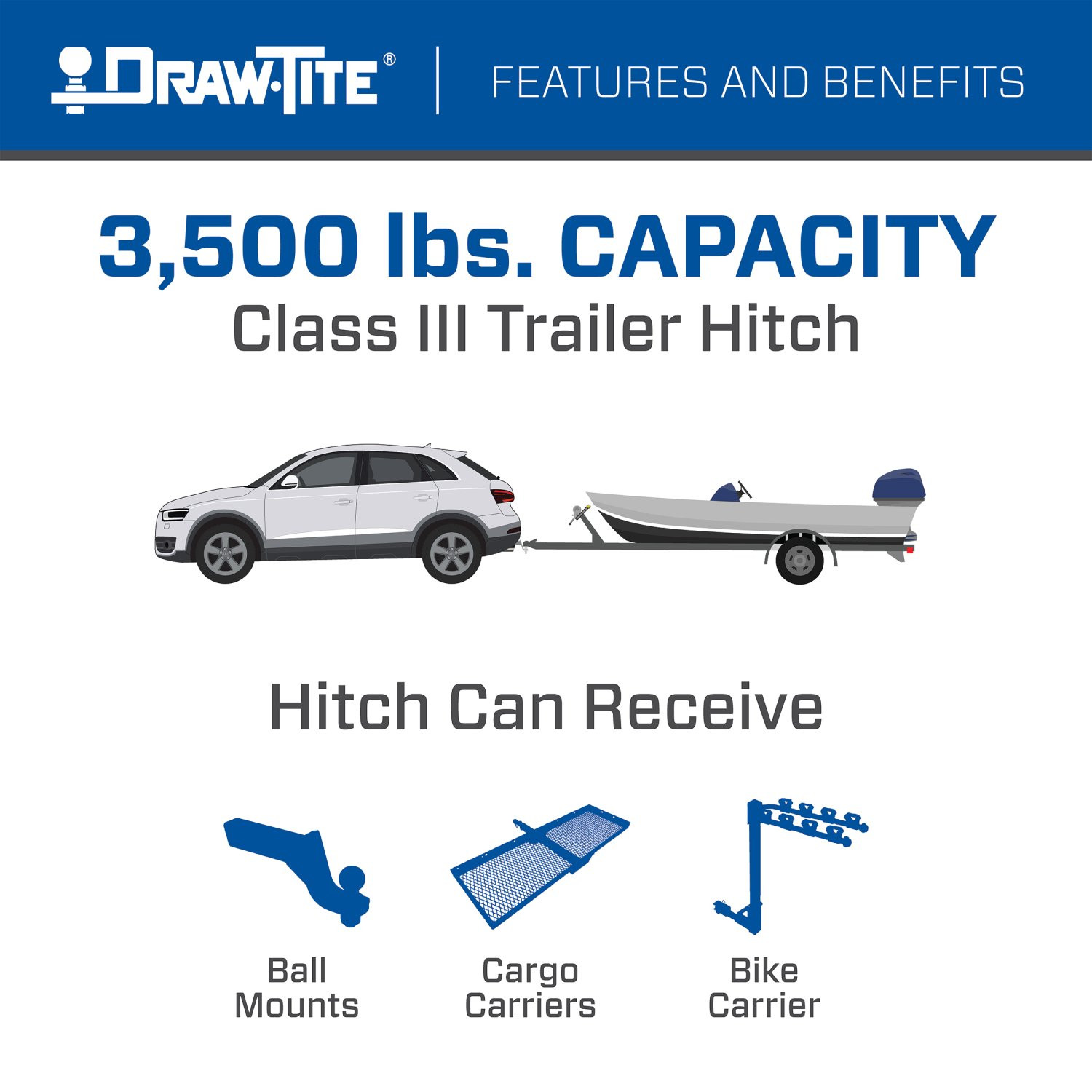

The 76927 is a weight-carrying hitch with a maximum gross trailer weight of 3,500 lb (1,589 kg) and a maximum tongue weight of 350 lb (159 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools include: ratchet, torque wrench, sockets (10mm, 14mm, 17mm, 11/16"), 6" socket extension, Phillips screwdriver, flat head screwdriver, plastic rivet gun, tape measure, utility knife, marker, plastic trim tools, silicone sealant, blue thread locker, and exhaust removal pliers. Silicone sealant and blue thread locker are not included and must be purchased separately.
Yes. Step 4 of the installation requires removing the bumper beam using a 14mm socket with extension to remove (2) M10 flange hex nuts and (4) M10 hex bolts. If equipped, disconnect the blind spot monitor wire from the top of the bumper beam. Return the factory hex bolts and bumper beam to the vehicle owner.
Yes. Step 1 requires opening the tailgate and removing the plastic cover near the taillight using a Phillips head screwdriver to remove (2) push-pin rivets. Then use a 10mm socket to remove (2) screws from the taillight and gently pull the taillight rearward. Disconnect the wiring and set the taillight aside. This must be done on both sides.
Yes. Step 3 requires lowering the exhaust using exhaust removal pliers to remove (2) hangers from the exhaust. Make sure the exhaust is properly supported prior to lowering. You will also need to remove the rearmost rubber plug from the frame rail (1 per side) using a flat head screwdriver.
Yes. Step 8 requires trimming the fascia. Locate the center of the fascia and use a tape measure, marker, and utility knife to cut a notch in the bottom of the fascia approximately 8.75" wide by 4.25" tall. Before trimming, ensure the area is clear of all electrical wiring. The manual states that factory rivets cannot be reused; four (4) replacement rivets are supplied (2 required, 2 spare).
All M10-1.25 CL8.8 fasteners must be tightened with a torque wrench to 42 lb-ft (57 N*m).
All 7/16-14 fasteners must be tightened with a torque wrench to 50 lb-ft (68 N*m).
The (2) M12 fastener assemblies that attach the receiver housing to the hitch must be torqued to 92 lb-ft (125 N*m).
Yes. Step 6 states: "Apply blue thread locker to all fasteners." Blue thread locker is not included and must be purchased separately.
Yes. Step 5 requires applying silicone sealant to both hitch bracket mounting surfaces. Silicone sealant is not included and must be purchased separately.
The fastener kit 76927F includes: (2) 7/16-14 x 1.50" Grade 5 carriage bolts, (2) 0.106" x 0.88" x 2" spacers, (2) 7/16" flat washers, (2) 7/16" lock washers, (2) 7/16-14 hex nuts, (2) 7/16-14 wire pulls, (4) M10x1.25x35 CL8.8 hex bolts, (6) 3/8" conical washers, (2) M10-1.25 hex nuts, and (4) plastic rivets (2 required, 2 spare). Additionally, (2) M12x1.75x100mm CL10.9 bolts, (2) 7/16" flat washers, and (2) M12x1.75 CL10 prevailing torque nuts are included for receiver housing installation.
The factory rivets cannot be reused. Four (4) replacement plastic rivets are supplied with the kit: (2) are required for reinstallation, and (2) are spare. Use the original push-pin rivets removed in step 2 to reinstall the fascia, then use a plastic rivet gun to install (1) new rivet at the rear wheel well location.
The installation sequence is: (1) Remove taillights, (2) Remove fascia, (3) Lower exhaust and remove frame plug, (4) Remove bumper beam, (5) Apply silicone sealant to hitch bracket mounting surfaces, (6) Install hitch with blue thread locker on all fasteners, (7) Tighten all fasteners to specified torque values, (8) Trim fascia with a notch approximately 8.75" wide by 4.25" tall, (9) Reinstall fascia, exhaust, and taillights with all wiring reconnected.

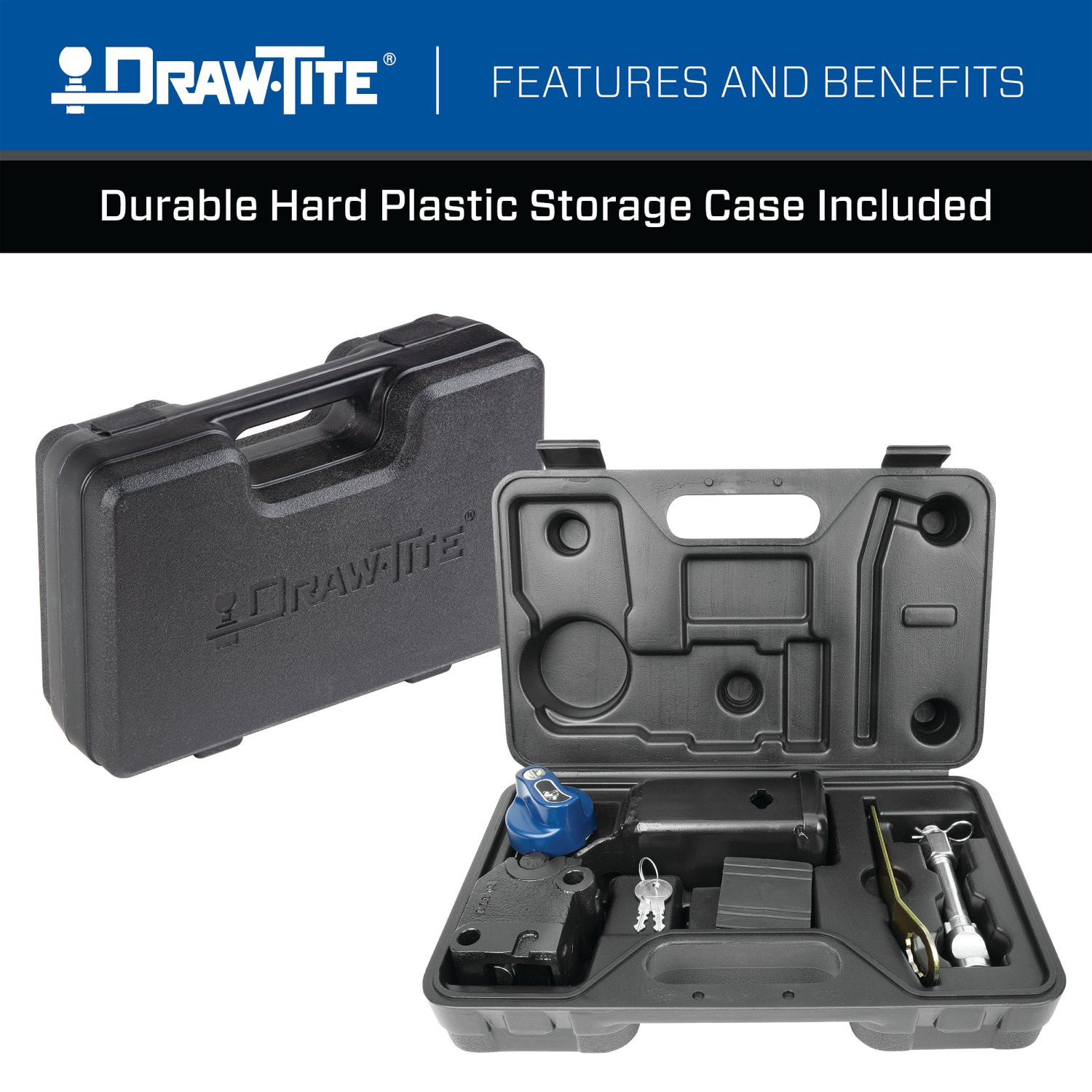

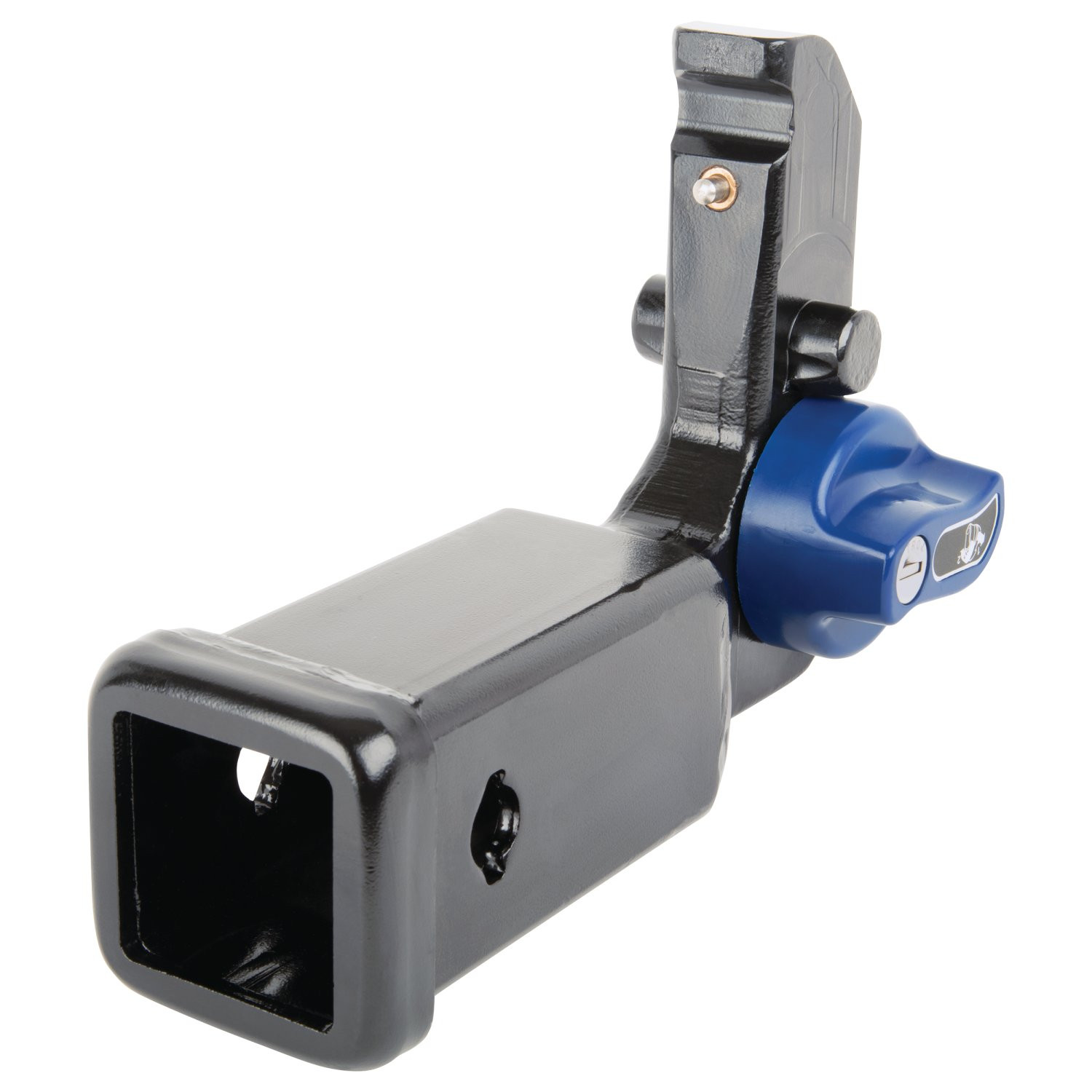

First, remove the receiver assembly from the case. Remove the receiver from the receiver housing by using the key to unlock the blue knob, pushing it in, and rotating clockwise until you hear a click. Install the weather covers to the top and bottom of the receiver housing. Attach the receiver housing to the hitch by inserting it between the hitch brackets, aligning with holes, and inserting (2) fastener assemblies (M12 bolt, flat washer, and prevailing torque nut). Torque each fastener to 92 lb-ft (125 N*m). Apply (1) label to the top of the receiver and (1) label to the vehicle door jamb. Keep the included card in the vehicle glove compartment.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Make sure the exhaust is properly supported before lowering it. Before trimming the fascia, ensure the area is clear of all electrical wiring.
Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch rating (3,500 lb maximum gross trailer weight, 350 lb maximum tongue weight). Always wear your seatbelt. Slow down when towing and never exceed posted speed limits. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval but emphasizes periodic checking to maintain secure mounting during towing.
The 76927 is designed for Subaru Forester models. Verify your specific year and trim level at www.horizonglobal.com or call 800-632-3290.
Maximum gross trailer weight: 3,500 lb (1,589 kg). Maximum tongue weight: 350 lb (159 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Torque wrench, socket set (10mm, 14mm, 17mm, 11/16"), ratchet, screwdrivers (Phillips and flat head), plastic trim tools, utility knife, tape measure, marker, plastic rivet gun, exhaust removal pliers. You must also purchase silicone sealant and blue thread locker separately.
Yes. Installation requires removing the bumper beam, taillights, fascia, and lowering the exhaust. These components must be reinstalled after hitch installation.
Yes. You must cut a notch in the fascia approximately 8.75" wide by 4.25" tall. Ensure the area is clear of electrical wiring before cutting.
M10-1.25 CL8.8 fasteners: 42 lb-ft (57 N*m). 7/16-14 fasteners: 50 lb-ft (68 N*m). Receiver housing M12 fasteners: 92 lb-ft (125 N*m).
Yes. Apply blue thread locker to all fasteners and silicone sealant to hitch bracket mounting surfaces. Both items are sold separately and not included.
Load trailer heavier in front. Do not exceed 3,500 lb gross trailer weight or 350 lb tongue weight. Always wear seatbelt. Slow down when towing. If excess sway occurs, ease off gas and hold steering wheel steady; do not brake or accelerate.
Check frequently that all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
The T-Connector (part 118467-037) is designed for 2009-2013 Forester, 2010-2019 Outback, 2014-Current Forester, XV Crosstrek, and 2020-Current Outback models. Locate your vehicle model and year in the installation instructions to confirm fitment and identify the location of your vehicle's tow plug housing.
The T-Connector is a harness that connects to your vehicle's factory tow plug to provide trailer lighting connections. It includes a black box mounted on the driver's side and a 4-Flat connector that can be stored in the spare tire compartment when not in use.
You will need a Trim Panel Remover and a Test-probe. The Trim Panel Remover is used to access the tow plug housing behind trim panels on certain models, and the Test-probe is used to verify the installation after completion.
Open the vehicle's rear tailgate and remove cargo nets and cargo floor hatch to access the spare tire area. Remove the driver's side and center foam cargo trays to locate the tow plug housing under the driver's side foam tray.
Open the vehicle's rear tailgate and remove cargo nets and cargo floor hatch. Locate the vehicle's tow plug housing behind the driver's side trim panel. It will be taped to the wire harness with blue tape. Use a Trim Panel Remover to access it.
Open the vehicle's rear tailgate and remove cargo nets and cargo floor hatch. Locate the vehicle's tow plug housing behind the driver's side trim panel. It will be taped to the wire harness with tape. Use a Trim Panel Remover to access it.
Open the vehicle's rear tailgate and remove cargo nets and cargo floor hatch. Temporarily remove the rear threshold plate. Locate the vehicle's tow plug on the passenger side under the rear threshold plate. It will be taped to the harness with tape.
Insert the T-Connector harness into the vehicle's Tow-Plug harness and lock into place. Ensure that the connectors are fully inserted with locking tabs in place. All connections must be complete for the T-Connector to function properly.
On the driver's side, mount the T-Connector black box using the double-sided tape provided. Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling, being careful to avoid any areas that would cut or pinch the wire.
Store the 4-Flat connector in the spare tire compartment when not in use.
Do not exceed the lower of your vehicle manufacturer's rating or these limits: maximum stop/turn light is 1 per side (2.1 amps), and maximum tail lights are 5.6 amps. Overloading the circuit can cause fires. Read your vehicle's owner's manual and instruction sheet for additional information.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition and reinserting it. All connections must be complete for the T-Connector to function properly.
The T-Connector (118467-037) fits 2009-2013 Forester, 2010-2019 Outback, 2014-Current Forester, XV Crosstrek, and 2020-Current Outback.
You need a Trim Panel Remover and a Test-probe.
Do not exceed 2.1 amps per stop/turn light (1 per side) or 5.6 amps for tail lights, whichever is lower than your vehicle manufacturer's rating. Overloading can cause fires.
No drilling or permanent modifications are required. The T-Connector connects to your vehicle's factory tow plug and is mounted using provided double-sided tape and cable ties.
