Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2020 - 2024 Cadillac XT5
Confirmed to Fit
Always the correct part
We know our products
Always the correct part
We know our products
Quality Products
Free Shipping!
Quality Products
Free Shipping!
On Sale Today
Original price was $352.50. Current price is $261.94.You save $90.56 (26%)
Free Shipping
Ships free on all orders
Authorized Dealer
FREE ShippingFREE SHIPPING
Estimated delivery Thu, Sep 17 - Sun, Sep 20
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout

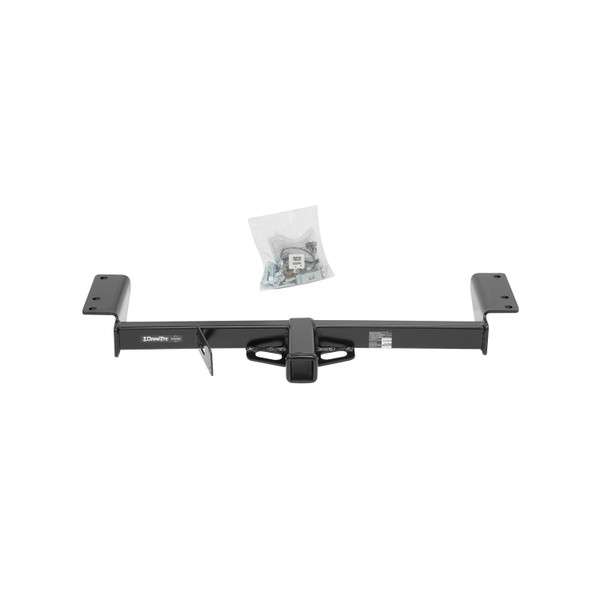

These durable custom hitches are manufactured for 2017-2023 Cadillac XT5 and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2024 | Cadillac XT5 | — |

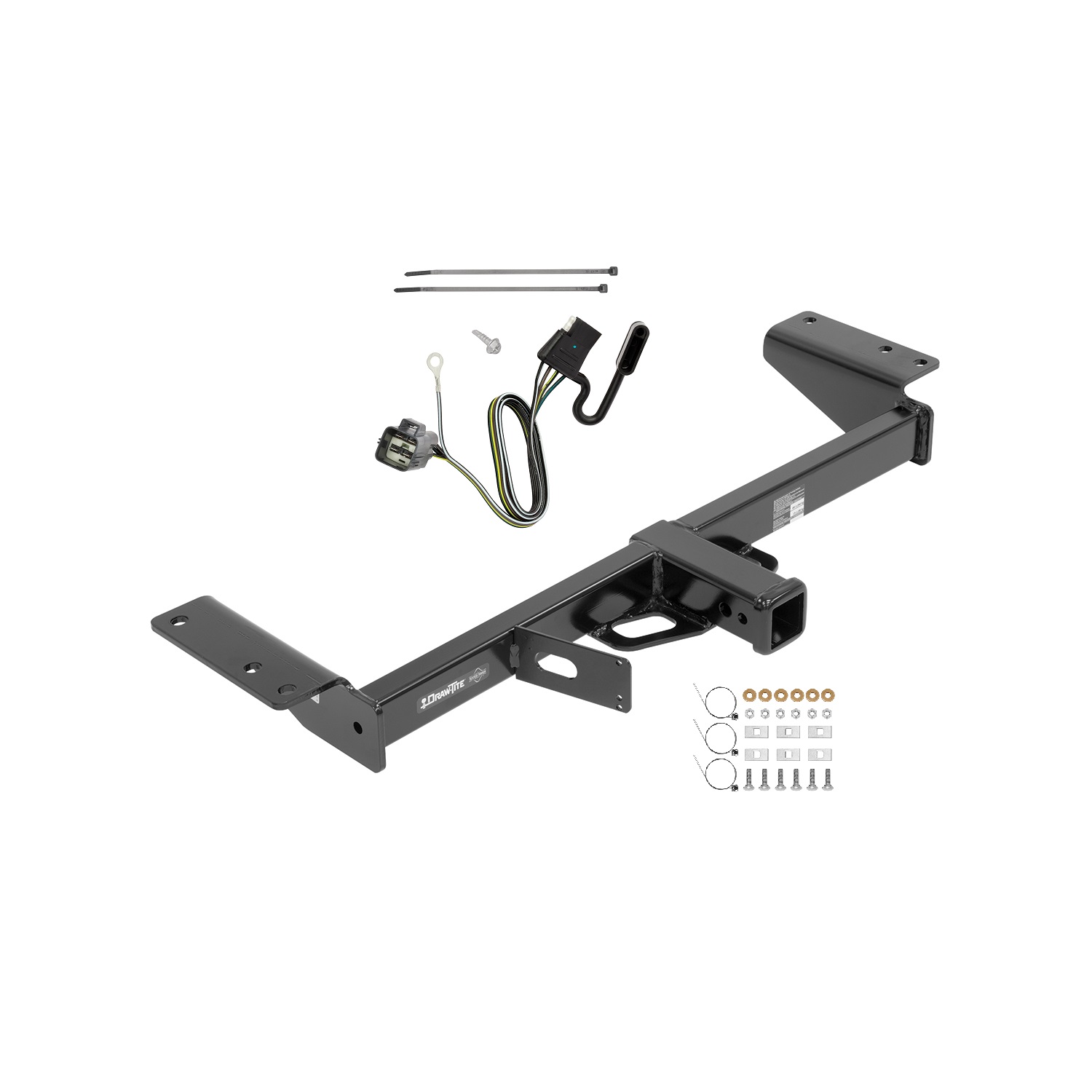

The 2020-2024 Cadillac XT5 Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76022-2-118720) fits 2020-2024 Cadillac XT5 models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2020-2024 Cadillac XT5 Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76022-2-118720) fits the following vehicles: 2020-2024 Cadillac XT5. Always verify your specific year, make, and model before ordering.
Yes, the 2020-2024 Cadillac XT5 Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76022-2-118720) is designed to fit the 2020-2024 Cadillac XT5.
The 2020-2024 Cadillac XT5 Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76022-2-118720) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 76022 is designed for 2017-current Cadillac XT5 models. For the most up-to-date information regarding specific application years and trim levels, visit the Cequent website at www.cequentgroup.com.
The 76022 has a maximum gross trailer weight of 4500 lb. (2043 kg) and a maximum tongue weight of 675 lb. (306 kg) for both weight-carrying and weight-distributing applications. However, you must not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You will need: a ratchet, a torque wrench, safety glasses, a 7 mm socket, an 11/16" socket, a 6" socket extension, and a die grinder (to enlarge the frame rail feeding hole if necessary).

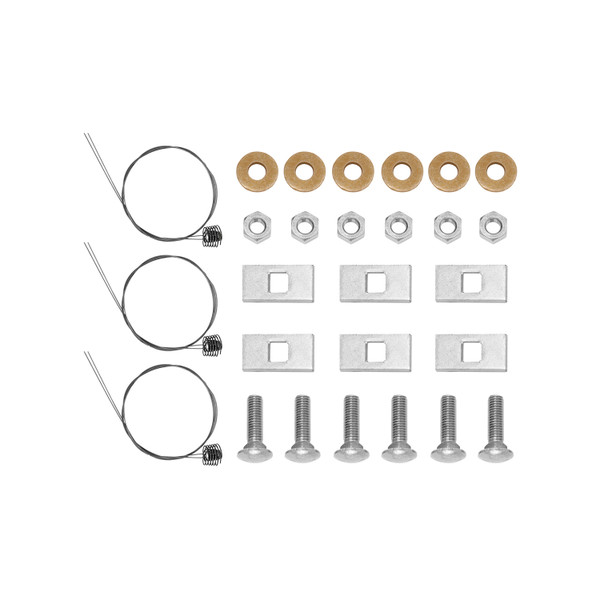

The fastener kit (76022F) includes: 6 carriage bolts (1/2"-13 x 1.75, GR5), 6 spacers (.250 x 1.00 x 2.00), 6 conical washers (1/2"), 6 hex nuts (1/2"-13, GR5), and 6 pull wires (1/2").
Yes. The first installation step is to remove the fascia door using a 7 mm socket to remove 2 bolts. Keep the fasteners and door for reinstallation.
A die grinder may be needed to enlarge the frame rail feeding hole if the carriage bolts and spacers cannot be fed through the largest round hole of the frame rails. The manual states: "Use a die grinder to enlarge the feeding hole if necessary."
All 1/2" fasteners must be tightened to 75 Lb.-Ft. (102 N·M). Proper torque is essential to keep the hitch secure to the vehicle when towing.
The conical washer teeth side must be positioned against the hitch. This is shown in Figure 1 of the installation instructions.
Insert the pull wires from the largest round hole of the frame rails, then use them to feed the carriage bolts and spacers into the frame rails. Kink the pull wire to keep the spacer independent of the bolt. Leave the pull wires attached while raising the hitch into position and feeding the carriage bolts through the bracket holes. Remove the pull wires after the bolts are in place, then loosely install the hex nuts and conical washers.
Leave the hex nuts and conical washers loosely installed after feeding the carriage bolts through the bracket holes. Tighten all 1/2" fasteners to 75 Lb.-Ft. (102 N·M) only after the hitch is fully positioned.
No. The manual states: "Reinstall the fascia door back when not towing." The fascia door should be reinstalled whenever the hitch is not in use.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps with stability and control when towing.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual emphasizes periodic inspection to ensure the hitch remains securely mounted to your vehicle.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
The average installation time is 20 minutes for professional installers. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
The 76022 is covered by a Limited Lifetime Warranty from Cequent Performance Products, Inc. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are installed, maintained and used in accordance with the instructions. For warranty claims, contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290, or TechnicalSupport@cequentgroup.com.
Yes, the 76022 is designed for 2017-current Cadillac XT5 models.
Maximum gross trailer weight: 4500 lb. (2043 kg). Maximum tongue weight: 675 lb. (306 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Ratchet, torque wrench, safety glasses, 7 mm socket, 11/16" socket, 6" socket extension, and die grinder (if needed to enlarge the frame rail hole).
A die grinder may be needed to enlarge the frame rail feeding hole if the carriage bolts and spacers cannot pass through the largest round hole.
All 1/2" fasteners must be tightened to 75 Lb.-Ft. (102 N·M).
Yes, the fascia door must be removed first using a 7 mm socket to remove 2 bolts. Keep the fasteners and door for reinstallation.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened.

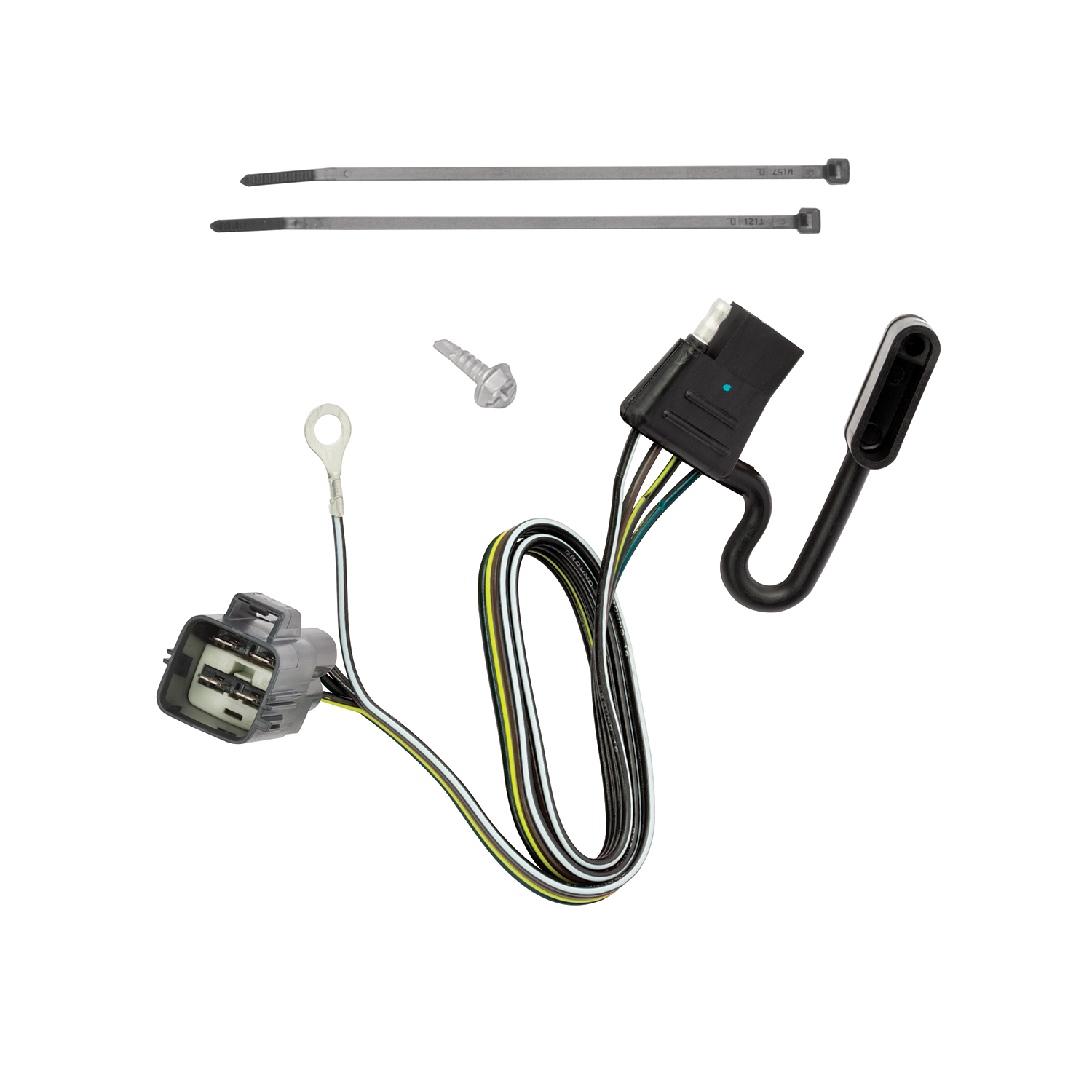

Yes, this T-Connector is designed for the Cadillac XT5. The installation accesses the grey 4-pin connector located behind the rear bumper access cover.
You need a 7 mm socket or wrench, a trim panel puller, and a test-probe. A bracket or electrical box (not included) is also required to mount the 4-flat end in an accessible location.
The grey 4-pin connector is located behind the access cover in the rear bumper area of the vehicle. You access it by removing the two bolts holding the access cover with a 7 mm socket or wrench.
First, remove the factory tow harness protective cap and clean the mating surface if necessary. Insert the 4-pin tow plug adapter into the grey 4-pin connector and lock it into place. Ensure the connectors are fully inserted with the locking tabs in place.
Secure the remainder of the T-Connector harness with the cable ties provided. Be careful to avoid any areas that would pinch, cut or melt the wire, and prevent damage or rattling.
Mount the 4-flat end in an accessible location using a bracket or electrical box (not included with the product). The manual does not specify exact mounting location details.
Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Do not exceed the lower of two ratings: the towing manufacturing rating stated in your vehicle owner's manual, or the specific amperage ratings stated on the product itself. Overloading circuits can cause fires.
All connections must be complete for the T-One T-Connector to function properly. Incomplete connections may result in improper operation or electrical hazards.
Yes. Before inserting the 4-pin tow plug adapter, remove the factory tow harness protective cap and check that the mating surface is clean and free of dirt. Clean it if necessary.
Carefully remove the access cover and set it aside during installation. After completing all other installation steps, replace the cover.
Always wear safety glasses and use all safety precautions during installation. Read and follow all warnings and instructions included with the product and in your vehicle's owner's manual before beginning.
