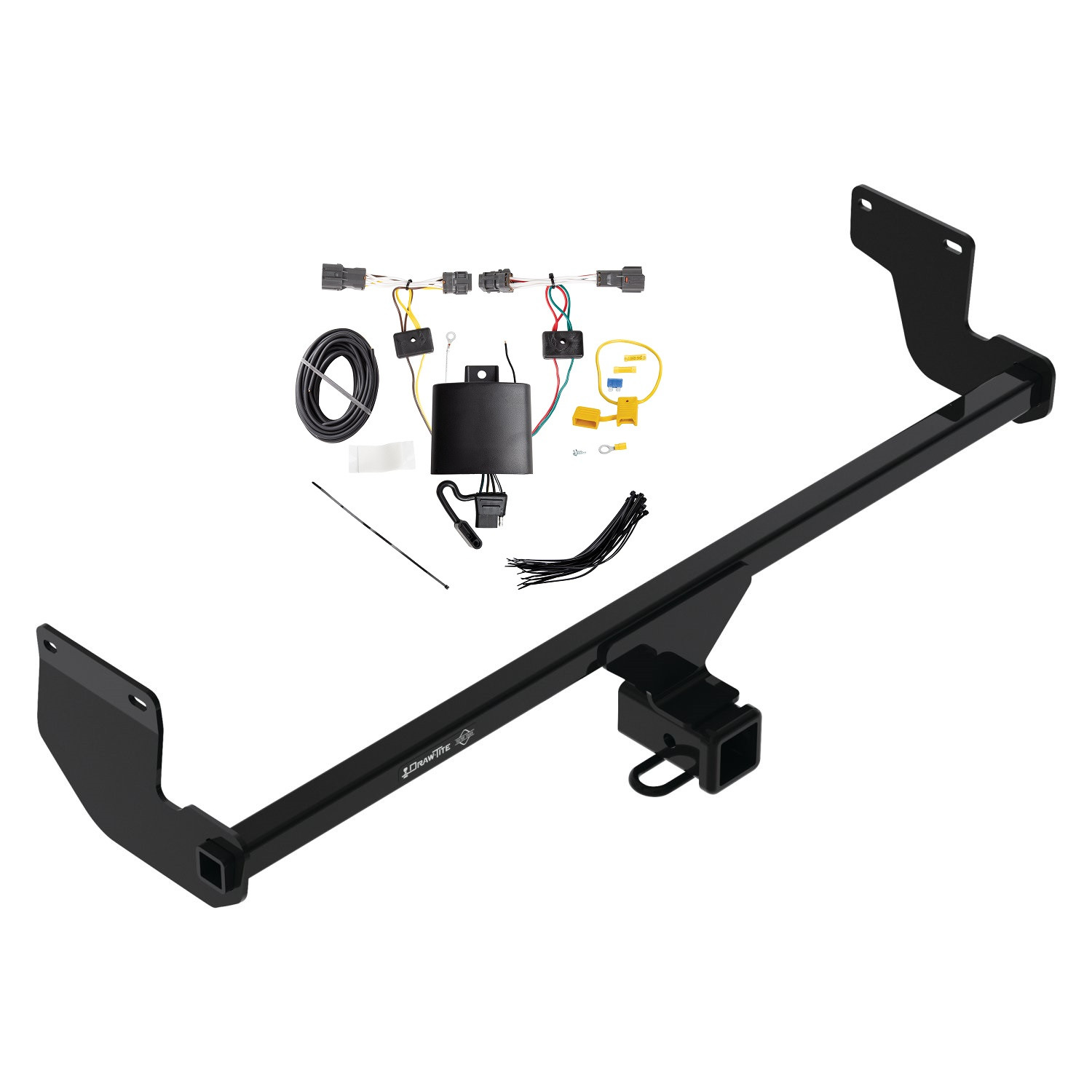

These durable custom hitches are manufactured for 2020-2023 KIA Soul and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2023 | Kia Soul | Except GT Turbo & EV |
The 2020-2023 KIA Soul Except GT Turbo & EV Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76591-118813) fits 2020-2023 Kia Soul models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2020-2023 KIA Soul Except GT Turbo & EV Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76591-118813) fits the following vehicles: 2020-2023 Kia Soul. Always verify your specific year, make, and model before ordering.
Yes, the 2020-2023 KIA Soul Except GT Turbo & EV Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76591-118813) is designed to fit the 2020-2023 Kia Soul.
The 2020-2023 KIA Soul Except GT Turbo & EV Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76591-118813) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 76591, 84591, and CQT76591 are designed for 2020-current Kia Soul models. Visit the Horizon Global website for the most up-to-date information regarding specific application years and trim levels.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 300 lb (136 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
No. The 76591 is a weight-carrying hitch only. Weight-distributing capability is marked as not available (X) in the product specifications.
The fastener kit 76591F includes (4) M10 × 1.25 × 30 CL8.8 bolts and (4) conical washers 7/16". These are the only fasteners supplied and are used to attach the hitch to the vehicle frame.
Required tools include: Phillips screwdriver, flat head screwdriver, exhaust hanger removal tool (pliers), tape measure, marker, utility knife, wire brush, 17mm sockets, socket extensions, ratchet wrench, torque wrench, and safety glasses. A die grinder is listed in the equipment section but its necessity is not explicitly stated.
Yes. You must lower the vehicle exhaust by removing the rearmost driver side and rearmost passenger side rubber hangers using an exhaust hanger removal tool. Be sure the exhaust is supported before removing the hangers. Spray lubricant or soapy water on the rubber hangers makes them slide off the metal pins more easily.
Yes. Using a Phillips screwdriver and flat head screwdriver, remove (2) push pin rivets and (2) screws from the plastic panel near the wheel well on both sides before installing the hitch.
Yes. Using a tape measure, marker, and utility knife, you must measure, mark, and trim the lower fascia. The trim dimensions are 1" from the top and 5½" from the rear, measured from the bottom view of the lower fascia as shown in Figure 2.
No drilling is required. The hitch uses existing weldnuts in the vehicle frame. However, it may be necessary to clean debris from existing weldnuts using a wire brush before installation.
1. Remove wheel well trim (both sides). 2. Lower vehicle exhaust by removing rubber hangers. 3. Trim lower fascia to dimensions shown in Figure 2. 4. Raise hitch into position, raising passenger side bracket first around exhaust, then driver side. Loosely install (4) M10 bolts and conical washers. 5. Tighten all fasteners to specification. 6. Reinstall exhaust and wheel well trim.
The M10 bolts should be loosely installed first (Step 4), then tightened to specification in Step 5. This allows proper positioning of the hitch before final tightening.
All M10 CL8.8 fasteners must be tightened to 42 Lb.-Ft. (57 N·M) using a torque wrench. Proper torque is needed to keep the hitch secure to the vehicle when towing.
Raise the passenger side bracket first around the exhaust, then raise the driver side into position. This sequence prevents interference with the lowered exhaust.
Always wear safety glasses during installation. Observe safety precautions when working beneath the vehicle. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. Verify that the ball is properly tightened. Check the hitch frequently to ensure all fasteners and the ball remain properly tightened.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is required to ensure the hitch remains securely mounted during towing.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Reduce speed and maintain steady steering control.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability when towing.
A hitch or ball which has been damaged should be removed and replaced. Do not continue towing with a damaged hitch or ball.
Yes, part numbers 76591, 84591, and CQT76591 fit 2020-current Kia Soul. Check the Horizon Global website for the most current trim-level information.
Maximum 2000 lb (908 kg) gross trailer weight and 300 lb (136 kg) tongue weight. Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Fastener kit 76591F includes (4) M10 × 1.25 × 30 CL8.8 bolts and (4) conical 7/16" washers.
No. The hitch uses existing weldnuts in the vehicle frame. Trimming of the lower fascia is required (1" × 5½"), but no drilling.
Yes. Remove the rearmost driver and passenger side rubber exhaust hangers and support the exhaust before installation.
Tighten all M10 CL8.8 fasteners to 42 Lb.-Ft. (57 N·M) using a torque wrench.
Always wear safety glasses during installation. Observe safety precautions when working beneath the vehicle.
Verify all fasteners are tight and the hitch is securely mounted. Check frequently during use to ensure fasteners remain tight.
It may be necessary to clean debris from existing weldnuts in the frame using a wire brush. This will allow the bolts to engage properly with the weldnuts.
Apply spray lubricant or soapy water to the rubber hangers. This will make them slide off the metal pins more easily. Allow the lubricant to soak for a moment before attempting removal.
The manual shows installation on a Kia Soul. The manual does not list other compatible vehicles. Contact the manufacturer or check the product packaging to confirm fitment for your specific vehicle make, model, and year before purchasing.

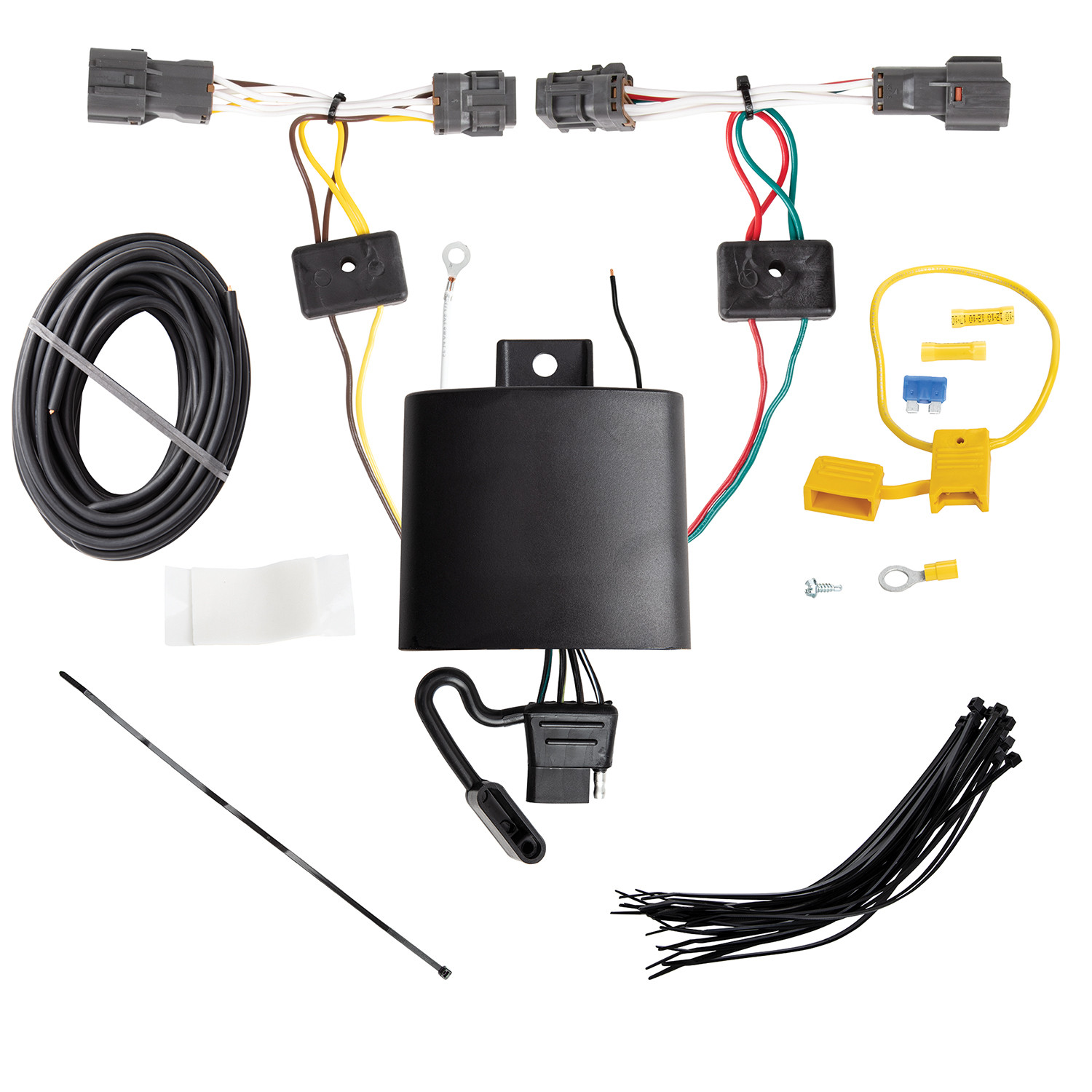

The kit includes: two T-Connector ends (one with yellow wire, one with green wire), a black box-module, a 4-flat connector end, white ground wire with eyelet and screw, black 12 ga. wire, red wire, yellow butt connectors, yellow fuse holder with 10 amp fuse, ring terminal, and cable ties. A bracket or electrical box for mounting the 4-flat end is not included.
You will need: a trim panel remover, a drill with a 3/32" drill bit, a Phillips head screwdriver, and a test probe. Safety glasses are also required.
Yes. You must disconnect the vehicle's negative (−) battery cable before connecting the fuse holder to the positive battery terminal. This is done in step 8. After all connections are complete, you reconnect the negative battery cable in step 9.
Yes. You must drill a 3/32" hole to secure the white ground wire using the eyelet and screw provided. The hole must be drilled near a suitable grounding point after cleaning dirt and rustproofing from the area. Do not drill into the vehicle floor, bed, or any exposed surfaces. Always verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury.
1. Remove the four screws from each taillight housing and carefully pull the taillight away without damaging the alignment pins. 2. Locate the vehicle's taillight wiring harness connector on both driver and passenger sides. 3. On the driver's side, insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock into place, ensuring connectors are fully inserted with locking tabs engaged. 4. On the passenger's side, repeat with the T-Connector end containing the green wire. Ensure all connector surfaces are clean and free of dirt before connecting.
Route the harness containing the green wire and the 4-flat connector down the opening behind the taillight on the driver's side. Route the harness containing the green wire underneath the vehicle and up through the opening behind the passenger's side taillight. The 4-flat connector should be routed toward the center of the vehicle. Secure the remainder of the harness with the provided cable ties, being careful to avoid areas that would pinch, cut, or melt the wire.
Locate a suitable grounding point near the connector. Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the eyelet and screw provided. Do not drill into the vehicle floor, bed, or any exposed surfaces.
From inside the vehicle, connect the black 12 ga. wire and the red wire from the T-Connector black box using the supplied yellow butt connector. Route the black wire either through a grommet and along the exterior frame, or follow the existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior, avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
Disconnect the vehicle's negative (−) battery cable. Remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided. After all connections are complete, reconnect the negative battery cable and install the 10 amp fuse into the fuse holder.
The T-Connector uses a 10 amp fuse. The fuse is installed in the yellow fuse holder after all other connections are complete and the negative battery cable is reconnected.
Mount the black box-module on a flat surface in an out-of-the-way place to prevent damage or rattling. The location should be secure and protected from impact.
Mount the 4-flat end in an accessible location using a bracket or electrical box. A bracket or electrical box is not included with the kit and must be purchased separately.
All connections must be complete before testing. Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. This ensures all connections are functioning properly.
Do not exceed the lower of the towing manufacturer rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. The manual references product ratings but does not list the specific amperage value. Check the product label or contact the manufacturer for the exact amperage rating.
Always wear safety glasses and use all safety precautions during installation. Read and follow all warnings and cautions printed on the tow vehicle's battery. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into the vehicle floor, bed, or exposed surfaces. When routing wires, avoid hot pipes, heat shields, the fuel tank, or any points that may pinch or break the wire. Overloading circuits can cause fires—do not exceed stated product ratings.
You need to remove the taillight housing enough to access the wiring connector. Open the rear lift gate, remove four screws from each taillight, and carefully pull the taillight away from the vehicle without damaging the alignment pins. After connecting the T-Connector, reinstall the taillight housing, positioning the vehicle wiring harness between the housing and the vehicle body.
The manual confirms installation on a Kia Soul. For other vehicles, contact the manufacturer or check the product packaging to verify compatibility before purchasing.
Trim panel remover, drill with 3/32" bit, Phillips head screwdriver, test probe, and safety glasses.
Yes, a 3/32" hole must be drilled to secure the ground wire. Do not drill into the vehicle floor, bed, or exposed surfaces.
Yes, disconnect the negative battery cable before connecting to the positive terminal. Reconnect after all connections are complete and before installing the 10 amp fuse.
Test with a test light or trailer after all connections are complete. Reset the vehicle electrical system by temporarily removing the ignition key.
