These durable custom hitches are manufactured for 2022-2023 Acura MDX and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 4 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2024 | Acura MDX | — |

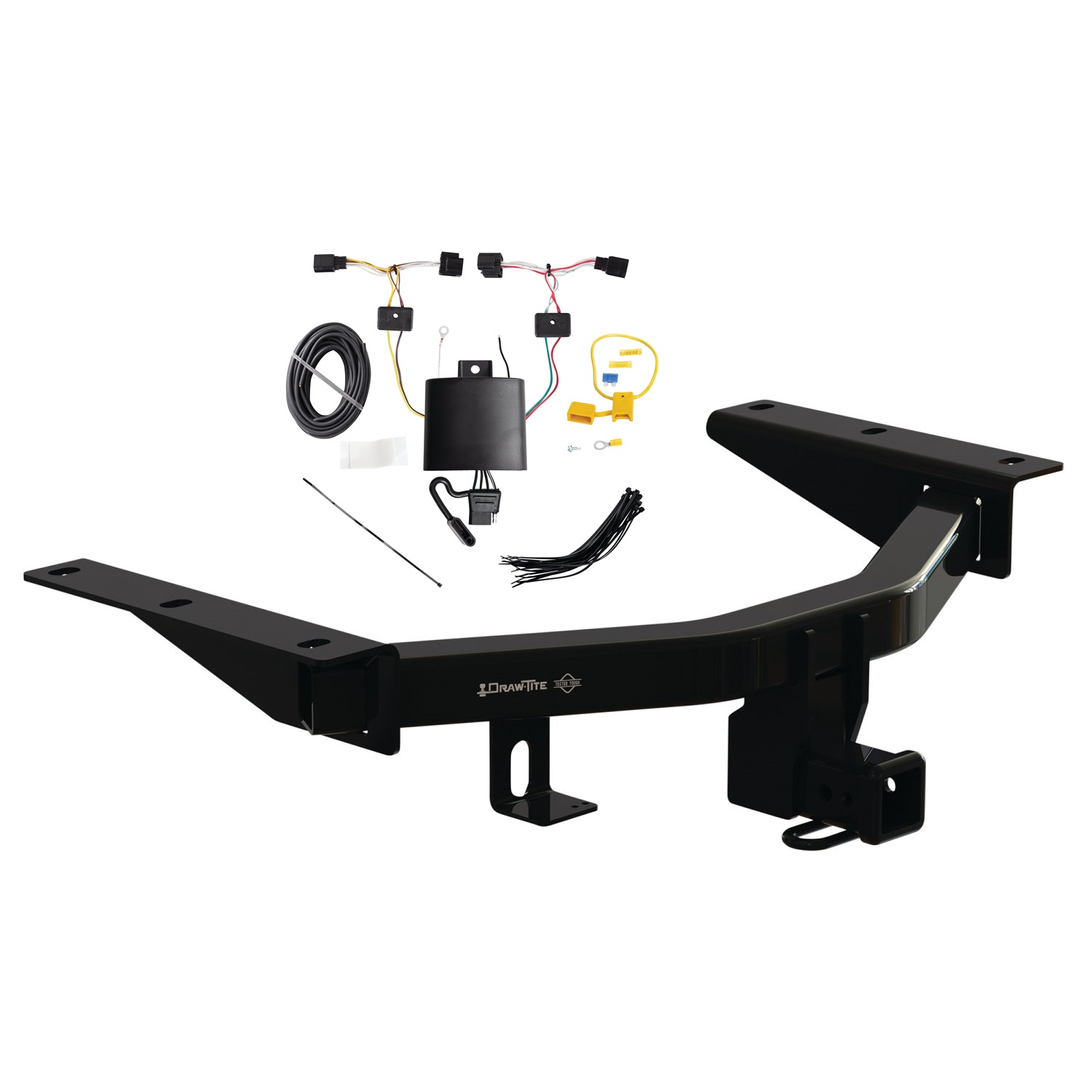

Yes, the 2022-2024 Acura MDX Draw-Tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76453-118839) is designed to fit the 2022-2024 Acura MDX.
The 2022-2024 Acura MDX Draw-Tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76453-118839) fits the following vehicles: 2022-2024 Acura MDX. Always verify your specific year, make, and model before ordering.
The 2022-2024 Acura MDX Draw-Tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76453-118839) fits 2022-2024 Acura MDX models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2022-2024 Acura MDX Draw-Tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76453-118839) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 76453 hitch is designed for 2022-current Acura MDX models. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
No. The hitch does not fit with a full-size spare tire. The spare tire must be lowered during installation and raised afterward, and you must verify that the spare tire will not interfere with the hitch after installation.
The 76453 is a weight-carrying hitch with a maximum gross trailer weight of 6000 lb. (2722 kg) and a maximum tongue weight of 900 lb. (408 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need: a ratchet, a torque wrench, a 22 mm socket, a socket extension, a flat-head screwdriver, a hack saw, an M14 x 1.50 tap, and safety glasses. The manual notes that if you do not feel comfortable performing the installation yourself, you should contact a professional installer.
The fastener kit 76453F includes 6 M14 x 1.50 x 45 CL10.9 bolts and 6 conical washers (5/8 inch). These fasteners attach the hitch to the vehicle's weldnuts.
The manual does not specify that the battery must be disconnected. However, the manual recommends contacting a professional installer if you do not feel comfortable performing the installation yourself.
No drilling is required. The hitch uses existing weldnuts on the vehicle frame. However, you must trim the bottom center of the fascia using a hack saw. The trim is 3.50 inches from the centerline of the fascia and extends 4.00 inches along the edge.
Using a hack saw, trim the bottom center of the fascia 3.50 inches from the centerline of the fascia and 4.00 inches along the edge of the fascia, as shown in Figure 2 of the installation instructions.
All M14 CL10.9 fasteners must be tightened with a torque wrench to 148 Lb.-Ft. (201 N·M). Proper torque is essential to keep the hitch securely mounted to the vehicle when towing.
1. Lower the spare tire using tools under the storage compartment. 2. Trim the bottom center of the fascia with a hack saw. 3. Using a tap, remove paint and debris from the weldnuts on both sides. Raise the hitch into position and loosely install the M14 bolts and conical washers into the weldnuts using a 22 mm socket. 4. Tighten all M14 CL10.9 fasteners to 148 Lb.-Ft. (201 N·M) with a torque wrench. 5. Raise the spare tire back into position and verify it does not interfere with the hitch.
The M14 bolts should be loosely installed first using a 22 mm socket. After all bolts are in place, tighten all M14 CL10.9 fasteners to 148 Lb.-Ft. (201 N·M) with a torque wrench.
The conical washer must be installed with the teeth side against the hitch. This orientation is required on all six fasteners.
Always wear safety glasses during installation. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
After installation, verify that the spare tire will not interfere with the hitch. Check the hitch frequently to ensure all fasteners and the ball are properly tightened. All fasteners must be tight and the hitch must be securely mounted to the vehicle.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes that proper torque is needed to keep the hitch secure to the vehicle when towing.
Load the trailer heavier in front. Do not exceed the lower of the towing vehicle manufacturer's rating or the hitch rating (6000 lb. gross trailer weight, 900 lb. tongue weight for weight-carrying). Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
No. Do not cut, weld, or modify the receiver. Doing so may compromise the structural integrity and safety of the hitch.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
Yes, the 76453 is designed for 2022-current Acura MDX models. It does not fit with a full-size spare tire.
Ratchet, torque wrench, 22 mm socket, socket extension, flat-head screwdriver, hack saw, M14 x 1.50 tap, and safety glasses.
No drilling is required. You must trim the fascia with a hack saw (3.50 inches from centerline, 4.00 inches along edge), but the hitch uses existing weldnuts.
All M14 CL10.9 fasteners: 148 Lb.-Ft. (201 N·M).
Weight-carrying hitch: 6000 lb. (2722 kg) max gross trailer weight, 900 lb. (408 kg) max tongue weight. Do not exceed vehicle manufacturer's rating.
Always wear safety glasses during installation. Observe safety precautions when working beneath the vehicle and wear eye protection.
Verify the spare tire does not interfere with the hitch. Check that all fasteners are tight and the hitch is securely mounted. Check frequently during use.
The manual shows this T-Connector is designed for the Acura MDX. The specific model year is not stated in the installation instructions. Verify fitment with the product documentation or manufacturer before purchase.

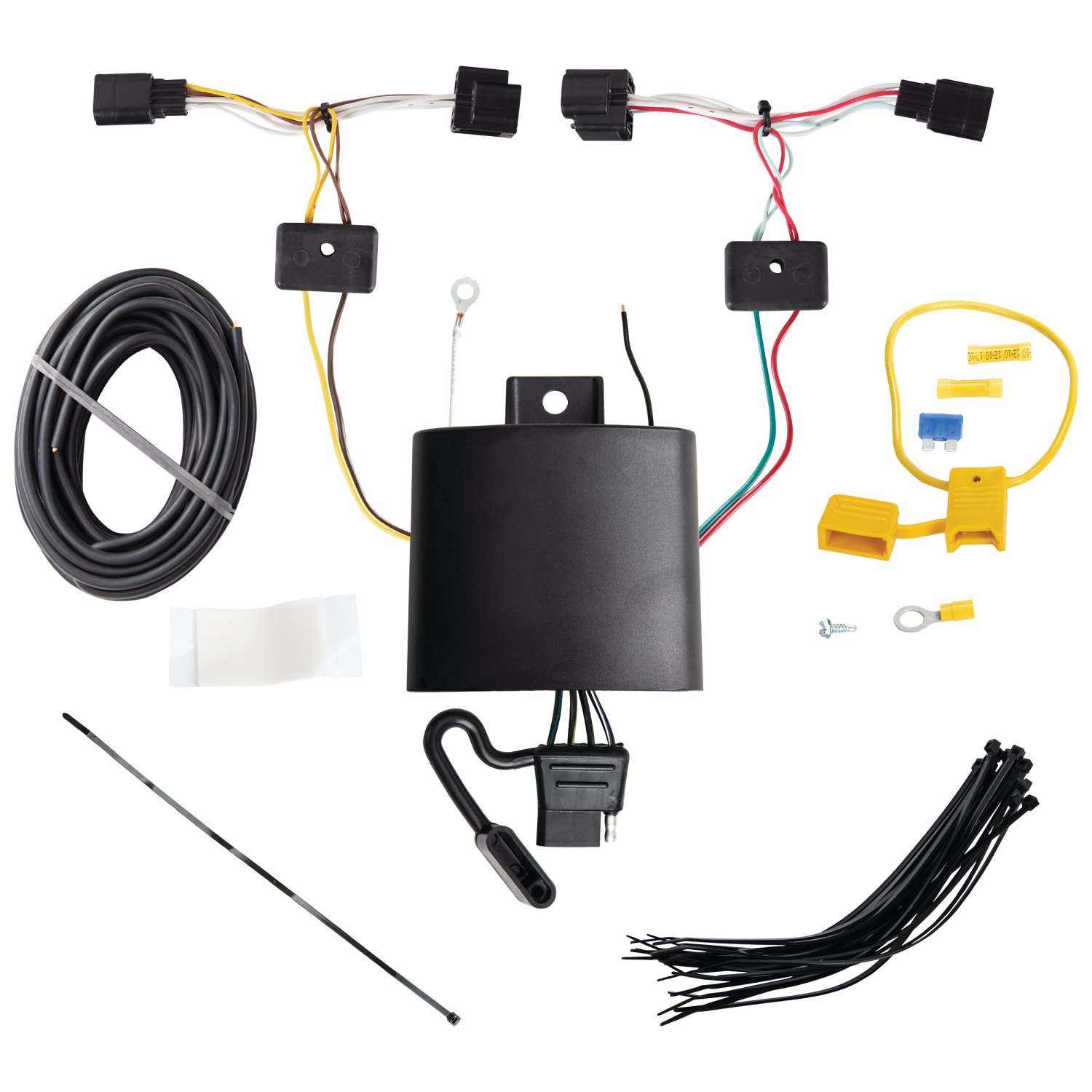

The kit includes the T-Connector black box module, yellow and green wire harnesses with connectors, a white ground wire with eyelet and screw, a yellow fuse holder with 15 amp fuse, yellow butt connectors for wire connections, and double-sided tape for mounting the black box.
Required tools are: trim panel remover, 10 mm socket and ratchet or 10 mm wrench, drill with 3/32" bit, wire crimpers, wire cutters, Phillips head screwdriver, and test probe. Safety glasses are mandatory during installation.
Yes. Disconnect the vehicle's negative (−) battery cable before connecting the power wiring in step 9. Reconnect it only after the fuse holder and all connections are complete in step 12.
Remove the tail light mounting screws and disconnect the vehicle's wiring harness from both tail light sockets. On the driver's side, insert the T-Connector harness with the yellow wire between the vehicle's mating connectors. On the passenger's side, insert the T-Connector end with the green wire between the vehicle's connectors and lock into place. Ensure locking tabs are fully engaged and not damaged.
Mount the black box underneath the vehicle behind the rear bumper fascia on the driver's side using the double-sided tape provided. The epoxy side of the module must point toward the ground to prevent water buildup.
Yes, you must drill one 3/32" hole for the ground wire connection. Locate a suitable grounding point near the connector, such as an existing ground stud, or drill the hole and secure the white wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed. Always verify what is behind the surface before drilling to avoid damage.
Install a 15 amp fuse into the fuse holder. This fuse protects the power circuit. Do not exceed the product's stated amperage rating or the lower of the towing manufacturer's rating (including in your vehicle owner's manual).
Disconnect the vehicle's negative battery cable. Remove the fuse from the yellow fuse holder (if not already removed). Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided. Route the black 12 gauge wire from the front of the vehicle rearward along the frame rail, avoiding hot pipes, heat shields, and the fuel tank. Connect the other end to the black power wire on the T-Connector's black box using the yellow butt connector.
The harness uses yellow, green, white, and black wires. Yellow wire routes to the driver's side tail light connector. Green wire routes to the passenger's side tail light connector. White wire is the ground connection. Black 12 gauge wire carries power from the battery fuse holder to the black box module.
Route the yellow wire harness underneath the vehicle up through the opening between the vehicle bumper and body to the driver's side tail light pocket. Route the green wire harness underneath the vehicle up through the opening between the bumper and body to the passenger's side tail light pocket. Avoid routing wires through hot pipes, heat shields, the fuel tank, or any points that may pinch or break the wire. If routing through a grommet along the exterior, take extra care to avoid these hazards.
Reconnect the vehicle's negative battery cable and install the 15 amp fuse into the fuse holder. Reinstall all trim panels, threshold, storage covers, and floor coverings removed during installation, being careful not to pinch or cut wires. Secure all loose wires and mount the trailer tow harness in an accessible location with a bracket or electrical box. Test and verify the installation with a test light or trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.
Always wear safety glasses. Do not drill into vehicle floor or bed. Verify what is behind any surface before drilling. Do not drill into exposed surfaces. Avoid routing wires near hot pipes, heat shields, or the fuel tank. Do not pinch or cut wires during reinstallation. Do not exceed the product's stated amperage ratings or the lower of the towing manufacturer's rating. Overloading circuits can cause fires. All connections must be complete for proper function. Read and follow all warnings on the vehicle's battery.
Before drilling the 3/32" hole for the ground wire, verify what is behind the surface to avoid damage to the vehicle and personal injury. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before securing the white ground wire with the eyelet and screw.
When inserting the T-Connector harnesses into the vehicle's mating connectors, ensure they are fully inserted with locking tabs in place. Be careful not to damage the locking tabs. All connector surfaces should be clean and free of dirt before connection.
The manual confirms this T-Connector is designed for the Acura MDX. Verify the specific model year with the manufacturer or product documentation before purchase.
You need a trim panel remover, 10 mm socket/ratchet or wrench, drill with 3/32" bit, wire crimpers, wire cutters, Phillips screwdriver, and test probe. Safety glasses are required.
Yes, you must drill one 3/32" hole for the ground wire connection. Verify what is behind the surface before drilling and do not drill into the vehicle floor or bed.
Yes, disconnect the vehicle's negative battery cable before connecting the power wiring. Reconnect it only after all connections are complete.
Install a 15 amp fuse. Do not exceed the product's stated amperage rating or the lower of the towing manufacturer's rating.
Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.
