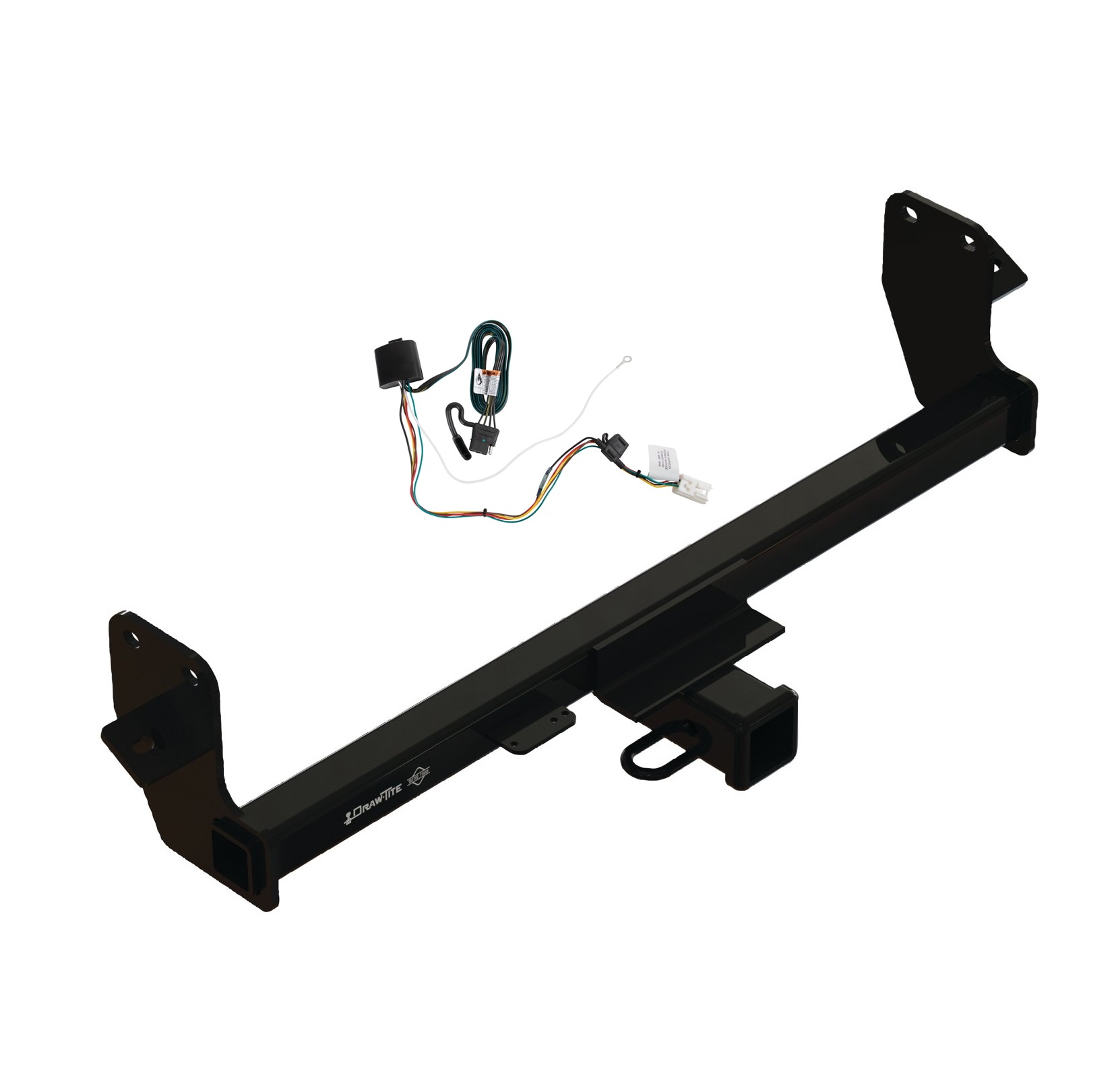

These durable custom hitches are manufactured for 2022-2023 Mitsubishi Eclipse Cross and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2023 | Mitsubishi Eclipse Cross | — |
Yes, the 2022-2023 Mitsubishi Eclipse Cross Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76523-118848) is designed to fit the 2022-2023 Mitsubishi Eclipse Cross.
The 2022-2023 Mitsubishi Eclipse Cross Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76523-118848) fits 2022-2023 Mitsubishi Eclipse Cross models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2022-2023 Mitsubishi Eclipse Cross Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76523-118848) fits the following vehicles: 2022-2023 Mitsubishi Eclipse Cross. Always verify your specific year, make, and model before ordering.
The 2022-2023 Mitsubishi Eclipse Cross Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76523-118848) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 76523, 84523, and CQT76523 are designed for 2022-Current Mitsubishi Eclipse Cross models. Visit www.horizonglobal.com for the most up-to-date information regarding specific application years and trim levels.
The 76523 is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb. (1588 kg) and maximum tongue weight of 525 lb. (238 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You will need: ratchet, torque wrench, safety glasses, 14mm socket, 17mm socket, 3/4" socket, socket extensions, wire brush, and 3/4" wrench. The fastener kit 76523F is also required and includes all bolts, washers, and nuts.
Yes. Using a 14mm socket, remove the two bolts from the tie-down bracket on the rear passenger side of the vehicle. Return the bolts and bracket to the vehicle owner.
No. First, loosely install all fasteners. Using a 3/4" wrench and socket, loosely install the two 1/2" bolts, flat washers, conical washers, and hex nuts on both sides. Using a 17mm socket, loosely install the M10 bolt and 3/8" conical washer on both sides. Only after all fasteners are in place should you tighten them to the specified torque values.
Tighten all 1/2"-13 fasteners to 75 Ft.-Lb. (102 N·M) using a torque wrench.
Tighten all M10 fasteners to 42 Ft.-Lb. (57 N·M) using a torque wrench.
The conical washer teeth side must be oriented against the hitch. This is shown in Figure 1 of the installation instructions.
Use a wire brush to remove paint and debris from the weldnuts before installing the fasteners. This ensures proper contact and secure mounting.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability while towing.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
No. Do not cut, weld, or modify this receiver. Any modifications will compromise the structural integrity and safety of the hitch.
Yes, part numbers 76523, 84523, and CQT76523 fit 2022-Current Mitsubishi Eclipse Cross. Check www.horizonglobal.com for the most current trim level information.
Maximum gross trailer weight: 3500 lb. (1588 kg). Maximum tongue weight: 525 lb. (238 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Fastener kit 76523F includes: four 1/2"-13 x 4.50 GR5 bolts, four 1/2" flat washers, four 1/2" conical washers, four 1/2"-13 GR5 hex nuts, two M10 x 1.25-35 GR8.8 bolts, and two 3/8" conical washers.
Yes. Remove the two bolts from the tie-down bracket on the rear passenger side using a 14mm socket, then return the bolts and bracket to the vehicle owner.
1/2"-13 fasteners: 75 Ft.-Lb. (102 N·M). M10 fasteners: 42 Ft.-Lb. (57 N·M). Use a torque wrench for all final tightening.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.

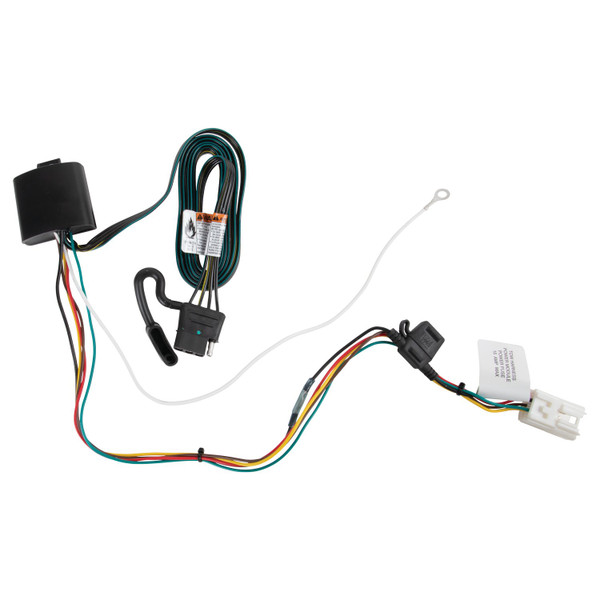

The T-One® Connector is a trailer tow harness adapter that connects to your vehicle's existing tow-plug harness. It includes a black converter box-module and a 4-Flat connector that allows you to connect a trailer to your vehicle's electrical system. The system uses a 15 amp fuse for circuit protection.
Yes, the manual shows the T-One® Connector installed on a Mitsubishi Eclipse Cross. However, the manual does not list other compatible vehicles. Contact the manufacturer or check the product fitment database to confirm compatibility with your specific year and model.
Yes. The T-One® Connector is designed to insert into your vehicle's existing tow-plug harness on the driver's side. If your vehicle does not have a factory tow-plug harness, this product will not work.
You will need: trim panel remover, 10mm socket and ratchet or 10mm wrench, drill with 3/32" drill bit, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. You will also need a 15 amp fuse (to be installed in step 9).
The manual states that an eyelet, screw, cable ties, and a fuse holder are provided. The manual does not list part numbers or quantities for these items. A 15 amp fuse must be installed in step 9.
Yes. You must disconnect the vehicle's negative (−) battery cable before beginning installation. If the fuse has not already been removed from the fuse holder on the T-One® Connector harness, remove it before disconnecting the battery. Reconnect the battery cable and install the 15 amp fuse in step 9, after all other installation steps are complete.
Open the rear hatch and partially remove the plastic threshold cover and cargo trays. Pull back the driver's side trim panel to access the vehicle's wiring in the rear cargo area.
On the driver's side, locate the vehicle's mating tow-plug connector. Insert the T-One® Connector harness into the vehicle's tow-plug harness and lock it into place. The connection is made by inserting the harness; no tools are required for this step.
Mount the black box-module on a flat surface in an out-of-the-way location to prevent damage or rattling. The manual does not specify exact dimensions or clearance requirements for the mounting location.
You should first locate an existing ground stud or point near the connector. If no suitable existing ground point is available, you may drill a 3/32" hole and secure the white wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before securing the ground wire.
Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area where you will drill.
Route the 4-Flat connector from below the driver's side trim panel into the rear storage compartment. If routing the wire through a grommet and along the exterior of the vehicle, carefully avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
Secure the T-One® Connector harness with the cable ties provided to prevent damage, rattling, and to avoid areas that would pinch, cut, or melt the wire. Secure all loose wires and mount the trailer tow harness in an accessible location with a bracket or electrical box.
The T-One® Connector uses a 15 amp fuse. Install this fuse in the fuse holder in step 9, after reconnecting the vehicle's negative battery cable. Do not exceed the stated product ratings or the towing manufacturer rating.
Always wear safety glasses during installation. Read and follow all warnings and cautions printed on the tow vehicle's battery. Do not exceed the stated product ratings or the towing manufacturer rating (whichever is lower). Overloading circuits can cause fires. Read your vehicle's owner's manual and instruction sheet for additional information.
After installation is complete, test and verify the installation with a test light or by connecting a trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-One® Connector to function properly.
Reinstall all plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation, being careful not to pinch or cut the wires. Secure all loose wires and mount the trailer tow harness in an accessible location with a bracket or electrical box. Store the 4-Flat connector in the rear cargo area when not in use.
Store the 4-Flat connector in the rear cargo area of the vehicle when not in use.
The manual confirms fitment for Mitsubishi Eclipse Cross. For other vehicles, verify your vehicle has a factory tow-plug harness and check the product fitment database or contact the manufacturer.
Drilling is required only if no existing ground stud is available. If needed, drill a single 3/32" hole for the ground wire. Do not drill into the vehicle floor or bed.
Do not exceed the lower of the towing manufacturer's rating (in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires.
