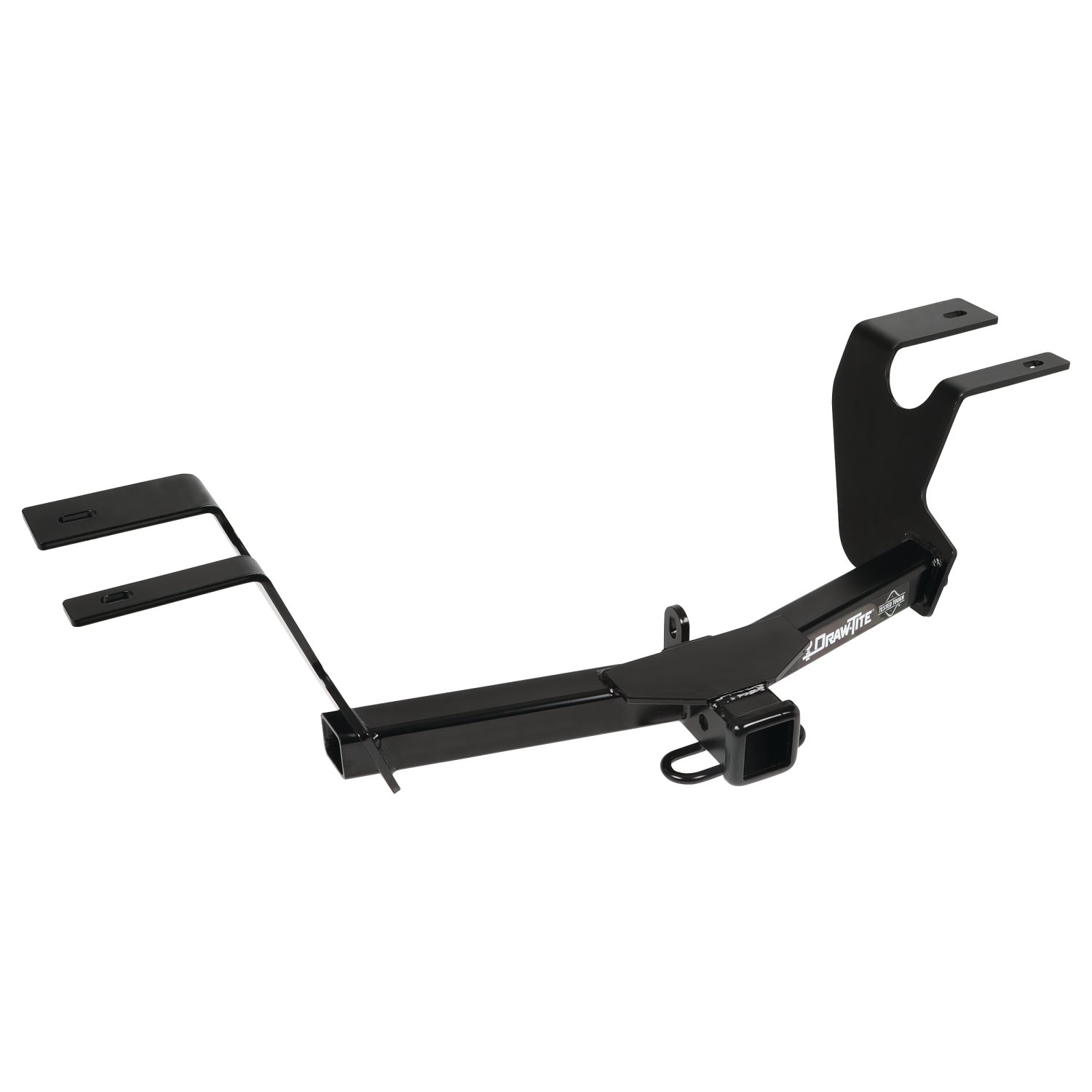

These durable custom hitches are manufactured for 2023-2023 Honda HR-V and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2023 | Honda HR-V | — |

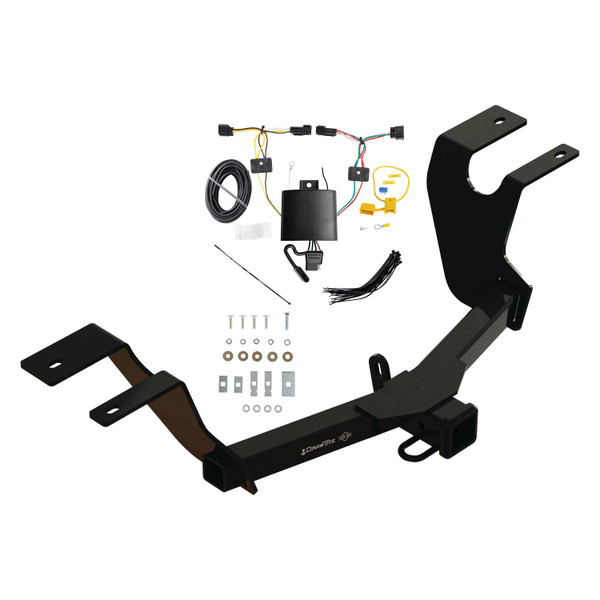

The 2023-2023 Honda HR-V Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76630-118877) fits 2023 Honda HR-V models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2023-2023 Honda HR-V Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76630-118877) is designed to fit the 2023 Honda HR-V.
The 2023-2023 Honda HR-V Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76630-118877) fits the following vehicles: 2023 Honda HR-V. Always verify your specific year, make, and model before ordering.
The 2023-2023 Honda HR-V Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76630-118877) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 76630, 84630, and CQT76630 are designed for 2023-current Honda HR-V models. Visit the Horizon Global website for the most up-to-date information regarding specific trim levels.
Maximum Gross Trailer Weight: 2000 lb (907 kg). Maximum Tongue Weight: 300 lb (136 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, 11/16" sockets, socket extension, die grinder, exhaust removal pliers, masking tape, and soapy water. A torque wrench is essential for proper fastener tightening.
Yes. The exhaust must be lowered before installation. Using exhaust removal pliers, remove the two rubber hangers to lower the exhaust. Ensure the exhaust is supported before removing the hangers. Soapy water or spray lubricant on the rubber hangers makes removal easier. The exhaust is reinstalled after hitch installation.
Yes. A die grinder must be used to enlarge the vehicle frame access holes on each side to fit the carriage bolt and spacers. The access holes are enlarged as needed. Do not use a torch to cut access or attachment holes.
All 7/16" fasteners: 50 Ft.-Lb. (68 N·M). All 1/2" fasteners: 75 Ft.-Lb. (102 N·M). Use a torque wrench to achieve proper torque, which is necessary to keep the hitch secure during towing.
Maximum tongue weight is 300 lb (136 kg). Do not exceed this limit or the lower of your vehicle manufacturer's towing rating.
Check that all fasteners and the ball are properly tightened. Check the hitch frequently to ensure all fasteners remain tight and the hitch is securely mounted to the vehicle. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
Fastener Kit 76630F includes: (4) carriage bolts 7/16"-14 x 1.50" GR5, (2) spacers .250" x .875" x 3", (2) spacers .188" x 1" x 2", (4) flat washers 7/16", (4) conical washers 7/16", (4) hex nuts 7/16"-14 GR2, (4) pull wires 7/16", (1) carriage bolt 1/2"-13 x 2.00" GR5, (1) spacer .250" x 1.50" x 3", (1) conical washer 1/2", and (1) lock nut 1/2"-13.
1. Lower the exhaust using exhaust removal pliers. 2. Enlarge frame access holes with a die grinder on each side. 3. Secure two flat washers to the rearmost attachment points with masking tape. 4. Feed the carriage bolt and spacer through the access hole using pull wires. 5. Reverse the pull wire procedure with the second carriage bolt and spacer in the access hole. 6. Raise the hitch and feed the pull wire through the hitch bracket slot. 7. Remove pull wires and loosely install conical washers and hex nuts. 8. Loosely secure the center bracket to the tow hook with the 1/2" carriage bolt, spacer, conical washer, and nut. 9. Tighten all 7/16" fasteners to 50 Ft.-Lb. (68 N·M). 10. Tighten all 1/2" fasteners to 75 Ft.-Lb. (102 N·M). 11. Reinstall the exhaust.
Pull wires are used to feed the carriage bolts and spacers through the frame access holes. Feed the carriage bolt and spacer (rearmost hole) through the access hole using the pull wires. Then reverse the pull wire procedure to install the carriage bolt and spacer in the other access hole. Leave pull wires attached. After raising the hitch, feed the previously installed pull wire through the hitch bracket slot. Finally, remove all pull wires before installing the conical washers and hex nuts. Kink the pull wire to keep the spacer independent of the bolt.
Loosely install means to hand-tighten fasteners without using a torque wrench. During installation, the conical washers and hex nuts on the frame attachment points, and the center bracket fasteners to the tow hook, are initially installed loose. Only after all loose fasteners are in place do you use a torque wrench to tighten all 7/16" fasteners to 50 Ft.-Lb. (68 N·M) and all 1/2" fasteners to 75 Ft.-Lb. (102 N·M).
Conical washers are used to secure the fasteners and distribute load. The conical washer teeth side must be oriented against the hitch. Conical washers are installed on both the 7/16" fasteners (4 total) and the 1/2" fastener (1 total) at the tow hook connection.
Using masking tape, secure two flat washers to the rearmost attachment points on the frame. The flat washers are positioned at these points before feeding the carriage bolts and spacers through the access holes.
Enlarge the access holes as needed to fit the carriage bolt and spacers on each side. The manual does not specify an exact enlarged hole size; enlargement is done to fit the specific fastener and spacer dimensions. Use a die grinder to perform this enlargement.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Ensure the exhaust is supported before removing rubber hangers. Do not cut access or attachment holes with a torch. Do not cut, weld, or modify the receiver. Wear eye protection at all times during installation.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Slow down when towing and never exceed any posted speed limit.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability during towing.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes periodic checking to maintain secure mounting to the vehicle during towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle's interior and prevents corrosion.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch or ball.
The average installation time for professional installers is 40 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
The 76630 hitch is covered by a Limited Lifetime Warranty from Horizon Global. The warranty covers material defects in both material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are returned for inspection and testing, the defect is not caused by misuse, neglect, improper installation, or accident, and the product was installed, maintained, and used in accordance with instructions. Product replacement is the sole remedy. Contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290, or TechnicalSupport@horizonglobal.com to make a warranty claim. Retain your purchase receipt to verify the date of purchase.
The 76630 hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Contact Horizon Global at: Website: www.horizonglobal.com, Technical Assistance: 1-800-632-3290, Email: TechnicalSupport@horizonglobal.com, or by mail at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170.
A spray lubricant or soapy water on the rubber hangers makes them slide off the metal pins more easily. Either option is acceptable.
Check all fasteners and retighten them to the proper torque specifications: 7/16" fasteners to 50 Ft.-Lb. (68 N·M) and 1/2" fasteners to 75 Ft.-Lb. (102 N·M). The manual emphasizes checking the hitch frequently to ensure all fasteners remain properly tightened, as vibration during towing can cause fasteners to loosen over time.

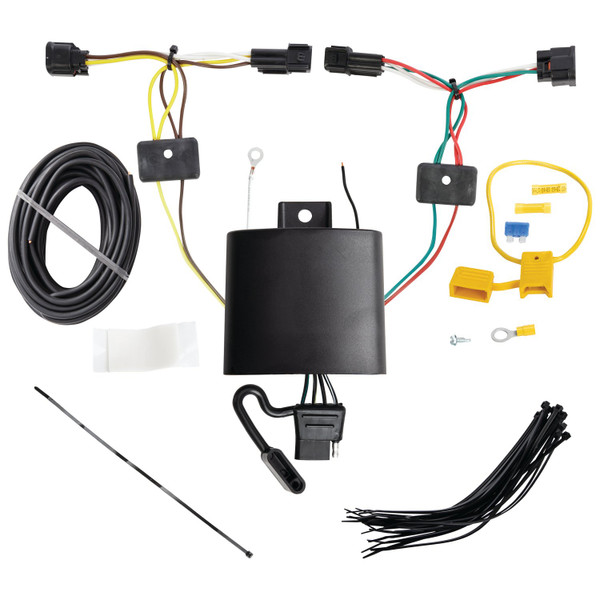

The T-One® Connector is a trailer tow harness connector that integrates with your vehicle's taillight system to provide trailer lighting control. It uses a black box module mounted underneath the vehicle that connects to both the driver's and passenger's side taillights via yellow and green wires, allowing your trailer lights to function in sync with your vehicle's lighting.
The manual shows the T-One® Connector 118877-037 installed on a Honda HR-V. However, the manual does not provide a complete list of compatible vehicles or model years. Contact the manufacturer or your retailer to confirm fitment for your specific vehicle.
You will need: trim panel remover, 10mm socket or wrench, 8mm socket or wrench, drill with 3/32" drill bit, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. A fish wire is also recommended to help pull the harness through the taillight pocket.
The kit includes: double-sided tape for mounting the black box, a white wire with eyelet and screw for grounding, a yellow fuse holder with 15 amp fuse, a yellow butt connector for connecting the fuse holder to the black 12 gauge power wire, and a yellow butt connector for connecting the black power wire to the black box. The T-One® Connector ends with yellow and green wires are pre-assembled.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the power wiring in step 9. After all wiring connections are complete, you reconnect the negative battery cable and install the 15 amp fuse.
Yes. You must remove both the driver's and passenger's side taillights to access their wiring connectors. Remove the trim panels covering the taillight mounting screws, then use a 10mm socket or Phillips screwdriver to remove the mounting screws. Disconnect the vehicle wiring harness from both taillight sockets, being careful not to break the locking tabs, and set the taillights aside.
Starting on the driver's side and underneath the vehicle, route the harness containing the yellow wire up through the opening between the vehicle bumper and body to the driver's side taillight pocket. The manual recommends using a fish wire between the taillight pocket and rear fascia to pull the harness from underneath the vehicle out through the taillight pocket. Then insert the T-One® Connector end containing the yellow wire between the vehicle and taillight connector, ensuring all connector surfaces are clean and free of dirt.
Beginning underneath the vehicle, route the harness containing the green wire up through the opening between the vehicle bumper and body to the passenger's side taillight pocket. Use a fish wire between the taillight pocket and rear fascia to pull the harness from underneath the vehicle out through the taillight pocket. Then insert the T-One® Connector end containing the green wire between the vehicle and taillight connector, ensuring all connector surfaces are clean and free of dirt.
Mount the black box underneath the vehicle behind the rear bumper fascia on the driver's side using the double-sided tape provided. Before mounting, clean the flat mount surface area using a 50-50 mixture of rubbing alcohol and water. Mount the module so that the epoxy side is pointed towards the ground to prevent water buildup.
You may need to drill a hole for grounding. Locate a suitable grounding point near the black box, such as an existing ground stud. If no existing ground point is available, drill a 3/32" hole and secure the white wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury, and clean dirt and rustproofing from the area.
Disconnect the vehicle's negative (-) battery cable. Remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided. Route the black 12 gauge wire from the front of the vehicle rearward along the frame rail, avoiding hot pipes, heat shields, fuel tank, and other points that may pinch or break the wire. Connect the other end of the black 12 gauge wire to the black power wire on the T-One® black box using the yellow butt connector provided.
Use a 15 amp fuse. The yellow fuse holder is provided with the kit. Install the 15 amp fuse into the fuse holder after all wiring connections are complete and the vehicle's negative battery cable has been reconnected.
The power wire is 12 gauge (12 ga.). This black 12 gauge wire connects from the vehicle's positive battery terminal through the fuse holder to the black power wire on the T-One® black box.
If routing the wire through a grommet and along the exterior of the vehicle, be careful to avoid any hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire. This applies to both the yellow wire routed to the driver's side taillight and the green wire routed to the passenger's side taillight.
After installation, reconnect the vehicle's negative battery cable and install the 15 amp fuse into the fuse holder. Reinstall all plastic trim panels, threshold, storage covers, floor covering, and other items that were removed, being careful not to pinch or cut the wires. Secure all loose wires and mount the trailer tow harness in an accessible location with a bracket or electrical box. Test and verify the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Always wear safety glasses during installation. Do not exceed the lower of the towing manufacturer rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires. All connections must be complete for the T-One® Connector to function properly. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into vehicle floor or bed or any exposed surfaces. Avoid routing wires through hot pipes, heat shields, fuel tank, or other points that may pinch or break the wire. Read and follow all warnings and cautions printed on the tow vehicle's battery.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. Ensure all connections are complete and secure before testing.
The manual shows installation on a Honda HR-V. For other vehicles, contact the manufacturer or retailer to confirm compatibility.
Yes, disconnect the negative battery cable before connecting the power wiring. Reconnect it after all wiring is complete and the 15 amp fuse is installed.
Yes, you must remove both driver's and passenger's side taillights to access their wiring connectors. Use a 10mm socket or Phillips screwdriver to remove the mounting screws after removing the trim panels.
Drilling may be required for the ground connection. If no existing ground stud is available, drill a 3/32" hole for the white ground wire. Do not drill into the vehicle floor or bed. Always verify what is behind any surface before drilling.
Use a 15 amp fuse in the yellow fuse holder provided with the kit.
Do not exceed the towing manufacturer rating or product amperage ratings—overloading circuits can cause fires. Wear safety glasses during installation. All connections must be complete for proper function.
Test with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
