These durable custom hitches are manufactured for 2023-2023 Lexus RX350 and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2023 - 2024 | Lexus RX350 | — |

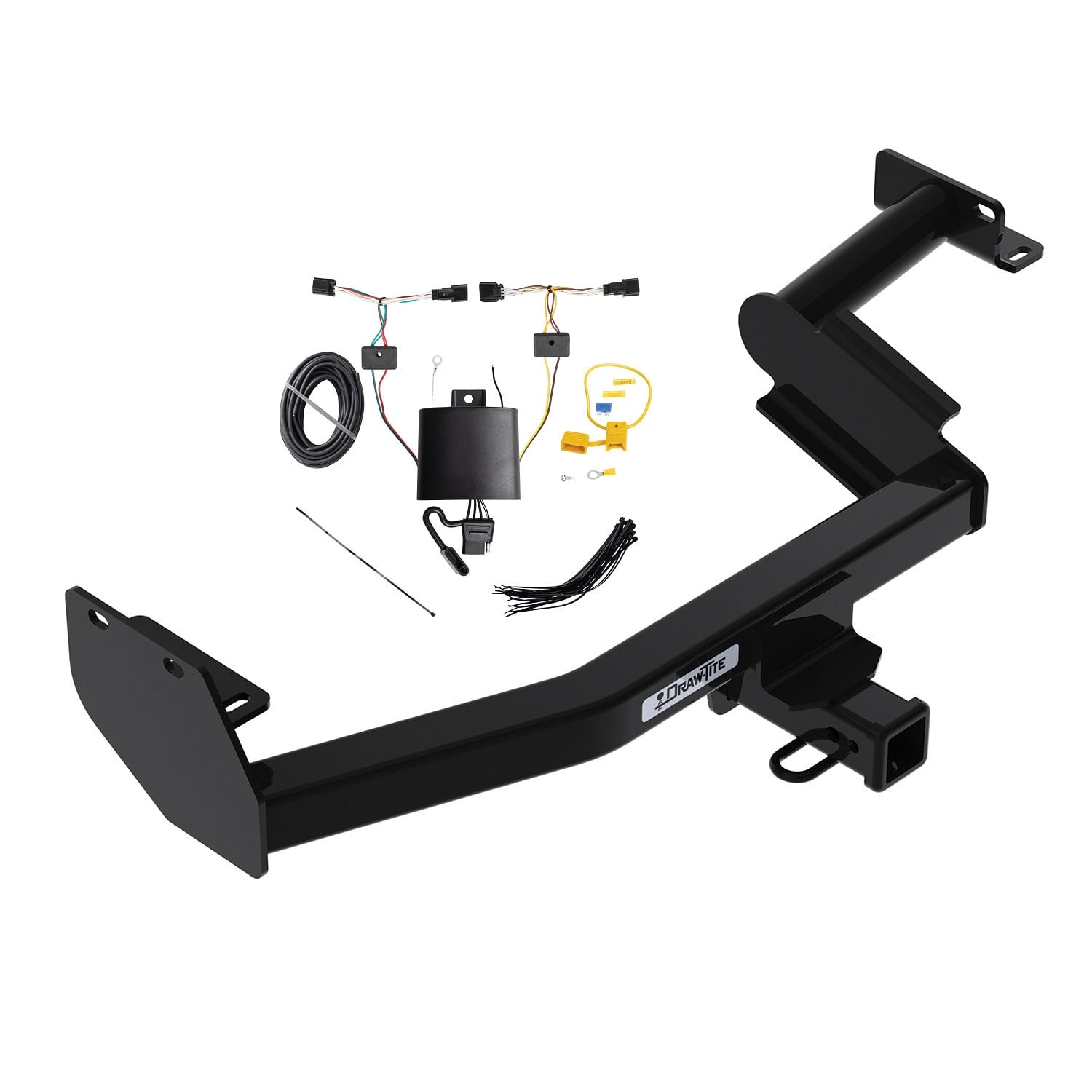

The 2023-2024 Lexus RX350 Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76635-118884) fits 2023-2024 Lexus RX350 models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2023-2024 Lexus RX350 Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76635-118884) fits the following vehicles: 2023-2024 Lexus RX350. Always verify your specific year, make, and model before ordering.
Yes, the 2023-2024 Lexus RX350 Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76635-118884) is designed to fit the 2023-2024 Lexus RX350.
The 2023-2024 Lexus RX350 Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76635-118884) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part numbers 76635, 84635, and CQT76635 are designed for the Lexus RX 350/h. However, the manual does not specify which model years are supported. Visit the Horizon Global website for the most up-to-date information regarding application years, sub-models, and trim levels to confirm fitment for your specific vehicle.
The maximum gross trailer weight (GTW) is 3500 lb. (1587 kg) and the maximum tongue weight is 525 lb. (238 kg) for both weight carrying and weight distributing hitch types. However, the lowest capacity of any component in your towing system—including your vehicle, trailer, and hitch—determines the maximum load you can safely tow. Never exceed your vehicle manufacturer's recommended towing capacity.
You will need: a flat head screwdriver, 19mm sockets, socket extensions, a ratchet wrench, a torque wrench, safety glasses, and a wire brush. Blue thread locker is supplied with the hitch.
Fastener kit 76635F is supplied and includes: (4) M12 X 1.25 X 40 CL10.9 bolts and (4) conical washers 1/2". Blue thread locker is also supplied.
You must remove (2) plastic plugs from the passenger side frame rail using a flat head screwdriver, then repeat for the opposite side. The manual does not indicate that any other components need to be removed.
1. Remove (2) plastic plugs from the passenger side frame rail using a flat head screwdriver; repeat for the opposite side. 2. Raise the hitch into position. Apply blue thread locker to the bolts, then loosely install (4) M12 bolts and conical toothed washers as shown in Figure 1. It may be necessary to clean debris from existing weldnuts in the frame using a wire brush. 3. Tighten all M12 CL10.9 fasteners with a torque wrench to 76 Lb.-Ft. (103 N*M).
All M12 CL10.9 fasteners must be tightened to 76 Lb.-Ft. (103 N*M) using a torque wrench. Proper torque is needed to keep the hitch secure to the vehicle when towing.
Yes. Apply blue thread locker to the bolts before loosely installing the (4) M12 bolts and conical toothed washers. Blue thread locker is supplied with the hitch.
The teeth side of the conical washer must be oriented against the hitch, as shown in Figure 1. Install (4) conical washers 1/2" along with the M12 bolts.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. Do not cut, weld, or modify the trailer hitch.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Regularly verify that all fasteners are tight and that the hitch is securely mounted to your vehicle.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Regularly verify that all fasteners are tight and that the hitch is securely mounted to your vehicle. The manual does not specify an exact interval.
No. During step 2, loosely install the (4) M12 bolts and conical toothed washers. Tighten them to the specified torque of 76 Lb.-Ft. (103 N*M) only in step 3 using a torque wrench.
Clean debris from existing weldnuts in the frame using a wire brush before installing the bolts. This is noted as a necessary step in the installation instructions.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
The manual does not specify what to do with the holes after the plugs are removed. However, it does state that if the hitch is removed, all holes in the trunk pan or other body panels should be plugged to prevent entry of water and exhaust fumes.
The manual does not specify whether a ball is included with the hitch or must be purchased separately.
Yes, part numbers 76635, 84635, and CQT76635 are designed for the Lexus RX 350/h. Check the Horizon Global website to confirm your specific model year, sub-model, and trim level are supported.
You need: flat head screwdriver, 19mm sockets, socket extensions, ratchet wrench, torque wrench, safety glasses, and wire brush. Blue thread locker is supplied.
Tighten all M12 CL10.9 fasteners to 76 Lb.-Ft. (103 N*M) using a torque wrench.
Maximum gross trailer weight is 3500 lb. (1587 kg) and maximum tongue weight is 525 lb. (238 kg). Never exceed your vehicle manufacturer's recommended towing capacity.
Yes. Apply blue thread locker (supplied) to the bolts before loosely installing the (4) M12 bolts and conical toothed washers.
Always wear safety glasses. Do not cut, weld, or modify the hitch. Do not cut access holes with a torch. Observe safety precautions when working beneath a vehicle.
Check frequently that all fasteners and the ball are properly tightened. Regularly verify the hitch is securely mounted to your vehicle.
Yes, the T-One® Connector (part 118884) is designed for Lexus RX350 and RX500 models. For the most current information regarding specific application years and trim levels, visit www.horizonglobal.com.
Required tools: safety glasses, Phillips screwdriver, wire stripper, wire crimper, 10 mm socket, ratchet, drill with 3/32" drill bit, heat gun, and test light. A trim panel tool is also helpful for removing interior panels.
Yes. You must locate the vehicle's battery, disconnect and isolate the negative battery cable before beginning installation. The negative cable is reconnected after the fuse holder and power wire connections are complete.
Yes. You must drill a 3/32" hole to secure the white ground wire using the eyelet and screw provided. Do not drill into the vehicle floor, bed, or any exposed surfaces. Always verify what is behind the surface before drilling to avoid damage to the vehicle or personal injury.
The product uses a 15-amp fuse installed in the fuse holder. The fuse is initially removed during installation (step 8) and reinstalled after the negative battery cable is reconnected (step 12).
The power wire is 12 gauge (12 ga.) black wire. It connects from the vehicle's positive battery terminal (via a ring terminal and fuse holder) to the black power wire on the T-One® Connector's black box using yellow heat shrinkable butt connectors.
After installation, test and verify the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. Ensure all connections are complete and all removed interior panels are reinstalled without pinching or cutting wires.

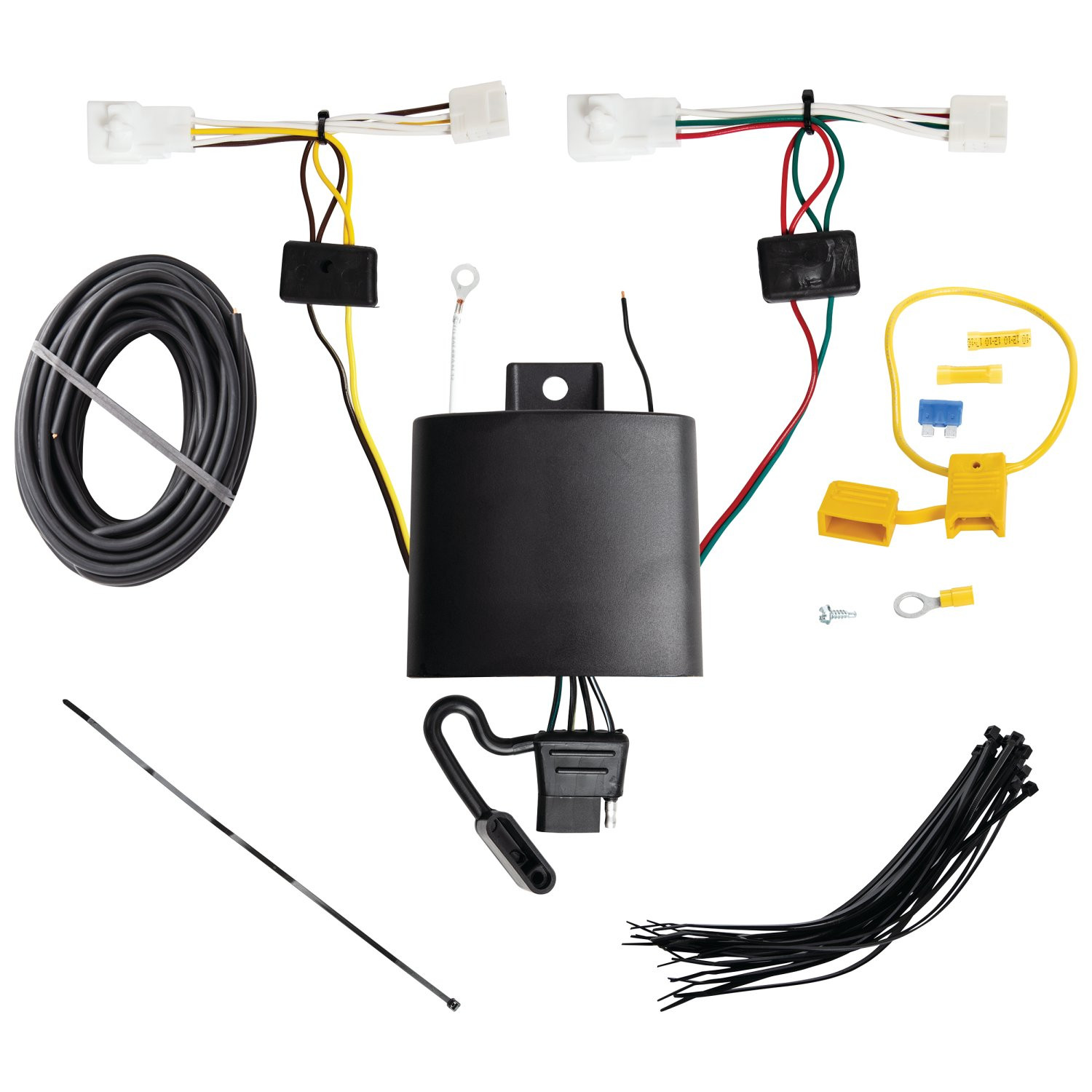

The T-One® Connector (part 118884) is a trailer lighting module designed for Lexus RX350 and RX500 vehicles. It provides a 4-flat connector interface for trailer lighting by tapping into the vehicle's existing taillight wiring harness on both the driver and passenger sides. The module includes a black box that mounts inside the vehicle and connects to the vehicle's battery through a fused power circuit.
If your Lexus is equipped with the Start/Stop option, you must connect the module only to the main vehicle battery. Do not connect the module power wire to the support battery. Failure to connect to the main vehicle battery may result in damage to the module.
The hardware kit includes: Perma Seal butt connectors (yellow heat shrinkable), ring terminal, #8 screw, 15-amp fuse, double-sided tape, fuse holder, 3/32" drill bit, 10 mm socket, fish wire, and 6" wire ties. Two yellow heat shrinkable butt connectors are provided for the power wire connections.
On both the driver and passenger sides, you must remove the plastic threshold cover, cargo trays, and the side panel to expose the vehicle's taillight wiring harness. Use a trim panel tool, Phillips screwdriver, or 10 mm socket. Be careful not to break the mounting tabs. These panels are reinstalled after the T-One® Connector installation is complete.
Mount the black box on the driver's side using the double-sided tape provided. First, clean the flat mount surface area with a 50-50 mixture of rubbing alcohol and water to ensure proper adhesion. Choose a suitable mounting point near where the ground wire will be secured.
On the driver's side, locate the vehicle's taillight wiring harness connector and separate it carefully without breaking the locking tabs. Insert the T-One® Connector end containing the yellow wire between the vehicle and taillight connector. Repeat on the passenger's side with the green wire. Ensure all connector surfaces are clean and free of dirt before insertion.
Route the harness containing the green wire from the driver's side to the passenger side. Pass the wire across the threshold and behind the passenger's side felt panel to reach the taillight pocket. Ensure the wire is not pinched or damaged during routing.
Drill a 3/32" hole near the black box to secure the white ground wire. You can drill a new hole or use an existing ground stud if available. Do not drill into the vehicle floor or bed. Always verify what is behind the surface before drilling to avoid damage to the vehicle or personal injury. Clean dirt and rustproofing from the area before securing the white wire with the eyelet and screw provided.
After disconnecting the negative battery cable, cut the fuse holder wire and attach the ring terminal to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using a yellow heat shrinkable butt connector. Route the black 12 ga. wire from the front of the vehicle rearward along the frame rail, avoiding hot pipes, heat shields, fuel tank, and other points that may pinch or break the wire. Connect the other end to the black power wire on the T-One® Connector's black box using another yellow heat shrinkable butt connector.
Use a heat gun to heat the yellow heat shrinkable butt connector. Start heating from the center of the splice connector and work outward to the edges on each end until the tubing shrinks and sealant flows. Allow the connector to cool completely before inspecting the splice to ensure a proper seal.
The T-One® Connector uses four main wires: yellow wire (driver's side taillight connection), green wire (passenger's side taillight connection), white wire (ground connection to vehicle chassis), and black wire (12 ga. power connection from vehicle battery). The 4-flat connector harness is routed through the driver's side panel and threshold into the storage compartment when not in use.
Always wear safety glasses during installation. Do not touch the negative battery terminal to the positive battery terminal, as serious injury and damage to the vehicle's electrical system can occur. Do not exceed the towing manufacturing rating stated in your vehicle owner's manual or the specific amperage ratings on the product. Verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces. Avoid pinching or breaking wires during routing and reinstallation of panels.
After installation is complete, test and verify the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. Ensure all connections are complete and properly seated. All connector surfaces should be clean and free of dirt, and all locking tabs should be fully engaged.
Clean the 4-flat connector after each use. Perform a pre-trip inspection of the 4-flat harness to ensure no damage to terminals and connection points for proper lighting connection and operation. Ensure the 4-flat harness does not get pinched in door latches, trailer connection points, or contact the road surface. Clean the connection and add dielectric grease (sold separately) to the terminal pins to maintain proper electrical contact.
Check that the T-One® Connector ends are fully inserted and locked in place. Remove the module's power fuse for 10 seconds and repeat the test. Also check chassis grounds and ensure ring terminals are in full contact with the vehicle chassis. If the issue persists, remove the module's power fuse.
Ensure the fuse is fully inserted into the fuse holder with no breaks. Verify the fuse holder is connected properly to the positive post of the battery. Remove the fuse for 10 seconds and repeat the test. Ensure the module is connected to B+ (positive battery). Using a tester or voltmeter, check for voltage on either side of the yellow butt connector near the module. If installation may have activated circuit protection, start the vehicle and turn all functions off (tail/headlights, brake, and turns), then remove the module power fuse for 10 seconds and repeat the test.
Possible causes and solutions: 1. T-One® Connector ends not fully inserted or locked - ensure they are fully inserted and locked in place, remove module power fuse for 10 seconds, and repeat test. 2. Poor chassis grounds - check chassis grounds and ensure ring terminals are in full contact with vehicle chassis, remove module power fuse. 3. Fuse issues - ensure fuse is fully inserted into fuse holder with no breaks, remove fuse for 10 seconds and repeat test. 4. Improper fuse holder connection - verify fuse holder is connected properly to positive battery post. 5. Module not connected to B+ - check voltage on either side of yellow butt connector near module using tester or voltmeter. 6. Circuit protection activated - start vehicle and turn all functions off (tail/headlights, brake, turns), remove module power fuse for 10 seconds and repeat test.
Check the following in order: 1. Fuse insertion - ensure the 15-amp fuse is fully inserted into the fuse holder with no breaks. 2. Fuse holder connection - verify the fuse holder is connected properly to the positive post of the battery. 3. Module power - remove fuse for 10 seconds and repeat test. 4. Module connection - ensure the module is connected to B+ (positive battery). 5. Voltage check - using a tester or voltmeter, check for voltage on either side of the yellow butt connector near the module. 6. Circuit protection - if installation may have activated circuit protection, start the vehicle and turn all functions off (tail/headlights, brake, and turns), then remove the module power fuse for 10 seconds and repeat the test.
