Air Lift Air Lift 1000 Air Spring Kit 60842Air LiftOriginal price was $206.99. Current price is $149.99.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Air Lift
Verify Fitment
Select your vehicle to confirm this part fits.
2016 - 2020 Ford Edge
Confirmed to Fit
2019 - 2023 Lincoln Nautilus
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
The Air Lift 1000 adjustable air springs are engineered for open coil spring suspensions, front or rear. Air Lift's most versatile air springs provide up 1,000 lbs. of load-leveling capacity for cars, SUV's, minivans, and motorhomes.
Offering up to 1,000 pounds of load-leveling capacity, Air Lift’s flagship kit, the Air Lift 1000, will make towing and hauling with a Ford Edge a comfortable and stress-free experience. For frequent use, our fully-adjustable, industry leading air springs are the perfect partner for the vehicle, eliminating any issues users might face. The Air Lift 1000 system fits easily into the coil springs of coil-sprung vehicles, providing suspension support by allowing users to easily add air when carrying heavy loads to keep the vehicle level and stable. Adding air bags helps to eliminate problems frequently faced when towing and hauling, such as squat, poor headlight aim, trailer sway, body roll, and bottoming out. With the added stability that air springs provide, users can haul safely, knowing that you have optimal braking and steering control. The air springs are adjustable from 5-35 PSI, ensuring that the vehicle can be ready for any weight and any situation. Simply add air when towing or hauling and deflate when riding empty. To ensure the highest quality, longevity, and customer satisfaction, the key suspension components, including the air springs and all hardware, have all been torture-tested to 1 million cycles on our hydraulic test rig. With a lifetime warranty and 60-Day Ride Satisfaction Guarantee, not to mention the Air Lift reputation for great customer service and technical support, should there be any snags in the installation process, users can purchase this kit with peace of mind. Installing the kit is a simple process, requiring only common hand tools and no frame drilling, specifically designed to be installed in 2 hours or less. The Air Lift 1000 kit comes with a fully-illustrated, user-friendly installation manual, making the install process easy. Whether it is towing or hauling, the Air Lift 1000 kit from Air Lift will give you the ability to use the Ford Edge with added safety and comfort.
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2020 | Ford Edge | — |
| 2019 - 2023 | Lincoln Nautilus | — |
The Air Lift Air Lift 1000 Air Spring Kit 60854 (Part #BBCG60854) fits 2016-2020 Ford Edge models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The Air Lift Air Lift 1000 Air Spring Kit 60854 (Part #BBCG60854) fits the following vehicles: 2016-2020 Ford Edge; 2019-2023 Lincoln Nautilus. Always verify your specific year, make, and model before ordering.
Yes, the Air Lift Air Lift 1000 Air Spring Kit 60854 (Part #BBCG60854) is designed to fit the 2016-2020 Ford Edge.
The Air Lift Air Lift 1000 Air Spring Kit 60854 (Part #BBCG60854) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

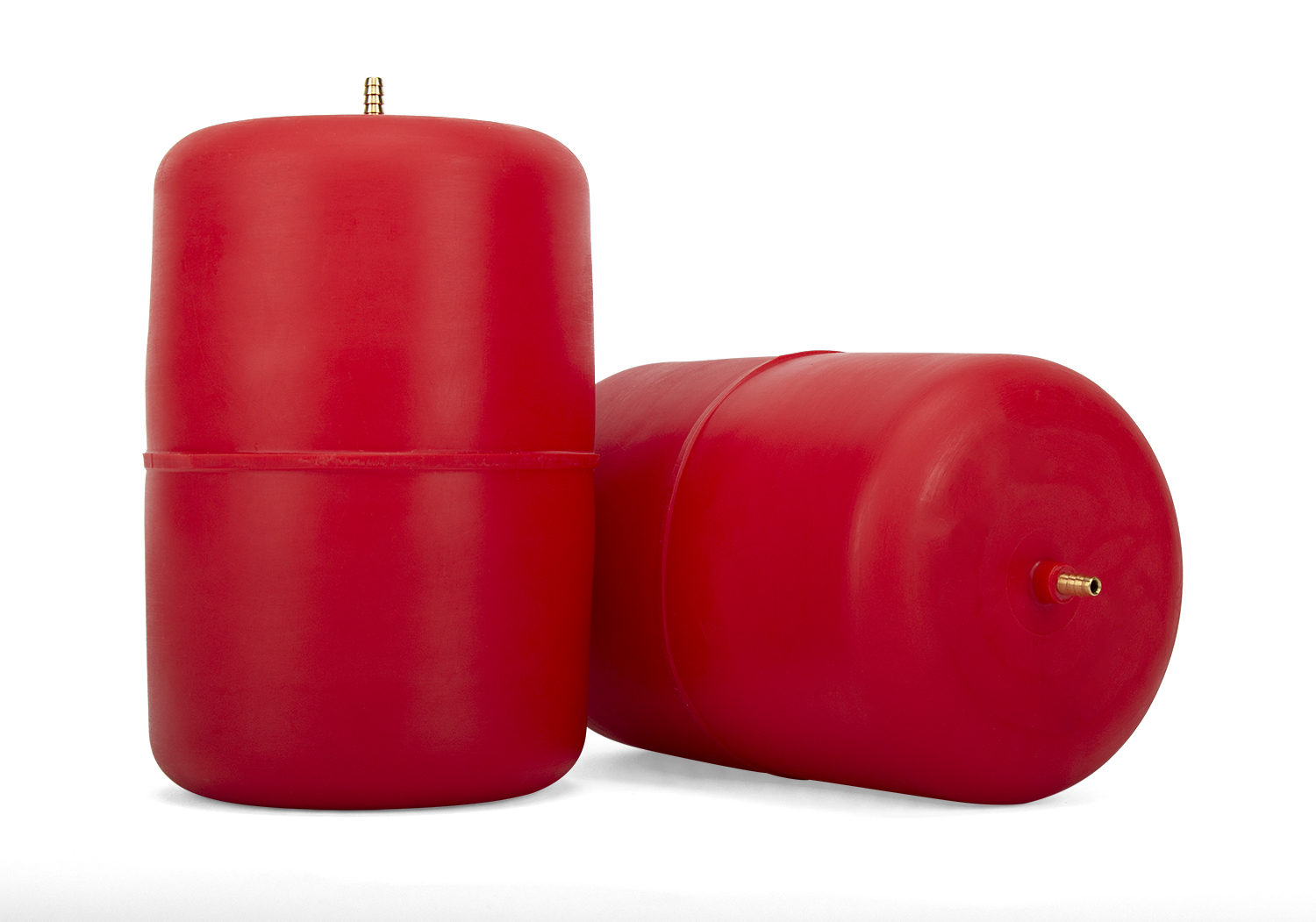

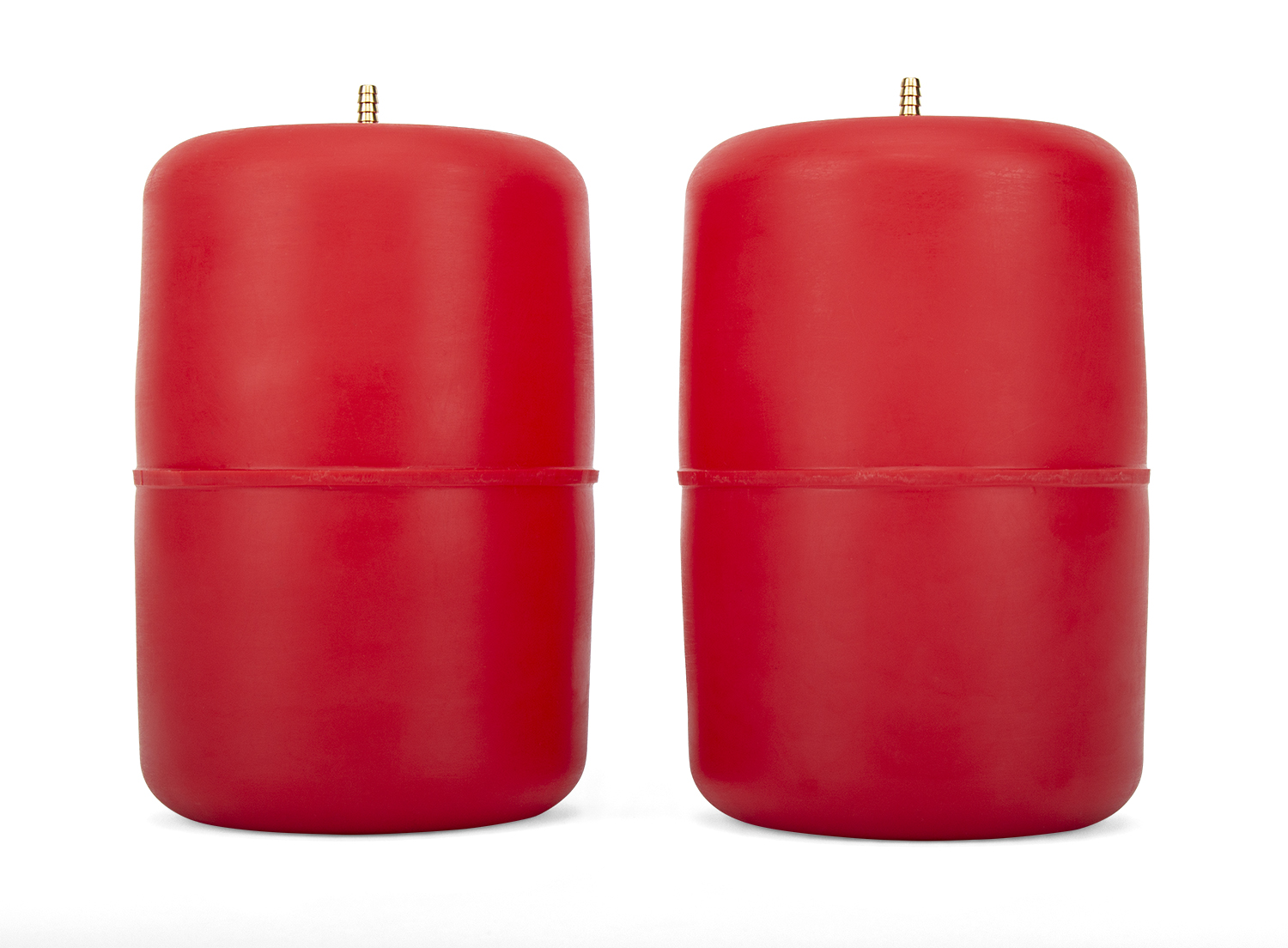

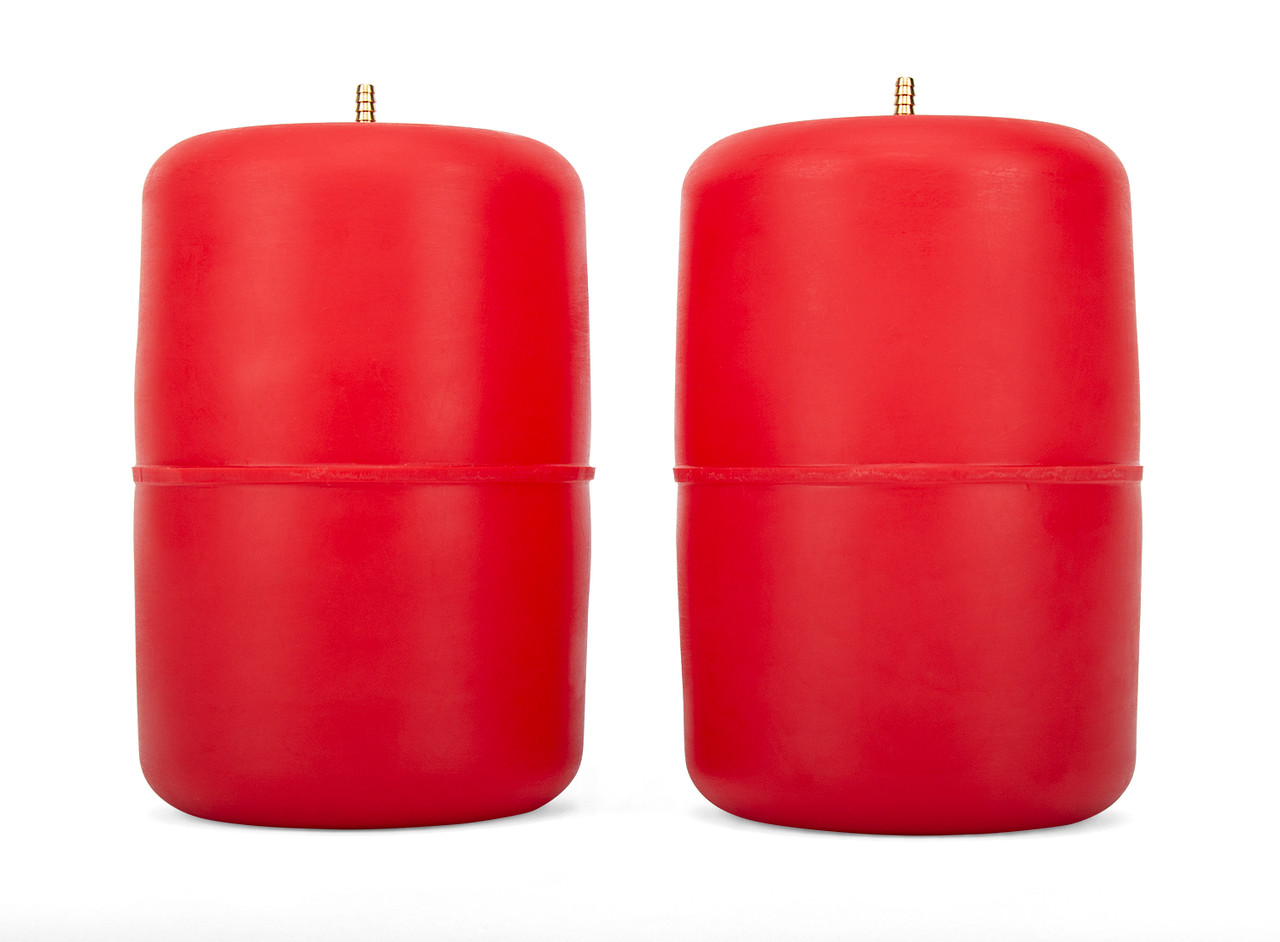

Yes, Air Lift kit 60854 (MN-1146) is designed for the Ford Edge. The kit includes two air springs rated at a maximum of 35 PSI (2.4 BAR) each, providing up to 1,000 pounds (454 kg) of load-leveling support when installed into the vehicle's coil springs. For fitment confirmation on your specific model year, contact Air Lift customer service at (800) 248-0892.
The maximum air pressure is 35 PSI (2.4 BAR). The minimum recommended pressure is 5 PSI (0.34 BAR). Do not exceed the maximum pressure, as the air springs are rated at 35 PSI. The actual pressure needed depends on your load and gross vehicle weight rating. Always maintain normal ride height and never exceed your vehicle's maximum GVWR or payload rating.
Required tools are: needle nose and regular pliers, 5/16" drill bit, drill, hose cutter or razor blade, hoist or floor jack, 2 safety stands, safety glasses, air compressor or compressed air source, spray bottle with dish soap/water solution, and a tire spoon or blunt instrument. Do not use scissors or wire cutters to cut air lines.

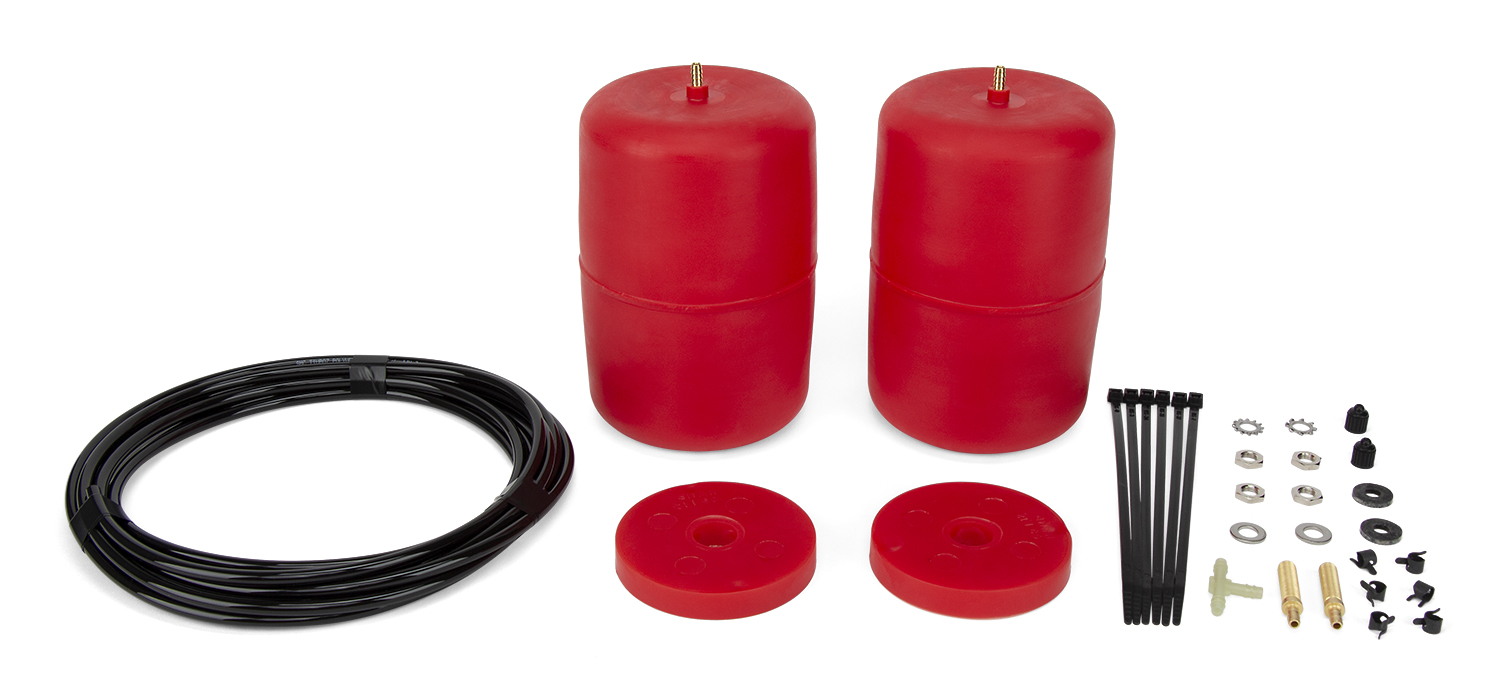

The kit includes: 2 air springs (part 46172), 2 lower protectors (09112), 15 feet of air line (20937), 6 zip ties (10466), 2 valve caps (21230), 4 5/16" hex nuts (21233), 2 rubber washers (21234), 2 star washers (18411), 2 M8 flat washers (18501), 1 tee fitting (21236), 2 Schrader valves (21455), and 6 air line clamps (10638). If any parts are missing or damaged, call Air Lift customer service at (800) 248-0892.
The manual does not mention battery disconnection. However, you will be working under the vehicle and raising it on a hoist or jack with safety stands, so follow standard vehicle safety practices.
Remove the plastic cap from the barbed stem on the end of the air spring. Exhaust the air from the air spring by rolling it up toward the barbed stem. Replace the cap on the stem to hold its flat shape. Fold the air spring into a "hot dog bun shape" before inserting it into the coil spring opening.
Insert the flattened end of the air spring into the top opening of the coil spring, with the stem at the bottom. Push the spring down into the cylinder by hand or with a blunt instrument such as a spoon-type tire iron. Once completely inserted, remove the cap and allow the air spring to assume its "as molded" shape.
The lower protector is inserted between the lower spring seat and the air spring. After pushing the air spring to the top of the coil spring, insert the protector on the bottom, then push the air spring down so the stem is centered in the protector's hole. This protects the air spring from the lower spring seat.
Install an air line clamp on each end of the air line. Push the air line over the barbed stem, completely covering all the barbs. Install the clamp over the barbed stem using needle nose pliers. Leave a little slack in the air line so it will not pull off the stem when the suspension is in full extension.
Route the air line inboard and attach to the lower control arm using a zip tie on both sides, leaving a little slack so the air line will not pull off the stem when the suspension is in full extension. Then route the air line to the top of the crossmember, avoiding the exhaust on the passenger's (right) side. An example shows routing above the crossmember to the left side, behind the fender well, then back to a valve location using an existing hole in the bottom of the bumper cover.
Single-path installation is recommended for vehicles with even weight distribution. Both air springs connect to a single tee fitting, which then connects to one Schrader valve. Dual-path installation is used when weight varies from side to side and unequal pressures are needed to level the load. For dual-path, eliminate the tee fitting and route separate air lines for each air spring directly to individual Schrader valves.
Make clean, square cuts with a razor blade or hose cutter. Do not use scissors or wire cutters, as these will damage the air line and create poor connections.
1. Slide the air line clamp onto the air line. 2. Push the air line and air line clamp over the barbed stem so that the air line covers all the barbs. 3. Compress the ears on the air line clamp with pliers and slide it forward to fully cover the barbs. This procedure applies to all air line connections: from air springs to tee fitting, from tee to Schrader valve, and for dual-path installations from air springs directly to Schrader valves.
Yes, you must drill a 5/16" (8 mm) hole for the Schrader valve. Select a location that will be protected and accessible with an air hose. Recommended locations are inside the fuel tank filler door, inside rear wheel wells, or in the license plate or rear bumper area. The manual states "Drill a 5/16" (8mm) hole, if necessary," indicating drilling is required unless a suitable existing hole is available.
Drill a 5/16" (8 mm) hole in the vehicle body or bumper. Install the air line on the Schrader valve first. Mount the valve with the rubber washer (which serves as an outside weather seal) on the outside, followed by a flat washer, star washer, and hex nut on the inside. The valve cap should be installed on the valve stem.
Maintain at least 6 inches (152 mm) clearance from the exhaust system to the air line to prevent the air line from melting. This applies to both air springs and air lines. Check clearance during the heat test portion of the installation checklist.
Be aware of sharp edges on vehicle components, like the lower control arm and heat shields on the exhaust, when working under the vehicle. Observe tension on brake lines and do not strain or overextend them. Always use a hoist or floor jack with 2 safety stands to support the frame. Wear safety glasses during installation.
Once the air lines have been installed, raise the suspension or lower the body completely and remove the safety stands. Then inflate the air springs to 5 PSI (0.34 BAR). Do not inflate the air springs before reading the Maintenance and Use Guidelines in the installation guide and the user guide included with the kit.
Perform the following checks in order: (1) Clearance test—inflate to 30 PSI (2 BAR) and verify at least 1/2" (13 mm) clearance from the tire, brakes, frame, shock absorbers and brake cables. (2) Leak test—inflate to 30 PSI and check all connections for leaks; all leaks must be eliminated before road testing. (3) Heat test—verify at least 6" (152 mm) clearance from heat sources. (4) Fastener test—after 500 miles (800 km), recheck all bolts for proper torque. (5) Road test—drive 10 miles (16 km) and recheck for clearance, loose fasteners and air leaks.
Check air pressure weekly. Always maintain normal ride height and never inflate beyond 35 PSI (2.4 BAR). The actual pressure needed depends on your load and gross vehicle weight rating.
Use a soapy water solution to check all air line connections and the inflation valve core. If leaks are found, they must be eliminated before the vehicle is road tested. If you cannot locate or fix the leak, deflate and remove the air spring and contact Air Lift customer service at (800) 248-0892.
No. For safety and to prevent possible damage to the vehicle, do not exceed the maximum gross vehicle weight rating (GVWR) or payload rating as indicated by the vehicle manufacturer. Although the air springs are rated at a maximum inflation pressure of 35 PSI (2.4 BAR), the air pressure actually needed is dependent on load and GVWR. Exceeding these limits can compromise vehicle safety.
Yes, Air Lift kit 60854 (MN-1146) is designed for the Ford Edge and provides up to 1,000 pounds of load-leveling support.
You need a hoist or floor jack, 2 safety stands, drill with 5/16" bit, needle nose pliers, hose cutter or razor blade, air compressor, spray bottle with soap/water, and a tire spoon or blunt instrument. Do not use scissors or wire cutters.
Yes, you must drill a 5/16" (8 mm) hole for the Schrader valve in the vehicle body or bumper. Recommended locations are inside the fuel tank filler door, inside rear wheel wells, or in the rear bumper area.
Maintain at least 6 inches (152 mm) clearance from the exhaust system to prevent the air line from melting.
Raise the suspension or lower the body completely, remove the safety stands, then inflate the air springs to 5 PSI (0.34 BAR). Do not inflate before reading the Maintenance and Use Guidelines.
Check air pressure weekly. Always maintain normal ride height and never exceed 35 PSI (2.4 BAR).
After 500 miles (800 km), recheck all bolts for proper torque. Then perform a 10-mile road test and recheck for clearance, loose fasteners, and air leaks.
Use a spray bottle with a soapy water solution and check all air line connections and the inflation valve core. Bubbles will form at the location of any leak. If leaks are found, they must be eliminated before the vehicle is road tested. If you cannot locate or fix the leak, deflate and remove the air spring.
The air line must maintain at least 6 inches (152 mm) clearance from the exhaust system to prevent melting. If the air line is already damaged, it must be replaced. When rerouting, ensure the air line is positioned away from all heat sources, including heat shields on the exhaust. If a heat shield was included in the kit, install it. If one is required but not included, call Air Lift customer service at (800) 248-0892.
On Sale Today
Original price was $206.99. Current price is $149.99.You save $57.00 (28%)
Free Shipping
Ships free on all orders
Authorized Dealer
FREE ShippingFREE SHIPPING
Estimated delivery Wed, Sep 16 - Sat, Sep 19
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
No reviews have been added for this product.
