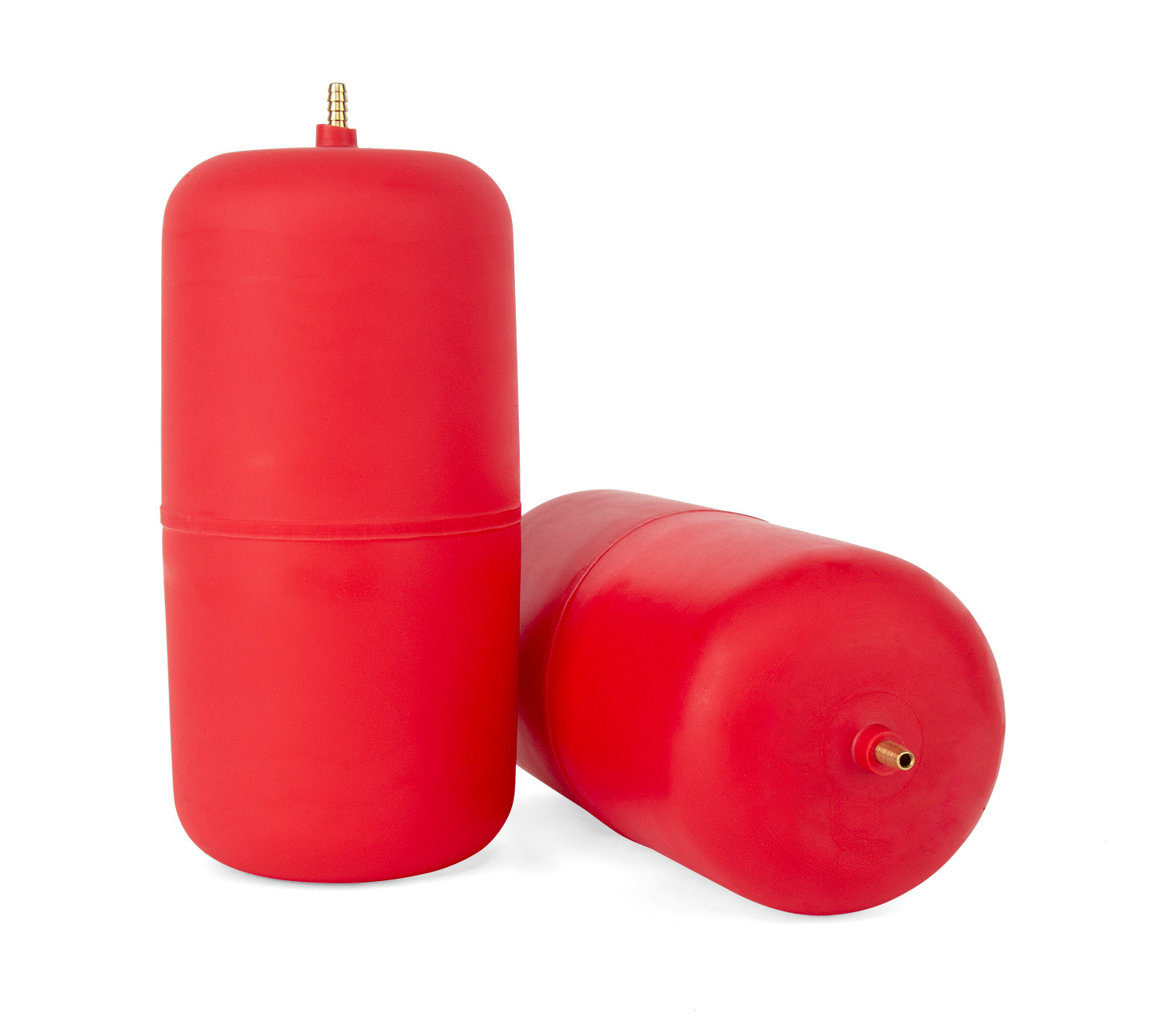

The Air Lift 1000 adjustable air springs are engineered for open coil spring suspensions, front or rear. Air Lift's most versatile air springs provide up 1,000 lbs. of load-leveling capacity for cars, SUV's, minivans, and motorhomes.
Offering up to 1000 pounds of load-leveling capacity, the Air Lift's flagship kit, the Air Lift 1000, will make towing and hauling with a Ford Maverick a comfortable and stress-free experience. Our fully-adjustable, industry leading air springs are the perfect partner for the vehicle, eliminating any issues users might face. The Air Lift 1000 system fits easily into the coil springs of coil sprung vehicles, providing suspension support to easily add air when carrying heavy loads to keep your vehicle level and stable. Adding Air LIft air bags helps to eliminate problems frequently faced when towing and hauling, such as squat, poor headlight aim, trailer sway, body roll, and bottoming out. With the added stability that air springs provide, users can haul safely knowing that you have optimal braking and steering control. The air springs are adjustable from 5 to 50 PSI, ensuring the vehicle can be ready for any weight and any situation. Simply add air when towing or hauling and deflate down to 5 PSI when riding empty. As the leader in air suspension products for more than 70 years, Air Lift is committed to delivering quality load support products that Fit, Work and Last. To ensure the highest quality, longevity and customer satisfaction, the key suspension components, including the air springs and all hardware, have been tortue tested to 1 million cycles on our hydraulic test rig. With a liftetime warranty and 60 Day Ride Satisfaction Guarantee, no to mention the Air Lift reputation for great customer service and technical support, users can purchase this kit with peace of mind.
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2026 | Ford Maverick | — |
On Sale Today
You save $57.00 (28%)
Free Shipping
Ships free on all orders
Authorized DealerQuick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Sun, Aug 9 - Wed, Aug 12
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Yes, the Air Lift Air Lift 1000 Air Spring Kit 60859 (Part #BBCG60859) is designed to fit the 2022-2026 Ford Maverick.
The Air Lift Air Lift 1000 Air Spring Kit 60859 (Part #BBCG60859) fits the following vehicles: 2022-2026 Ford Maverick. Always verify your specific year, make, and model before ordering.
The Air Lift Air Lift 1000 Air Spring Kit 60859 (Part #BBCG60859) fits 2022-2026 Ford Maverick models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Air Lift Air Lift 1000 Air Spring Kit 60859 (Part #BBCG60859) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Air Lift 1000 kit MN-1166 (Kit 60859) is designed for the Ford Maverick.
You will need: a hoist or floor jack, 2 safety stands, safety glasses, a tire spoon or blunt instrument, an air compressor or compressed air source, and a spray bottle with dish soap/water solution. A razor blade or hose cutter is also needed for cutting air lines cleanly.
Yes. You must drill a 5/16" (8mm) hole for the Schrader valve, if necessary. The location depends on where you choose to mount the valve (inside fuel tank filler door, inside rear wheel wells, or license plate/rear bumper area).
The manual does not mention disconnecting the battery as part of the installation procedure.
The maximum air pressure is 35 PSI (2.4BAR). Do not exceed this pressure. The actual pressure needed depends on load and gross vehicle weight rating.
Perform a clearance test at 30 PSI to ensure at least 1/2" (13mm) clearance from tires, brakes, frame, shock absorbers and brake cables. Perform a leak test at 30 PSI on all connections. Verify at least 6" (152mm) clearance from heat sources. After 500 miles, recheck all bolts for proper torque.
Check air pressure weekly. Always maintain normal ride height and never inflate beyond 35 PSI (2.4BAR).
The Air Lift 1000 kit provides up to 1,000 pounds (454kg) of load-leveling support. Each air spring is rated at a maximum of 35 PSI (2.4BAR).
The kit includes: 2 air springs (part 46136), 2 spacers (09112), 15 feet of air line (20937), 6 zip ties (10466), 6 air line clamps (10638), 2 M8 flat washers (18501), 2 star washers (18411), 2 valve caps (21230), 4 5/16" hex nuts (21233), 2 5/16" flat rubber washers (21234), 1 tee fitting (21236), 2 Schrader valves (21455), 2 hose clamps (10555), 1 air line heat shield (09484), and 1 exhaust heat shield (10613).
Jack up the rear of the vehicle or raise it on a hoist. Support the frame with 2 safety stands. Lower the axle or raise the body of the vehicle until the springs are completely extended. This allows proper access to the coil springs for air spring insertion.
First, remove the black plastic cap from the barbed stem on the air spring and exhaust the air by rolling it up toward the stem. Replace the cap to hold its flat shape. Fold the air spring into a "hot dog bun shape." Insert the flattened end into the top opening of the coil spring with the stem at the bottom. Push the air spring down into the coil spring by hand or with a blunt instrument such as a spoon-type tire iron. When completely inserted, remove the cap and allow the air spring to assume its "as molded" shape, then push it up to the top of the coil spring.
Using pliers, slide an air line clamp (E) over the end of the air line. Route the air line through the spacer (B). Push the air line over the barbed stem of the air spring completely, then slide the clamp over the barbed stem area. Once installed, push the air spring to the bottom of the coil spring. Repeat for the opposite side.
On the passenger's (right) side, route the air line up, behind and to the center above the suspension crossmember and secure with a zip tie, leaving sufficient slack for suspension articulation. On the driver's (left) side, slide the air line heat shield over the air line where it exits the lower control arm, attach it to the crossmember with a zip tie, and route it up over the top of the crossmember to the center of the vehicle. Both air lines should meet at the center above the crossmember.
Single-path installation is recommended for vehicles with even weight distribution. It uses one tee fitting to supply both air springs from a single inflation valve. Dual-path installation is used when weight varies from side to side and unequal pressures are needed to level the load. In dual-path installation, the tee fitting is eliminated and separate air lines are routed for each air spring to individual Schrader valves.
Make clean, square cuts with a razor blade or hose cutter. Do not use scissors or wire cutters, as these will produce bad cuts that do not seal properly. Leave sufficient air line slack to prevent any strain on the fitting during axle motions.
Slide the air line clamp onto the air line. Push the air line and clamp over the barbed stem so that the air line covers all the barbs. Compress the ears on the air line clamp with pliers and slide it forward to fully cover the barbs.
Select a location for the Schrader valve that will be protected and accessible with an air hose. Recommended locations are: inside the fuel tank filler door, inside rear wheel wells, or in the license plate or rear bumper area. Drill a 5/16" (8mm) hole if necessary.
Drill a 5/16" (8mm) hole in the selected location. Install the air line on the Schrader valve first. The rubber washer (J) serves as an outside weather seal. Mount the valve with the flat washer, star washer, and rubber washer in the order shown in the diagram, securing with a hex nut and valve cap.
Attach the metal heat shield (O) to the exhaust using two hose clamps (M) where it is closest to the driver's (left) side air spring. Bend the heat shield so there is at least 1/2" (13mm) of dead air space between the shield and the exhaust.
After raising the suspension or lowering the body completely and removing the safety stands, inflate the air springs to 5 PSI (0.34BAR). This is the minimum recommended air pressure. Do not inflate beyond 35 PSI (2.4BAR).
Maintain at least 6 inches (152mm) clearance from the exhaust system to the air line to prevent the air line from melting. If a heat shield is included in the kit, install it. If there is no heat shield but one is required, contact Air Lift customer service at (800) 248-0892.
The minimum recommended air pressure is 5 PSI (0.34BAR). Always maintain normal ride height. The actual pressure needed depends on load and gross vehicle weight rating.
Do not exceed the maximum gross vehicle weight rating (GVWR) or payload rating as indicated by the vehicle manufacturer. Although the air springs are rated at a maximum inflation pressure of 35 PSI (2.4BAR), the air pressure actually needed is dependent on load and GVWR.
Inflate the air springs to 30 PSI (2BAR) and ensure there is at least 1/2" (13mm) clearance from anything that might rub against each air spring. Check the tire, brakes, frame, shock absorbers and brake cables for interference.
Inflate the air springs to 30 PSI (2BAR) and check all connections for leaks using a spray bottle with dish soap/water solution. All leaks must be eliminated before the vehicle is road tested. If the system develops an air leak during use, check all air line connections and the inflation valve core with soapy water before deflating and removing the air spring.
After 500 miles (800km), recheck all bolts for proper torque. This is part of the required maintenance to ensure the system remains secure.
After completing the clearance, leak, and heat tests, inflate the air springs to recommended driving pressures. Drive the vehicle 10 miles (16km) and recheck for clearance, loose fasteners and air leaks.
Check air pressure weekly. Always maintain normal ride height and never inflate beyond 35 PSI (2.4BAR). If the system develops an air leak, use a soapy water solution to check all air line connections and the inflation valve core before deflating and removing the air spring. After 500 miles, recheck all bolts for proper torque.
Use a spray bottle with dish soap/water solution to check all air line connections and the inflation valve core. Bubbles will form at the location of any leak. All leaks must be eliminated before the vehicle is road tested.
