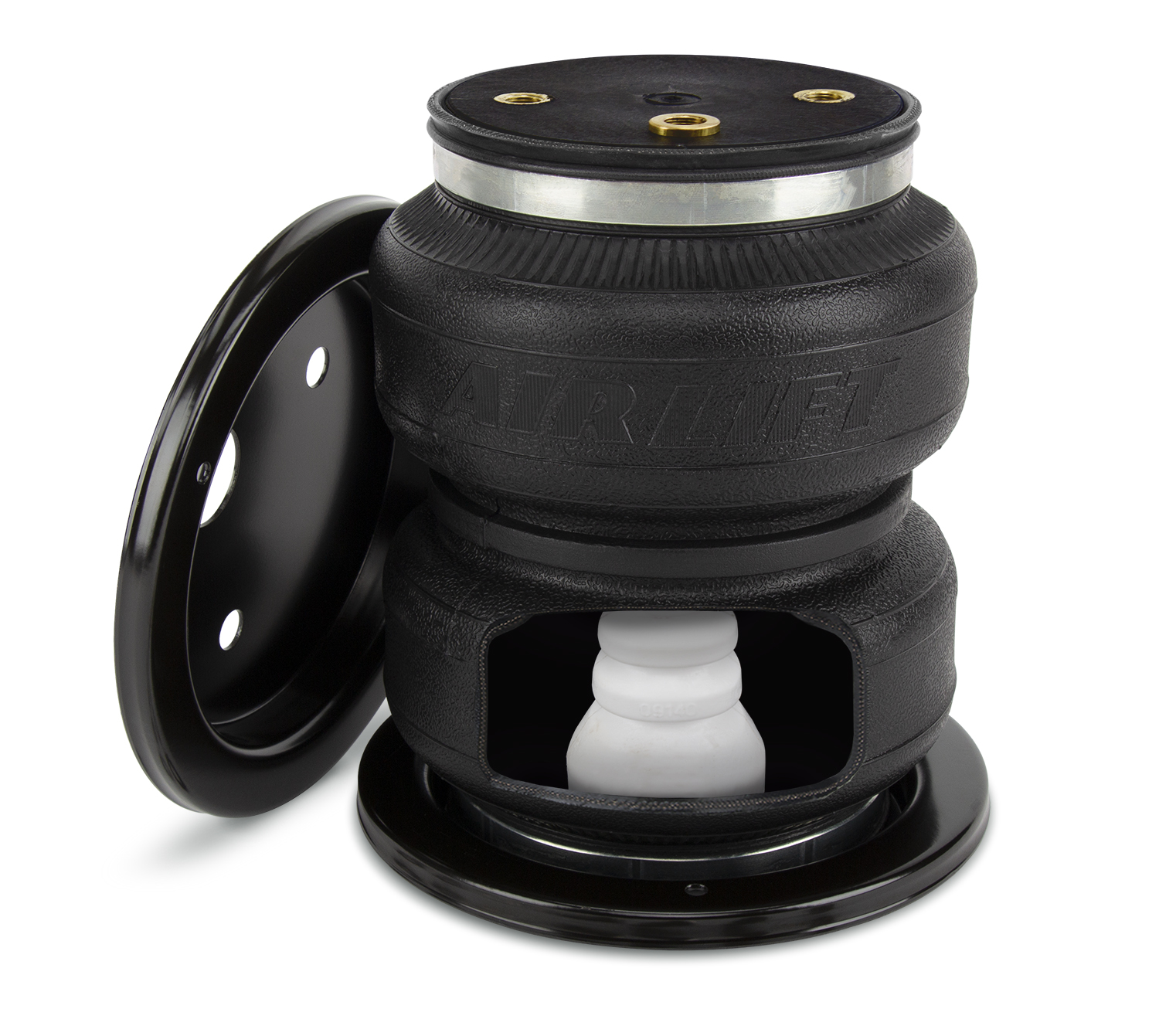

With up to 5,000 pounds of load-leveling capacity, the LoadLifter 5000 Ultimate air springs are designed to handle the heaviest loads easily.
Offering up to 5,000 pounds of load-leveling capacity, the LoadLifter 5000 Ultimate kit from Air Lift will make towing and hauling with your Ford F-150 PowerBoost a comfortable and stress-free experience. For the ULTIMATE ride comfort and protection, the fully-adjustable air springs with internal jounce bumper are the perfect partner for your vehicle, eliminating problems frequently faced when towing and hauling including squat and bottoming out. What sets the LoadLifter 5000 Ultimate apart from other air spring kits is the built-in internal jounce bumper. An Air Lift exclusive jounce bumper inside the air spring replaces the factory jounce bumper and is completely maintenance free, running safely with zero air pressure. This added feature makes this kit the ULTIMATE in ride comfort and protection. Installing the kit is a simple process, requiring only common hand tools and no frame drilling. The LoadLifter 5000 Ultimate kit comes with clear, easy to follow instructions and an under frame design made to work with most in-bed hitches. As experts in air suspension products for over 70 years, Air Lift is committed to delivering quality load support products that fit, work and last. To ensure the highest quality, longevity, and customer satisfaction, the key suspension components, including the air springs and all hardware, have all been torture-tested to 1 million cycles on our hydraulic test rig. With a lifetime warranty and 60-Day Ride Satisfaction Guarantee, not to mention the Air Lift reputation for great customer service and technical support, should you run into any snags in the installation process, you can purchase this kit with peace of mind. Whether it is towing or hauling, the LoadLifter 5000 kit from Air Lift will give you the ability to use your Ford F-150 PowerBoost with added safety and comfort.
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited LIfetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2026 | Ford F-150 | Ford F: 150 PowerBoost |
The Air Lift LoadLifter 5000 Ultimate air spring kit w/internal jounce bumper 88389 (Part #BBCG88389) fits 2021-2026 Ford F-150 models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Air Lift LoadLifter 5000 Ultimate air spring kit w/internal jounce bumper 88389 (Part #BBCG88389) fits the following vehicles: 2021-2026 Ford F-150. Always verify your specific year, make, and model before ordering.
Yes, the Air Lift LoadLifter 5000 Ultimate air spring kit w/internal jounce bumper 88389 (Part #BBCG88389) is designed to fit the 2021-2026 Ford F-150.
The Air Lift LoadLifter 5000 Ultimate air spring kit w/internal jounce bumper 88389 (Part #BBCG88389) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The LoadLifter 5000 Series air springs provide up to 5,000 pounds (2,268 kg) of load-leveling support. The air springs are adjustable from 5 to 100 PSI (0.34 to 7 BAR), allowing you to adjust the support based on your load.
Yes, the LoadLifter 5000 Series kits (part numbers 57389 and 88389) are designed for the Ford F-150 PowerBoost. The installation guide is specific to this vehicle model.
The Standard LoadLifter 5000 features zinc-plated steel roll plates and black nylon air lines. The LoadLifter 5000 Ultimate features black powder-coated roll plates and black nylon air lines. Air Lift offers two Ultimate Plus upgrade kits: kit 52300 includes braided stainless steel air line and fittings, and kit 52301 includes stainless steel roll plates, air spring mounting hardware, braided stainless steel air lines and fittings. You can identify your kit by examining the roll plates and air lines.
Required tools include: standard and metric open-end or boxed wrenches (set), standard and metric regular and deep-well sockets (set), ratchet, torque wrench, 7/32 inch hex-key wrench (socket preferable), hose cutter, razor blade or sharp knife, cutoff wheel, air reciprocating saw or hacksaw, tree-mount removal tool or screwdriver, hoist or floor jack, two safety stands, safety glasses, air compressor or compressed air source, and a spray bottle with dish soap/water solution.
Yes, professional mechanic skills are required to complete the installation of this kit. This is stated prominently in the system overview section of the manual.
Lift the vehicle and support the frame with safety stands. Drop the axle down low enough to provide clearance for the air springs. This allows you to access the jounce bumpers and prepare the frame for bracket installation.
After removing the factory jounce bumpers with a 13 mm socket and extension, thread an M10 flange head bolt (part number U) into the threaded holes. Leave approximately 1/2 inch (13 mm) gap between the bolt flange and the frame.
Torque the M10 flange head bolt (part number U) that secures the upper bracket to 30 lb.-ft. (41 Nm). Ensure the vertical portion of the bracket is touching the inside side of the frame before tightening.
The 3/8 inch-16 U-bolt (part number N) should be torqued to 10 lb.-ft. (14 Nm). Torque the serrated flange lock nuts (part number V) evenly on both sides.
Yes, drilling is required for certain installations. For vehicles equipped with a 5th wheel hitch side mount bracket, you must center punch the frame using the forward hole in the upper bracket as a template and drill a 5/16 inch hole through the bottom of the frame. Additionally, you may need to drill a 5/16 inch (8 mm) hole for Schrader valve installation, depending on your chosen valve location.
Yes, trimming is required. You must trim a small portion of the brake line bracket on the left side of the axle to make proper clearance for the lower bracket. Measure approximately 1.375 inches (35 mm) from the edge of the bracket and make the cut using a cutoff wheel, air reciprocating saw, or hacksaw. Use caution to ensure the brake line and wire harness have proper clearance to avoid damage from the saw or grinding wheel.
The air spring should be aligned so that it is as perpendicular to the upper and lower brackets as possible. This is achieved by pushing the air spring assembly front or back to achieve proper alignment before final torque.
Both the upper and lower air spring mounting hardware should be torqued to no more than 20 lb.-ft. (27 Nm). This applies to the 3/8 inch hex head bolts (part number H), lock washers (part number I), and flat washers (part number J) used at both the upper and lower brackets.
Install the 1/4 inch air fitting (part number G) into the airport on top of the air spring (part number E). Tighten the fitting finger-tight plus 1 1/2 turns. Do not over-tighten.
Cut the air line in half using a razor blade or hose cutter, making clean, square cuts. Do not use scissors or wire cutters, as these will damage the air line. After cutting, install the air line thermal sleeve (part number K) over the air line on the passenger's (right) side before inserting into the fitting.
The minimum bend radius for the air line is 1 inch (25 mm). Avoid sharp bends and edges. Use zip ties to secure the air line to fixed points along the chassis without pinching or kinking it. Leave at least 2 inches (50 mm) of slack in the air line to allow for any movement that might pull on the air line.
The minimum recommended air pressure is 5 PSI (0.34 BAR). The maximum air pressure is 100 PSI (7 BAR). Always maintain normal ride height and never inflate beyond 100 PSI.
Keep at least 6 inches (150 mm) of clearance between all air lines and the exhaust system. Avoid sharp bends and edges. If a heat shield was included in the kit, install it. If there is no heat shield but one is required, contact Air Lift customer service at (800) 248-0892.
Inflate the air springs to 40-60 PSI (2.8-4.1 BAR) and ensure there is at least 1/2 inch (13 mm) clearance from anything that might rub against each sleeve. Be sure to check the tire, brakes, frame, shock absorbers, and brake cables.
Complete the following checks: (1) Clearance test – inflate to 40-60 PSI and verify at least 1/2 inch clearance from tires, brakes, frame, shock absorbers, and brake cables; (2) Leak test – inflate to 40-60 PSI and check all connections for leaks; (3) Heat test – verify at least 6 inches clearance from heat sources; (4) Fastener test – after 500 miles, recheck all bolts for proper torque; (5) Road test – drive 10 miles and recheck for clearance, loose fasteners, and air leaks.
Check air pressure weekly. Always maintain normal ride height. Never inflate beyond 100 PSI (7 BAR). If the system develops an air leak, use a soapy water solution to check all air line connections and the inflation valve core before deflating and removing the air spring. After 500 miles (800 km), recheck all bolts for proper torque.
Do not exceed the maximum gross vehicle weight rating (GVWR) or payload rating as indicated by the vehicle manufacturer. Although the air springs are rated at a maximum inflation pressure of 100 PSI (7 BAR), the air pressure actually needed is dependent on load and gross vehicle weight rating.
Torque the 3/8 inch clamp bar hardware (3/8 inch carriage bolts, flat washers, and nylon insert lock nuts) to 16 lb.-ft. (22 Nm). Torque the 5/16 inch self-tapping screws first, then evenly torque the clamp bar hardware.
The 3/8 inch self-tapping screw (part number Q) should be torqued to 30 lb.-ft. (41 Nm). This screw is used for installations equipped with a 5th wheel hitch side mount bracket.
The left-hand ABS harness bracket (part number L) is inserted into the 'cup' of the ABS wiring harness and secured to the lower bracket with a 3/8 inch hex cap screw (part number T), 3/8 inch flat washer (part number J), and 3/8 inch nylon insert lock nut (part number Z). The right-hand wiring harness connector is installed onto the right-hand wiring harness bracket (part number M) and secured to the ABS/Brake line axle junction bracket with a 1/4 inch hex cap screw (part number S), 1/4 inch flat washer (part number W), and 1/4 inch nylon insert lock nut (part number X). Tighten all hardware securely.
The thermal sleeve (part number K) is installed over the air line on the passenger's (right) side before inserting into the fitting. It provides protection for the air line from heat sources, helping to maintain the integrity of the air line during operation.
Yes, kits 57389 and 88389 are designed specifically for the Ford F-150 PowerBoost. Professional mechanic skills are required for installation.
You will need: wrenches and sockets (standard and metric), ratchet, torque wrench, 7/32 inch hex-key wrench, hose cutter or razor blade, cutoff wheel or hacksaw, hoist or floor jack, two safety stands, safety glasses, air compressor, and a spray bottle with soapy water. A complete tool list is provided in the manual.
Upper bracket flange bolt: 30 lb.-ft. (41 Nm). U-bolt: 10 lb.-ft. (14 Nm). Air spring mounting hardware: 20 lb.-ft. (27 Nm) maximum. Lower bracket clamp bars: 16 lb.-ft. (22 Nm). Self-tapping screw (5th wheel): 30 lb.-ft. (41 Nm).
Never inflate beyond 100 PSI (7 BAR). The minimum recommended pressure is 5 PSI (0.34 BAR). Actual pressure needed depends on load and vehicle GVWR.
Perform a clearance test (40-60 PSI, 1/2 inch minimum clearance), leak test (check all connections), heat test (6 inches from heat sources), and road test (10 miles, recheck clearance and fasteners). After 500 miles, recheck all bolt torque.
Check air pressure weekly. After 500 miles (800 km), recheck all bolts for proper torque. Always maintain normal ride height and never exceed 100 PSI.
Use a soapy water solution to check all air line connections and the inflation valve core. Spray the solution on suspected leak areas; bubbles will form at the location of any leak. If a leak is detected, do not operate the vehicle. Identify and repair the leak before deflating and removing the air spring.
