LoadLifter 5000 ULTIMATE with internal jounce bumper to absorb shock for best ride comfort
Adjustable air spring kit for leaf springs
Rear
Safely run w/zero air pressure

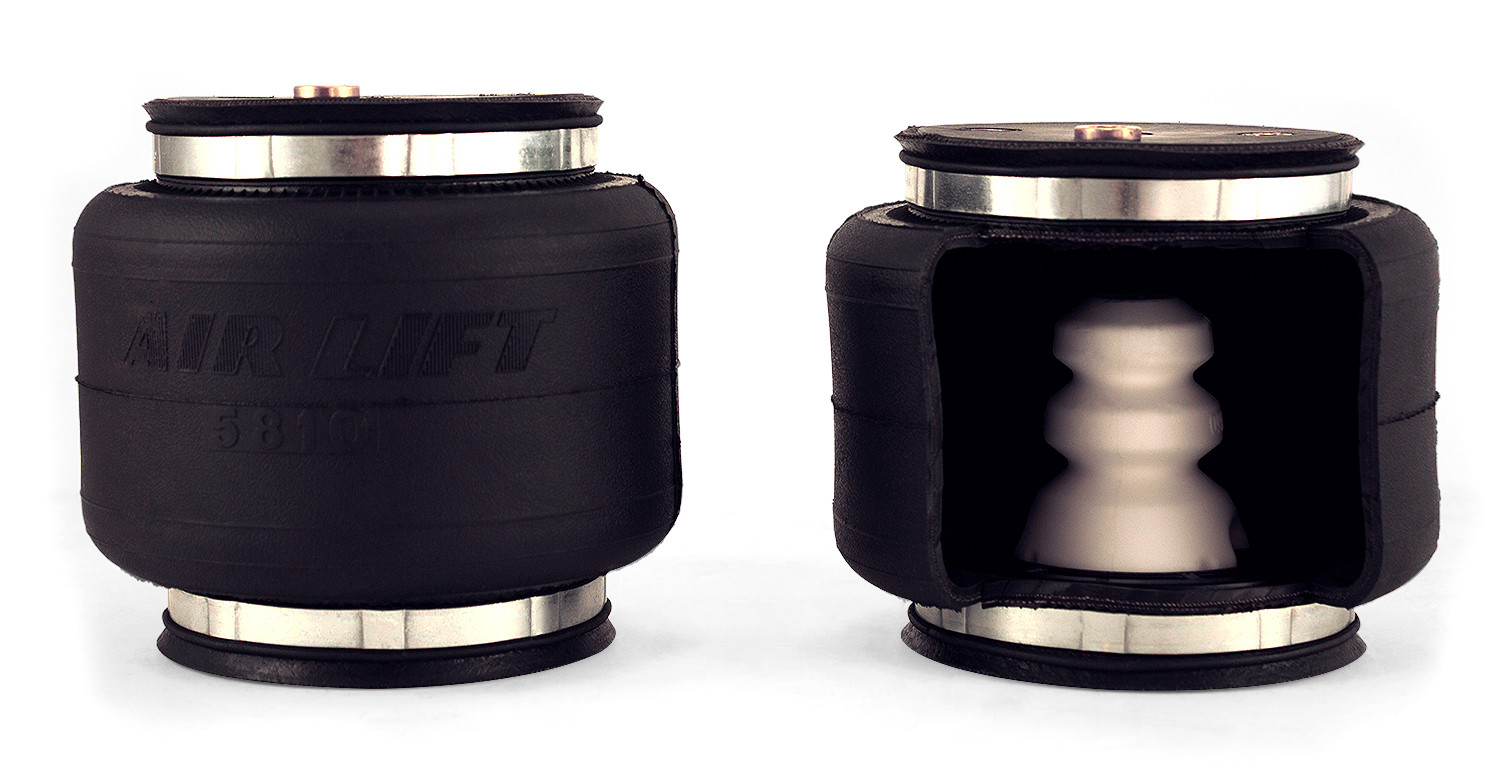

LoadLifter 5000 ULTIMATE adjustable air spring kits feature all of the benefits of our heaviest rated air spring with the addition of an internal jounce bumper inside the spring for the ultimate in ride comfort. An Air Lift exclusive product! Fits vehicles with in-bed hitches. Tow and haul the heaviest loads with safety and comfort with LoadLifter 5000 ULTIMATE. Works with vehicle's leaf springs to provide up to 5,000 lbs. of rear load leveling capacity and keeps the vehicle riding stable, level and comfortable whether loaded or unloaded. Fully adjustable from 5 to 100 PSI. The closed-cell urethane foam jounce bumper inside the ULTIMATE air springs provide a cushion of air that absorbs shock, eliminates harsh jarring on rough roads and protects vehicles carrying heavy loads. Never bottom out again with the ULTIMATE! LoadLifter 5000 ULTIMATE air springs are maintenance free! Safely run with zero air pressure because of the internal jounce bumper. Replaces factory jounce bumper that is sometimes removed when adding air springs. Requires no drilling into frame! Includes industry-exclusive 60 Day No Questions Money Back Guarantee! Includes the most comprehensive Lifetime Warranty in the industry---covers all kit contents including brackets, fittings and air line. Air springs are built like a tire and are reinforced by durable, 2-ply fabric for maximum strength. Exclusive upper and lower roll plates included. Protect the springs from sharp edges, such as brackets or the frame. The kit includes 2 air springs, brackets, air lines, Schrader valve and all of the hardware needed for installation. Includes fully illustrated instruction manual. Add an Air Lift on-board air compressor system to inflate and deflate air springs with the touch of a button from inside or outside of the vehicle.

Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
8 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1989 | Ford E-150 Econoline | — |
| 2003 - 2014 | Ford E-250 | — |
| 1975 - 2002 | Ford E-250 Econoline | — |
| 1975 - 1991 | Ford E-250 Econoline Club Wagon | — |
| 2003 - 2005 | Ford E-350 Club Wagon | — |
| 1975 - 1998 | Ford E-350 Econoline | — |
| 1977 - 2002 | Ford E-350 Econoline Club Wagon | — |
| 1999 - 2019, 2022 - 2026 | Ford E-350 Super Duty | — |
The Air Lift LoadLifter 5000 ULTIMATE with internal jounce bumper 88138 (Part #BBCG88138) fits 1989 Ford E-150 Econoline models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Air Lift LoadLifter 5000 ULTIMATE with internal jounce bumper 88138 (Part #BBCG88138) fits the following vehicles: 1989 Ford E-150 Econoline; 2003-2014 Ford E-250; 1975-2002 Ford E-250 Econoline; 1975-1991 Ford E-250 Econoline Club Wagon; 2003-2005 Ford E-350 Club Wagon; 1975-1998 Ford E-350 Econoline; 1977-2002 Ford E-350 Econoline Club Wagon; 1999-2026 Ford E-350 Super Duty. Always verify your specific year, make, and model before ordering.
Yes, the Air Lift LoadLifter 5000 ULTIMATE with internal jounce bumper 88138 (Part #BBCG88138) is designed to fit the 1989 Ford E-150 Econoline.
The Air Lift LoadLifter 5000 ULTIMATE with internal jounce bumper 88138 (Part #BBCG88138) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The LoadLifter 5000 Ultimate is an adjustable air helper spring system that provides load-leveling support for truck and van rear suspensions. It uses reinforced, commercial-grade convolute bellows with an internal jounce bumper and delivers up to 5,000 pounds (2,268 kg) of load-leveling support. Air pressure is adjustable from 5 to 100 PSI (0.34 to 7 BAR), allowing you to maintain proper ride height when towing or carrying heavy loads.
The manual does not specify which vehicle makes, models, model years, cab styles, or bed lengths are compatible with kit 88138. Contact Air Lift customer service at (800) 248-0892 or (517) 322-2144 (outside USA/Canada) to confirm fitment for your specific vehicle before purchasing.
The manual states that any type of load assist product could affect brake performance on vehicles with a rear brake proportioning valve. You should check with your vehicle dealer before installing this product. If your vehicle does not have a rear brake proportioning valve or is equipped with an anti-lock brake system, installation will have no effect on brake system performance.
Required tools are: hoist or floor jack, 2 safety stands, 1/2" and 3/8" drive ratchets, sockets (18mm, 21mm, 22mm, 1/2"), wrenches (22mm, 1/2", 3/4"), drill, and 5/16" drill bit (very sharp). You will also need a center punch and a razor blade or hose cutter for cutting air lines.
The kit includes 2 air springs (58740), left and right upper brackets (07463, 07464), 2 lower brackets (03982), 2 90-degree swivel air fittings (21837), heat shield kit (34365), 2 U-bolts (10785), 2 saddle clamps (01775), hex head cap screws and studs in various sizes, nylon lock nuts, flat washers, lock washers, brake line bracket spacer (11042), M8 bolt and washers, air line assembly (20086), 6 zip ties (10466), 2 valve caps (21230), rubber washers (21234), stainless steel star washers (18411), and 5/16" hex nuts (21233). See the Hardware List on page 2 for complete part numbers and quantities.
Normal ride height is the distance between the bottom edge of the wheel well and the center of the hub with the vehicle in its "as delivered" condition. You measure it before installation to establish a baseline. Remove any unusual loads, ensure the vehicle is on a level surface, and measure from the center of the hub to the bottom edge of the wheel well. If leaf springs are sagging badly, use a jack to raise the rear end to the original "as delivered" ride height before measuring. Record this measurement—you will use it to verify proper installation.
Yes. You must lower the suspension to provide clearance to install the air spring unit. The manual provides three methods: (1) if using an axle contact hoist, place axle stands under the frame and lower the axle; (2) if using a frame contact hoist, place axle stands under the axle and lower the frame; (3) if using a jack supported by axle stands on the frame, use a floor jack to lower the axle. Choose the method appropriate for your lifting equipment.
1. Install the 90-degree swivel air fitting (D) to the top of the air spring; tighten 1.5 turns. 2. Align the upper bracket (B1 for left, B2 for right) with the air spring mounting holes and install the 3/8" stud (L) in the outboard tapped hole with the short threaded portion into the air spring; finger tight only. 3. Loosely install the 3/8" lock washer (N) and 3/8"-24 x 7/8" hex head cap screws (M). 4. Attach the lower bracket (C) to the bottom of the air spring using the forward, inboard hole. 5. Secure the lower bracket using 3/8" lock washers (N) and 3/8"-24 x 7/8" hex head cap screws (M); torque to 20 lb-ft (27 Nm). 6. Repeat for the driver's (left) side.
1. Remove the rubber jounce bumper from the frame rail and discard it. 2. Insert the 3/8" stud (L) through the original jounce bumper mounting hole. 3. Secure the stud using a 3/8" flat washer (K) and 3/8" nylon lock nut (J); torque to 16 lb-ft (22 Nm). 4. Tighten the hex head bolt (M) securely to 16 lb-ft (22 Nm). 5. Late models may have an existing hole that lines up with the top hole in the bracket—no drilling needed. Some models have a plastic stud for a wiring harness hanger; push it back through the frame and use the existing hole. 6. If no hole exists, select a small hole on the outboard side of the upper bracket not on the radius edge of the frame rail. Center-punch and drill a 5/16" hole. 7. Install 5/16"-18 x 1" hex head cap screws (H), flat washers (K), and 5/16" nylon lock nuts (J); torque to 15 lb-ft (20 Nm).
Not always. Late model vehicles often have an existing hole that lines up with the top hole in the upper bracket, so no drilling is required. Some models have a plastic stud for a wiring harness hanger in that hole—push it back through the frame and use the existing hole. If no hole exists, you must drill a 5/16" hole in the frame rail. Before drilling, you must check for hydraulic lines, gas lines, and electrical wires on both sides of the frame that may need to be moved aside. Use the upper bracket as a template, center-punch the hole location, and drill carefully.
1. On most late models with a small brake line hanger on the passenger's side shock bracket, remove the bolt holding the brake line bracket to the shock mount, move the line aside, and attach the brake line bracket spacer (O) to the axle using the existing M8 bolt. Reattach the stock brake line bracket to the spacer with the M8 bolt (P), washer (Q), and nut (R) provided; tighten both securely. 2. Set the assembly on the axle and check that the lower bracket is not pinching the brake line. On drum brake models, if it is pinching, bend the tab holding the brake line away from the axle housing, reposition the line, and bend the tab back. 3. Position the lower bracket so the outboard edge is between the leaf spring U-bolts. 4. Insert the U-bolt (F) in the outboard slot of the lower bracket. 5. On models with RSC (roll stability control), loosen the axle vent tube bolt and rotate the brake line junction box counter-clockwise as far as it will go; tighten the vent tube bolt securely. 6. Secure the lower bracket using saddle clamps (G), 3/8" flat washers (K), and 3/8" nylon lock nuts (J); torque to 16 lb-ft (22 Nm). Trim excess bolt if desired.
1. Cut the air line in half using a razor blade or hose cutter, making clean, square cuts; do not use scissors or wire cutters. 2. Choose locations for the Schrader valves (inside fuel tank filler door, inside rear wheel wells, or license plate/rear bumper area) and drill a 5/16" (8 mm) hole if necessary. 3. Install the Schrader valve in the chosen location. 4. Use zip ties to secure the air line to fixed points along the chassis without pinching or kinking it. Leave at least 2" (51 mm) of slack in the air line to allow for movement. The minimum bend radius is 1" (25 mm). 5. Maintain at least 6" (152 mm) clearance between all air lines and the exhaust system. 6. Attach the metal heat shield to the exhaust where it is closest to the passenger's (right) side air spring. Slide the air line thermal sleeve over the air line and position it where the air line is closest to the exhaust.
Lower bracket to air spring (3/8"-24 x 7/8" hex head cap screws): 20 lb-ft (27 Nm). Stud nut at frame (3/8" nylon lock nut): 16 lb-ft (22 Nm). Upper bracket hex head bolt: 16 lb-ft (22 Nm). Upper bracket to frame (5/16"-18 x 1" hex head cap screws): 15 lb-ft (20 Nm). Lower bracket to axle (saddle clamp nuts): 16 lb-ft (22 Nm).
The maximum air pressure is 100 PSI (7 BAR). However, the actual air pressure needed depends on load and gross vehicle weight rating. The minimum recommended pressure is 5 PSI (0.34 BAR). Never inflate beyond 100 PSI, and do not exceed your vehicle manufacturer's maximum gross vehicle weight rating or payload rating.
Do not inflate the air springs until they have been properly secured to the vehicle. Compressed air can cause injury and damage to the vehicle and parts if not handled properly.
The installation checklist requires: (1) Clearance test—inflate to 40-60 PSI and verify at least 1/2" (13 mm) clearance from tire, brakes, frame, shock absorbers, and brake cables. (2) Leak test—inflate to 40-60 PSI and check all connections for leaks; eliminate all leaks before road testing. (3) Heat test—ensure at least 6" (152 mm) clearance from heat sources; install heat shield if included. (4) Fastener test—recheck all bolts for proper torque. (5) Road test—drive 10 miles (16 km) and recheck for clearance, loose fasteners, and air leaks. Inflate to recommended driving pressures before road testing.
Check air pressure weekly. Always maintain normal ride height. Never inflate beyond 100 PSI (7 BAR). If the system develops an air leak, use a soapy water solution to check all air line connections and the inflation valve core before deflating and removing the air spring. Do not exceed your vehicle's maximum gross vehicle weight rating or payload rating.
Use a soapy water solution to check all air line connections and the inflation valve core. Apply the solution to all connection points and look for bubbles, which indicate a leak. All leaks must be eliminated before the vehicle is road tested.
The manual does not specify vehicle compatibility. Contact Air Lift customer service at (800) 248-0892 to confirm fitment before purchasing.
Not always. Late model vehicles often have an existing hole for the upper bracket. If no hole exists, you must drill a 5/16" hole in the frame rail after checking for hydraulic lines, gas lines, and electrical wires.
Inflate to 40-60 PSI and verify at least 1/2" (13 mm) clearance from tire, brakes, frame, shock absorbers, and brake cables. Check for leaks at all connections. Perform a road test at 10 miles (16 km) and recheck.
Check air pressure weekly. Always maintain normal ride height and never inflate beyond 100 PSI (7 BAR).
