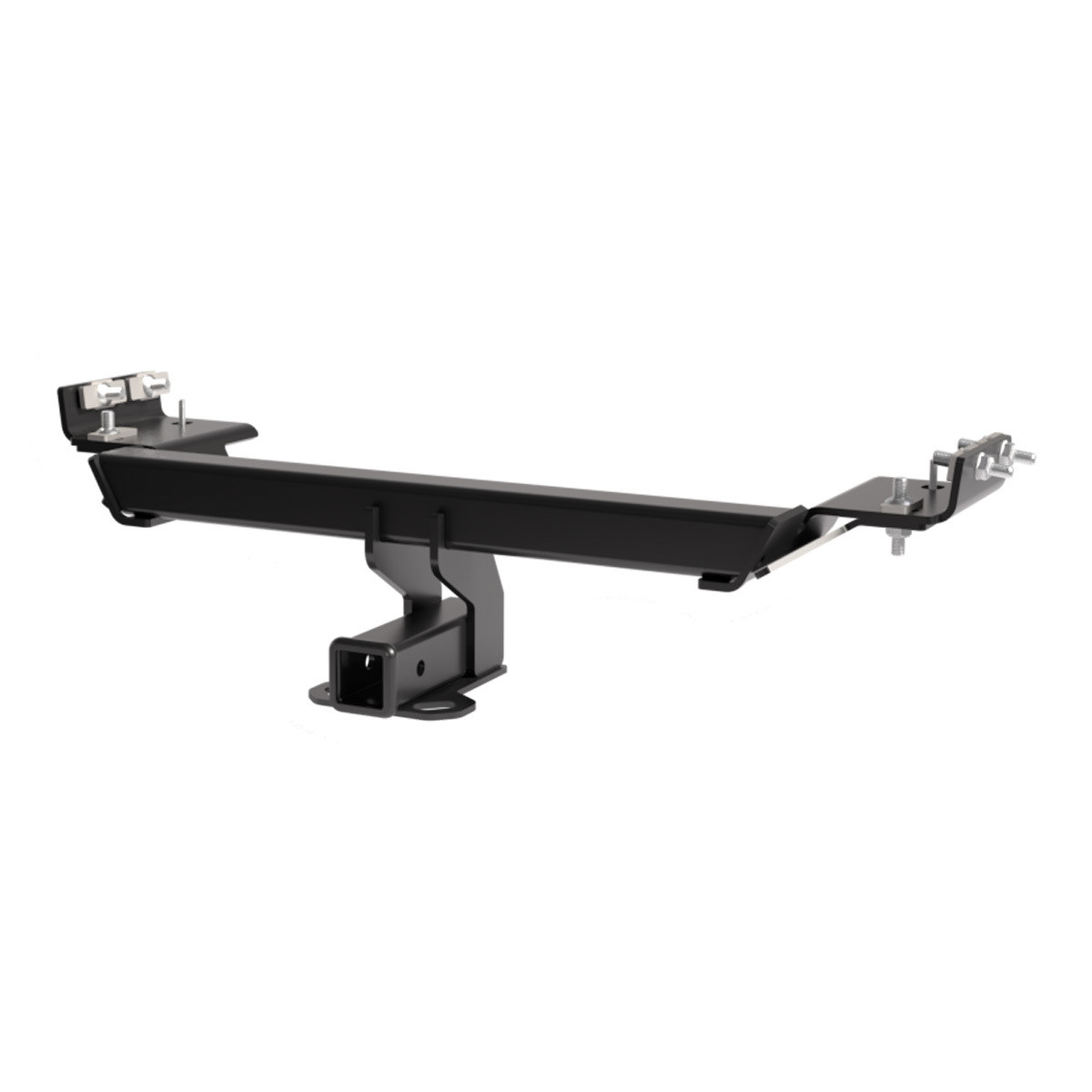

Blue Ox Receiver Hitch, Class III, 2" Receiver BXH3006Blue OxOriginal price was $699.99. Current price is $237.30.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Verify Fitment
Select your vehicle to confirm this part fits.
2017 Jeep Compass
Confirmed to Fit
2018 - 2025 Jeep Compass
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
{'name': 'Vehicle Compatibility', 'description': 'Custom-engineered to fit the unique specifications of your Jeep, ensuring enhanced towing efficiency.
1773: Rear
1775: Yes
200: Powder Coated
1769: III
90: Yes
1767: 2
Experience the power and reliability of the Blue Ox Receiver Hitch (BXH3007) for Jeeps. This premium, custom-designed hitch is crafted to perfectly match the unique specifications of your Jeep, amplifying towing capabilities while enhancing the aesthetic of your vehicle. The hitch features a premium textured black powder coat over an e-coat, providing superior protection against rust and corrosion. It adheres to the stringent SAE J684 standards, demonstrating our commitment to delivering top-quality products. What's more, our hitches often come with a wiring plug mounting bracket for a swift and easy installation. Enjoy the peace of mind provided by our robust limited lifetime warranty.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 | Jeep Compass | For vehicle manufactured in the second half of 2017 and later, Rear plastic piece is removed and reinstalled on Trailhawk models. The exhaust is lowered and reinstalled for the receiver hitch installation for all models. Some trimming and drilling is required. |
| 2018 - 2025 | Jeep Compass | Rear plastic piece is removed and reinstalled on Trailhawk models. The exhaust is lowered and reinstalled for the receiver hitch installation for all models. Some trimming and drilling is required. |
The BXH3007 is a weight-carrying hitch with a maximum gross trailer weight (GTW) of 4000 lb (1814 kg) and maximum tongue weight (TW) of 600 lb (272 kg). However, you must verify your vehicle's towing capacity in your owner's manual and use whichever is less. Do not exceed your vehicle's towing rating, as doing so will void the manufacturer's warranty.
Yes, the BXH3007 is designed for both Trailhawk and Non-Trailhawk models of the 2017.5-2025 Jeep Compass. However, the installation procedure differs between the two versions. Trailhawk models require removal and reinstallation of a rear plastic piece and removal of a front center support bracket, while Non-Trailhawk models do not. Both require exhaust lowering, trimming, and drilling.
No. The BXH3007 is a weight-carrying hitch and must not be used with spring bars.
Required tools include: reciprocating saw, die grinder, 3/16" drill bit, torque wrench, tape measure, tape, flat screwdriver, T30 Torx, 11MM socket, 13MM socket, 19MM socket, 21MM socket, 3/4" deep socket, 13/16" wrench, and a jack or stand to support the exhaust. A power drill is recommended for drilling.
The kit includes: 6 existing M14 x 2MM x 45MM bolts (reused from vehicle), 1 receiver hitch (2"), 1 bolt bag and manual package, 4 plates (1/4" x 1" x 3" with 1/2" carriage bolt square hole), 4 spacer sheets (7GA x 1-1/4" x 1-1/2" with 5/8" hole), 2 plates (1/4" x 1" x 2-3/8" with 1/2" square hole), 2 hex head bolts (8MM-1.25 x 40MM, Grade 8.8), 6 carriage bolts (1/2"-13 x 2", Grade 8), 6 whiz flange nuts (1/2"-13, Grade 8), 2 conical washers (3/8"), 2 plastic rivets (6.3MM), and 6 bolt leaders (1/2" x 48"). Hardware differs slightly between Trailhawk and Non-Trailhawk models.
Blue Ox recommends that installation be performed by Blue Ox Dealers who are familiar with the product and have the equipment and knowledge necessary for fit work. The installer must be aware of the risks and have knowledge of hazards and proper safety procedures involved with adding components to the vehicle chassis. Blue Ox Dealers can be found at www.blueox.com or by calling (402) 385-3051.
Yes. The exhaust must be lowered for receiver hitch installation on all 2017.5-2025 Jeep Compass models, both Trailhawk and Non-Trailhawk. The exhaust is supported using a jack or stand during removal of exhaust bracket bolts and is then reinstalled after the hitch is positioned.
Yes. A 3/16" drill bit is required to drill out two pop rivets from the bottom of the rear fascia on Trailhawk models (Step 8). On Non-Trailhawk models, a die grinder is used to expand existing frame holes to 1-1/8" to create access holes for receiver hitch hardware (Step 11). These are permanent modifications to the vehicle.
Yes. A reciprocating saw is used to remove marked areas from the rear fascia and plastic piece. On Non-Trailhawk models, measure 4-1/2" from each end of the rear fascia and remove the marked area from each side (Step 5). A 3-1/2" x 2-5/8" rectangle is cut from the center of the rear fascia (Non-Trailhawk, Step 15) or plastic piece (Trailhawk, Step 14b). On Non-Trailhawk models, triangle points are removed from the exhaust bracket (Step 20a). On Trailhawk models, tabs on the exhaust bracket are either bent down or removed with a reciprocating saw (Step 20b). These are permanent modifications.
Yes. Use a good quality paint to spray cut edges of the frame to prevent rusting. This is noted in the Notice section as an important maintenance step after cutting.
Tighten 1/2" bolts to 119 ft/lbs. This applies to the side bolts and bottom rear bolt on Non-Trailhawk models (Step 19).
Tighten M14 bolts to 117 ft/lbs. These are the existing frame bolts used on Trailhawk models (Step 19).
Tighten 8MM bolts to 16 ft/lbs. These bolts are used when reinstalling the exhaust bracket with the conical washer (Step 21).
Torque values for Grade 8.8 metric bolts are: 6MM = 6 ft/lbs, 8MM = 16 ft/lbs, 10MM = 31 ft/lbs, 12MM = 54 ft/lbs, 14MM = 89 ft/lbs, 16MM = 161 ft/lbs, 18MM = 222 ft/lbs.
Torque values for Grade 8 inch bolts are: 1/4" = 14 ft/lbs, 5/16" = 29 ft/lbs, 3/8" = 47 ft/lbs, 7/16" = 78 ft/lbs, 1/2" = 119 ft/lbs, 5/8" = 230 ft/lbs, 3/4" = 380 ft/lbs.
Tighten side bolts first, alternating between the driver side and passenger side. Once side bolts are tightened, tighten the bottom rear bolt on each side of the vehicle. When tightening side bolts, ensure the bottom forward hole does not shift to cover the bolt hole. Use the torque specifications: 1/2" bolts to 119 ft/lbs (Non-Trailhawk) or M14 bolts to 117 ft/lbs (Trailhawk), and 8MM exhaust bolts to 16 ft/lbs.
The receiver hitch must be raised into place so that it sits between the rear fascia and the brackets that hold the rear fascia in place. On Non-Trailhawk models, lead wires are removed and whiz flange nuts are loosely installed before final tightening. On Trailhawk models, existing bolts are loosely installed into the two side holes. The rear tow hook may need adjustment to get holes to line up.
Spacer plates are used to create proper spacing and alignment during hitch installation. On Non-Trailhawk models, spacer plates are placed onto lead wires and attached to carriage bolts, then pulled through the frame to position the bolts correctly. The spacer plate must sit flush against the inner frame. On Trailhawk models, spacer plates are centered over the side holes on the inside of the hitch and taped in place.
The conical washer is used when reinstalling the exhaust bracket. The teeth of the conical washer must be oriented towards the hitch. The washer is used with the 8MM bolt, which is tightened to 16 ft/lbs.
If the receiver hitch is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the hitch if it is damaged or missing parts.
When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface. These tools are necessary for drilling pop rivets, expanding frame holes, and cutting the rear fascia.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Tighten all bolts to the recommended torque specifications. This is the owner's responsibility.
After installation, ensure that all electrical connections are plugged in and accessories are functioning properly. Verify that all bolted connections are at the correct torque specification. Complete a visual inspection before towing each time. Check that the hitch is not in contact with electrical wires or hoses, as improper installation against these could cause fluid leaks or electrical shorts.
Check that all bolted connections are at the correct torque specification on a regular basis. The owner's responsibility includes inspecting all towing equipment for loose bolts before each towing trip and tightening them to the recommended specifications.
Place all components that are removed on a flat, sturdy surface. All items will be reinstalled unless otherwise noted after the receiver hitch is installed. Items that are reinstalled include the heat shield, exhaust bracket, front center support bracket (Trailhawk only), rear plastic piece (Trailhawk only), and rear fascia.
No. Do not alter this product in any way. Modifying the product could change its integrity and lead to a loss of connection between the towed item and the tow vehicle. Use only genuine factory replacement parts on the hitch receiver. Do not substitute homemade or non-typical parts.
Blue Ox offers a limited lifetime warranty to the original retail purchaser. The product is warranted to be free from defect in material and workmanship under normal use and service for as long as the original purchaser owns the product. The warranty is non-transferable and requires registration within 30 days of purchase. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint, or rust. Register your product at www.blueox.com/warranty/.
Yes, the BXH3007 fits all 2017.5-2025 Jeep Compass models, including both Trailhawk and Non-Trailhawk versions. Installation procedures differ slightly between the two versions.
Maximum gross trailer weight is 4000 lb and maximum tongue weight is 600 lb. However, you must verify your vehicle's towing capacity in your owner's manual and use whichever is less.
You will need a reciprocating saw, die grinder, 3/16" drill bit, torque wrench, and various sockets (11MM, 13MM, 19MM, 21MM, 3/4" deep) plus other hand tools. A jack or stand is required to support the exhaust.
Yes. Drilling is required to remove pop rivets (Trailhawk) or expand frame holes (Non-Trailhawk). Cutting with a reciprocating saw is required to remove sections of the rear fascia and exhaust bracket. These are permanent modifications.
Tighten 1/2" side and rear bolts to 119 ft/lbs (Non-Trailhawk) or M14 bolts to 117 ft/lbs (Trailhawk). Tighten 8MM exhaust bolts to 16 ft/lbs. Refer to the torque chart for other bolt sizes.
Before each towing trip, inspect the hitch for cracked welds, missing or worn parts, and loose bolts. Tighten all bolts to the recommended torque specifications. Verify that all electrical connections are functioning properly.
Blue Ox recommends installation by a Blue Ox Dealer who is familiar with the product and has the necessary equipment and knowledge. Find a dealer at www.blueox.com or call (402) 385-3051.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
On Sale Today
Original price was $699.99. Current price is $299.88.You save $400.11 (57%)
Free Shipping
Ships free on all orders
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Sat, Sep 26 - Tue, Sep 29
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
No reviews have been added for this product.
