Custom Design: Specifically designed to fit each towed vehicle perfectly, enhancing safety and ensuring a secure connection.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

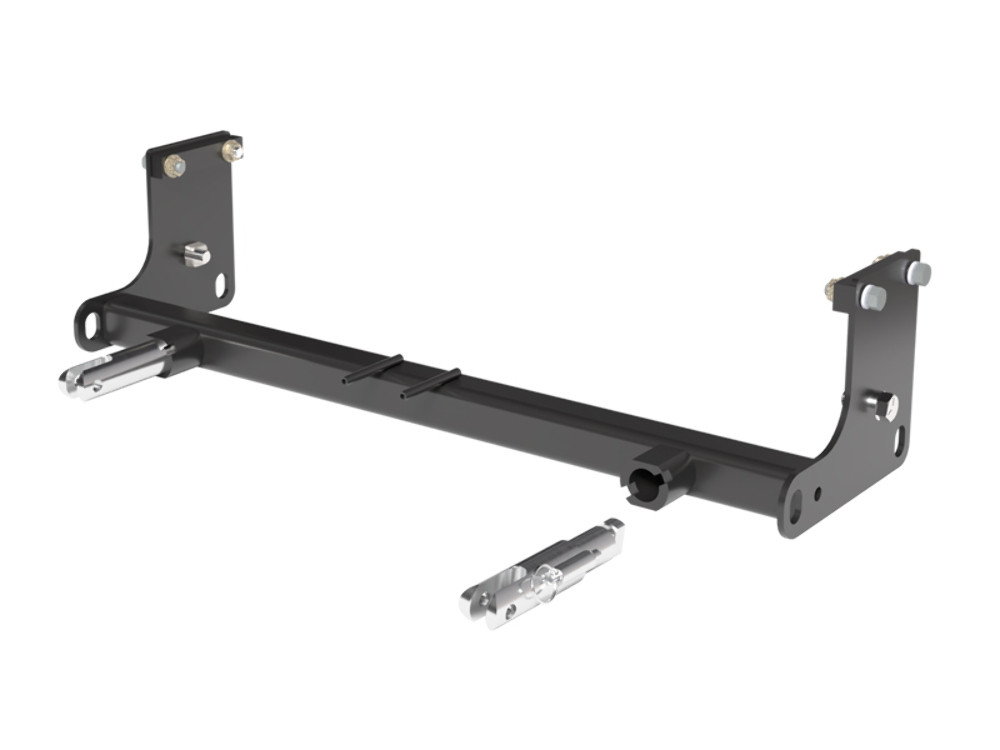

The Blue Ox BX1126 Tow Bar Bracket is a robust and reliable solution engineered for your towing needs. It features a custom design that fits perfectly with specific towed vehicles, ensuring a secure and safe towing experience. Made from high-quality steel with a black powder coat finish, this bracket offers durability and resistance against wear and tear. The bolt-on mounting type ensures an easy and secure installation. With included mounting hardware and a comprehensive DIY installation guide, this tow bar bracket provides unparalleled convenience and value to our customers.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2017 | Jeep Wrangler | Comes with Removable Attachment Tabs Install Rating 2 w/Standard Bumper |
| 2007 - 2014 | Jeep Wrangler | Comes with Removable Attachment Tabs Install Rating 2 w/Standard Bumper Bumper Fascia Must Be Removed/Replaced During Install Only Use Acclaim w/23in./Greater Spaced Tab Removable Tab Baseplates Only Use Adventurer w/16: 36 in. Spaced Removable Tab Baseplates Only Use Ambassador w/24 in. Spaced Removable Tabs PN BX88152 Adapter Can Not Be Used w/This Baseplate Removable Tabs w/Only 1 Hole Will Not Attach To Car Mount Tow Bars Removable Tabs w/Only 1 Hole Will Not Attach To Other Adapters Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters |
| 2018 | Jeep Wrangler JK | Comes with Removable Attachment Tabs Install Rating 2 w/Standard Bumper |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP WRANGLER, RUBICON (Part #FDRWBX1126) fits the following vehicles: 2007-2017 Jeep Wrangler; 2018 Jeep Wrangler JK. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP WRANGLER, RUBICON (Part #FDRWBX1126) fits 2007-2017 Jeep Wrangler models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP WRANGLER, RUBICON (Part #FDRWBX1126) is designed to fit the 2007-2017 Jeep Wrangler.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP WRANGLER, RUBICON (Part #FDRWBX1126) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1126 is designed for 2007-18 Jeep Wrangler and Wrangler Unlimited (JK) models with a standard bumper. It does not fit JL models. The attachment tab height is 14-1/2" and width is 24". Verify your vehicle has a standard bumper before purchasing.
No. The BX1126 is designed only for 2007-18 Jeep Wrangler JK models. It does not fit JL models (2019 and newer). Do not use this baseplate on vehicles outside the specified model years.
No. The BX1126 is designed only for vehicles with a standard factory bumper. If your Wrangler has an aftermarket bumper, this baseplate is not compatible. Contact Blue Ox at (402) 385-3051 to confirm your vehicle's bumper type before purchasing.
The manual does not specify a maximum towing weight. The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating), and exceeding this weight voids the manufacturer's warranty. Refer to your Jeep Wrangler owner's manual for your vehicle's GVWR and towing specifications.
Blue Ox recommends installation by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Dealers can be found at www.blueox.com or by contacting Blue Ox Technical Service at (402) 385-3051. Installation requires drilling, trimming, and use of specialized tools.
Required tools are: large vise grip, utility knife, Phillips screwdriver, torque wrench, drill, reciprocating saw, tape measure, 17/32" drill bit, 18MM socket, 3/4" socket, and 15/16" socket. You will also need Loctite Red for all bolt threads.
Yes. You must drill the top holes of the baseplate through the frame using a 17/32" drill bit. This is done on both sides of the vehicle. Additionally, on 2007-09 models, the lower frame extension must be cut flush with the outside edge of the lower side bracket using a reciprocating saw on both sides.
No. Frame cutting is required only on 2007-09 models. Using a reciprocating saw, cut the lower frame extension flush with the outside edge of the lower side bracket on both sides. On 2010 models and newer, no frame cutting is required. Blue Ox recommends painting the cut edges to prevent rusting.
Yes. The belly pan must be removed at the start of installation and reinstalled at the end. During reinstallation, you must mark and trim a slot for the baseplate endplate to come through using a utility knife on both sides of the vehicle. The belly pan is then slid between the baseplate crosstube and lower frame suspension.
1. Remove four push pins from belly pan bottom and two from tabs on back. 2. Disconnect foglights and remove bolts from bumper frame edges (18MM socket, both sides). 3. Pull bumper forward and disconnect three wiring loom clips. 4. On 2007-09 models only: cut lower frame extension with reciprocating saw. 5. Align baseplate lower hole with existing frame hole (lower hole on 2007-09, middle hole on 2010+) and clamp with vise grips. 6. Install 5/8"-11 bolts with lock washers and tighten to whiz nuts. 7. Drill top holes with 17/32" bit, install spacer plates and 1/2"-13 bolts with lock washers. 8. Reinstall bumper and wiring loom, reconnect foglights. 9. Attach permanent baseplate safety cables. 10. Trim belly pan slot and reinstall.
Yes. The bumper must be removed and reinstalled during installation. First, disconnect the foglights from the back side of the bumper. Using an 18MM socket, remove two bolts on the outside edge of the frame on both sides, then two bolts on the inside edge on both sides. Pull the bumper forward and disconnect three clips attaching the wiring loom. After baseplate installation, reinstall the bumper and wiring loom and reconnect the foglights.
Yes. The belly pan must be removed at the start of installation. Using a Phillips screwdriver, remove four push pins from the bottom (two on each side) and two push pins from tabs on the back. Set it aside. After the baseplate is installed, the belly pan is reinstalled with a trimmed slot to allow the baseplate endplate to come through.
The manual provides a torque chart for metric and inch bolts by grade, but does not specify the grade of the 5/8"-11 bolts or their exact torque value. According to the parts list, the 5/8"-11 x 1-1/2" hex head bolts are Grade 5, which would be 154 foot-pounds for Grade 5 bolts per the torque chart. However, contact Blue Ox at (402) 385-3051 to confirm the exact torque specification for these bolts.
The manual provides a torque chart for inch bolts by grade. The 1/2"-13 x 1-3/4" hex head bolts are Grade 5 (per the parts list), which corresponds to 78 foot-pounds according to the torque chart. Apply Loctite Red to all bolt threads before tightening.
Torque specifications for Grade 5 bolts are: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs, 5/8" = 154 ft-lbs, 3/4" = 257 ft-lbs. Apply Loctite Red to all bolt threads before tightening and use a torque wrench to ensure proper tightness.
The attachment tab height is 14-1/2" and the attachment tab width is 24".
The manual does not state whether a wiring kit is included. However, the BX8869 Tail Light Wiring Kit is recommended for this vehicle. You must drill a hole according to the tail light wiring kit instructions. Contact your Blue Ox Dealer or call (402) 385-3051 to determine if the wiring kit is included or must be purchased separately.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The BX1126 includes two Class III Safety Cables (part 226-0046) and two 3/8" Quicklinks (part 229-0359). Cables must be connected from the baseplate to the frame rail or cross member and must not rub against wires, hoses, or brake lines. These cables are in addition to, not a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended specifications. Ensure the permanent baseplate safety cables do not rub against any hoses or moving parts.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Paint any cut frame edges to prevent rusting. Ensure permanent baseplate safety cables remain installed as long as the baseplate is installed and do not rub against hoses or moving parts. Register your product at www.blueox.com to receive alerts about maintenance, updates, and recalls.
The kit includes: 2 x 5/8"-11 nut wire (61-3997), 4 x 1/2"-13 whiz nut with 14" wire (61-4029), 1 x BX1126 baseplate (61-6344), 2 x attachment tab assembly SF/SB right (62-3468), 2 x BX1126 spacer plate (102-6768), 4 x 1/2"-13 x 1-3/4" hex head bolt Grade 5 (201-0068), 2 x #10-32 x 1/2" round head slot screw (201-0192), 2 x 5/8"-11 x 1-1/2" hex head bolt Grade 5 (201-0350), 2 x #12-14 x 1" self drilling screw (201-0979), 2 x #10-32 hex nut (202-0047), 4 x 1/2" lock washer (203-0012), 2 x 5/8" lock washer (203-0013), 2 x #10 lock washer (203-0054), 1 x 4-way bracket (299-0685), 2 x class III safety cables (226-0046), 2 x 3/8" quicklink (229-0359), and 2 x black cap plug receiver (290-0437).
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to use the correct parts will void the manufacturer's warranty.
The BX1126 fits 2007-18 Jeep Wrangler and Wrangler Unlimited (JK) models with a standard factory bumper only. It does not fit JL models (2019+) or vehicles with aftermarket bumpers.
Yes. You must drill the top holes using a 17/32" drill bit. On 2007-09 models only, you must also cut the lower frame extension with a reciprocating saw. The belly pan requires trimming to fit around the baseplate endplate.
Required tools: large vise grip, utility knife, Phillips screwdriver, torque wrench, drill, reciprocating saw, tape measure, 17/32" drill bit, 18MM socket, 3/4" socket, 15/16" socket, and Loctite Red.
Blue Ox recommends installation by Blue Ox Dealers who have the equipment and knowledge for fit work. Installation requires drilling, trimming, and specialized tools. Find a dealer at www.blueox.com or call (402) 385-3051.
For Grade 5 bolts: 1/2" = 78 ft-lbs, 5/8" = 154 ft-lbs. Apply Loctite Red to all bolt threads before tightening. Use a torque wrench to ensure proper tightness.
Yes. Two Class III Safety Cables and two 3/8" Quicklinks are included. Permanent baseplate safety cables are strongly recommended and must be connected from the baseplate to the frame rail or cross member. They must not rub against wires, hoses, or brake lines.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all electrical connections are plugged in and functioning. Verify safety cables are secure and do not rub against hoses or moving parts.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. If the baseplate does not align level with the frame, contact Blue Ox Technical Service at (402) 385-3051 for guidance on adjustments.
Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines. If the recommended cable routing interferes with hoses or moving parts, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Ensure the cables do not rub against any hoses or moving parts before completing installation.
Use a good quality paint to spray the cut edges of the frame to prevent rusting. This is especially important on 2007-09 models where the lower frame extension is cut flush with the outside edge of the lower side bracket using a reciprocating saw.
