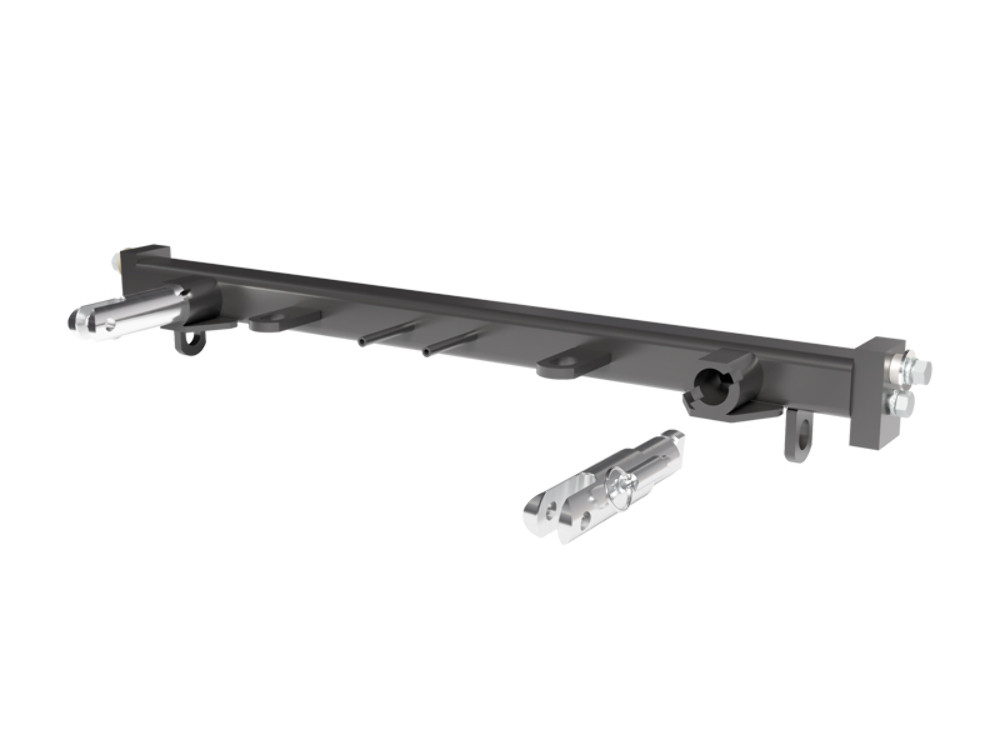

Custom Design: Each Blue Ox BX1133 Tow Bar Bracket is custom designed for each specific towed vehicle, ensuring a perfect fit and easy installation.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Blue Ox BX1133 Tow Bar Bracket is the ultimate tool to hitch your vehicle with ease and stability. Crafted with precision, this bracket is custom-designed to fit your towed vehicles perfectly, ensuring an effortless installation and a secure attachment. Made from high-quality steel, it is durable and robust, promising you long-lasting service. Its black powder-coated finish not only gives it an appealing look but also enhances its resistance to corrosion and wear. The package comes inclusive of all the necessary mounting hardware, making it a simple do-it-yourself task.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 | Jeep Wrangler | For Use w/Call Of Duty Model: MW3 (AEV Tubeless Bumper) Comes with Standard Attachment Tabs Install Rating 1 One Piece Standard Design Optional Brush Guards Interfere w/Mounting Baseplate PN BX3502 Center Section Is Compatible |
| 2013 | Jeep Wrangler | For Use w/Call Of Duty Model: MW3 (AEV Tubeless Bumper) and Moab (AEV Tubeless Bumper) Comes with Standard Attachment Tabs Install Rating 1 One Piece Standard Design Optional Brush Guards Interfere w/Mounting Baseplate PN BX3502 Center Section Is Compatible |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP WRANGLER, UNLIMTD (Part #FDRWBX1133) is designed to fit the 2012-2013 Jeep Wrangler.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP WRANGLER, UNLIMTD (Part #FDRWBX1133) fits 2012-2013 Jeep Wrangler models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP WRANGLER, UNLIMTD (Part #FDRWBX1133) fits the following vehicles: 2012-2013 Jeep Wrangler. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP WRANGLER, UNLIMTD (Part #FDRWBX1133) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1133 is designed for the 2012 Jeep Wrangler Unlimited Call of Duty: MW3 with an AEV Tubeless Front Bumper. It is also compatible with the 2013 Jeep Wrangler Moab with the same bumper. The baseplate is designed to mount to the AEV Tubeless Front Bumper specifically.
Yes, the BX1133 is designed for the 2013 Jeep Wrangler Moab with an AEV Tubeless Front Bumper. It is also compatible with the 2012 Jeep Wrangler Unlimited Call of Duty: MW3 with the same bumper.
The attachment tab height is 18 inches and the attachment tab width is 24 inches.
The following tools are required: large vise grip, rubber mallet, torque wrench, tape measure, drill, 13MM socket, and Loctite Red. When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface.
The kit includes: 1 BX1133 Baseplate (61-7064), 2 Attachment Tab Assemblies with Hole (62-3468), 2 Spacer Tubes 1" OD x 7/32" ID x 1/2" Long (107-3359), 4 Hex Head Bolts 1/2"-13 x 1-3/4" Grade 5 ZP (201-0068), 2 Round Slotted Head Screws #10-32 1/2" (201-0192), 2 Self Drilling Screws #12-14 x 1" ZP (201-0979), 2 Hex Nuts #10-32 (202-0047), 2 Flat Washers 1/2" ZP (203-0005), 4 Lock Washers 1/2" ZP (203-0012), 2 Lock Washers #10 ZP (203-0054), 1 4-Way Bracket (299-0685), 2 Class IV Safety Cables (226-0049), 2 Quicklinks 1/2" ZP (229-0512), and 2 Black Cap Plug Receivers (290-0437).
No. Even though bolts may already be present on your vehicle, do not assume they are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit and existing hardware as specified in the installation instructions. Reference your vehicle owner's manual for manufacturer's towing specifications.
Blue Ox towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051.
1. Align the baseplate between the bumper brackets. 2. Insert one 1/2"-13 x 1-3/4" hex head bolt and 1/2" lock washer in the bottom hole and tighten securely on both sides. 3. Using a rubber mallet, insert the spacer tube into the top hole until it is flush with the hole. 4. Insert one 1/2"-13 x 1-3/4" hex head bolt, 1/2" lock washer, and 1/2" flat washer and tighten securely on both sides.
If installing a breakaway switch, use a 13MM socket to remove one existing bolt on either side of the bumper. Align the hole of the breakaway switch bracket and use the fasteners provided to secure it.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. If additional options may interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Be sure the safety cables do not rub against any hoses or moving parts. Install on both sides of the vehicle.
The torque specification for 1/2" Grade 5 bolts is 78 foot-pounds. Always use Loctite Red on all bolt threads before tightening and use a torque wrench to achieve the correct specification.
The manual provides torque specifications for metric and inch bolts in standard sizes but does not specify torque for #10-32 fasteners. Contact Blue Ox Customer Care at (402) 385-3051 for the correct torque specification for these fasteners.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. Ensure all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Reference your vehicle owner's manual for manufacturer's towing specifications and do not exceed your vehicle's GVWR.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Their function is to prevent the towed vehicle from breaking loose in the event the connection between the frame and baseplate fails or becomes disconnected. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses, or brake lines. These cables should remain installed as long as the baseplate is installed and are to be used in conjunction with, not as a replacement for, legally required safety cables.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes, remove the attachment tabs when not in use if applicable.
Use a good quality paint to spray cut edges of frame to prevent rusting.
Yes, it is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. Warranty coverage is valid only if the customer warranty card is returned by the original purchaser within 30 days of purchase.
Blue Ox provides a three-year limited warranty to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service from the date of delivery. Warranty coverage is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any warranty claim. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to properly service and maintain, misuse, accident, normal wear and tear, paint, or rust.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow these instructions or altering them will void the manufacturer's warranty.
Place all components that are removed on a flat, sturdy surface. All items will be reinstalled unless otherwise noted after the baseplate is installed.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances.
Handling of some cosmetic parts when installing this product may require the use of protective covers, rags, specialty tools, etc. to prevent damage.
It is the installer's responsibility to watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines.
The BX1133 is designed for 2012 Jeep Wrangler Unlimited Call of Duty: MW3 and 2013 Jeep Wrangler Moab with AEV Tubeless Front Bumper only.
You will need: large vise grip, rubber mallet, torque wrench, tape measure, drill, 13MM socket, and Loctite Red.
The main mounting bolts are 1/2"-13 Grade 5, which should be torqued to 78 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Do not exceed this weight or the warranty will be voided. Check your vehicle owner's manual for GVWR specifications.
Permanent baseplate safety cables are strongly recommended. They must be connected from the baseplate to the frame rail or cross member and must not rub against hoses or moving parts.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. Ensure all electrical connections are plugged in and functioning before reinstalling the fascia.
