Custom-Designed Fit: Each Blue Ox base plate is individually tailored for each specific towed vehicle model, ensuring a perfect fit and seamless integration.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

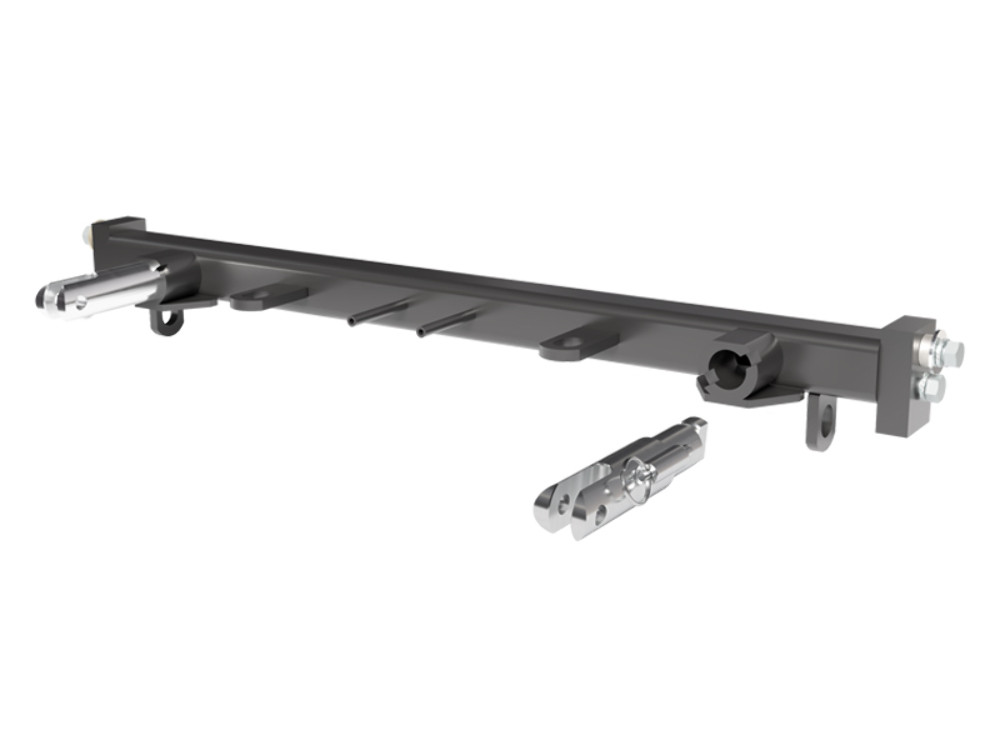

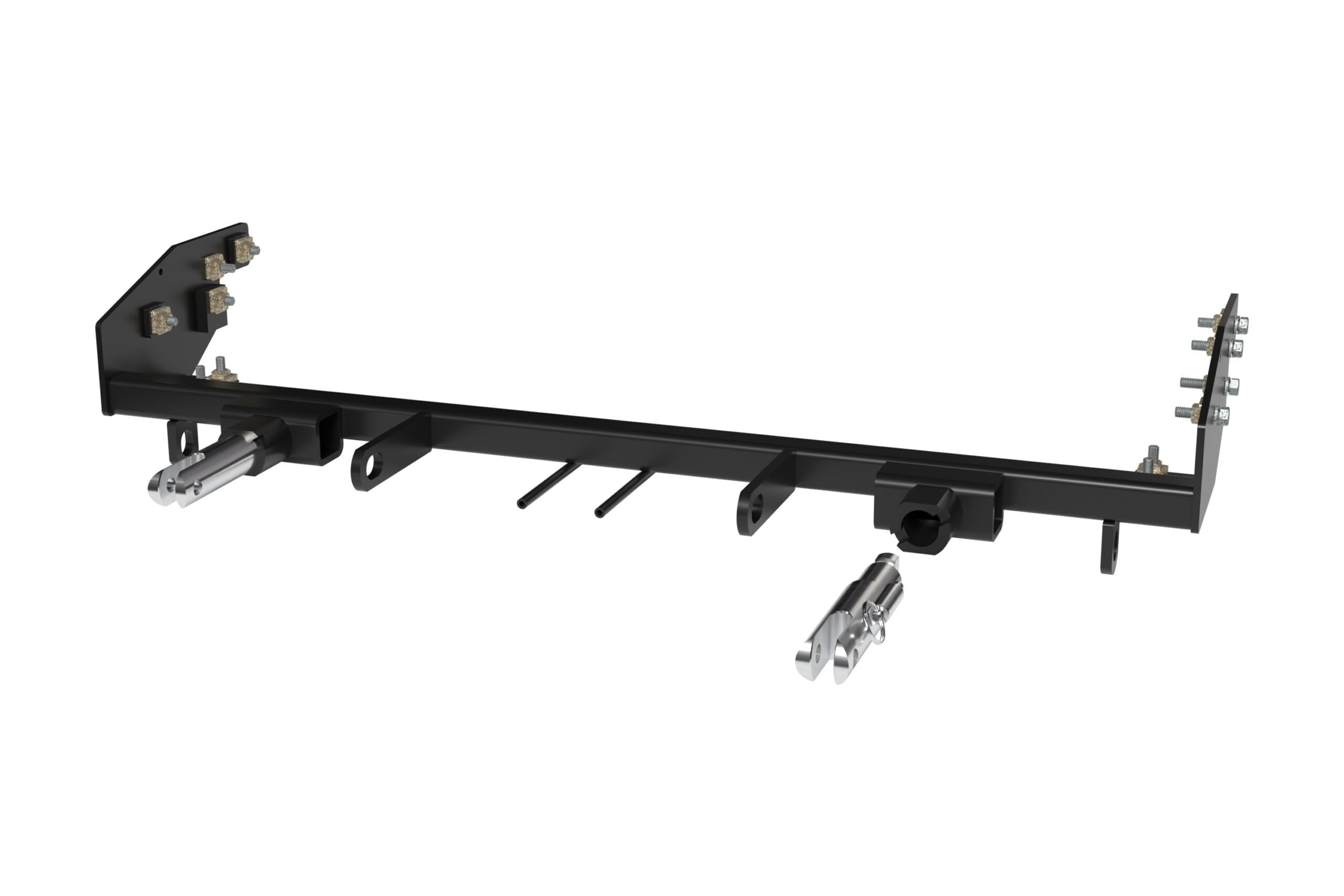

The BX1137 Tow Bar Bracket by Blue Ox is the perfect addition to your towing setup. Meticulously crafted from premium black steel, this base plate provides the ideal link between your vehicle and the tow bar. With a rugged powder coat finish, it offers superior resistance to rust, ensuring longevity and reliable performance. Designed for an easy bolt-on installation, it comes with all necessary mounting hardware and straightforward instructions, making the setup process a breeze. Enhance your towing capabilities with the Blue Ox BX1137 Tow Bar Bracket.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1987 - 1995 | Jeep Wrangler | Comes with Removable Attachment Tabs Install Rating 2 |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP RENEGADE (Part #FDRWBX1137) is designed to fit the 1987-1995 Jeep Wrangler.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP RENEGADE (Part #FDRWBX1137) fits the following vehicles: 1987-1995 Jeep Wrangler. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP RENEGADE (Part #FDRWBX1137) fits 1987-1995 Jeep Wrangler models. The 1995 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP RENEGADE (Part #FDRWBX1137) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

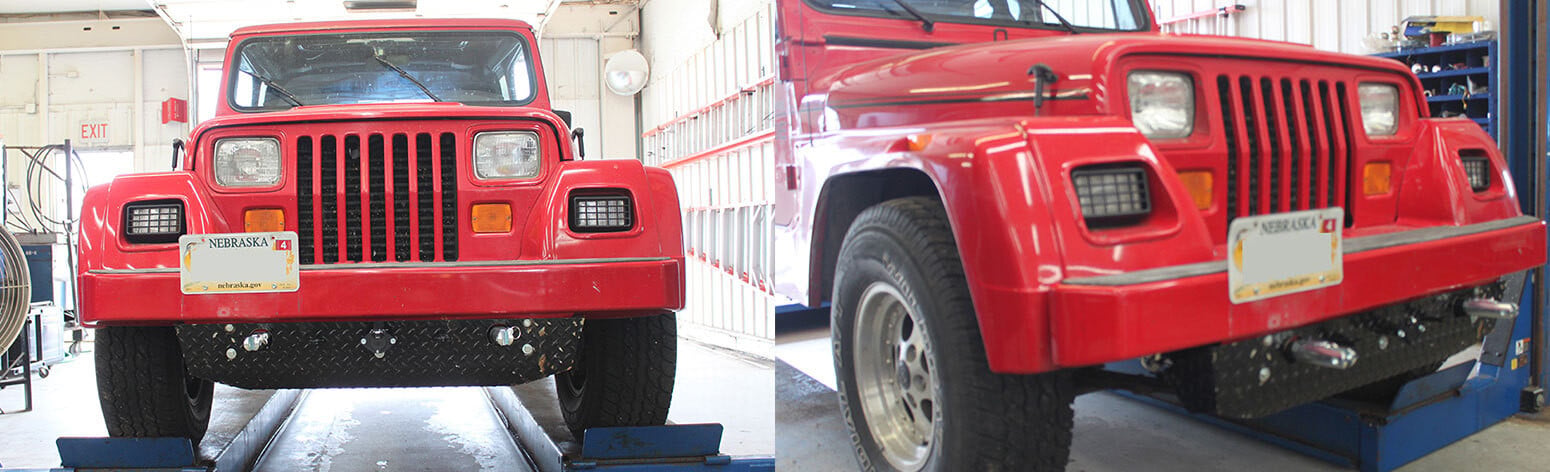

Yes, the BX1137 is designed for 1987-1995 Jeep Wrangler (YJ) models. However, if the front of your vehicle looks different than shown in the manual, contact Blue Ox Customer Care at (402) 385-3051 before proceeding with installation.
The attachment tab height is 17 inches and the attachment tab width is 24 inches.
Required tools are: large vise grip, torque wrench, drill, tape measure, 1/2" drill bit, 16MM socket, 5/8" socket, and 3/4" socket. You will also need Loctite Red for all bolt threads.
The kit includes: 4× 1/2"-13 Whiz Nuts with 10" wire, 1× BX1137 Baseplate, 2× Attachment Tab Assemblies with hole, 1× 1/4"-20 x 3/4" Hex Head Bolt Grade 5, 4× 1/2"-13 x 2-1/2" Hex Head Bolts Grade 5, 2× #10-32 1/2" Round Slotted Head Screws, 2× 7/16"-14 x 6" Hex Head Bolts Grade 5, 2× #12-14 x 1" Self Drilling Screws, 2× #10-32 Hex Nuts, 1× 1/4"-20 Hex Nylon Nut, 2× 7/16" Lock Washers, 4× 1/2" Lock Washers, 2× #10 Lock Washers, 1× Electrical Bracket, 2× Class III Safety Cables, and 2× 3/8" Quicklinks.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. If used, you will need to drill a hole according to the tail light wiring kit instructions.
Yes, drilling is required. You will drill three holes on the passenger side and one hole on the driver side using a 1/2" drill bit to mount the baseplate to the frame. Some drilling and trimming is also required, and any skid plate or aftermarket product may have to be removed and modified for baseplate installation.
Yes. Using a 16MM socket, remove the two existing frame bolts before positioning the baseplate onto the vehicle. These will be replaced with the 7/16"-14 x 6" bolts supplied in the kit.
Torque specifications for Grade 5 bolts in foot-pounds are: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs, 5/8" = 154 ft-lbs, 3/4" = 257 ft-lbs. All bolts must be tightened according to these specifications using Loctite Red on all bolt threads.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member. Each cable must have adequate weight rating, and the two cables together must meet the system requirements. Safety cables must not be mounted against wires, hoses, or brake lines.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and ensure you do not exceed your vehicle's GVWR.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended torque specifications using Loctite Red. Verify that all electrical connections are plugged in and accessories are functioning properly.
Yes, you must use a sufficient amount of Loctite Red on all bolt threads before tightening. This is required for proper installation and must be reapplied if bolts are removed and reinstalled.
1. Remove two existing frame bolts using a 16MM socket. Position the baseplate and install 7/16"-14 x 6" bolts with lock washers into existing frame holes. Level and clamp the baseplate on the passenger side, then fully tighten bolts on the driver side. 2. On the passenger side, drill three holes using a 1/2" drill bit and install 1/2"-13 x 2-1/2" bolts with lock washers and whiz nuts. Fully tighten all hardware. 3. On the driver side, drill the middle hole and install one 1/2"-13 x 2-1/2" bolt with lock washer and whiz nut. Fully tighten. 4. Attach permanent baseplate safety cables to the convenience link on the baseplate and secure to the frame on both sides, ensuring cables do not rub against hoses or moving parts.
After installing the 7/16"-14 x 6" bolts with lock washers into the existing frame holes, level the baseplate and clamp it on the passenger side. Fully tighten the bolts on the driver side first, then proceed with drilling and installing the remaining bolts on the passenger side.
When using a power drill, be aware of the dangers of torque and drill bit length. Use a 1/2" drill bit for the baseplate mounting holes. After drilling, use a good quality paint to spray cut edges of the frame to prevent rusting. Be careful not to drill into hidden components behind the frame.
The manual indicates that handling of some cosmetic parts when installing this product may require protective covers, rags, and specialty tools to prevent damage. Ensure all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia. However, the manual does not specify whether complete removal of the bumper or fascia is required.
No. You must use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (usually Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to use genuine parts will void the manufacturer's warranty.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. If needed, Blue Ox Dealers can be found at www.blueox.com or by contacting Customer Care at (402) 385-3051.
Watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts some time after installation. Be sure the safety cables do not rub against any hoses or moving parts.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use. Warranty coverage requires the customer warranty card to be returned within 30 days of purchase and a copy of the original invoice. The warranty does not cover improper installation, modification, neglect, misuse, normal wear and tear, paint or rust, or towing behind a non-motorized vehicle. The warranty is non-transferable.
You must register your product online at www.blueox.com. Registration is crucial so you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls. The warranty card must be returned within 30 days of purchase for coverage to be valid.
Yes, the BX1137 is designed for 1987-1995 Jeep Wrangler (YJ) models. If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before installing.
Yes. You will drill three holes on the passenger side and one hole on the driver side using a 1/2" drill bit. Some drilling and trimming is required, and any skid plate or aftermarket product may need to be removed and modified.
You need: torque wrench, drill with 1/2" bit, 16MM socket, 5/8" socket, 3/4" socket, large vise grip, tape measure, and Loctite Red for all bolt threads.
For Grade 5 bolts, torque 1/2" bolts to 78 foot-pounds. Always apply Loctite Red to all bolt threads before tightening.
Permanent baseplate safety cables are strongly recommended. They must be connected from the baseplate to the frame rail and must not be mounted against wires, hoses, or brake lines. They are in addition to, not a replacement for, legally required safety cables.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications.
Inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to spec with Loctite Red. Verify all electrical connections are plugged in and functioning.
The BX8869 is recommended for this vehicle. If used, you will drill a hole according to the kit's instructions.
Do not use the baseplate if it is damaged or missing parts. If the baseplate was involved in an accident, it must be replaced and not used again, as an accident can cause unseen damage that could result in more damage or serious injury. Contact Blue Ox Customer Care at (402) 385-3051 for replacement parts or a replacement baseplate.
If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. Watch for oil cooler and air conditioner lines, electrical wires and hoses, and ensure safety cables do not rub against any hoses or moving parts. If you suspect contact with wires or hoses, stop using the vehicle and have the installation inspected by a Blue Ox Dealer.
Tighten all loose bolts to the correct torque specifications using Loctite Red on all bolt threads. Refer to the torque chart: 7/16" Grade 5 bolts = 54 ft-lbs, 1/2" Grade 5 bolts = 78 ft-lbs. Use a calibrated torque wrench. If bolts continue to loosen, ensure Loctite Red is being applied to all threads before tightening.
