{'feature_1': 'Designed specifically for each towed vehicle, ensuring a precise and secure fit.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

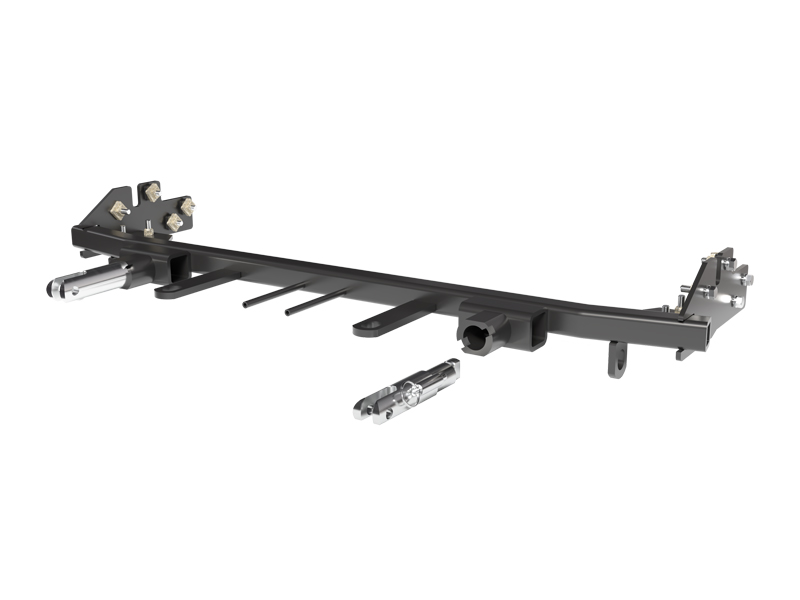

Experience the best in towing convenience with the Blue Ox BX1132 Tow Bar Bracket. Designed with the utmost precision, this bracket is custom-made to fit each specific towed vehicle, ensuring a perfect fit and enhanced durability. It is crafted from high-strength steel, promising resilience against wear and tear, and finished with a black powder coat for added protection against corrosion. The bracket features an easy bolt-on mounting type, meaning you don't need to be a professional to install it. With all necessary mounting hardware included, you can do the installation yourself. The Blue Ox BX1132 is not just a tow bar bracket, it's a promise of quality, reliability, and ease.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 | Jeep Compass | (No Next Generation) Comes with Removable Attachment Tabs Install Rating 2 Baseplate Has Non 24 in. Spaced Attachment Tabs Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Req. Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Requires Some Trimming Of Bumper Fascia/Plastic/And/Or Grill Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2011 - 2017 | Jeep Compass | (No Next Generation) Comes with Removable Attachment Tabs Install Rating 2 Baseplate Has Non 24 in. Spaced Attachment Tabs Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Req. Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Requires Some Trimming Of Bumper Fascia/Plastic/And/Or Grill Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP COMPASS (Part #FDRWBX1132) fits 2011-2017 Jeep Compass models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP COMPASS (Part #FDRWBX1132) fits the following vehicles: 2011-2017 Jeep Compass. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP COMPASS (Part #FDRWBX1132) is designed to fit the 2011-2017 Jeep Compass.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP COMPASS (Part #FDRWBX1132) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1132 is designed for 2011-17 Jeep Compass vehicles with no next generation. However, if the front of your vehicle looks different than shown in the manual, contact Blue Ox technical service at (402) 385-3051 before proceeding.
The attachment tab height is 15-1/2" and the width is 23".
Required tools are: large vise grip, flat screwdriver, torque wrench, drill, tape measure, 13/32" drill bit, 7MM socket, 10MM socket, 9/16" socket, T20 Torx, and T27 Torx. You will also need Loctite Red for all bolt threads.
The kit includes: 8 nut plate weldments with wire, 1 baseplate weldment, 2 attachment tab assemblies, 1 breakaway bracket, 1 x 1/4"-20 x 3/4" hex head bolt (Grade 5), 2 x #10-32 1/2" round slotted head screws, 1 x 1/4"-20 x 2-1/2" hex head bolt (Grade 5), 12 x 3/8"-16 x 1-1/2" hex head bolts (Grade 5), 2 x #12-14 x 1" self-drilling screws, 2 x #10-32 hex nuts, 4 x 3/8"-16 hex lock nuts with nylon insert, 2 x 1/4"-20 hex nuts with nylon insert, 12 x 3/8" lock washers, 2 x #10 lock washers, 1 x 4-way bracket, 2 x 36" Class III baseplate safety cables, 2 x 3/8" quicklinks, and 2 x black cap plug receivers.
Yes. The front fascia must be removed before baseplate installation. You will remove seven screws from the top edge (four on passenger side, three on driver side) using a T20 Torx, two bolts from the upper side using a T27 Torx, four screws from the wheel well area using 10MM and 7MM sockets, and three bolts from the underside using a 10MM socket.
On the passenger side, remove the push pins holding the temperature sensor in place and gently set it to the side of the vehicle until after baseplate installation. Once the baseplate is installed, put the push pins back to their original location on the side and front, then secure the temperature sensor to the baseplate using a cable tie.
Yes, drilling is required. You will drill six holes total through the frame using a 13/32" drill bit: four holes on each side of the vehicle (8 total) and two additional holes on each side (4 total). Be aware of wiring when drilling. Paint all cut frame edges with good quality paint to prevent rusting.
For Grade 5 bolts: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs, 5/8" = 154 ft-lbs, 3/4" = 257 ft-lbs. The BX1132 primarily uses 3/8"-16 x 1-1/2" Grade 5 bolts, which should be torqued to 33 ft-lbs. Always apply Loctite Red to all bolt threads before tightening.
1. Remove fascia (seven screws with T20 Torx, two bolts with T27 Torx, four wheel well screws with 10MM and 7MM sockets, three underside bolts with 10MM socket). 2. Relocate temperature sensor by removing push pins and setting aside. 3. Slide baseplate onto vehicle and level and clamp to frame. 4. Drill four holes on each side using 13/32" bit and install 3/8"-16 x 1-1/2" bolts with 3/8" lock washers and nut plates. 5. Drill two additional holes on each side and install 3/8"-16 x 1-1/2" bolts with 3/8" lock washers and lock nuts. 6. Attach permanent baseplate safety cables to frame on both sides. 7. Reinstall temperature sensor with cable tie. 8. Reinstall fascia.
Attach the two 36" Class III safety cables to the provided convenience link on the baseplate using the 3/8" quicklinks. Secure the cables to a solid piece of the vehicle frame on both sides. Do not mount the cables against wires, hoses, or brake lines. The cables must remain installed as long as the baseplate is on the vehicle. They are strongly recommended and work in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. This includes verifying the temperature sensor is properly secured with a cable tie to the baseplate.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Yes. Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
The BX8848 Tail Light Wiring Kit is recommended for the 2011-17 Jeep Compass when installing the BX1132 baseplate. However, the manual does not specify whether it is required or optional.
Handling of cosmetic parts when installing this product may require the use of protective covers, rags, and specialty tools to prevent damage. When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface.
No. Always use the hardware supplied in the hardware kit and existing hardware as specified in the installation instructions. Even though bolts may already be present on the vehicle, do not assume they are adequate for baseplate mounting. Use only genuine factory replacement parts if any bolts are lost or need replacement, ensuring they are the same grade (typically Grade 5).
Slide the baseplate onto the vehicle, then level and clamp the baseplate to the frame before drilling any holes. This ensures proper alignment before the permanent mounting holes are drilled.
The baseplate is secured using 3/8"-16 x 1-1/2" hex head bolts (Grade 5) with 3/8" lock washers. Four bolts per side are installed with 3/8" nut plates on the inside of the frame (8 total). Two additional bolts per side are installed with 3/8" lock nuts on the inside of the frame (4 total). All bolts should be torqued to 33 ft-lbs with Loctite Red applied to threads.
Yes, the BX1132 is designed for 2011-17 Jeep Compass (no next generation). If your vehicle's front looks different, contact Blue Ox at (402) 385-3051.
Yes, the front fascia must be removed. You will remove seven screws (T20 Torx), two bolts (T27 Torx), four wheel well screws (10MM and 7MM sockets), and three underside bolts (10MM socket).
Yes, you will drill six holes through the frame using a 13/32" drill bit. Be aware of wiring when drilling, and paint cut edges to prevent rusting.
3/8"-16 Grade 5 bolts should be torqued to 33 ft-lbs. Apply Loctite Red to all bolt threads before tightening.
You need: torque wrench, drill with 13/32" bit, T20 and T27 Torx, 7MM and 10MM sockets, 9/16" socket, vise grip, flat screwdriver, tape measure, and Loctite Red.
The baseplate must be replaced and cannot be reused. Accident damage may not be visible but can cause failure or serious injury.
Yes, installation by a Blue Ox Dealer is recommended. Find a dealer at www.blueox.com or call (402) 385-3051.
The dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may be necessary to compensate for vehicle manufacturer's tolerances. These adjustments may include filing a hole slightly, bending electrical rods, or bending end plates. If significant fitting issues occur, contact Blue Ox Technical Service at (402) 385-3051.
