{'key': 'Material', 'value': 'Steel', 'description': 'The bracket is made from robust steel for maximum durability and longevity.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

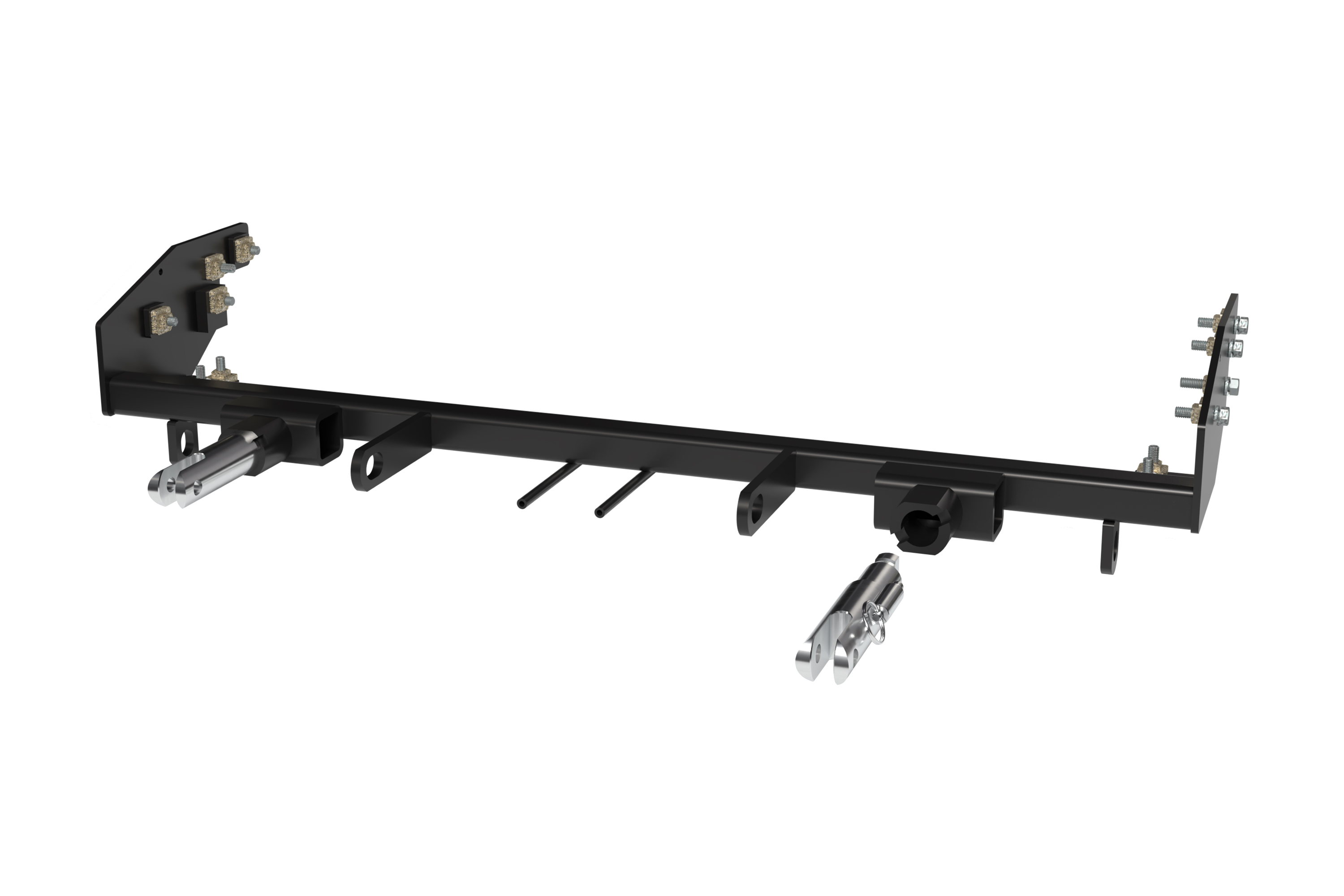

The Blue Ox BX1129 Tow Bar Bracket is a robust, custom-designed piece of equipment that assures seamless and secure towing. This high-quality bracket is crafted from durable steel, boasting a sleek black powder coat finish that provides an added layer of protection against rust and corrosion. With an easy bolt-on mounting type, the BX1129 allows for a hassle-free do-it-yourself installation, and comes complete with all the necessary hardware. The Blue Ox BX1129 Tow Bar Bracket is the ideal solution for your towing needs, providing unparalleled strength and reliability.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 | Jeep Compass | Comes with Removable Attachment Tabs Install Rating 3 Baseplate Has Non 24 in. Spaced Attachment Tabs Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Only Use Acclaim w/23in./Greater Spaced Tab Removable Tab Baseplates Only Use Adventurer w/16: 36 in. Spaced Removable Tab Baseplates Only Use Ambassador w/24 in. Spaced Removable Tabs PN BX88152 Adapter Can Not Be Used w/This Baseplate Removable Tabs w/Only 1 Hole Will Not Attach To Car Mount Tow Bars Removable Tabs w/Only 1 Hole Will Not Attach To Other Adapters Req. Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters |
The BX1129 is a baseplate designed specifically for the 2010 Jeep Compass. It is part of a towing system and includes removable attachment tabs (16" height, 25" width) for connecting a tow bar. The baseplate is permanently mounted to the vehicle frame and works with safety cables and a tow bar to enable towing.
Yes, the BX1129 is designed specifically for the 2010 Jeep Compass. However, the manual notes that dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments such as filing holes, bending electrical rods, or bending end plates may be necessary to compensate for manufacturer tolerances.
No. Due to the design of the removable tabs on the BX1129, the RangeFinderII tow bar cannot be used with this baseplate.
Most adapters cannot be used with the BX1129 baseplate. Only the BX8833 and BX88151 adapters are compatible with this baseplate.
Required tools include: 7mm socket, 10mm socket, 13mm socket, 1/4" socket, 9/16" socket, T-20 Torx socket, large vise grips, reciprocating saw, drill, flat screwdriver, torque wrench, tape measure, 1 1/4" hole saw, and 13/32" drill bit. Loctite RED is also required for all bolts.
The kit includes: 12 x 3/8" nut plates with wire (61-5208), 1 x baseplate weldment (61-6791), 2 x attachment assemblies (62-3468), 2 x driver's side spacers (102-6753), 2 x #10-32 x 1/2" slot round head screws (201-0192), 2 x 3/8-16 x 1 3/4" Grade 5 hex bolts (201-0404), 10 x 3/8-16 x 1 1/2" Grade 5 hex bolts (201-0440), 2 x #12-14 x 1" self-drilling screws (201-0979), 2 x #10-32 hex nuts (202-0047), 12 x 3/8" lock washers (203-0010), 2 x #10 lock washers (203-0054), 1 x 4-way bracket (299-0685), 1 x 1/4-20 x 3/4" Grade 5 hex bolt (201-0050), 1 x 1/4-20 hex flange whiz lock nut (202-0069), 2 x permanent baseplate safety cables (226-0046), 2 x 3/8" quick links (229-0359), 2 x black cap plugs (290-0437), and 2 x 13-inch nylon cable ties (290-0159).
No, the BX8869 Bulb and Socket Wiring Kit is not included but is recommended for the 2010 Jeep Compass. It must be ordered separately.
Yes. The fascia must be removed for installation. The removal process involves removing bolts from above the headlights, from the top of the fascia, from inside the wheel wells, from the bottom of the fascia, and pushpins forward of the front tire. The fascia is then pulled forward and removed carefully for reinstallation after baseplate installation.
Yes. On the driver's side, the horn bracket must be removed by unbolting it from the bottom using a 10mm socket. The horn is then relocated to the top of the frame using a 1/4-20 x 3/4" bolt and 1/4-20 whiz nut after baseplate installation.
On the driver's side, a sensor wire must be disconnected from the side of the frame and the bottom of the metal bumper to clear the area for cutting. After baseplate installation, the sensor is zip-tied to the bottom of the baseplate and reconnected.
On the passenger's side, the coolant tubing clips must be pried from the side of the frame rail and the tubing moved to the top of the frame to clear the area for cutting. After baseplate installation is complete, the tubing must be returned to its original location.
Yes. The metal bumper must be trimmed. Using a reciprocating saw, the end of the bumper is cut straight down so that it is flush with the frame on both sides of the vehicle. Additional horizontal and vertical cuts are made to remove the bumper section that would interfere with baseplate installation.
Yes. Drilling is required. A 1 1/4" hole saw is used to drill into the front of the frame rail on both sides to open an area for inserting nut plates. A 13/32" drill bit is then used to drill four holes into the frame rail on each side and two holes into the underside of the frame on each side for bolt installation.
The 13/32" drill bit is used to drill all mounting holes into the frame rail for the baseplate bolts.
According to the bolt torque specifications chart on page 1, Grade 5 bolts have the following torque values in foot-pounds: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs, 5/8" = 154 ft-lbs. The BX1129 uses primarily 3/8-16 Grade 5 bolts, which should be torqued to 33 ft-lbs.
According to the bolt torque specifications chart on page 1, Grade 8 bolts have the following torque values in foot-pounds: 1/4" = 14 ft-lbs, 5/16" = 29 ft-lbs, 3/8" = 47 ft-lbs, 7/16" = 78 ft-lbs, 1/2" = 119 ft-lbs, 5/8" = 230 ft-lbs.
According to the bolt torque specifications chart on page 1, Grade 8.8 metric bolts have the following torque values in foot-pounds: 6MM = 6 ft-lbs, 8MM = 16 ft-lbs, 10MM = 31 ft-lbs, 12MM = 54 ft-lbs, 14MM = 89 ft-lbs.
According to the bolt torque specifications chart on page 1, Grade 10.9 metric bolts have the following torque values in foot-pounds: 6MM = 8 ft-lbs, 8MM = 22 ft-lbs, 10MM = 40 ft-lbs, 12MM = 70 ft-lbs, 14MM = 117 ft-lbs.
The attachment tabs are 16" in height and 25" in width.
The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle. It must be installed according to its own instructions, and all electrical connections must be plugged in properly and functioning before reinstalling the fascia.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX1129 kit includes 2 x permanent baseplate safety cables (part 226-0046). These cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and should remain installed as long as the baseplate is installed. However, these cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The permanent baseplate safety cables should be attached to the provided convenience link on the baseplate. The recommended installation attaches the cables to the frame of the vehicle. If additional options interfere with the suggested mounting, the cables should be secured to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. The safety cables must not rub against any hoses or moving parts.
Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines. If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. Be sure the safety cables do not rub against any hoses or moving parts.
Failure to read and follow the installation instructions could result in separation of the towed vehicle from the tow bar, causing property damage, loss of towed vehicle, personal injury or death. Additionally, improper installation against wires or hoses could cause fluid leaks or electrical shorts. When using power drills, be aware of the dangers of torque and drill bit length.
Before installing the fascia, ensure that all electrical connections are plugged in properly and functioning. After installation, the owner is responsible for inspecting all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. All bolts should be checked and tightened to the recommended torque specifications using Loctite RED.
The owner is responsible for inspecting all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite RED on all bolts and tighten to the recommended specifications. The attachment tabs should be removed when not in use (if applicable). It is recommended to register the product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Always use hardware supplied in the hardware kit or existing hardware specified in the Baseplate Installation Instructions. Even though bolts may already be present on the vehicle, do not assume they are adequate for baseplate mounting. Use only genuine factory replacement parts on your baseplate. Do NOT substitute homemade or non-typical parts.
If a bolt is lost or in need of replacement, use a replacement bolt of the same grade. In most cases it will be Grade 5. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. For your safety and the preservation of your baseplate, be sure to use a replacement bolt of the same grade.
Yes. Blue Ox towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do "fit work". Blue Ox Dealers can be found at www.blueox.com or by contacting the Customer Care Department at (402) 385-3051.
Blue Ox offers a three-year limited warranty to the original (first) retail purchaser. The product is warranted to be free from defect in material and workmanship under normal use and service for three years from the date of delivery. During this period, Automatic Equipment Manufacturing Company will repair or replace any parts found to be defective. Warranty coverage is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any claim. The warranty does not cover improper installation, improper use, modification, neglect, failure to properly service and maintain, misuse, normal wear and tear, paint or rust.
Yes, the BX1129 is designed specifically for the 2010 Jeep Compass. Minor adjustments such as filing holes or bending parts may be necessary due to manufacturer tolerances.
Yes. Metal bumper trimming is required using a reciprocating saw, and drilling is required using a 1 1/4" hole saw and 13/32" drill bit to mount the baseplate to the frame.
Required tools include: reciprocating saw, drill, 1 1/4" hole saw, 13/32" drill bit, torque wrench, sockets (7mm, 10mm, 13mm, 1/4", 9/16", T-20 Torx), vise grips, and Loctite RED.
Yes. The fascia must be completely removed by unbolting it from multiple locations. The horn bracket on the driver's side must also be removed and later relocated to the top of the frame.
According to the bolt torque specifications chart, 3/8" Grade 5 bolts should be torqued to 33 foot-pounds. All bolts must have Loctite RED applied before tightening.
Yes, two permanent baseplate safety cables are included. They are strongly recommended and must be attached to the baseplate and frame. They do not replace legally required safety cables between the towing and towed vehicles.
The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle and must be ordered separately. All electrical connections must be tested and functioning before reinstalling the fascia.
No. Due to the removable tab design, only the BX8833 and BX88151 adapters are compatible with the BX1129. The RangeFinderII tow bar cannot be used.
If the front of your vehicle looks different than the images shown in the manual, call Blue Ox Customer Care at (402) 385-3051. This may indicate a different model year or variant that requires different installation procedures.
The manual notes that dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may be necessary to compensate for manufacturer tolerances. These adjustments may include filing a hole slightly, bending electrical rods, or bending end plates. If significant adjustments are needed, contact Blue Ox Customer Care at (402) 385-3051.
Inspect all towing equipment for loose bolts before each towing trip. If bolts are found to be loose, tighten them to the recommended torque specifications using Loctite RED. For 3/8-16 Grade 5 bolts, the torque specification is 33 foot-pounds. If bolts continue to loosen, contact Blue Ox Customer Care at (402) 385-3051.
