1. Custom Design: Specifically designed for each towed vehicle, ensuring a perfect fit and easy installation.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Experience the strength and flexibility of the Blue Ox BX1131 Tow Bar Bracket. Custom-designed for each specific towed vehicle, this product ensures a perfect fit and easy installation. Crafted from sturdy steel and finished with a powder coat, this tow bar bracket promises durability and longevity. With a bolt-on mounting type and included hardware, it allows for a straightforward, do-it-yourself installation process. The bracket is available in a sleek black color, seamlessly blending with your vehicle's aesthetic.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2013 | Jeep Liberty | Also Sport Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Only Use Acclaim w/23in./Greater Spaced Tab Removable Tab Baseplates Only Use Adventurer w/16: 36 in. Spaced Removable Tab Baseplates Only Use Ambassador w/24 in. Spaced Removable Tabs Use only w/Motorhome Mount Tow Bars. |
| 2011 | Jeep Liberty | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Only Use Acclaim w/23in./Greater Spaced Tab Removable Tab Baseplates Only Use Adventurer w/16: 36 in. Spaced Removable Tab Baseplates Only Use Ambassador w/24 in. Spaced Removable Tabs Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters |
| 2010 | Jeep Liberty | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Only Use Acclaim w/23in./Greater Spaced Tab Removable Tab Baseplates Only Use Adventurer w/16: 36 in. Spaced Removable Tab Baseplates Only Use Ambassador w/24 in. Spaced Removable Tabs Use only w/Motorhome Mount Tow Bars. |

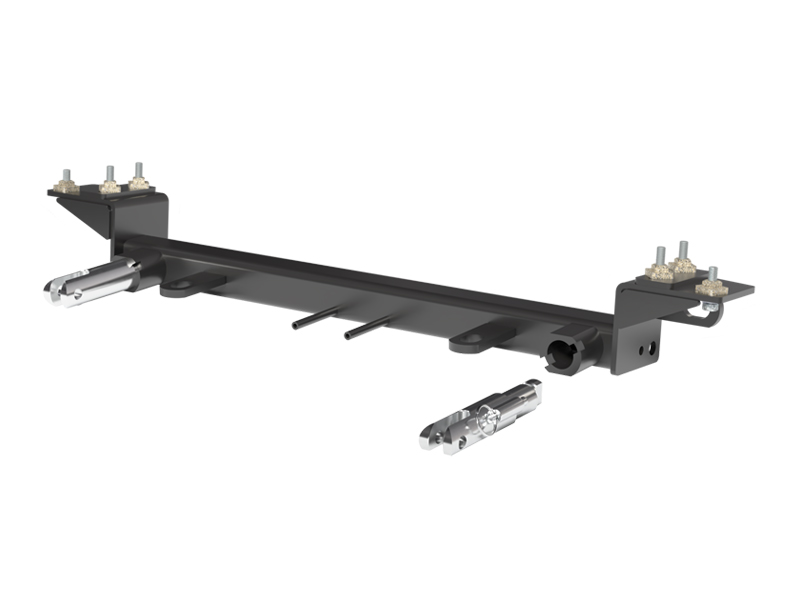

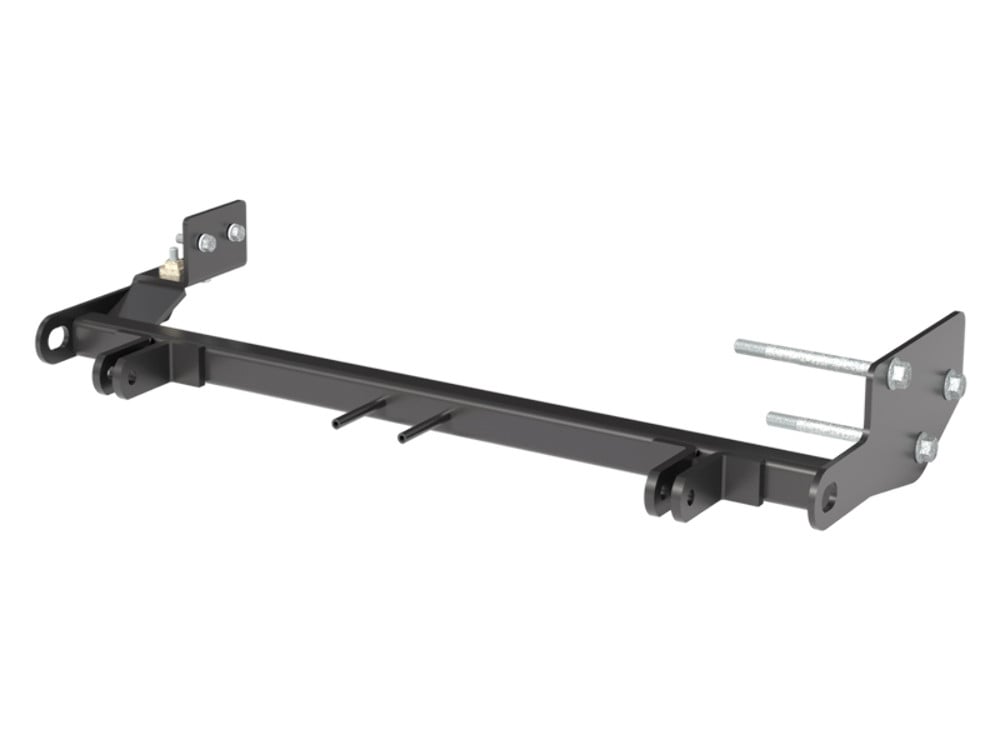

The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP LIBERTY RENEGADE (Part #FDRWBX1131) fits 2010-2013 Jeep Liberty models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP LIBERTY RENEGADE (Part #FDRWBX1131) is designed to fit the 2010-2013 Jeep Liberty.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP LIBERTY RENEGADE (Part #FDRWBX1131) fits the following vehicles: 2010-2013 Jeep Liberty. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP LIBERTY RENEGADE (Part #FDRWBX1131) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1131 baseplate is designed for 2011 Jeep Liberty Renegade and 2012 Jeep Liberty Sport vehicles. However, dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments such as filing holes, bending electrical rods or bending end plates may be necessary to compensate for manufacturer tolerances.
No. Due to the design of the removable tabs on the BX1131, the RangeFinderII cannot be used with this baseplate.
Most adapters cannot be used with the BX1131 baseplate. Only the BX8833 and BX88151 adapters are compatible. Motorhome-mounted tow bars are recommended for use with this baseplate.
Required tools include: 10MM socket, 9/16" socket, T25 Torx, 13/32" drill bit, large vise grip, flat screwdriver, tape measure, drill, utility knife, and torque wrench. Loctite RED is also required for bolt installation.
No, the BX8869 Tail Light Wiring Kit is not included but is recommended for this vehicle. You will need to remove the plastic cap in the tail light assembly and insert a 3-wire automotive socket according to the BX8869 installation instructions.
Yes. The fascia is removed and reinstalled as part of the baseplate installation process. The removal begins with removing push pins and pop rivets from the wheel well area and lower portion of the fascia, then removing clips from both sides of the vehicle.
Yes. Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Customer Care at (402) 385-3051.
Yes, drilling is required. You will drill one additional hole using a 13/32" drill bit in step 10 to accommodate the third mounting bolt. Some trimming may also be required to compensate for manufacturer tolerances.
If your vehicle is equipped with tow hooks, they must be removed. If your vehicle is not equipped with tow hooks, you will need to notch the grill as shown in the installation diagram in step 11.
The baseplate is attached using 3/8"-16 bolts with 3/8" flat washers, 3/8" lock washers, and 3/8" nut plates. Two 3/8"-16 x 2" bolts are used in existing holes, and one 3/8"-16 x 1-1/2" bolt is used in the newly drilled hole. Backing plates are installed on the inside of the frame between the frame and nut plates.
The attachment tab height is 17.5" and the attachment tab width is 24".
According to the torque specification table provided, 3/8"-16 Grade 5 bolts should be torqued to 33 foot-pounds. However, the manual does not specify which grade bolts are used for each fastener location on the BX1131. Confirm the bolt grade with your installer or Blue Ox Customer Care at (402) 385-3051 before final torquing.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member. However, they are not a replacement for legally required safety cables attaching the towed vehicle to the towing vehicle.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. If additional options interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Ensure the safety cables do not rub against any hoses or moving parts. Do not mount them against wires, hoses or brake lines.
After installation, ensure all electrical components are plugged in properly when reinstalling the front fascia. Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite RED on all bolts and tighten to the recommended specifications.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite RED on all bolts and tighten to the recommended specifications. Register your product online at www.blueox.com to receive alerts about maintenance, updates, and safety bulletins. Blue Ox offers service technician support for a nominal fee to ensure your towing system is in proper working condition.
Do not substitute other devices if the tow bar pin and clip are lost. Contact Blue Ox Customer Care at (402) 385-3051 to order replacement parts.
Blue Ox offers a one-year limited warranty from the date of delivery for the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Warranty coverage is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any claim. The warranty does not cover improper installation, improper use, modification, neglect, normal wear and tear, paint, or rust. Register your warranty at http://blueox.com/warranty/.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor, or by calling Customer Care at (402) 385-3051. Failing to use correct replacement parts will void the manufacturer's warranty.
Yes, the BX1131 is designed for these vehicles. Minor adjustments may be needed to compensate for manufacturer tolerances.
Only BX8833 and BX88151 adapters are compatible. RangeFinderII and most other adapters cannot be used.
Yes, one hole must be drilled using a 13/32" drill bit. Some trimming may also be required.
Required tools: 10MM socket, 9/16" socket, T25 Torx, 13/32" drill bit, large vise grip, flat screwdriver, tape measure, drill, utility knife, torque wrench, and Loctite RED.
Yes, installation by Blue Ox Dealers is recommended. They have the equipment and knowledge necessary for fit work. Find a dealer at www.blueox.com or call (402) 385-3051.
Strongly recommended. They prevent the towed vehicle from breaking loose if the baseplate connection fails. They are not a replacement for legally required safety cables.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Use Loctite RED on all bolts and tighten to specification. Register your product at www.blueox.com for safety bulletins.
