Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2002 - 2004 Jeep Liberty
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Custom Designed For Your Vehicle
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Blue Ox base plates are custom designed for each specific towed vehicle. When you purchase a Blue Ox base plate, it includes all the necessary hardware and instructions for a do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2002 - 2004 | Jeep Liberty | Comes with Removable Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Only Use Acclaim w/23in./Greater Spaced Tab Removable Tab Baseplates Only Use Adventurer w/16: 36 in. Spaced Removable Tab Baseplates Only Use Ambassador w/24 in. Spaced Removable Tabs Removable Tabs w/Only 1 Hole Will Not Attach To Car Mount Tow Bars Removable Tabs w/Only 1 Hole Will Not Attach To Other Adapters Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP LIBERTY(R) (Part #FDRWBX1119) fits the following vehicles: 2002-2004 Jeep Liberty. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP LIBERTY(R) (Part #FDRWBX1119) is designed to fit the 2002-2004 Jeep Liberty.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP LIBERTY(R) (Part #FDRWBX1119) fits 2002-2004 Jeep Liberty models. The 2004 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP LIBERTY(R) (Part #FDRWBX1119) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1119 is designed for 2002-04 Jeep Liberty vehicles. However, dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments may be necessary to compensate for manufacturer tolerances. These adjustments may include filing a hole slightly, bending electrical rods, and/or bending end plates.
Motorhome mount tow bars are recommended for use with the BX1119. The RangeFinder II, Adventurer, and Ambassador tow bars cannot be used due to the design of the removable tabs. The Acclaim tow bar may be used, but will not fold and store on the front of the vehicle.
Most adapters cannot be used with the BX1119 baseplate. The only exceptions are the BX8833 and BX88151 adapters, which are compatible.
The following tools are required: 10MM socket, 13/32" drill bit, T-20 Torx screwdriver, Phillips screwdriver, vise grips, side cutters, plastic rivet gun, and Loctite RED.
The kit includes: 4 weldments with 3/8-16 nut plates and wire (61-5208), 1 baseplate weldment (61-5649), 2 removable attachment tabs (62-3468), 2 side plate supports (102-6572), 2 #10-32 x 1/2" slot round head screws (201-0192), 4 3/8-16 x 2" hex bolts Grade 5 (201-0444), 2 #12-14 x 1" self-drilling screws (201-0979), 2 #10-32 hex nuts (202-0047), 4 3/8" flat washers (203-0003), 4 3/8" lock washers (203-0010), 2 #10 lock washers (203-0054), 1 electrical bracket (299-0685), 2 baseplate safety cables 36" Class III (226-0046), 2 quicklinks 3/8" (229-0359), 10 plastic rivets 6.3 (229-0536), and 2 black cap plugs (290-0437).
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051 or toll-free at (888) 425-5382.
The grille and front fascia must be removed during installation and reinstalled afterward. Tow hooks are removed and not reinstalled. The frame cup is also removed and reinstalled. No trimming to the fascia is required.
Yes, drilling is required. Existing holes may need to be drilled out. A 13/32" drill bit is required. There is no trimming to the fascia.
Just forward of the front tire, three lower rivets and two rivets on the underside of the fascia corner must be cut and removed on both sides of the vehicle. These rivets will be replaced with new ones provided in the kit (10 plastic rivets 6.3 are included).

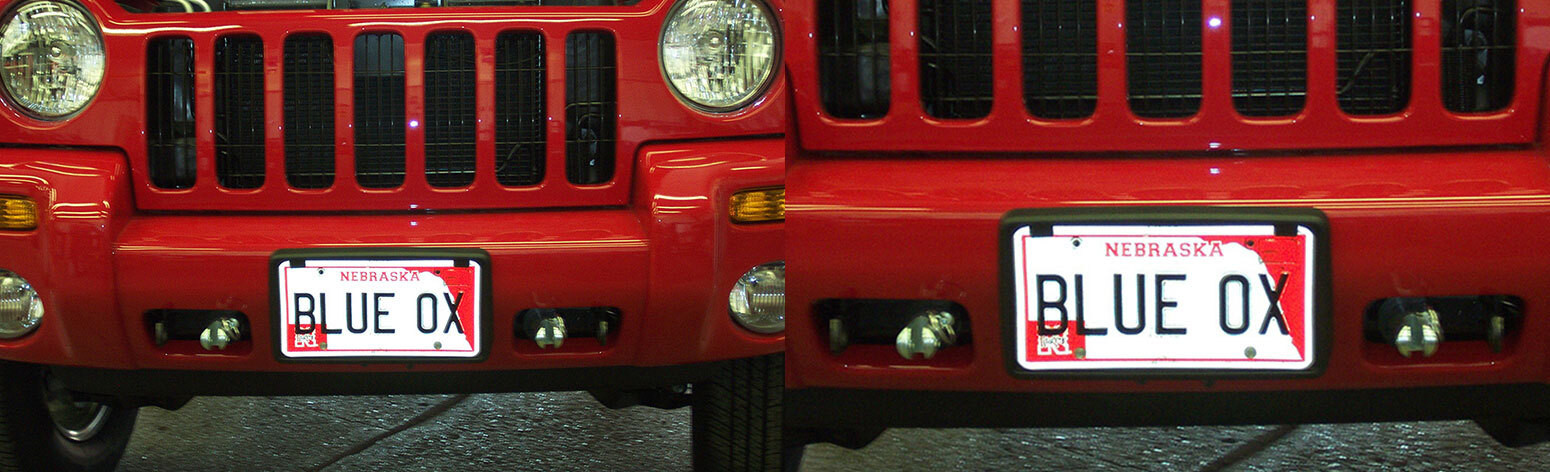

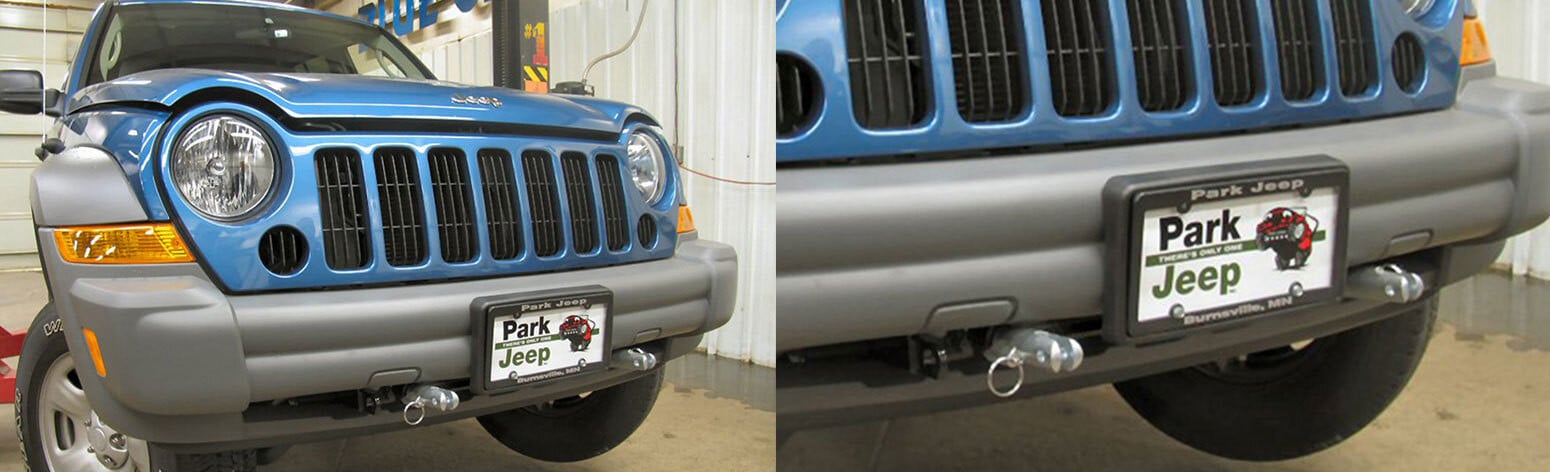

The attachment tab height is 19" and the attachment tab width is 20".
According to the bolt torque specifications table for inch bolts, a 3/8" Grade 5 bolt should be torqued to 33 foot-pounds. However, the manual also references a torque chart on page 3 of the Baseplate Towing General Instructions for specific application torques. Loctite RED must be applied to all bolts before tightening.
If the baseplate is in an accident, it must be replaced and not reused. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX1119 kit includes 2 baseplate safety cables (36" Class III). These cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses, or brake lines. Permanent baseplate safety cables are in addition to, and not a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all electrical connections are plugged in properly and functioning before installing the fascia. Be sure that all bolts are tightened according to the torque chart and use Loctite Red on all bolts.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Remove the attachment tabs when not in use.
Yes, it is crucial to register your baseplate online at www.blueox.com. Registration ensures you will be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
The BX8869 Bulb and Socket Wiring Kit is recommended for the 2002-04 Jeep Liberty with the BX1119 baseplate. The manual indicates possible locations for this kit but does not state whether it is required or optional.
Yes, the BX1119 is designed for 2002-04 Jeep Liberty. Minor adjustments may be necessary to compensate for manufacturer tolerances.
Motorhome mount tow bars are recommended. RangeFinder II, Adventurer, and Ambassador tow bars cannot be used. Acclaim tow bar may be used but will not fold and store.
Required tools: 10MM socket, 13/32" drill bit, T-20 Torx screwdriver, Phillips screwdriver, vise grips, side cutters, plastic rivet gun, and Loctite RED.
Yes, drilling is required. A 13/32" drill bit is needed. Existing holes may need to be drilled out. No fascia trimming is required.
The baseplate must be replaced and not reused. Accident damage can cause unseen damage that could result in more damage or serious injury.
Permanent baseplate safety cables are strongly recommended. Two 36" Class III cables are included. They must be connected to the frame rail or cross member and are in addition to legally required tow vehicle safety cables.
Inspect for cracked welds, missing or worn parts, and loose bolts. Verify all electrical connections are plugged in and functioning. Ensure all bolts are tightened to specification with Loctite Red applied.
