Custom designed for each specific towed vehicle ensuring a perfect fit.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

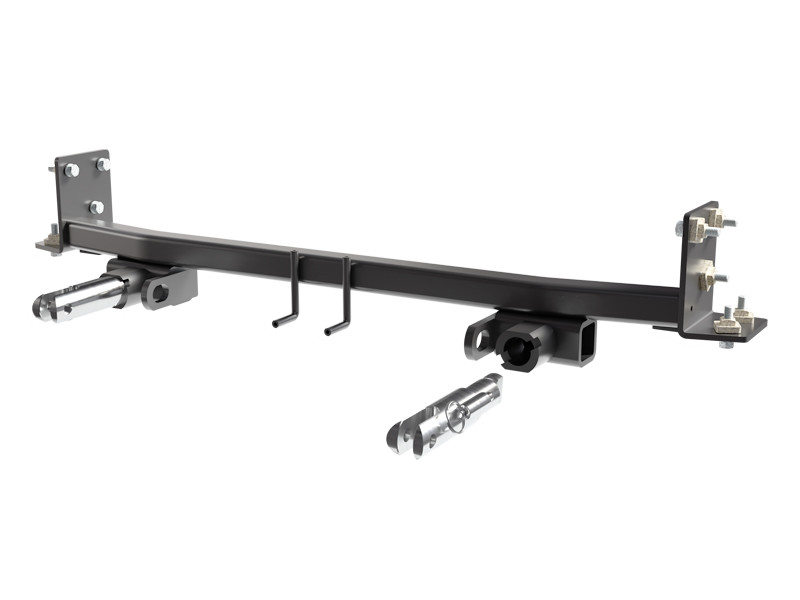

The Blue Ox BX1692 Tow Bar Bracket is a robust, reliable and durable automotive part, meticulously crafted for a perfect fit with your specific towed vehicle. Designed for a do-it-yourself installation, this base plate comes with all necessary hardware and easy-to-follow instructions. Its sturdy steel construction is finished with a sleek black powder coat, making it not only durable but also resistant to corrosion and wear. The bolt-on mounting type ensures a secure fit and allows for an easy, hassle-free installation process. With this Blue Ox Tow Bar Bracket, you can be assured of a high-quality, long-lasting addition to your vehicle's towing system.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2006 - 2011 | Chevrolet HHR | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY HHR(NO TURBO) (Part #FDRWBX1692) fits 2006-2011 Chevrolet HHR models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY HHR(NO TURBO) (Part #FDRWBX1692) is designed to fit the 2006-2011 Chevrolet HHR.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY HHR(NO TURBO) (Part #FDRWBX1692) fits the following vehicles: 2006-2011 Chevrolet HHR. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY HHR(NO TURBO) (Part #FDRWBX1692) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX1692 is designed for 2006-11 Chevy HHR models without SS or Turbo engines. If the front of your vehicle looks different than shown in the manual, contact Blue Ox Customer Care at (402) 385-3051 before proceeding with installation.
Motorhome mount tow bars are recommended for use with the BX1692. The RangeFinder II and Ambassador tow bars cannot be used due to the design of the removable tabs. Adapters cannot be used with this baseplate, except the BX8833 and BX88151.
The BX1692 attachment tab height is 13.5" and the attachment tab width is 22".
Required tools are: 7MM socket, 13MM socket, 9/16" socket or wrench, large vise grip, drill, utility knife, and 13/32" drill bit. Loctite RED is also required for all bolts.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Customer Care at (402) 385-3051.
The front fascia and metal bumper must be removed for baseplate installation. The fascia is removed by taking out bolts near the headlight housing, bolts and push pins forward of the front tires, and push pins on the underside. The metal bumper is removed by taking out three metric bolts on each side using a 13MM socket.
Yes, drilling is required. You will drill two holes underneath the vehicle on each side using a 13/32" drill bit, and two front holes in the end plates on each side with the same 13/32" drill bit. When drilling the front holes, place something between the drill and the radiator and drill the back hole at an angle to prevent drilling into the radiator.
Yes, trimming is required. On the back side of the fascia, use a utility knife to trim 3/4"-1" from the outside edge of the opening to allow the attachment tabs to come through. Some models may not require cutting, so try to put the fascia on and check if trimming is necessary.
Yes, you must drill into the bottom of the bumper, centered between the electrical plug and the convenient link, to install the breakaway bracket.
For 3/8"-16 Grade 5 bolts, the torque specification is 33 foot-pounds. All bolts must have Loctite RED applied before tightening.
For 1/4"-20 Grade 5 bolts, the torque specification is 10 foot-pounds. All bolts must have Loctite RED applied before tightening.
For 7MM Grade 8.8 metric bolts, the torque specification is 6 foot-pounds. For 7MM Grade 10.9 metric bolts, the torque specification is 8 foot-pounds. All bolts must have Loctite RED applied before tightening.
For 13MM Grade 8.8 metric bolts, the torque specification is 54 foot-pounds. For 13MM Grade 10.9 metric bolts, the torque specification is 70 foot-pounds. All bolts must have Loctite RED applied before tightening.
The kit includes: 10 nut plates (3/8"-14 Grade 5), 1 baseplate weldment, 2 attachment tab assemblies, spacer plates for 2010 models, 1 coolant bracket, 2 hex bolts (1/4-20 x 3/4"), 2 slot round head screws (#10-32 x 1/2"), 10 hex bolts (3/8"-16 x 1 1/2"), 2 self-drilling screws (#12-14 x 1"), 2 hex nuts (#10-32), 2 nylon hex nuts (1/4-20), 10 lock washers (3/8"), 2 lock washers (#10), 1 electrical bracket, 2 baseplate safety cables (36" Class III), 2 quicklinks (3/8"), and 2 cap plugs (black).
The BX8848 4-Diode Wiring Kit is recommended for this vehicle.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Their principal function is to prevent the towed vehicle from breaking loose in the event the connection between the frame and baseplate fails or becomes disconnected. The cables must be connected from the baseplate to the frame rail or cross member. Each cable must have an adequate weight rating for the towing system. The two cables together must meet the weight rating requirement. Do not mount the cables against wires, hoses or brake lines.
Attach the permanent baseplate safety cables to the provided convenience link (quicklink) on the baseplate. The recommended installation is to secure the cables to the frame of the vehicle. If additional options interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Be sure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Be sure that all electrical connections are plugged in properly and functioning before installing the fascia.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Remove the attachment tabs when not in use if applicable.
Yes, it is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow these instructions or altering them will void the manufacturer's warranty.
Failure to read and follow these instructions could result in separation of the towed vehicle from the tow bar, causing property damage, loss of towed vehicle, personal injury or death. Failing to follow and/or altering these installation instructions in either installation or required equipment will void the manufacturer's warranty.
From the bottom of the vehicle, slide the baseplate up inside the frame rail until the bottom end plates are flush with the bottom of the frame rail. Center and clamp the baseplate. If needed, tap the proper plate in behind the baseplate on each side.
Insert the nut plates from the top of the frame rail. Install the 3/8-16 x 1 1/2" hex bolts and 3/8" lock washers. Cut the excess wire from the nut plates once they are installed. This is done on both sides of the vehicle. There are two sets of nut plates: three installed just behind the bumper bracket (Step 7) and three installed in the top of the frame rail (Step 9).
Drill into the bottom of the bumper, centered between the electrical plug and the convenient link. Attach the bracket to the bumper with a 1/4-20 x 3/4" bolt and 1/4-20 nut. Fasten the breakaway to the bottom of the bracket also with a 1/4-20 x 3/4" bolt and 1/4-20 nut.
After all baseplate components are installed, reinstall the front metal bumper by replacing the three metric bolts on each side using a 13MM socket. Then reinstall the front fascia according to the removal steps. Install the tow bar and safety cables according to the tow bar instructions. Do not substitute other devices if the tow bar pins and clips are misplaced.
No. Permanent baseplate safety cables are to be used in conjunction with, and NOT a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. Be sure the permanent baseplate safety cables do not rub against any hoses or moving parts.
Confirm the towability and pre-towing procedures for your vehicle with the owner's manual or contact the vehicle's manufacturer for specific towing procedures.
No. Even though bolts may be present in existing holes, do not assume they are adequate for baseplate mounting. Always use hardware supplied in the hardware kit or existing hardware specified in the Baseplate Towing Installation Instructions.
Yes, the BX1692 is designed for 2006-11 Chevy HHR models without SS or Turbo engines. Contact Blue Ox at (402) 385-3051 if your vehicle's front looks different.
You need: 7MM and 13MM sockets, 9/16" socket/wrench, large vise grip, drill, utility knife, 13/32" drill bit, and Loctite RED.
Yes. You must drill four holes with a 13/32" drill bit (two underneath on each side, two front holes in the end plates on each side) and one hole in the bumper for the breakaway bracket.
Yes. Trim 3/4"-1" from the outside edge of the fascia opening on the back side to allow the attachment tabs to come through. Some models may not require cutting.
Torque 3/8"-16 Grade 5 bolts to 33 foot-pounds. Apply Loctite RED to all bolts before tightening.
The BX8848 4-Diode Wiring Kit is recommended for this vehicle.
Permanent baseplate safety cables are strongly recommended. They prevent the towed vehicle from breaking loose if the baseplate connection fails. They must be connected from the baseplate to the frame and do not replace legally required safety cables.
Ensure all electrical connections are plugged in properly and functioning before reinstalling the fascia. Inspect for cracked welds, missing parts, and loose bolts. Verify all bolts are torqued to specification.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Tighten all bolts to specification using Loctite RED. Keep permanent safety cables installed and remove attachment tabs when not in use.
