1. Custom Design: Specifically designed for each towed vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

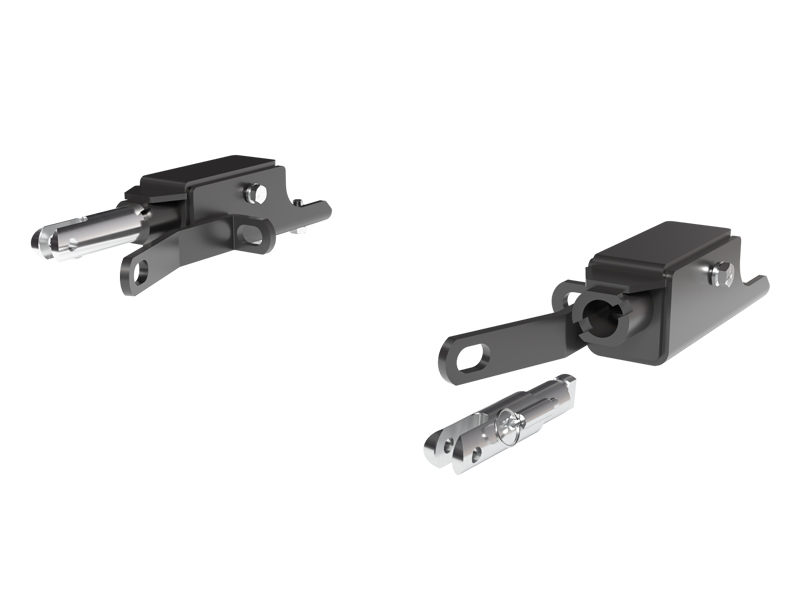

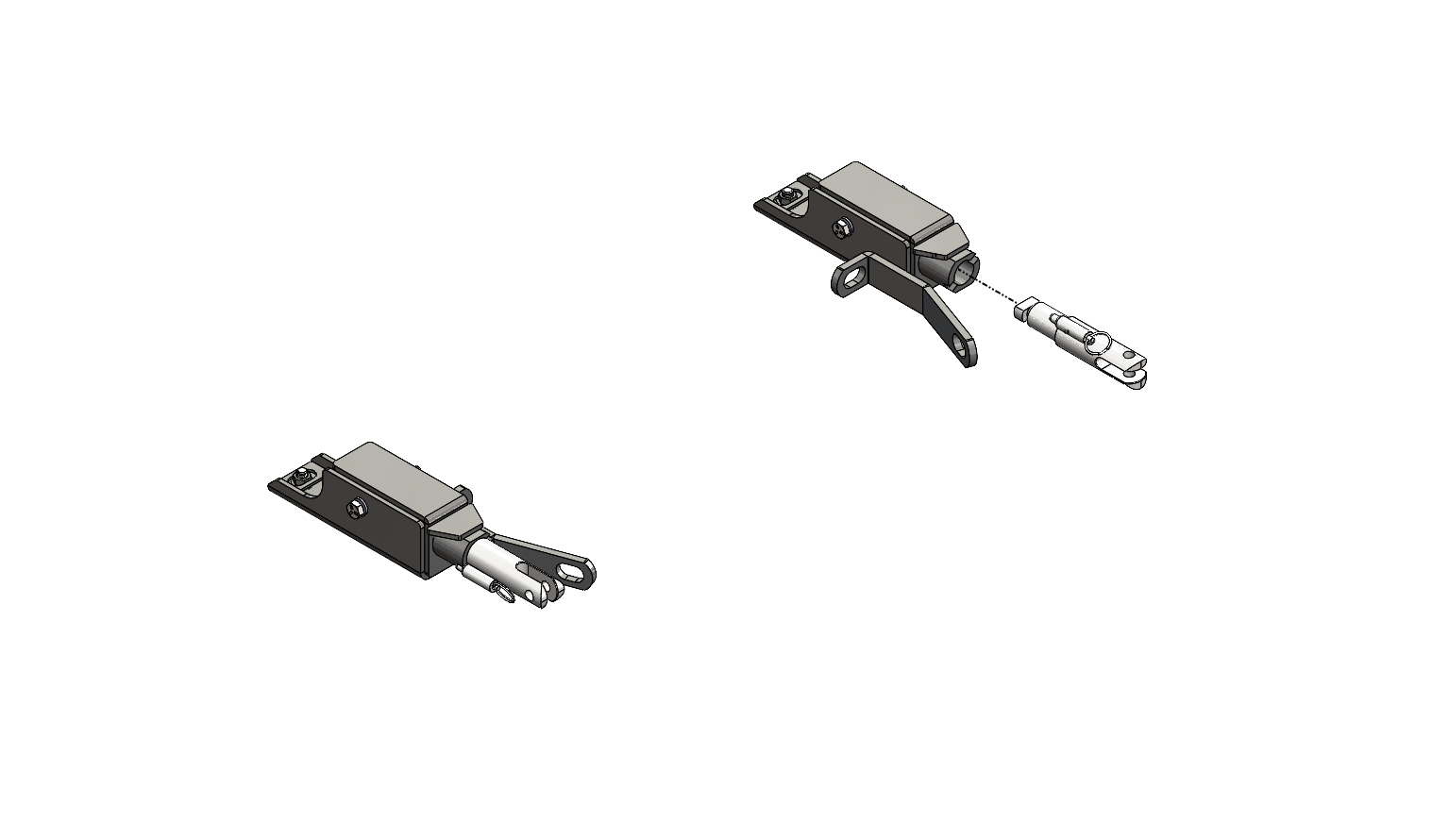

The Blue Ox BX1694 Tow Bar Bracket is the ultimate towing solution for your vehicle. Crafted with premium quality steel, this bracket is designed specifically to fit your towed vehicle with absolute precision. Its bolt-on mounting type ensures a secure fit and easy installation. The black powder coat finish not only enhances its look but also provides an extra layer of protection against rust and wear. With the inclusion of all necessary hardware, this Blue Ox base plate simplifies your DIY installation process, saving you time and effort.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
7 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2014 | Chevrolet Silverado 2500 | Comes with Removable Attachment Tabs Install Rating 1 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Some Trimming of the Air Dam Belly Pan Must be Removed and Remain Off the Vehicle After Installation Tow Hooks Must be Removed and Remain off the Vehicle After Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2011 - 2014 | Chevrolet Silverado 2500 HD | Comes with Removable Attachment Tabs Install Rating 1 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Some Trimming of the Air Dam Belly Pan Must be Removed and Remain Off the Vehicle After Installation Tow Hooks Must be Removed and Remain off the Vehicle After Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2011 - 2013 | Chevrolet Silverado 3500 | Comes with Removable Attachment Tabs Install Rating 1 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Some Trimming of the Air Dam Belly Pan Must be Removed and Remain Off the Vehicle After Installation Tow Hooks Must be Removed and Remain off the Vehicle After Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2011 - 2014 | Chevrolet Silverado 3500 HD | Comes with Removable Attachment Tabs Install Rating 1 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Some Trimming of the Air Dam Belly Pan Must be Removed and Remain Off the Vehicle After Installation Tow Hooks Must be Removed and Remain off the Vehicle After Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2011 - 2014 | GMC Sierra 2500 HD | Comes with Removable Attachment Tabs Install Rating 1 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Some Trimming of the Air Dam Belly Pan Must be Removed and Remain Off the Vehicle After Installation Tow Hooks Must be Removed and Remain off the Vehicle After Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2011 - 2014 | GMC Sierra 3500 HD | Comes with Removable Attachment Tabs Install Rating 1 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Some Trimming of the Air Dam Belly Pan Must be Removed and Remain Off the Vehicle After Installation Tow Hooks Must be Removed and Remain off the Vehicle After Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2013 | GMC Yukon XL 2500 | SLT Comes with Removable Attachment Tabs Install Rating 1 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Some Trimming of the Air Dam Belly Pan Must be Removed and Remain Off the Vehicle After Installation Tow Hooks Must be Removed and Remain off the Vehicle After Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY 3500 PICKUP (Part #FDRWBX1694) is designed to fit the 2011-2014 Chevrolet Silverado 2500.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY 3500 PICKUP (Part #FDRWBX1694) fits 2011-2014 Chevrolet Silverado 2500 models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY 3500 PICKUP (Part #FDRWBX1694) fits the following vehicles: 2011-2014 Chevrolet Silverado 2500; 2011-2014 Chevrolet Silverado 2500 HD; 2011-2013 Chevrolet Silverado 3500; 2011-2014 Chevrolet Silverado 3500 HD; 2011-2014 GMC Sierra 2500 HD; 2011-2014 GMC Sierra 3500 HD; 2013 GMC Yukon XL 2500. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY 3500 PICKUP (Part #FDRWBX1694) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1694 is designed for 2011-14 Chevy and GMC 2500/3500 models and the 2013 GMC Yukon 2500. However, dimensional variations between otherwise identical vehicles can be considerable, and the baseplate may need slight tailoring to compensate for manufacturer's tolerances. Installation by a Blue Ox Dealer familiar with fit work is recommended.
No. The tow hooks must be removed during installation and are not reinstalled. Steps 7 and 8 require removal of both the top and bottom bolts from each tow hook, and the hooks are then pulled forward and discarded.

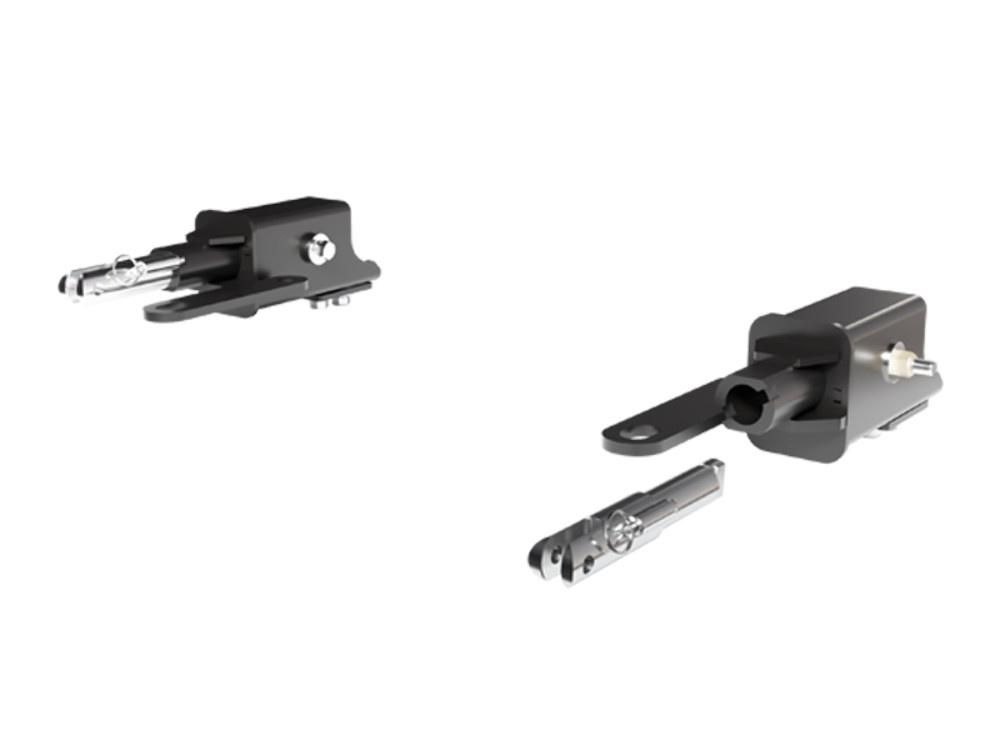

The attachment tab height is 15-1/2" and the width is 31-1/2".
Required tools include: 7MM, 10MM, 15MM, 18MM, and 21MM sockets; 3/4" socket; 1/4" and 11/16" wrenches; drill with 17/32" drill bit; flat screwdriver; utility knife; tape measure; torque wrench; and Loctite Red. A reciprocating saw may be needed for trimming.
Yes. Loctite Red must be used on all bolt threads before tightening. The manual emphasizes using a sufficient amount of Loctite Red on all bolts.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. If needed, Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.

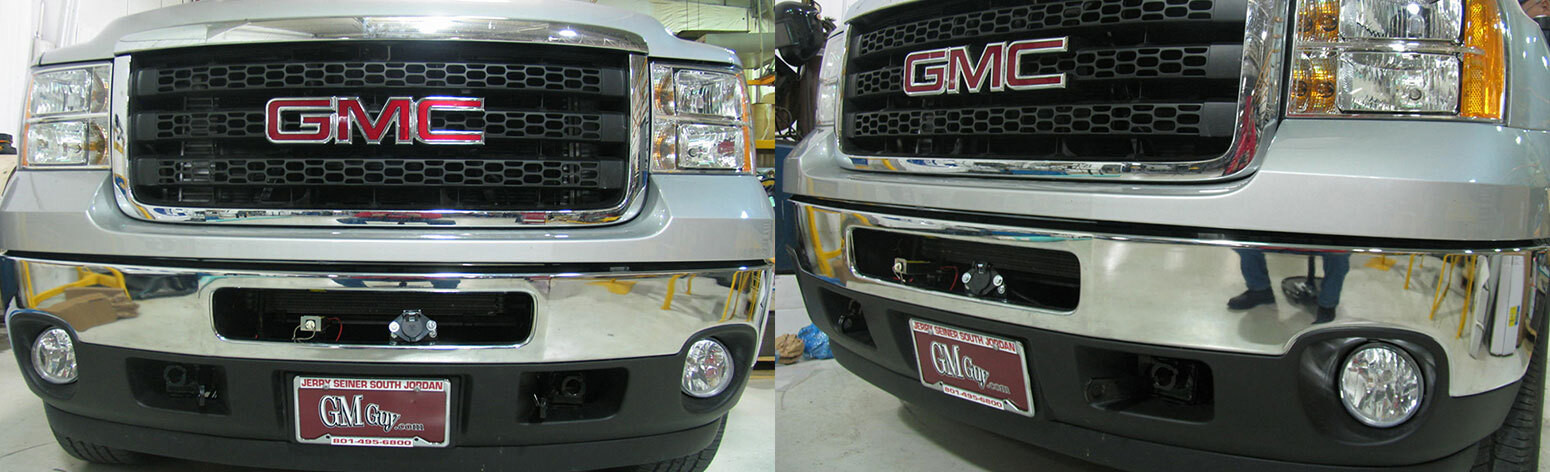

The fascia and bumper must be removed and reinstalled after baseplate installation. The tow hooks must be removed and are not reinstalled. For 3500 models, the top plastic cover must also be removed. All removed items except the tow hooks should be set aside on a flat, sturdy surface for reinstallation.
Yes. Drilling is required. The manual specifies that some drilling and trimming is required. A 17/32" drill bit is used to drill the back hole on each side of the frame rail after marking the location with a center punch (Step 11). The BX8869 Tail Light Wiring Kit also requires drilling according to its instructions.
A 17/32" drill bit is required to drill the back hole on each side of the frame rail. The hole location is marked with a center punch after temporarily attaching the baseplate with a bolt to mark the position.
Yes. The manual states that some trimming is required as part of the installation process, though specific trimming details are not detailed in the provided instructions. When using a reciprocating saw for trimming, be aware of objects behind the cutting surface.
Torque specifications in foot-pounds for inch bolts are: 1/4" Grade 5: 10 ft-lbs, Grade 8: 14 ft-lbs; 5/16" Grade 5: 19 ft-lbs, Grade 8: 29 ft-lbs; 3/8" Grade 5: 33 ft-lbs, Grade 8: 47 ft-lbs; 7/16" Grade 5: 54 ft-lbs, Grade 8: 78 ft-lbs; 1/2" Grade 5: 78 ft-lbs, Grade 8: 119 ft-lbs; 5/8" Grade 5: 154 ft-lbs, Grade 8: 230 ft-lbs; 3/4" Grade 5: 257 ft-lbs, Grade 8: 380 ft-lbs.
Torque specifications in foot-pounds for metric bolts are: 6MM Grade 8.8: 6 ft-lbs, Grade 10.9: 8 ft-lbs; 8MM Grade 8.8: 16 ft-lbs, Grade 10.9: 22 ft-lbs; 10MM Grade 8.8: 31 ft-lbs, Grade 10.9: 40 ft-lbs; 12MM Grade 8.8: 54 ft-lbs, Grade 10.9: 70 ft-lbs; 14MM Grade 8.8: 89 ft-lbs, Grade 10.9: 117 ft-lbs; 16MM Grade 8.8: 161 ft-lbs, Grade 10.9: 230 ft-lbs; 18MM Grade 8.8: 222 ft-lbs, Grade 10.9: 318 ft-lbs.
1/2-13 x 1 1/4" hex bolts Grade 5 with 1/2" lock washers are inserted into both sides of the baseplate and into the two holes in the bottom of the baseplate. According to the torque chart, 1/2" Grade 5 bolts should be torqued to 78 foot-pounds. Loctite Red must be used on all bolts.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. The manual states that a hole should be drilled according to the tail light wiring kit instructions.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX1694 includes two permanent baseplate safety cables (36" Class IV) and two quicklinks. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must remain installed as long as the baseplate is installed. The cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The manual shows recommended installation of the cables to the frame. Do not mount the cables against wires, hoses, or brake lines. If additional options may interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables.
Be sure that all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. The attachment tabs should be removed when not in use.

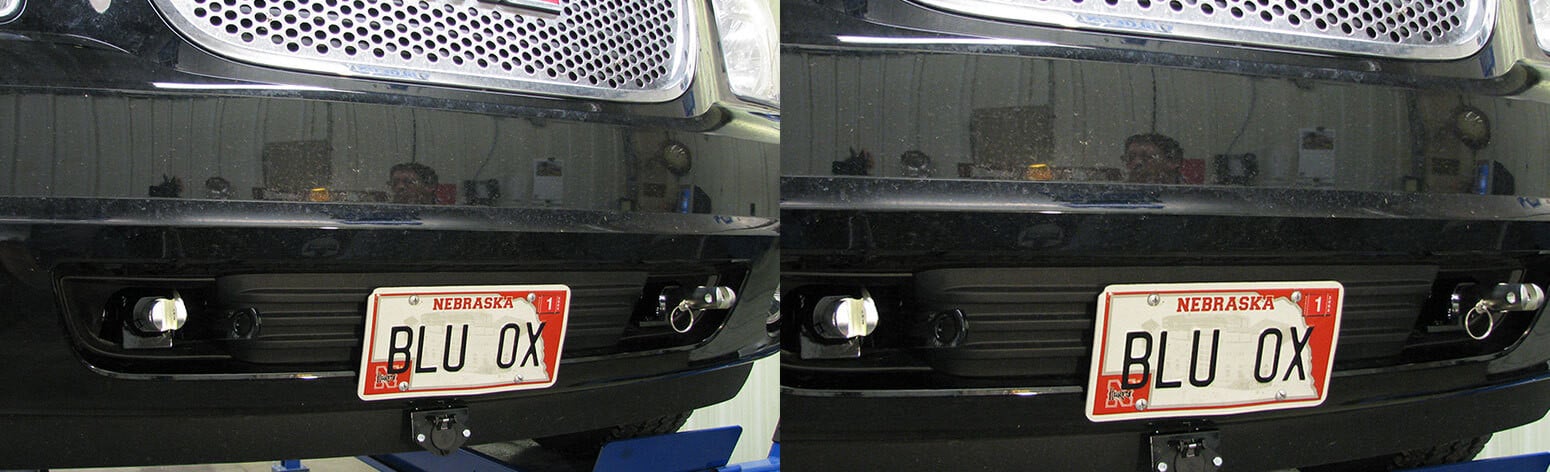

Yes. The attachment tabs should be removed when not in use.
If the baseplate is involved in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow this requirement will void the manufacturer's warranty.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. The warranty is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any claim. The warranty does not cover improper installation, modification, neglect, misuse, normal wear and tear, paint or rust, or towing behind a non-motorized vehicle. Register your warranty at http://blueox.com/warranty/.
Yes, the BX1694 is designed for 2011-14 Chevy and GMC 2500/3500 models and the 2013 GMC Yukon 2500. Installation by a Blue Ox Dealer is recommended due to required fit work.
The BX8869 Tail Light Wiring Kit is recommended. You will also need Loctite Red for all bolts. All other hardware is included in the baseplate kit.
1/2" Grade 5 bolts should be torqued to 78 foot-pounds. All bolts must have Loctite Red applied before tightening.
Yes. Two permanent baseplate safety cables (36" Class IV) and two quicklinks are included. The cables must be connected from the baseplate to the frame rail and must remain installed as long as the baseplate is on the vehicle.
Ensure all electrical connections are plugged in and functioning properly. Inspect for cracked welds, missing or worn parts, and loose bolts. Verify all bolts are torqued to specification with Loctite Red applied.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Ensure bolts are tightened to specification with Loctite Red.
