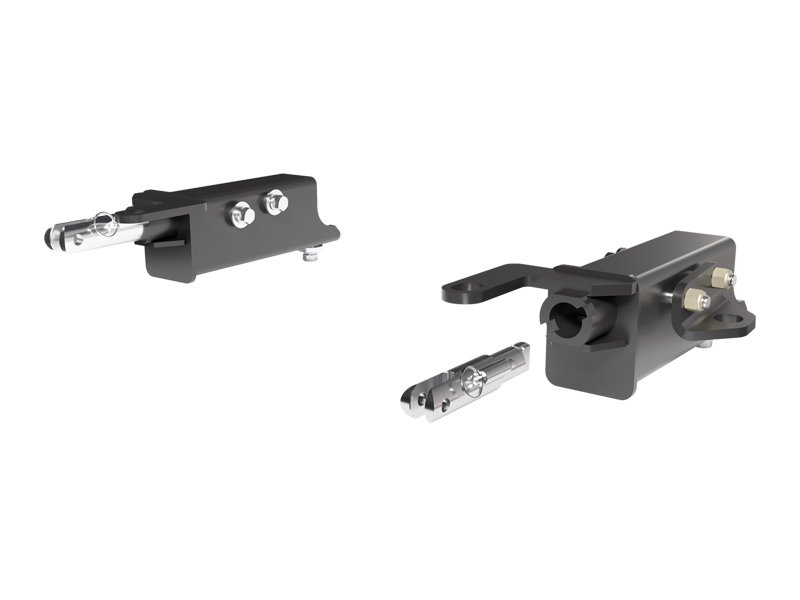

BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY 2500HD SILVERADOBlue OxIn Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2022 - 2023 Chevrolet Silverado 2500 HD
Confirmed to Fit
2020 - 2021 Chevrolet Silverado 2500 HD
Confirmed to Fit
2020 Chevrolet Silverado 3500 HD
Confirmed to Fit
2021 - 2023 Chevrolet Silverado 3500 HD
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Custom Designed: Each Blue Ox BX1740 bracket is specifically designed for each vehicle model, ensuring a perfect fit and streamlined appearance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX1740 Tow Bar Bracket is a rugged, reliable solution for your towing needs. Custom designed for your specific vehicle, this bracket ensures a perfect fit every time. Its strong steel construction ensures durability, while the sleek black, powder-coated finish not only ensures a superior aesthetic look but also delivers exceptional resistance to wear and tear. The bracket is easy to install, with all necessary mounting hardware included, and features a bolt-on mounting type for added convenience and security. With the Blue Ox BX1740, you can tow with confidence, knowing your vehicle is equipped with a top-quality, reliable bracket.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2023 | Chevrolet Silverado 2500 HD | Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Bumper Fascia Must Be Removed/Replaced During Install Install Rating 1 Comes with Removable Attachment Tabs Vehicles With Adaptive Cruise Control and Shutters |
| 2020 - 2021 | Chevrolet Silverado 2500 HD | Vehicles With Adaptive Cruise Control and Shutters Comes with Removable Attachment Tabs Install Rating 1 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2020 | Chevrolet Silverado 3500 HD | Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Bumper Fascia Must Be Removed/Replaced During Install Install Rating 1 Comes with Removable Attachment Tabs Vehicles With Adaptive Cruise Control and Shutters |
| 2021 - 2023 | Chevrolet Silverado 3500 HD | Vehicles With Adaptive Cruise Control and Shutters Comes with Removable Attachment Tabs Install Rating 1 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
On Sale Today
You save $90.99 (13%)
Free Shipping
Ships free on all orders
Authorized DealerQuick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Tue, Aug 25 - Fri, Aug 28
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
The BlueOx Base Plate, Chevy Silverado 2500Hd High Country BX1740 (Part #FDRWBX1740) fits 2020-2023 Chevrolet Silverado 2500 HD models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Base Plate, Chevy Silverado 2500Hd High Country BX1740 (Part #FDRWBX1740) fits the following vehicles: 2020-2023 Chevrolet Silverado 2500 HD; 2020-2023 Chevrolet Silverado 3500 HD. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Base Plate, Chevy Silverado 2500Hd High Country BX1740 (Part #FDRWBX1740) is designed to fit the 2020-2023 Chevrolet Silverado 2500 HD.
The BlueOx Base Plate, Chevy Silverado 2500Hd High Country BX1740 (Part #FDRWBX1740) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX1740 is a towing baseplate manufactured by Blue Ox for 2020–2023 Chevy Pickup 2500/3500 Silverado trucks, including models with Adaptive Cruise Control and Shutters. It is designed to provide a connection point for a tow bar when towing another vehicle. The baseplate includes attachment tabs with a height of 22 inches and width of 32.5 inches.
Yes, the BX1740 is designed for 2020–2023 Chevy Pickup 2500/3500 Silverado trucks, including models with Adaptive Cruise Control and Shutters. However, the manual notes that dimensional variations between otherwise identical vehicles can be considerable, and it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. If the front of your vehicle looks different than shown in the manual, contact Blue Ox Technical Service at (402) 385-3051 before proceeding.
The baseplate attachment tabs are 32.5 inches wide. You must ensure your tow bar is compatible with this tab width. The manual states: 'Please ensure tow bar being used is compatible with the baseplate tab width.'
Required tools include: Utility Knife, Torque Wrench, Loctite Red, Drill, Pliers, Socket Extension, 13/16" Drill Bit, T15 Torx, 7MM Socket, 10MM Socket, 15MM Socket, 18MM Socket, 18MM Wrench, 7/16" Socket, 7/16" Wrench, 3/4" Socket, and 3/4" Wrench. A 1/4" drill bit is also needed for electrical bracket and optional breakaway switch installation.
The kit includes: two baseplate sections (DS and PS), two attachment tab assemblies, one electrical bracket, two 10 GA sleeves with slot plates, two convenience link bolt-on plates, four 3/4" OD tubes, two 1/4"-20 x 3/4" bolts, two 1/2"-13 x 1-1/2" bolts, two #10-32 screws, three 1/4"-20 x 1-1/4" bolts, four 1/2"-13 x 5" bolts, two #10-32 nuts, four 1/2"-13 nylon lock nuts, five 1/4"-20 nylon nuts, eight 1/4" flat washers, four 1/2" flat washers, six 1/2" lock washers, two #10 lock washers, two 1-1/2" OD washers, two Class IV safety cables, two 1/2" quicklinks, and two black cap plug receivers.
No, tail light wiring kits are not included. The BX8848 Tail Light Wiring Kit is recommended for this vehicle. The BX88442 Tail Light Wiring Kit is recommended for vehicles with progressive lit tail lights. These must be ordered separately.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do 'fit work'. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Technical Service at (402) 385-3051. Installation involves removal and reinstallation of the fascia, bumper, grille, and other cosmetic parts, as well as drilling and trimming, which requires specialized knowledge and tools.
The following parts must be removed and later reinstalled: front fascia handle, fascia cover, center fascia piece, grille, bumper, and wheel well trim. The tow hooks are removed but not reinstalled. The manual notes that handling of cosmetic parts may require protective covers, rags, and specialty tools to prevent damage.
Yes, drilling is required. You must drill out two tow hook holes using a 13/16" drill bit (one on each side of the vehicle). Additionally, you must drill two holes on the passenger side using a 1/4" drill bit for the electrical bracket, and optionally one hole on the driver side for the breakaway switch using a 1/4" drill bit. The manual warns to be aware of the dangers of torque and drill bit length when using power drills.
Yes, trimming is required. Step 18 states: 'Trim the tow hook opening as indicated to allow room for the baseplate. Then trim the bottom inner side at an angle as needed.' The manual notes that some drilling and trimming is required, and recommends using a good quality paint to spray cut edges of frame to prevent rusting.
The manual lists a Utility Knife as a required tool. For larger cuts, a reciprocating saw may be used, but the manual warns: 'When using a reciprocating saw be aware of objects behind the cutting surface.' After cutting, use a good quality paint to spray cut edges of frame to prevent rusting.
The manual provides general torque charts for metric and inch bolts in Grade 5, Grade 8, Grade 8.8, and Grade 10.9. For example, 1/2" Grade 5 bolts are torqued to 78 foot-pounds, and 1/2" Grade 8 bolts to 119 foot-pounds. However, the manual does not specify which grade applies to each individual bolt in the BX1740 assembly. All bolts must be torqued according to the torque chart provided, and Loctite Red must be used on all bolt threads before tightening.
The attachment tab height is 22 inches and the attachment tab width is 32.5 inches. These dimensions are critical for ensuring compatibility with your tow bar.
The electrical bracket should be installed on the passenger side of the vehicle. Using a 1/4" drill bit, drill two holes on the passenger side using the electrical bracket as a guide, then insert two 1/4" bolts with hardware. The manual notes: 'Install where indicated to run electrical through opening in fascia and avoid shutters.'
The breakaway switch installation is optional. If installing, drill one 1/4" hole on the driver side of the vehicle and attach the breakaway switch using one 1/4" bolt with hardware. The manual notes: 'Install where indicated to breakaway cord through opening in fascia and avoid shutters.'
During bumper removal (step 12), you must disconnect the indicated wire loom on the driver side and the main wire loom on the passenger side. After the baseplate is installed, you must reconnect all electrical connections before reinstalling the fascia. The manual emphasizes: 'Be sure that ALL electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.'
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for manufacturer's towing specifications and ensure you do not exceed your vehicle's GVWR.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Yes. The BX1740 includes two Class IV safety cables that must be attached to the baseplate. These permanent baseplate safety cables are strongly recommended and must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The cables must not rub against any hoses or moving parts. These cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame using the provided convenience link and quicklinks. The cables must not rub against any hoses or moving parts. The manual provides two recommended installation options. The installer must watch for oil cooler and air conditioner lines, electrical wires, and hoses. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts sometime after installation.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. After installation, it is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Ensure all bolts are tightened to the recommended torque specifications using Loctite Red.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. The attachment tabs should be removed when not in use (if applicable). Blue Ox offers service at rallies and at their factory for a nominal fee to service your towing system and ensure it is in proper working condition.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. To activate coverage, the customer warranty card must be returned within 30 days of purchase, and a copy of the original invoice must accompany any warranty claim. The warranty does not cover improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint, or rust. The warranty is non-transferable and does not cover loss of use, inconvenience, or consequential damages.
You must register your warranty online at http://blueox.com/warranty/ within 30 days of purchase. Registration is crucial so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. You should also register your product at www.blueox.com.
No. You must use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow these instructions or altering the installation instructions will void the manufacturer's warranty.
Yes, the BX1740 is designed for 2020–2023 Chevy Pickup 2500/3500 Silverado trucks with Adaptive Cruise Control and Shutters. Verify your vehicle matches the manual's front-end appearance; contact Blue Ox at (402) 385-3051 if it differs.
You need a torque wrench, drill with 13/16" and 1/4" bits, T15 Torx, sockets (7MM, 10MM, 15MM, 18MM, 7/16", 3/4"), wrenches (18MM, 7/16", 3/4"), pliers, socket extension, utility knife, and Loctite Red.
Yes. You must drill out two 13/16" tow hook holes (one per side), two 1/4" holes on the passenger side for the electrical bracket, and optionally one 1/4" hole on the driver side for the breakaway switch. Trimming of the tow hook opening is also required.
Use the torque charts provided: 1/2" Grade 5 bolts = 78 ft-lb, 1/2" Grade 8 = 119 ft-lb, 1/4" Grade 5 = 10 ft-lb, 1/4" Grade 8 = 14 ft-lb. Apply Loctite Red to all bolt threads before tightening. The manual does not specify the grade for each bolt in the assembly.
The baseplate is computer tested to your vehicle's GVWR. Do not exceed this weight or the warranty is void. Check your vehicle owner's manual for towing specifications.
Yes, two Class IV safety cables are included. They must be attached from the baseplate to the vehicle's frame rail or cross member and must not rub against hoses or moving parts. They supplement, not replace, legally required safety cables between towing and towed vehicles.
Verify all electrical connections are plugged in and functioning. Inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to torque spec with Loctite Red. Check that safety cables are secure and do not rub hoses or moving parts.
The manual states: 'If the front of your vehicle looks different than this, please contact us at (402) 385-3051.' Dimensional variations between otherwise identical vehicles can be considerable, and the baseplate may need slight tailoring to compensate for vehicle manufacturer's tolerances. Contact Blue Ox Technical Service before proceeding with installation.
Before reinstalling the fascia, verify that all electrical connections are plugged in and accessories are functioning properly. During bumper removal, the indicated wire loom on the driver side and main wire loom on the passenger side must be disconnected and later reconnected. Ensure all connectors are fully seated and that no wires were damaged during removal or installation.
