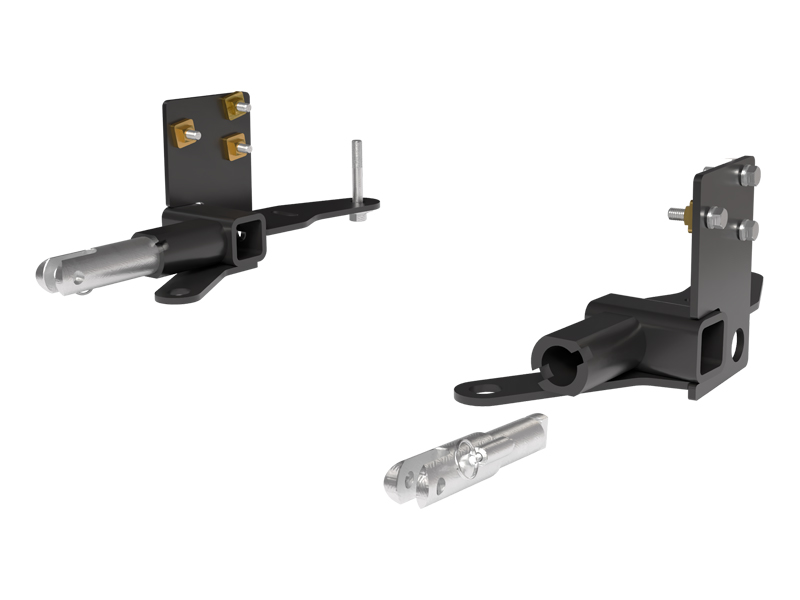

High-Quality Material: The Blue Ox BX2004 Tow Bar Bracket is made from robust steel ensuring durability and longevity.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Enhance your towing experience with the Blue Ox BX2004 Tow Bar Bracket. Designed with precision engineering and durability in mind, it is custom-made for each specific towed vehicle. Made from high-grade steel and finished with a black powder coat, this bracket ensures long-lasting stability and corrosion resistance. It comes with all the necessary hardware and easy-to-follow instructions making installation a breeze. No need for professional help, you can do it yourself! Invest in the Blue Ox BX2004 Tow Bar Bracket and enjoy a secure and worry-free towing adventure.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2017 | Smart Fortwo | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, SMART CAR (Part #FDRWBX2004) is designed to fit the 2016-2017 Smart Fortwo.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, SMART CAR (Part #FDRWBX2004) fits 2016-2017 Smart Fortwo models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, SMART CAR (Part #FDRWBX2004) fits the following vehicles: 2016-2017 Smart Fortwo. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, SMART CAR (Part #FDRWBX2004) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

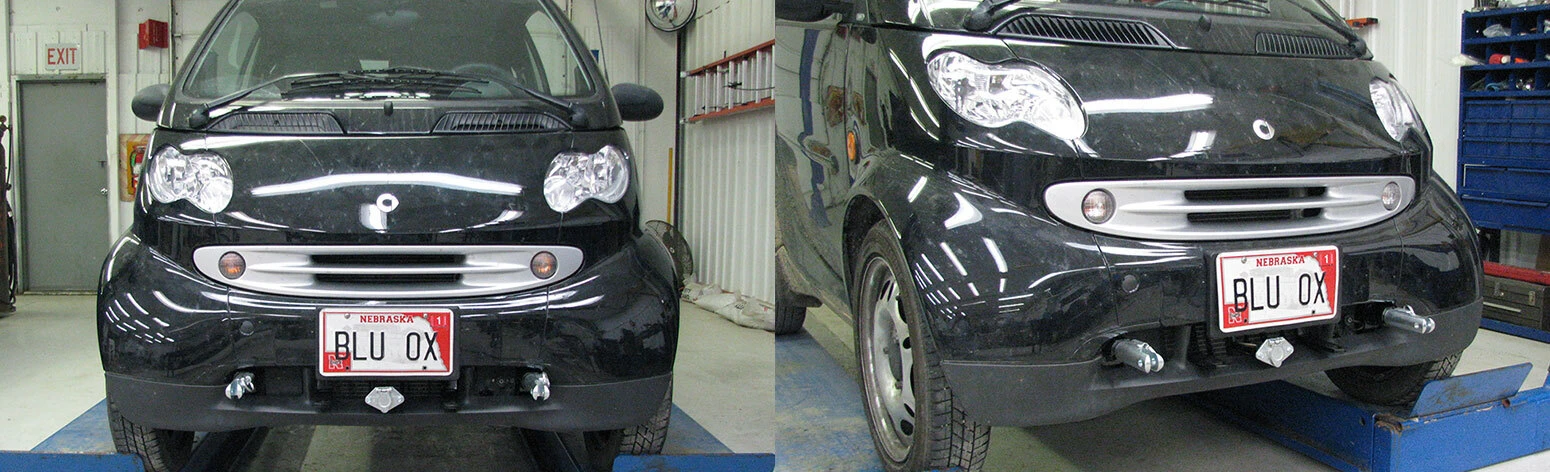

The BX2004 is a tow bar baseplate manufactured by Blue Ox for 2016-17 Smart Car models. It is designed to attach to the front frame of the vehicle to enable towing. The baseplate comes in two versions: DS (driver side, part 61-7562) and PS (passenger side, part 61-7563). Installation requires removal and reinstallation of the hood and fascia, and involves drilling and trimming.
Yes, the BX2004 is designed specifically for 2016-17 Smart Car models. However, the manual notes that dimensional variations between otherwise identical vehicles can be considerable, and it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before proceeding.
Required tools include: large vise grip, utility knife, torque wrench, drill, tape measure, rivet gun, 1/4" drill bit, 3/8" drill bit, 1-1/4" hole saw, 10MM socket, 18MM socket, 7/16" socket, 7/16" wrench, 9/16" socket, 9/16" wrench, T20 Torx, T30 Torx, and Loctite Red. You will also need protective covers or rags to prevent damage to cosmetic parts during installation.
The kit includes: 6× 3/8" nut plates with 14" wire (61-5208), 2× attachment tab assemblies with hole (62-3469), 1× 90° electrical bracket (101-6135), 1× breakaway bracket (102-7056), 6× 1/4"-20 × 3/4" hex head bolts Grade 5 (201-0050), 2× #10-32 1/2" round slotted head screws (201-0192), 6× 3/8"-16 × 1-1/2" hex head bolts Grade 5 (201-0440), 2× #10-32 hex nuts (202-0047), 6× 1/4"-20 hex nylon nuts (201-0102), 4× 1/4" flat washers (203-0001), 6× 3/8" lock washers (203-0010), 2× #10 lock washers (203-0054), 2× 6.3MM plastic rivets (229-0536), 2× existing 12MM bolts and washers (reused from vehicle), 2× class III safety cables (226-0046), 2× 3/8" quicklinks (229-0359), and 2× black cap plug receivers (290-0437).
No, the BX8848 4-Diode Wiring Kit is recommended for this vehicle but is not included. You will need to order it separately if you require it for your installation.
Blue Ox recommends that towing products be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do 'fit work'. You can find a Blue Ox Dealer at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051. However, the manual does not explicitly prohibit DIY installation if you have the required tools and skills.
Place all components that are removed on a flat, sturdy surface—all items will be reinstalled unless otherwise noted. Use protective covers, rags, and specialty tools as needed to prevent damage to cosmetic parts. Have Loctite Red ready to apply to all bolt threads before tightening. Ensure you have all required tools and hardware before beginning. Read both the installation instructions and the general information sheet prior to installing.
Release the hood latch on both sides of the vehicle. Pull the hood forward and using a T30 Torx, remove the four screws from the hood straps. Once the hood is free, disconnect the washer fluid lines on the backside at the 'Y' section. Set the hood aside on a flat, sturdy surface.
Yes, drilling is required. You must drill out rivets at the upper corners of the fascia using a 1/4" drill bit (do not enlarge the hole more than required), enlarge an existing hole on the top side of the frame using a 1-1/4" hole saw on both sides, and drill three holes in the baseplate through the bumper using a 3/8" drill bit on each side. Be aware of the dangers of torque and drill bit length when using power drills.
Yes, trimming is required. After the baseplate is installed, you must hold the fascia as close to its original position, mark and trim the fascia around the convenience links and attachment tabs before reinstalling it.
No, the shroud will not be reinstalled. You will slide the shroud towards the driver side and remove it from the vehicle as part of the installation process.
Yes, use a good quality paint to spray cut edges of frame to prevent rusting. This is important for protecting the frame from corrosion after drilling.
For Grade 5 inch bolts: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs, 5/8" = 154 ft-lbs, 3/4" = 257 ft-lbs. For Grade 5 metric bolts: 6MM = 6 ft-lbs, 8MM = 16 ft-lbs, 10MM = 31 ft-lbs, 12MM = 54 ft-lbs, 14MM = 89 ft-lbs, 16MM = 161 ft-lbs, 18MM = 222 ft-lbs. Always use Loctite Red on all bolt threads before tightening.
For Grade 8 inch bolts: 1/4" = 14 ft-lbs, 5/16" = 29 ft-lbs, 3/8" = 47 ft-lbs, 7/16" = 78 ft-lbs, 1/2" = 119 ft-lbs, 5/8" = 230 ft-lbs, 3/4" = 380 ft-lbs. For Grade 8.8 metric bolts: 6MM = 8 ft-lbs, 8MM = 22 ft-lbs, 10MM = 40 ft-lbs, 12MM = 70 ft-lbs, 14MM = 117 ft-lbs, 16MM = 230 ft-lbs, 18MM = 318 ft-lbs. Always use Loctite Red on all bolt threads before tightening.
The attachment tab height is 14-1/2" and the attachment tab width is 31-1/4".
The installation involves disconnecting the electrical connection on the passenger side of the fascia and pulling the wire loom out across the front of the vehicle. For 2017 models, you must also disconnect both headlights and push pins holding the wires on each side of the vehicle, then set the wires out of the way on top of the grille. On the passenger side, relocate the wire loom to the rear existing hole. Ensure all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
Failure to read and follow these instructions could result in separation of the towed vehicle from the tow bar, causing property damage, loss of towed vehicle, personal injury or death. The baseplate is computer tested to your vehicle's GVWR; exceeding this weight will void the manufacturer's warranty. If the baseplate is in an accident, it must be replaced and cannot be reused. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The two class III safety cables (part 226-0046) are included with the kit. These cables must be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle. Do not mount the cables against wires, hoses or brake lines.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables should be routed around the crossmember or frame of the towed vehicle. The manual shows two recommended options: Option #1 uses a quicklink and convenience link tabs on the baseplate; Option #2 uses a quicklink for baseplates without convenience link tabs. If additional options interfere with suggested mounting, secure the cables to a solid piece of the frame. Ensure the safety cables do not rub against any hoses or moving parts.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. After installation is complete, verify that the fascia is trimmed properly around the convenience links and attachment tabs. It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Ensure all bolts are tightened to the recommended torque specifications using Loctite Red.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes, remove the attachment tabs when not in use, if applicable.
Yes, the BX2004 is designed for 2016-17 Smart Car models. If your vehicle's front looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before proceeding.
You will need a torque wrench, drill with 1/4", 3/8" bits and 1-1/4" hole saw, rivet gun, T20 and T30 Torx drivers, multiple sockets and wrenches (10MM, 18MM, 7/16", 9/16"), and Loctite Red. Protective covers and rags are recommended to prevent cosmetic damage.
Yes. You must drill out fascia rivets with a 1/4" bit, enlarge an existing frame hole with a 1-1/4" hole saw, and drill three 3/8" holes through the bumper on each side. You must also trim the fascia around the convenience links and attachment tabs. Paint cut frame edges to prevent rust.
Use the torque chart provided: Grade 5 bolts range from 10 ft-lbs (1/4") to 257 ft-lbs (3/4"); Grade 8 bolts range from 14 ft-lbs (1/4") to 380 ft-lbs (3/4"). Always apply Loctite Red to all bolt threads before tightening. Refer to the manual's bolt torque specifications table for exact values.
Permanent baseplate safety cables are strongly recommended and included with the kit. They must be used in conjunction with, not as a replacement for, legally required safety cables. Route them from the baseplate to the vehicle frame, avoiding wires, hoses and brake lines.
Ensure all electrical connections are plugged in and accessories are functioning properly. Verify the fascia is trimmed correctly around the convenience links and attachment tabs. All bolts should be tightened to specification with Loctite Red applied.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts and loose bolts. Ensure all bolts are tightened to specification using Loctite Red. Register your product at www.blueox.com for safety bulletins and recalls.
