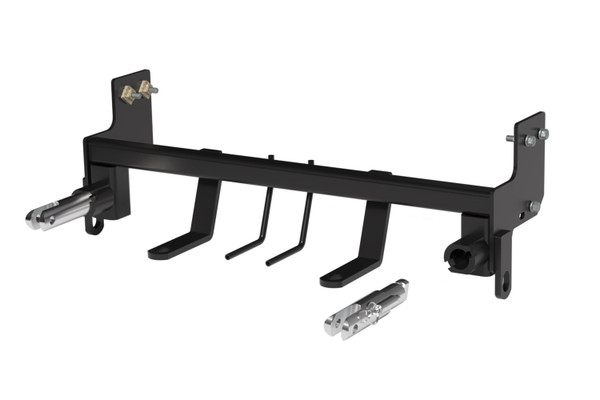

Custom-designed: Each Blue Ox BX1990 Tow Bar Bracket is uniquely designed for a specific towed vehicle, ensuring a perfect fit and optimum performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Introducing the Blue Ox BX1990 Tow Bar Bracket - a premium product that is meticulously custom-designed for each specific towed vehicle. Made with robust steel and finished with a sleek black powder coat, this bracket is not just durable but also adds a touch of class to your vehicle. The bracket is easy to mount with a straightforward bolt-on procedure. When you purchase this product, it comes with all the necessary hardware and comprehensive instructions, making it a perfect choice for DIY enthusiasts. The Blue Ox BX1990 Tow Bar Bracket is a testament to quality and ease, ensuring your vehicle is prepared for any towing task.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2006 | Smart Fortwo | CDI Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select,MERCDS SMART FORTWO CDI (Part #FDRWBX1990) fits 2006 Smart Fortwo models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select,MERCDS SMART FORTWO CDI (Part #FDRWBX1990) fits the following vehicles: 2006 Smart Fortwo. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select,MERCDS SMART FORTWO CDI (Part #FDRWBX1990) is designed to fit the 2006 Smart Fortwo.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select,MERCDS SMART FORTWO CDI (Part #FDRWBX1990) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX1990 is a baseplate designed specifically for the 2006 Mercedes Smart for two CDI. It is used to mount a tow bar to the vehicle for towing purposes. The baseplate features removable attachment tabs with a height of 12.5" and width of 26 3/4".
No. Due to the design of the removable tabs on the BX1990, the RangeFinder II and Ambassador tow bars cannot be used with this baseplate.
Most adapters cannot be used with the BX1990 baseplate. The only exceptions are the BX8833 and BX8851 adapters, which are compatible. All other adapters are not compatible with this baseplate.
Required tools include: 8MM socket, 15MM socket, 9/16" socket/wrench, T20 Torx, T25 Torx, T30 Torx, T40 Torx, large vise grip, reciprocating saw, drill, flat screwdriver, utility knife, tape measure, 13/32" drill bit, and Loctite Red. Professional installation by a Blue Ox Dealer is recommended.
The kit includes: 1 welded mount baseplate (61-6747), 4 nut plates with 14" wire (61-5208), 4 3/8-16 x 1 1/2" Grade 5 hex bolts (201-0440), 2 3/8-16 x 1 1/4" Grade 5 hex bolts (201-0368), 6 3/8" lock washers (203-0010), 2 3/8-16 hex nylon insert lock nuts (202-0090), 2 #12-14 x 1" self-drilling screws (201-0979), 2 10-32 x 1/2" round head screws (201-0192), 2 #10 lock washers (203-0054), 2 #10-32 hex nuts (202-0047), 2 4-way connector adapters (101-5822), 2 removable attachment tab assemblies (62-3468), 2 36" Class III baseplate safety cables (226-0046), 4 3/8" quick links (229-0359), and 2 receiver cap plugs (290-0437).
The BX8848 4 Diode wiring kit is recommended for this vehicle, but the manual does not state it is required. Consult with your Blue Ox Dealer or the wiring kit instructions for compatibility and necessity.
The following components must be removed and reinstalled: antenna, grille, fascia, headlights, bumper, tires, bolts, and push pins. Additionally, the styrofoam piece inside the frame hole must be removed and reinstalled.
Yes. Drilling is required. You will drill three holes using a 13/32" drill bit to mount the baseplate on each side of the vehicle. An additional hole is drilled on the driver's side to relocate the temperature sensor. A drill and 13/32" drill bit are required tools.
Yes. Trimming of the bumper and air dam is required. You will use a utility knife to trim the plastic guard and air dam on both sides of the vehicle. Specific measurements are: measure 2 1/2" from the edge, measure 7" up from the bottom, and measure 5" across. A reciprocating saw is also used to cut flush with the outside edge of the frame 2 1/2" up and straight across directly underneath the nut on both sides.
Yes. The installation requires drilling holes into the frame and cutting/trimming the bumper and air dam. These are permanent modifications. The manual notes that dimensional variations between vehicles can be considerable, and minor adjustments may include filing holes, bending electrical rods, or bending end plates to compensate for manufacturer tolerances.
The manual references a torque chart on the front page and page 3 of the Baseplate Towing General Instructions, but the specific torque value for 3/8-16 bolts is not provided in this document. The manual states: "TIGHTEN ALL BOLTS ACCORDING TO THE TORQUE CHART ON THE FRONT PAGE OF THESE INSTRUCTIONS OR ON PAGE 3 OF THE BASEPLATE TOWING GENERAL INSTRUCTIONS." Consult the General Instructions or contact Blue Ox Customer Care at (402) 385-3051 for the specific torque value.
The manual provides a torque chart for inch bolts: 1/4" Grade 5 = 10 ft-lbs, Grade 8 = 14 ft-lbs; 5/16" Grade 5 = 19 ft-lbs, Grade 8 = 29 ft-lbs; 3/8" Grade 5 = 33 ft-lbs, Grade 8 = 47 ft-lbs; 7/16" Grade 5 = 54 ft-lbs, Grade 8 = 78 ft-lbs; 1/2" Grade 5 = 78 ft-lbs, Grade 8 = 119 ft-lbs; 5/8" Grade 5 = 154 ft-lbs, Grade 8 = 230 ft-lbs. The BX1990 uses Grade 5 bolts.
The manual provides a torque chart for metric bolts: 6MM Grade 8.8 = 6 ft-lbs, Grade 10.9 = 8 ft-lbs; 8MM Grade 8.8 = 16 ft-lbs, Grade 10.9 = 22 ft-lbs; 10MM Grade 8.8 = 31 ft-lbs, Grade 10.9 = 40 ft-lbs; 12MM Grade 8.8 = 54 ft-lbs, Grade 10.9 = 70 ft-lbs; 14MM Grade 8.8 = 89 ft-lbs, Grade 10.9 = 117 ft-lbs.
The attachment tab height is 12.5" and the attachment tab width is 26 3/4".
The manual includes 2 four-way connector adapters (101-5822) in the parts kit. The manual states: "Be sure that ALL electrical connections are plugged in properly and functioning BEFORE installing the fascia." However, specific wiring diagrams and detailed electrical connection procedures are not provided in this installation manual. Consult the wiring kit instructions or contact Blue Ox Customer Care at (402) 385-3051 for detailed electrical connection procedures.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX1990 kit includes 2 36" Class III baseplate safety cables (226-0046). These cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must remain installed as long as the baseplate is installed. The cables must be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. On the passenger side, the quick link must be on the outside of the frame because there is not enough room with the hose on the inside. The cables should be secured to a solid piece of the frame. Be sure the safety cables do not rub against any hoses or moving parts. Do not mount the cables against wires, hoses, or brake lines. The manual notes that additional options may interfere with suggested mounting; in such cases, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
When using power drills, be aware of the dangers of torque and drill bit length. The manual does not provide additional detail on these specific hazards, but recommends caution when drilling.
Handling of some cosmetic parts when installing this product may require the use of protective covers, rags, specialty tools, etc. to prevent damage. This is especially important when removing and reinstalling the antenna, grille, fascia, and headlights.
After installation, ensure all electrical connections are plugged in properly and functioning before installing the fascia. Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended torque specifications using Loctite Red. Verify that the safety cables do not rub against any hoses or moving parts.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. Remove the attachment tabs when not in use. Blue Ox offers factory service for a nominal fee to service your towing system to ensure it is in proper working condition.
Yes. It is recommended to remove the attachment tabs when not in use.
Blue Ox towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment necessary and knowledge to do "fit work." Professional installation is recommended. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051.
If the front of your vehicle looks different than shown in the manual, call Blue Ox Customer Care at (402) 385-3051 before attempting installation.
Confirm the towability and pre-towing procedures for your vehicle with the owner's manual or contact the vehicle's manufacturer for specific towing procedures. This is important to ensure your vehicle is rated for towing and to understand any specific requirements.
No. The manual states: "Always use hardware supplied in the hardware kit and existing hardware specified in the Baseplate Installation Instructions." Additionally, if a bolt is lost or needs replacement, use a replacement bolt of the same grade. In most cases, this will be Grade 5. Do not substitute homemade or non-typical parts. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor, or by calling (402) 385-3051.
The removal sequence is: 1) Remove bolt next to antenna with T30 Torx (both sides), 2) Remove four bolts further down the door jam with T25 Torx (both sides), 3) Unscrew antenna and remove bolt under fascia corner with T20 Torx (both sides), 4) Release and remove grille using flat screwdriver on tabs, 5) Remove bolt inside headlight with T25 Torx (both sides), 6) Remove three bumper bolts with T40 Torx (both sides), 7) Remove styrofoam piece from frame hole (both sides), 8) Remove tire lug nuts with 15MM socket and remove tires (all four), 9) Remove frame bracket bolt with 8MM socket (both sides). Set all removed components aside for reinstallation.
1) Place 2" x 4" wood block behind cutting area to protect plastic (both sides), 2) Cut with reciprocating saw flush with frame edge 2 1/2" up and straight across underneath the nut (both sides), 3) Measure 2 1/2" from edge on plastic guard, 4) Measure 7" up from bottom and cut with utility knife, 5) Measure 5" across and cut with utility knife, fold plastic back (both sides), 6) Trim tab with utility knife (both sides), 7) On driver's side, disconnect temperature sensor and cut straight down along edge of plug plate; on passenger side, measure 3" over from frame end and cut straight down, 8) Align baseplate with existing hole and clamp, 9) Using baseplate as template with 13/32" drill bit, drill three holes (both sides), 10) Insert 3/8-16 x 1 1/4" bolt with 3/8" lock washer in bottom hole, attach to 3/8-16 nut on inside with Loctite (both sides), 11) In top two holes, use 3/8-16 x 1 1/2" bolts with 3/8" lock washers, attach to 3/8-16 nut plates with Loctite (both sides), 12) On driver's side, drill new hole with 13/32" drill bit and attach temperature sensor.
1) Attach permanent baseplate safety cables to the provided convenience link on the baseplate (both sides), ensuring quick link is on outside of frame on passenger side, 2) Secure cables to solid frame piece, ensuring they do not rub against hoses or moving parts, 3) Reinstall tires, bumper, headlights, fascia, grille, antenna, bolts, and push pins, 4) Ensure all electrical connections are plugged in properly and functioning before installing fascia, 5) Install tow bar and safety cables according to their package instructions.
Loctite Red must be used on all bolts before tightening. The manual states: "BE SURE TO USE LOCTITE® RED ON ALL BOLTS BEFORE TIGHTENING." This is required for the 3/8-16 x 1 1/2" bolts in the top two holes and the 3/8-16 x 1 1/4" bolt in the bottom hole. Loctite helps prevent bolts from loosening due to vibration during towing.
Due to the narrow wheel base of the Smart Car, there is a problem with the steering coming back to a straight position after making a turn. Bungee cords can be used to straighten the wheel back out. Place two bungee cords crossing from one side of the steering wheel to the other side of the driver seat; this gives resistance in each direction to bring the steering wheel back to center after making a turn.
Yes, the BX1990 is designed specifically for the 2006 Mercedes Smart for two CDI. However, if your vehicle's front looks different from the manual illustrations, contact Blue Ox at (402) 385-3051 before installing.
Yes. You will drill three mounting holes using a 13/32" drill bit on each side, plus one additional hole on the driver's side for the temperature sensor. A reciprocating saw and utility knife are also required for cutting and trimming the bumper and air dam.
Required tools: 8MM, 15MM, and 9/16" sockets, T20/T25/T30/T40 Torx wrenches, reciprocating saw, drill with 13/32" bit, flat screwdriver, utility knife, tape measure, large vise grip, and Loctite Red. Professional installation by a Blue Ox Dealer is recommended.
The baseplate uses 3/8-16 Grade 5 bolts: four 1 1/2" bolts with lock washers in the top holes (attached to nut plates), and two 1 1/4" bolts with lock washers in the bottom holes (attached to nuts). All bolts require Loctite Red before tightening. Torque specifications are in the torque chart referenced in the General Instructions.
You must remove: antenna, grille, fascia, headlights, bumper, all four tires, multiple bolts, push pins, and the styrofoam piece from the frame hole. All components are reinstalled after baseplate installation.
Blue Ox recommends professional installation by a Blue Ox Dealer who has the equipment and knowledge for "fit work." Find a dealer at www.blueox.com or call (402) 385-3051.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Tighten all bolts to specification using Loctite Red. Register your product at www.blueox.com for safety bulletins and recalls. Remove attachment tabs when not towing.
Due to the narrow wheel base of the Smart Car, the steering may not return to a straight position after making a turn. To correct this, place two bungee cords crossing from one side of the steering wheel to the other side of the driver seat. This provides resistance in each direction to bring the steering wheel back to center after turning.
