1. Robust Construction: Made from high-quality steel, this tow bar bracket ensures reliable strength and longevity.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

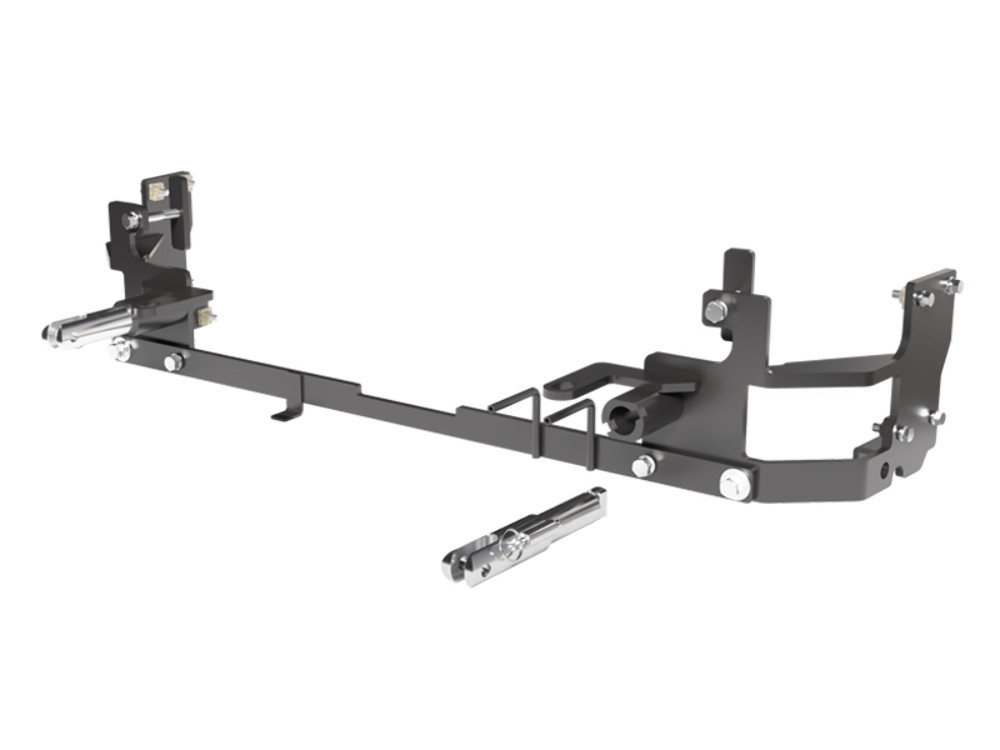

The Blue Ox BX2680 Tow Bar Bracket is the ultimate solution for your towing needs. Expertly crafted from robust steel, this base plate ensures long-lasting performance and reliable strength. Finished with a resilient black powder coat, it offers superior resistance to rust and corrosion, keeping it functional and looking good for years to come. This bracket is custom-designed for a precise fit on your towed vehicle, guaranteeing an easy and hassle-free installation process. All necessary mounting hardware is included, turning a typically complex installation into a straightforward, do-it-yourself project. With Blue Ox at your side, you can tow with confidence, knowing your vehicle is backed by the strength and durability of a leading brand.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2023 | Lincoln Nautilus | 2.7L Only Vehicles With Adaptive Cruise Control, Shutters, & Turbo Comes with Removable Attachment Tabs Install Rating 5 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, LINCOLN NAUTILUS W/2.7L TURB (Part #FDRWBX2680) fits the following vehicles: 2019-2023 Lincoln Nautilus. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, LINCOLN NAUTILUS W/2.7L TURB (Part #FDRWBX2680) fits 2019-2023 Lincoln Nautilus models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, LINCOLN NAUTILUS W/2.7L TURB (Part #FDRWBX2680) is designed to fit the 2019-2023 Lincoln Nautilus.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, LINCOLN NAUTILUS W/2.7L TURB (Part #FDRWBX2680) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX2680 is a towing baseplate manufactured by Blue Ox designed specifically for 2019-2022 Lincoln Nautilus models with the 2.7L engine, including vehicles equipped with ACC (Adaptive Cruise Control), shutters, and turbo. The baseplate attaches to the vehicle's frame and provides connection points for a tow bar. The attachment tabs are 17 inches high and 30 inches wide.
No. The BX2680 is designed only for 2019-2022 Lincoln Nautilus models with the 2.7L engine. The manual does not confirm fitment for other engine sizes or model years. If your vehicle's front appearance differs from the manual illustrations, contact Blue Ox Technical Service at (402) 385-3051 before proceeding.
The kit includes three baseplate sections (driver side, passenger side, and center), two attachment tab assemblies, support plates, hardware (bolts, nuts, washers, lock washers, nut plates, and screws), a 4-way bracket, class IV safety cables, quicklinks, cable ties, and optional breakaway switch hardware. A complete parts list with part numbers and quantities is provided on pages 4 of the manual.
Required tools include: large vise grip, flat screwdriver, utility knife, torque wrench, drill, 3/8" and 1/2" drill bits, 1-1/4" hole saw, 5/16" nut driver, sockets (5.5MM, 7MM, 8MM, 10MM, 9/16", 3/4"), wrenches (9/16", 3/4"), and Loctite Red. A reciprocating saw is also required for trimming plastic components. A T20 Torx screwdriver is needed to remove fascia screws.
Blue Ox recommends that towing products be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary for fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Technical Service at (402) 385-3051. The installation involves removal of multiple vehicle components, drilling, cutting, and precise torque specifications.
The fascia cover, fascia, and belly pan must be removed during installation and reinstalled afterward. The shutter housing must be cut and the shutters removed and will not be reinstalled. A plastic piece in front of the shutter housing will be trimmed and removed. The temperature sensor wire loom must be unsnapped and repositioned. All removed components should be placed on a flat, sturdy surface during installation.
Yes. Drilling is required at multiple points. You must drill one 3/8" hole on each side of the vehicle (step 14), access holes using a 1-1/4" hole saw in the side of the frame on both sides (step 15), ream out two existing holes on the side of the frame with a 3/8" bit on both sides (step 16), drill two bottom holes using 3/8" bit on both sides (step 20), and drill one 1/2" hole on each side (step 21). The manual notes that you may need to start with a smaller drill bit and work up to the 1/2" size.
Yes. A reciprocating saw is required to trim a plastic piece as indicated in step 10 on both sides of the vehicle. The shutter housing must be cut as indicated in step 13 after marking the top. The fascia must be trimmed around the convenience links and attachment tabs before reinstallation (step 26). The manual warns to be aware of objects behind the cutting surface when using a reciprocating saw.
Yes, some modifications are permanent. The shutter housing is cut and the shutters are removed and will not be reinstalled. A plastic piece in front of the shutter housing is trimmed and removed. The fascia is trimmed around the convenience links and attachment tabs. These modifications cannot be reversed. Drilling creates permanent holes in the vehicle frame.
The manual provides general torque charts for metric and inch bolts in Grade 5, Grade 8, Grade 8.8, and Grade 10.9. However, the specific grade for each bolt size used in the BX2680 installation is not explicitly stated in the manual. The manual emphasizes that all bolts must be tightened according to the torque chart provided and that Loctite Red must be used on all bolt threads. Consult the torque specification tables on page 1 and apply the appropriate grade for each bolt size.
The attachment tabs are 17 inches high and 30 inches wide.
The manual does not require battery disconnection. However, the temperature sensor wire loom must be unsnapped and repositioned during installation (step 9) and then reattached to the top of the baseplate cross member using provided zip ties (step 23). The manual emphasizes that all electrical connections must be plugged in and accessories must be functioning properly before reinstalling the fascia.
The kit includes two Class IV safety cables and two 1/2" quicklinks. These permanent baseplate safety cables must be attached to the baseplate convenience link and secured to the vehicle's frame rail or cross member. The cables must not rub against any hoses or moving parts. The manual notes that permanent baseplate safety cables are strongly recommended and must be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The manual states that the baseplate is computer tested to the vehicle's GVWR (Gross Vehicle Weight Rating) and that exceeding this weight will void the manufacturer's warranty. The manual does not provide a specific weight capacity. You must reference your vehicle owner's manual for the manufacturer's towing specifications and GVWR.
The breakaway switch is listed as optional. Step 24 states "Optional Breakaway: Using the provided 1/4" hardware, attach the breakaway switch to the bracket on the baseplate as shown." The manual does not specify whether it is required by law or recommended for safety.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. Verify that the safety cables do not rub against any hoses or moving parts. The manual recommends that the owner inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Ensure that Loctite Red has been used on all bolts and that they are tightened to the recommended specifications.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. The permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Paint any cut frame edges with good quality paint to prevent rusting. Register your product online at www.blueox.com to receive alerts about maintenance, updates, and safety bulletins.
The manual states "Remove the attachment tabs when not in use (if applicable)" in the General Information section. However, the manual does not provide instructions for removal and reinstallation of the attachment tabs.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts. If you suspect damage, contact Blue Ox Technical Service at (402) 385-3051.
Blue Ox offers a three-year limited warranty to the original retail purchaser covering defects in material and workmanship under normal use and service. The warranty is non-transferable and requires that the customer warranty card be returned within 30 days of purchase and that a copy of the original invoice accompany any warranty claim. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint, or rust. Warranty registration is available at http://blueox.com/warranty/.
The BX2680 fits only 2019-2022 Lincoln Nautilus models with the 2.7L engine. If your vehicle's front looks different from the manual images, contact Blue Ox at (402) 385-3051 before purchasing.
You need a torque wrench, drill with 3/8", 1/2", and 1-1/4" hole saw bits, reciprocating saw, multiple sockets and wrenches, Loctite Red, and a T20 Torx screwdriver. A complete tool list is on page 3 of the manual.
Yes. You must drill multiple holes: one 3/8" hole on each side, access holes with a 1-1/4" hole saw on both sides, ream two existing holes with a 3/8" bit on both sides, drill two bottom holes with a 3/8" bit on both sides, and drill one 1/2" hole on each side. Trimming with a reciprocating saw and cutting the shutter housing are also required.
Blue Ox recommends installation by Blue Ox Dealers who have the equipment and knowledge for fit work. Find a dealer at www.blueox.com or call (402) 385-3051. The installation requires removal of multiple components, drilling, cutting, and precise torque specifications.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Reference your vehicle owner's manual for the manufacturer's towing specifications and GVWR.
Use Loctite Red on all bolt threads and tighten according to the torque charts on page 1 of the manual. The specific grade for each bolt size is not explicitly stated; consult the Grade 5 or Grade 8 columns as applicable to your bolts.
Yes. Two Class IV safety cables and two 1/2" quicklinks are included. They must be attached to the baseplate and secured to the vehicle's frame. They must not rub against hoses or moving parts and are required in addition to, not instead of, legally required towing safety cables.
This is normal. Step 19 of the installation instructions states: "Note: Cross member may appear bowed once the bolts have been fully tightened." This is an expected result of the installation process and does not indicate a problem.
Step 21 notes: "May need to start with a smaller drill bit and work up to the 1/2" drill bit." Start with a smaller bit and gradually increase the size to reach the final 1/2" hole size. This reduces binding and torque on the drill.
