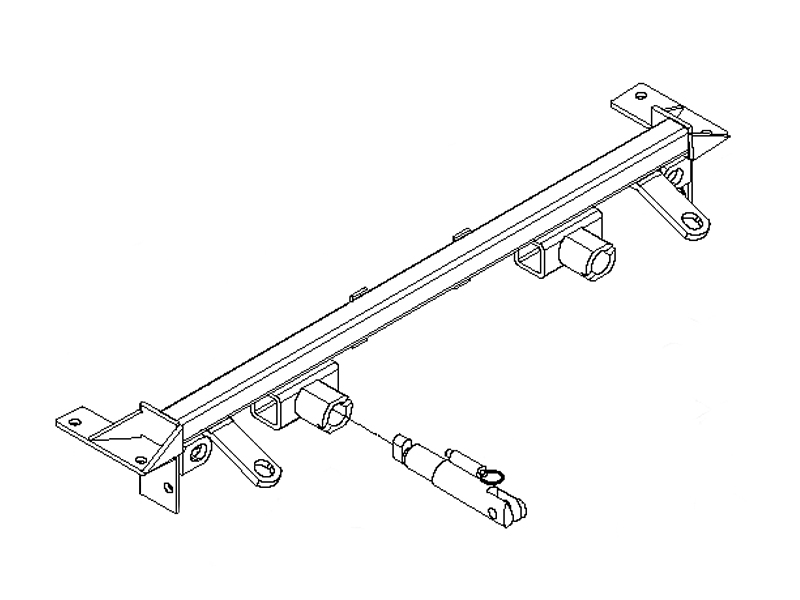

Custom Designed: This Blue Ox BX3782 Tow Bar Bracket is custom designed for each specific towed vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Take your towing to the next level with the Blue Ox BX3782 Tow Bar Bracket. This bracket is engineered with precision, designed exclusively for your specific towed vehicle to ensure a perfect fit. Made from high-quality steel, it boasts superior strength and durability. It comes with a sleek black powder coat finish that not only enhances its aesthetic appeal but also provides excellent resistance against rust and corrosion. The bracket is easy to install, featuring a bolt-on mounting type that doesn't require any complicated tools or procedures. All the necessary mounting hardware is included, as well as comprehensive instructions to guide you through a hassle-free, do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2001 - 2005 | Toyota RAV4 | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |

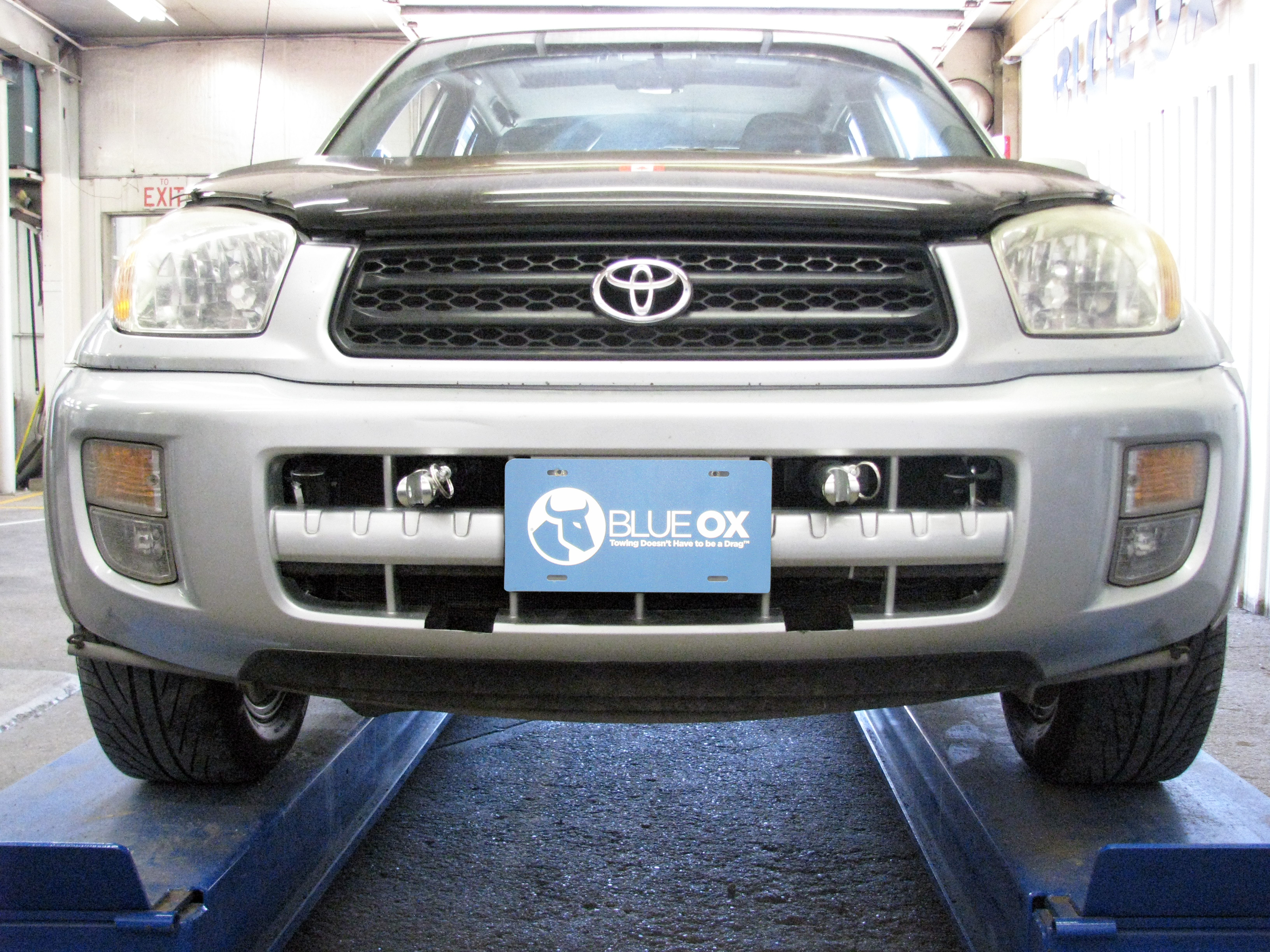

The BlueOx Tow Bar Base Plate For Select TOYOTA RAV4 BX3782 (Part #FDRWBX3782) fits 2001-2005 Toyota RAV4 models. The 2005 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate For Select TOYOTA RAV4 BX3782 (Part #FDRWBX3782) is designed to fit the 2001-2005 Toyota RAV4.
The BlueOx Tow Bar Base Plate For Select TOYOTA RAV4 BX3782 (Part #FDRWBX3782) fits the following vehicles: 2001-2005 Toyota RAV4. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate For Select TOYOTA RAV4 BX3782 (Part #FDRWBX3782) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX3782 is designed specifically for 2001-03 Toyota RAV4 models. Installation requires removal and reinstallation of the grille, bumper, fascia, headlights and horns. Some bumper trimming and drilling are required.
Motorhome mount tow bars are recommended for use with this baseplate. The RangeFinderII, Adventurer and Ambassador tow bars cannot be used due to the design of the removable tabs. The Acclaim tow bar may be used, but will not fold and store on the front of the vehicle. Adapters except the BX8833 and BX88151 cannot be used with this baseplate.
The attachment tab height is 23 inches and the attachment tab width is 18 inches.
Required tools are: 10MM socket, 12MM socket, 3/4" socket, 3/4" wrench, Phillips screwdriver, 1-1/4" hole saw, 17/32" drill bit, and Loctite RED. A hacksaw is also needed to cut brackets.
The kit includes: one weldment baseplate (61-6577), four nut plate weldments (61-3799), five 1/2-13 x 1-1/4" Grade 5 hex bolts (201-0011), one 1/2-13 x 1" Grade 5 hex bolt (201-0060), six 1/2" lock washers (203-0012), one 1/2-13 ESSNA jam nut (202-0143), one 1/2-13 hex nylon insert lock nut (202-0094), one 90-degree electrical bracket (101-6135), two 10-32 x 1/2" slot round head screws (201-0192), two #10 lock washers (203-0054), two #10-32 hex nuts (202-0047), two 1/4-20 x 3/4" Grade 5 hex bolts (201-0050), two 1/4" lock washers (203-0008), two 1/4-20 hex flange whiz lock nuts (202-0069), two 4-way connector adapters (101-5822), two #10-16 x 1" self-drilling screws (201-0654), two removable attachment tab assemblies (62-3468), two 36" Class III baseplate safety cables (226-0046), two 3/8" quicklinks (229-0359), and two receiver cap plugs (290-0437).
Yes. The grille, bumper, fascia and headlights must be removed during installation and then reinstalled after the baseplate is mounted. The horns must also be removed and remounted elsewhere on the vehicle.
Yes. Drilling is required. You must drill the existing holes out to 1/2" on both sides of the bumper, and drill two 17/32" holes on each side using the baseplate as a template. A 1-1/4" hole saw and 17/32" drill bit are required.
Yes. Some trimming of the bumper is required. Specifically, you must use a hacksaw to cut the brackets off at the marked area level with the top of the bumper. Additionally, you must cut 1" off the top of the bracket where it starts to bend.
Torque specifications depend on bolt size and grade. For Grade 5 bolts: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 1/2" = 78 ft-lbs. For Grade 8 bolts: 1/4" = 14 ft-lbs, 5/16" = 29 ft-lbs, 3/8" = 47 ft-lbs, 1/2" = 119 ft-lbs. Metric Grade 8.8: 6MM = 6 ft-lbs, 8MM = 16 ft-lbs, 10MM = 31 ft-lbs, 12MM = 54 ft-lbs. Metric Grade 10.9: 6MM = 8 ft-lbs, 8MM = 22 ft-lbs, 10MM = 40 ft-lbs, 12MM = 70 ft-lbs. All bolts must be treated with Loctite RED before tightening.
The kit includes one 90-degree electrical bracket (101-6135), two 4-way connector adapters (101-5822), and two receiver cap plugs (290-0437). The manual recommends the BX8869 Bulb and Socket Wiring Kit for this vehicle. All electrical connections must be plugged in properly and functioning before installing the fascia.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Two 36" Class III baseplate safety cables are included with the kit. They must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and should remain installed as long as the baseplate is installed. These cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The manual shows the recommended installation of the permanent baseplate safety cables to the frame of the vehicle. If the vehicle has additional options which interfere with mounting the cables, secure the cable to a solid piece of the vehicle's frame as described in the instructions included with the permanent baseplate safety cables. Do not mount the cables against wires, hoses or brake lines.
Failure to read and follow these instructions could result in separation of the towed vehicle from the tow bar, causing property damage, loss of towed vehicle, personal injury or death.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts and loose bolts. Be sure to use Loctite RED on all bolts and tighten to the recommended specifications.
No. The attachment tabs should be removed when not in use.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Customer Care Department at (888) 425-5382.
Yes. Confirm the towability and pre-towing procedures for your vehicle with the owner's manual or contact the vehicle's manufacturer for specific towing procedures. You can also contact REMCO for additional information at 1(800)228-2481.
Yes, the BX3782 is designed for 2001-03 Toyota RAV4. Installation requires removal of grille, bumper, fascia and headlights, plus some trimming and drilling.
Motorhome mount tow bars are recommended. RangeFinderII, Adventurer and Ambassador tow bars cannot be used. Acclaim tow bar may be used but will not fold and store on the front. Most adapters except BX8833 and BX88151 cannot be used.
You need 10MM and 12MM sockets, 3/4" socket and wrench, Phillips screwdriver, 1-1/4" hole saw, 17/32" drill bit, hacksaw and Loctite RED.
Yes. You must drill existing holes to 1/2" on both sides and drill two 17/32" holes on each side using the baseplate as a template.
Yes. Use a hacksaw to cut brackets level with the top of the bumper, and cut 1" off the top of the bracket where it starts to bend.
1/2" Grade 5 bolts should be torqued to 78 foot-pounds. All bolts must be treated with Loctite RED before tightening.
Yes. Two 36" Class III baseplate safety cables are included and strongly recommended. They must be connected from the baseplate to the vehicle's frame rail or cross member and should remain installed as long as the baseplate is on the vehicle.
Inspect all towing equipment for cracked welds, missing or worn parts and loose bolts. Ensure all bolts are tightened to the recommended torque specifications using Loctite RED.
No. Use only genuine factory replacement parts of the same grade (usually Grade 5). Order replacements through your nearest Blue Ox Dealer or Distributor.
