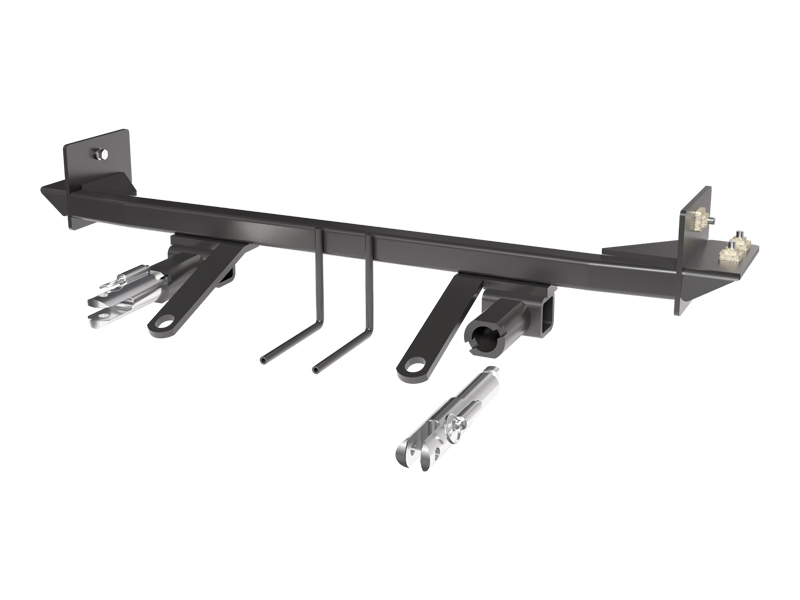

Custom-Designed: The Blue Ox BX3781 Tow Bar Bracket is custom-designed for each specific towed vehicle, ensuring a perfect fit and seamless functionality.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX3781 Tow Bar Bracket is a durable, high-quality automotive accessory that is custom-designed for your specific towed vehicle. Crafted from robust steel and finished with a sleek black powder coat, this product guarantees superior strength and corrosion resistance. It is an easy bolt-on mounting type, simplifying the installation process. The package includes all necessary mounting hardware and comprehensive instructions, making the installation a breeze even for non-professionals.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2013 | Toyota Corolla | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BX3781 is designed specifically for 2009-2013 Toyota Corolla S/LE/XLE models. The manual notes that dimensional variations between otherwise identical vehicles can be considerable, so minor adjustments such as filing a hole slightly, bending electrical rods, or bending end plates may be necessary to compensate for manufacturer tolerances.
No. Due to the design of the removable tabs, the RangeFinderII, Adventurer, and Ambassador tow bars cannot be used with the BX3781 baseplate. Motorhome mount tow bars are recommended for use with this baseplate. The Acclaim tow bar may be used, but will not fold and store on the front of the vehicle.
Most adapters cannot be used with the BX3781. Only the BX8833 and BX88151 adapters are compatible. Additionally, tow bar adapters are not to be used with vehicles weighing over 5,000 lbs.
The attachment tab height is 15" and the attachment tab width is 18.25".
Required tools include: large vise grips, flat screwdriver, Phillips screwdriver, drill, utility knife, 10MM socket, 14MM socket, 9/16" socket, 1-1/4" hole saw, and 13/32" drill bit. Loctite RED is also required.
The kit includes: 6 nut plates with 14" wire (1/4"-20 x 1" x 1"), 1 BX3781 baseplate, 2 attachment tab assemblies with hole, 1 breakaway bracket, 2 bolts (1/4"-20 x 3/4" hex head, Grade 5), 2 screws (#10-32 1/2" round slotted head), 6 bolts (3/8"-16 x 1-1/4" hex head, Grade 5), 2 self-drilling screws (#12-14 x 1"), 2 hex nuts (#10-32), 2 nylon insert lock nuts (1/4"-20), 6 lock washers (3/8"), 2 lock washers (#10), 1 electrical bracket, 2 class III safety cables, 2 quicklinks (3/8"), and 2 black cap plug receivers.
Blue Ox towing products are intended to be installed by Blue Ox dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. If needed, Blue Ox dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
Yes. The fascia and aluminum bumper are removed and reinstalled during installation of the baseplate. The installation process requires removing multiple fasteners from the fascia, removing push pins, removing the bumper with a 14MM socket, and removing the black shield on both sides before the baseplate can be installed.
Yes, drilling is required. You must drill a 1-1/4" hole in the frame rail on both sides using a hole saw to allow insertion of nut plates inside the frame rail. You must also drill two holes in the underside of the frame rail on both sides using a 13/32" drill bit as a template.
Yes, trimming of the fascia is required. You must mark and trim the grill with a utility knife to allow the baseplate receivers to come through. The trimming procedure differs between 2009-2010 models (Figure A) and 2011 models (Figure B).
According to the bolt torque specifications chart on page 1, 3/8" Grade 5 bolts should be torqued to 33 foot-pounds, and 3/8" Grade 8 bolts should be torqued to 47 foot-pounds. The BX3781 uses 3/8"-16 x 1-1/4" hex head bolts, Grade 5. All bolts must have Loctite RED applied before tightening.
According to the bolt torque specifications chart on page 1, 1/4" Grade 5 bolts should be torqued to 10 foot-pounds, and 1/4" Grade 8 bolts should be torqued to 14 foot-pounds. The BX3781 includes 1/4"-20 x 3/4" hex head bolts, Grade 5. All bolts must have Loctite RED applied before tightening.
The BX8848 Bulb and Socket Wiring Kit is recommended for this vehicle, but the manual does not state it is required. Electrical connections must be plugged in properly and functioning before installing the fascia.
The permanent baseplate safety cables prevent the towed vehicle from breaking loose in the event the connection between the frame of the towed vehicle and the baseplate fails or becomes disconnected. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Each permanent baseplate safety cable must have an adequate weight rating for the towing system; the weight rating of the two cables together will not qualify. These cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Attach baseplate safety cables as close as possible to the location shown in the installation photos. If you are unable to place safety cables in that location, position the cables around a solid piece of the frame on both sides. Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines, as an improperly installed baseplate against a wire or hose could cause fluid leaks or electrical shorts.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes. Remove the attachment tabs when not in use, if applicable.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or in need of replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox dealer or distributor. Failing to follow and/or altering these installation instructions will void the manufacturer's warranty.
Yes. Towing behind a non-motorized vehicle will void the warranty.
Yes, the BX3781 is designed for 2009-2013 Toyota Corolla S/LE/XLE. Minor adjustments may be needed to compensate for manufacturer tolerances.
Motorhome mount tow bars are recommended. The Acclaim tow bar may be used but will not fold and store. RangeFinderII, Adventurer, and Ambassador tow bars cannot be used. Only BX8833 and BX88151 adapters are compatible.
Required tools: large vise grips, flat and Phillips screwdrivers, drill, utility knife, 10MM and 14MM sockets, 9/16" socket, 1-1/4" hole saw, 13/32" drill bit, and Loctite RED.
Yes. The fascia and aluminum bumper must be removed and reinstalled during installation. Drilling and fascia trimming are also required.
Torque 3/8" Grade 5 bolts to 33 foot-pounds. Apply Loctite RED to all bolts before tightening.
Permanent baseplate safety cables are strongly recommended to prevent the towed vehicle from breaking loose if the baseplate connection fails. They must be used in conjunction with, not as a replacement for, legally required safety cables.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to specification with Loctite RED applied.
