{'key': 'Material', 'value': 'Steel', 'benefit': 'Offers superior durability and strength, ensuring the bracket can withstand tough towing conditions.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

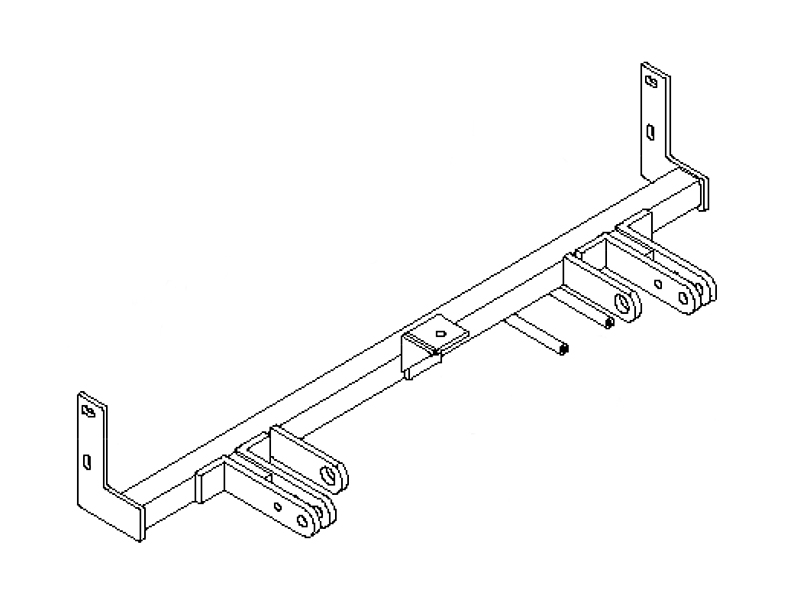

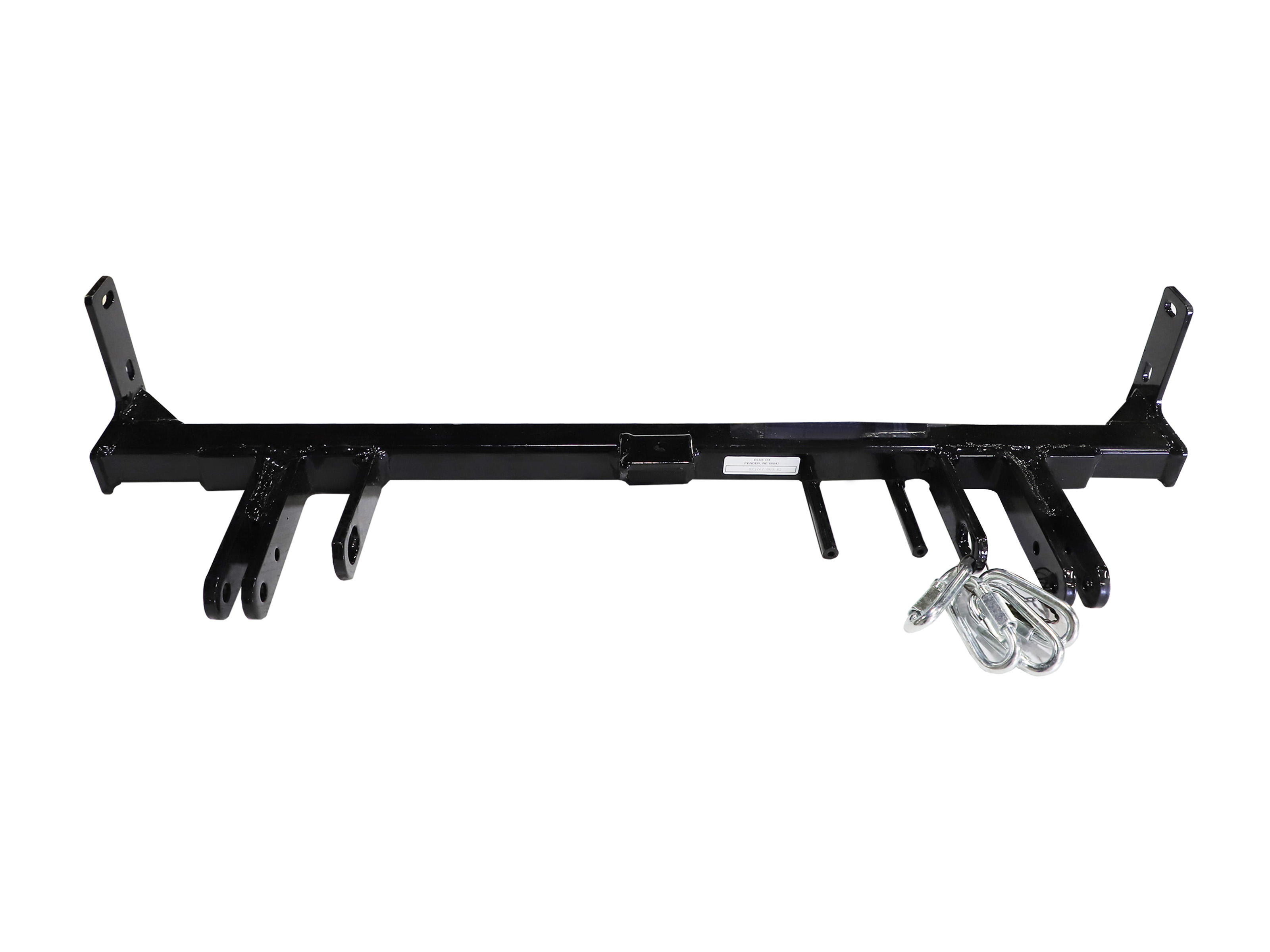

Blue Ox BX3747 is a premium Tow Bar Bracket specifically crafted for the discerning vehicle owner. Designed with precision and functionality in mind, this accessory ensures outstanding performance and easy use which makes it the perfect deal for your ultimate satisfaction. Made from sturdy, high-quality steel and finished in a sleek black powder coat, this Tow Bar Bracket not only boasts of superior durability but also adds a stylish touch to your vehicle. The bolt-on mounting type ensures a secure and stable connection, allowing for a worry-free towing experience. Plus, with included mounting hardware and comprehensive do-it-yourself instructions, you can undertake the installation process with ease, saving both time and effort.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2002 | Toyota Corolla | Comes with Standard Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Headlights Must be Removed and Replaced During Installation |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, TOYOTA COROLLA CE/LEE13 (Part #FDRWBX3747) fits the following vehicles: 2002 Toyota Corolla. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, TOYOTA COROLLA CE/LEE13 (Part #FDRWBX3747) fits 2002 Toyota Corolla models. The 2002 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, TOYOTA COROLLA CE/LEE13 (Part #FDRWBX3747) is designed to fit the 2002 Toyota Corolla.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, TOYOTA COROLLA CE/LEE13 (Part #FDRWBX3747) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX3747 is designed for the 2002 1/2 Toyota Corolla CE and 2002 Toyota Corolla LE. Compatibility with other model years or trim levels is not confirmed in the manual. Contact your Blue Ox dealer to verify fitment for your specific vehicle.
The BX8869 tow bar is available for this vehicle. Refer to the tow bar's installation instructions for setup and operation details.
You will need: 10MM socket, 14MM socket, 9/16" socket, 13/32" drill bit, loctite blue, and vise grips.
Yes. The front fascia and metal bumper must be removed for baseplate installation. The fascia is removed first by taking out bolts and push pins, then the metal bumper is removed by taking out four metric bolts.
Yes. You must drill out the top existing hole on frame ends with a 13/32" drill bit on both sides. The bottom hole may also need to be reamed out with the 13/32" drill bit. Additionally, you will drill a 13/32" hole through the upper brace into the bottom side of the metal bumper using the baseplate as a template.
1. Remove two metric bolts above headlight assemblies. 2. Remove one push pin from top center of fascia. 3. Remove metric bolts from fascia corners. 4. Remove metric bolt from underside of fascia and one push pin; pull fascia forward. 5. Remove four metric bolts from metal bumper. 6. Drill out top existing hole on frame ends with 13/32" drill bit, both sides. 7. Hold baseplate in place, insert nut plates and bolts, apply loctite blue, and tighten. 8. Reinstall bumper brackets and metal bumper, drill 13/32" hole through upper brace into bumper, insert bolt plate, and tighten. 9. Reinstall fascia.
Yes. You must use loctite blue on all bolts before tightening during baseplate installation. After installation, the owner must use Loctite Red on all bolts and tighten to recommended specifications before each towing trip.
The attachment tabs are 24 inches center to center and 13 inches in height.
Yes. The manual states that dimensional variations between otherwise identical cars can be considerable. While the baseplate holes were designed for easy installation, it may be necessary to file a hole slightly to allow a bolt to clear.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member. Each cable must have an adequate weight rating, and the two cables together must meet the system's weight requirements. Permanent baseplate safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Do not mount permanent baseplate safety cables against wires, hoses, or brake lines. Improper installation against wires or hoses could cause fluid leaks or electrical shorts some time after baseplate installation.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Remove the attachment tabs when not in use, if applicable.
The BX3747 includes: one weldment base plate (61-5727), four nut plates (61-5208), one bolt plate with wire (61-5681), four 3/8-16 x 1 1/2 hex bolts grade 5 (201-0440), five 3/8 lock washers (203-0010), four 3/8 flat washers (203-0003), one 3/8-16 hex nut (202-0003), two #12-14 x 1" self-drilling screws (201-0979), two #10-32 hex nuts (202-0047), two #10 lock washers (203-0054), two #10-32 x 1/2 slot round head screws (201-0192), and two 4-way connector adapters (101-5822).
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or nontypical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade, usually Grade 5. Repair parts may be ordered through your nearest Blue Ox dealer or distributor.
Do not substitute other devices if the tow bar pin and clip are lost. Obtain genuine replacement parts from your Blue Ox dealer or distributor.
Yes, the BX3747 fits 2002 1/2 Toyota Corolla CE and 2002 Toyota Corolla LE. Verify your exact model year and trim with your dealer.
Yes. You must drill out existing frame holes with a 13/32" drill bit and drill a new hole through the metal bumper using the baseplate as a template.
10MM socket, 14MM socket, 9/16" socket, 13/32" drill bit, loctite blue, and vise grips.
Yes. Both the front fascia and metal bumper must be removed before baseplate installation.
Yes. Apply loctite blue to all bolts before tightening during installation. After installation, use Loctite Red on all bolts before each towing trip.
Permanent baseplate safety cables are strongly recommended. They must connect from the baseplate to the frame rail or cross member and must not be mounted against wires, hoses, or brake lines.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened with Loctite Red to recommended specifications.
