{'Feature 1': 'Custom Design: Each bracket is custom designed for each specific towed vehicle, ensuring a perfect fit and seamless integration.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Ensure your vehicle is ready for towing with the Blue Ox BX3749 Tow Bar Bracket. This top-of-the-line product is expertly made from robust steel, ensuring durability and reliability for years to come. It's custom designed to fit each specific towed vehicle, guaranteeing a perfect fit for your vehicle. The black powder coat finish not only gives it an elegant look but also protects it from the elements. The Bolt-On Mounting Type ensures an easy and secure installation. Moreover, the package comes with all the necessary hardware and clear instructions for a simple, do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years

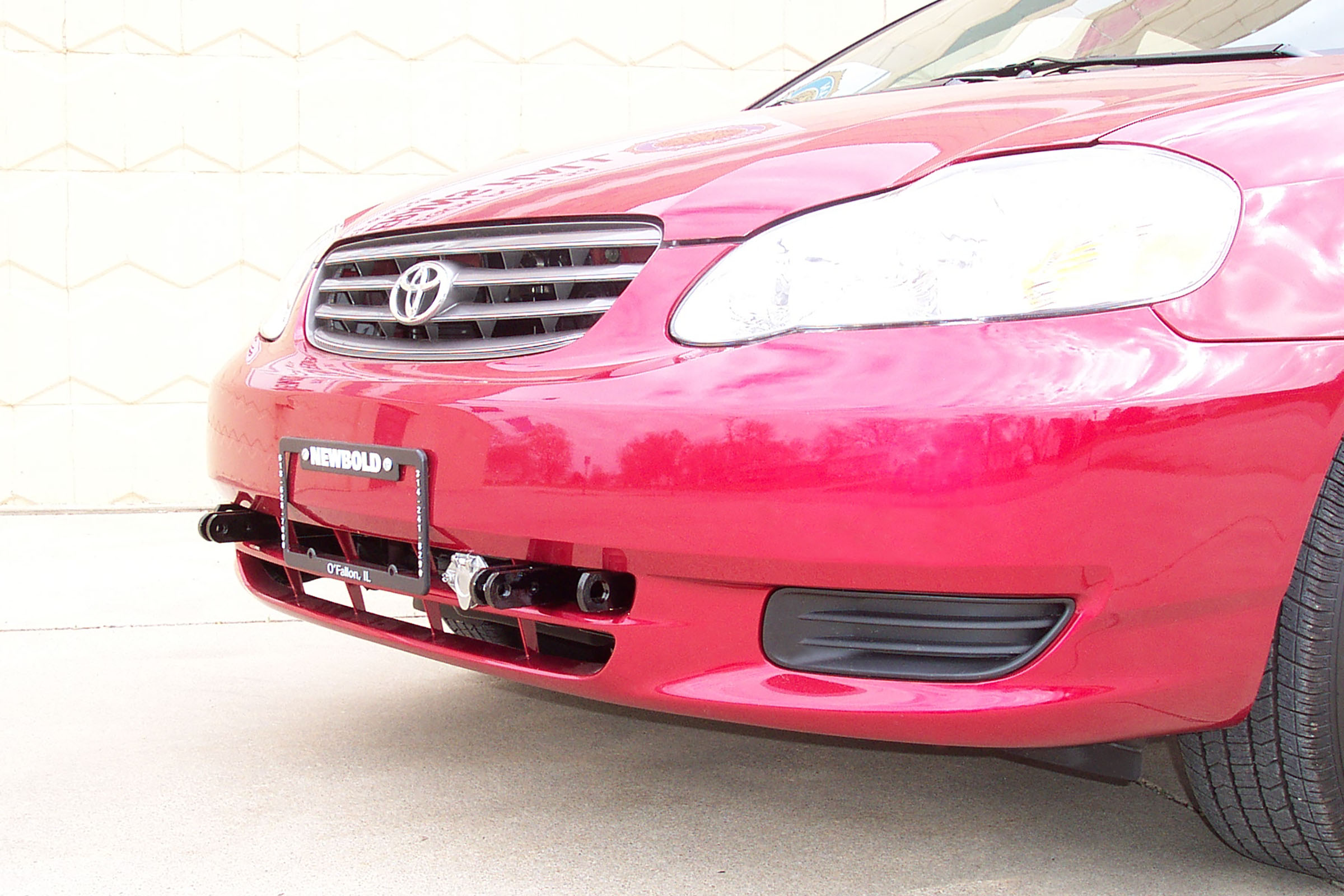

Yes, the BX3749 is designed for the 2003 Toyota Corolla LE with VVTi 1.8L engine. The attachment tabs are 24 inches center to center with a height of 16 inches. The BX8869 is available as an accessory for this vehicle.
You will need: 10MM socket, 3/4" socket, 3/4" wrench, Phillips screw driver, 1 1/4" hole saw, 17/32" drill bit, vise grips, and Loctite Blue. A power drill is required to use the hole saw and drill bit.
Yes, the front fascia must be removed for baseplate installation. This involves removing two metric bolts from the bottom of the fascia (both sides), two push pins from the lower opening in the metal bumper, two metric bolts inside the wheel wells (both sides), and three screws from the top of the fascia. The fascia is then pulled forward and set aside during installation, then reinstalled afterward.
Yes, drilling is required. You must drill one 1 1/4" hole on the outside of the frame end using a 1 1/4" hole saw, and drill out existing holes on the inside of the frame end with a 17/32" drill bit on both sides. Additional holes are then drilled using the baseplate as a template with the 17/32" drill bit.
1. Remove the front fascia (steps 1-4). 2. Drill the 1 1/4" hole on the outside of the frame end just back from the seam (step 5). 3. Drill out existing holes on the inside of the frame end with the 17/32" drill bit, both sides (step 6). 4. Align the front hole of the baseplate with existing holes, insert the nut plate into the 1 1/4" hole, and fasten with hex bolts and lock washers, both sides (step 7). 5. Use the baseplate as a template to drill remaining holes with the 17/32" drill bit (step 7). 6. Insert nut plates into the 1 1/4" holes and fasten all bolts with Loctite Blue (step 7). 7. Reinstall the fascia (step 8). 8. Install the tow bar and safety cables per their instructions (step 10).
Yes, Loctite Blue must be used on all bolts before tightening. The manual specifies using Loctite Blue during installation (step 7) and recommends using Loctite Red on all bolts for pre-towing inspection and maintenance.
Before tightening the bolts in step 7, ensure the baseplate is level. The manual notes that dimensional variations between otherwise identical cars can be considerable, and it may be necessary to file a hole slightly to allow a bolt to clear. Check levelness before final tightening of all bolts.

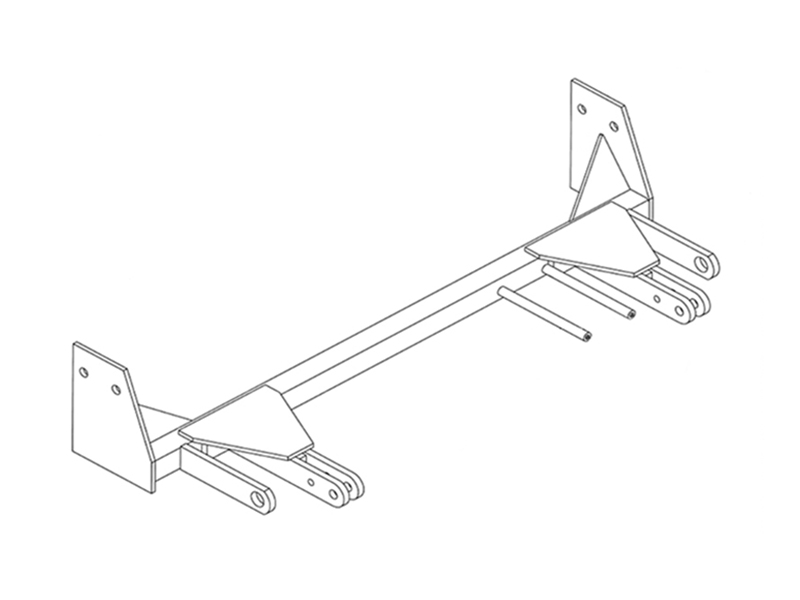

The BX3749 includes: one weldment base plate (61-5782), four 1/2-13 nut plates with 10" wire (61-5338), four 1/2-13 x 1 1/2" Grade 5 hex bolts (201-0051), four 1/2" lock washers (203-0012), two #12-14 x 1" self-drilling screws (201-0979), two #10-32 x 1/2" slot round head screws (201-0192), two #10 lock washers (203-0054), two #10-32 hex nuts (202-0047), two 4-way connector adapters (101-5822), two 36" baseplate safety cables (226-0046), and four 3/8" quicklinks (229-0359).
Permanent baseplate safety cables are strongly recommended when towing a vehicle with the BX3749 tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. These cables prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must remain installed as long as the baseplate is installed. Permanent baseplate safety cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses, or brake lines, as improper installation against these components could cause fluid leaks or electrical shorts sometime after installation. The manual provides illustrations showing possible recommended arrangements.
The BX8869 is available for the 2003 Toyota Corolla LE. The manual indicates it is available for this vehicle but does not specify whether it is required or optional. Contact your Blue Ox dealer for clarification on whether this accessory is necessary for your installation.
The manual notes that dimensional variations between otherwise identical cars can be considerable. If a bolt does not clear, it may be necessary to file a hole slightly to allow proper alignment. Ensure the baseplate is level before tightening bolts.
Before each towing trip, inspect all towing equipment for: cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended specifications and use Loctite Red on all bolts.
Yes, it is crucial to register your BX3749 baseplate online at www.blueox.com. Registration ensures you will be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Remove the attachment tabs when not in use.
No. If a bolt is lost or needs replacement, you must use a replacement bolt of the same grade, which is usually Grade 5. Do not substitute homemade or nontypical parts. Use only genuine factory replacement parts. Repair parts may be ordered through your nearest Blue Ox dealer or distributor.
Do not substitute other devices if the tow bar pin and clip are lost. Obtain replacement parts from your Blue Ox dealer or distributor.
The installer must watch for and avoid: oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts sometime after installation. The dealer or installer must ensure the user receives the instruction sheet.
Yes, the BX3749 is designed for 2003 Toyota Corolla LE with VVTi 1.8L engine. Attachment tabs are 24 inches center to center, 16 inches high.
Yes. You must drill one 1 1/4" hole on the frame outside using a hole saw, and drill out existing holes on the frame inside with a 17/32" drill bit on both sides. Additional holes are drilled using the baseplate as a template.
10MM socket, 3/4" socket and wrench, Phillips screw driver, 1 1/4" hole saw, 17/32" drill bit, vise grips, and Loctite Blue. A power drill is required.
Yes, the front fascia must be removed. Remove two metric bolts from the bottom (both sides), two push pins from the lower bumper opening, two metric bolts inside the wheel wells (both sides), and three screws from the top. Reinstall after baseplate installation.
Yes, use Loctite Blue on all bolts before tightening during installation. Use Loctite Red on all bolts for pre-towing inspection and maintenance.
Yes, permanent baseplate safety cables are strongly recommended. They must connect from the baseplate to the frame rail or cross member. Do not mount against wires, hoses, or brake lines. They work with, not as replacement for, legally required safety cables.
Inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to recommended specifications and use Loctite Red on all bolts.
