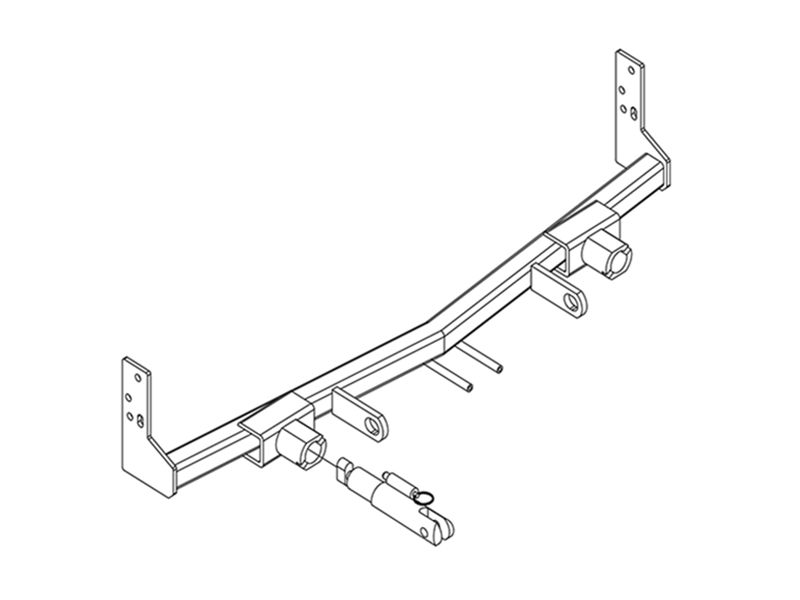

Custom-Designed: Each Blue Ox BX3764 Tow Bar Bracket is specifically designed for each towed vehicle, ensuring the highest level of fit and function.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Introducing the Blue Ox BX3764 Tow Bar Bracket - a custom-designed, high-quality towing solution for your vehicle. Each Blue Ox base plate is specifically designed for each individual towed vehicle, ensuring a perfect fit and superior functionality. Crafted from robust steel, this black tow bar bracket boasts a durable powder coat finish that offers superior resistance against rust and corrosion. The bracket is a bolt-on type, ensuring a secure and straightforward installation. With all necessary mounting hardware included, setting up the bracket is a breeze, whether you want to do it yourself or seek professional assistance.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2005 | Toyota Echo | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BX3764 is designed specifically for the 2005 Toyota Echo. The baseplate has attachment tabs that are 24 inches center to center with a height of 14½ inches.
The manual specifies the BX3764 is for the 2005 Toyota Echo only. The manual does not confirm compatibility with other model years.
Yes, the bulb and socket tail light wiring kit BX8869 is available for the 2005 Toyota Echo.
The front fascia, metal bumper, bumper brackets, windshield washer reservoir, and air dam must be removed for baseplate installation. These components are reinstalled after the baseplate is secured.
Yes, drilling is required. You must drill the upper back hole on the driver's side and three holes on the passenger's side using a 13/32" drill bit, and drill a hole in the end of the frame rail on both sides using a 1½" hole saw.
Yes, trimming of the air dam is required. Measure down 1⅞" from the edge just below where the metal bumper would sit, then cut and remove the area below the metal bumper back to the first rib, down to the 1⅞" mark, and cut a line forward to the front edge to open the area for the baseplate.
Yes, after the baseplate is installed, you must cut an opening in the lower grille on both sides to allow the attachment receivers and convenience links to come through.
Required tools are: 10MM socket, 12MM socket, 14MM socket, 9/16" socket, Loctite Red, vise grip, utility knife, and small flat screw driver.
The baseplate includes: one weldment base plate (61-6140), four 3/8-16 nut plates with 14" wire (61-5208), four 3/8-16 x 1½" hex bolts Grade 5, four 3/8" lock washers, two 3/8" flat washers, two 10MM-1.25 x 35MM hex bolts Grade 8.8, two 10MM lock washers, one 6MM-1.00 x 30MM hex bolt Grade 8.8, one ¼" lock washer, one ¼" flat washer, two #12-14 x 1" self-drilling screws, two #10-32 x ½" slot round head screws, two #10 lock washers, two #10-32 hex nuts, two 4-way connector adapters, two attachment assemblies, two receiver caps, two 36" Class III baseplate safety cables, and two 3/8" quicklinks.
1. Remove the push pin from just below the hood latch on top of the fascia. 2. Remove one metric bolt just forward of the front tire on both sides using a 10MM socket. 3. Remove nine metric bolts from the lower edge of the fascia using a 10MM socket. 4. Release the clip just outside the headlight assembly on the seam between the fender and front fascia on both sides, then pull the corner of the fascia down and to the side, pull the fascia forward and set aside. 5. Remove two metric bolts from the metal bumper using a 12MM socket on both sides, pull forward and set aside. 6. Remove two metric bolts from the bumper bracket on both sides, pull forward and set aside. 7. Release two clips on the back side of the radiator support and pull the air dam forward on both sides. 8. Remove the front metric bolt from the windshield washer reservoir using a 10MM socket and loosen the back bolt.
Slide the baseplate onto the frame rail to align with the existing two holes on the driver's side. Install two 10MM-1.25 x 35MM bolts with lock washers and flat washers. On the passenger's side, slide the end plate between the frame and washer reservoir, align the lower back hole of the baseplate with the existing hole for the washer reservoir, and install a 6MM-1 x 30MM hex bolt with lock washer and flat washer. Use Loctite Red on all bolts before tightening. Tighten all bolts according to the torque chart in the General Instruction sheet.
Nut plates are inserted into the opening on the end of the frame rail to align with drilled holes. On the passenger's side, three 3/8-16 nut plates are installed with hex bolts, lock washers and flat washers. On the driver's side, one 3/8-16 nut plate is installed with a hex bolt and lock washer. All bolts must use Loctite before tightening and be torqued according to the General Instructions torque chart.
Yes. After drilling the frame rail holes and installing the nut plates, you must reinstall and tighten the front 6MM-1 hex bolt into the washer reservoir, tighten the reservoir back bolt, and reinstall the bumper brackets and metal bumper.

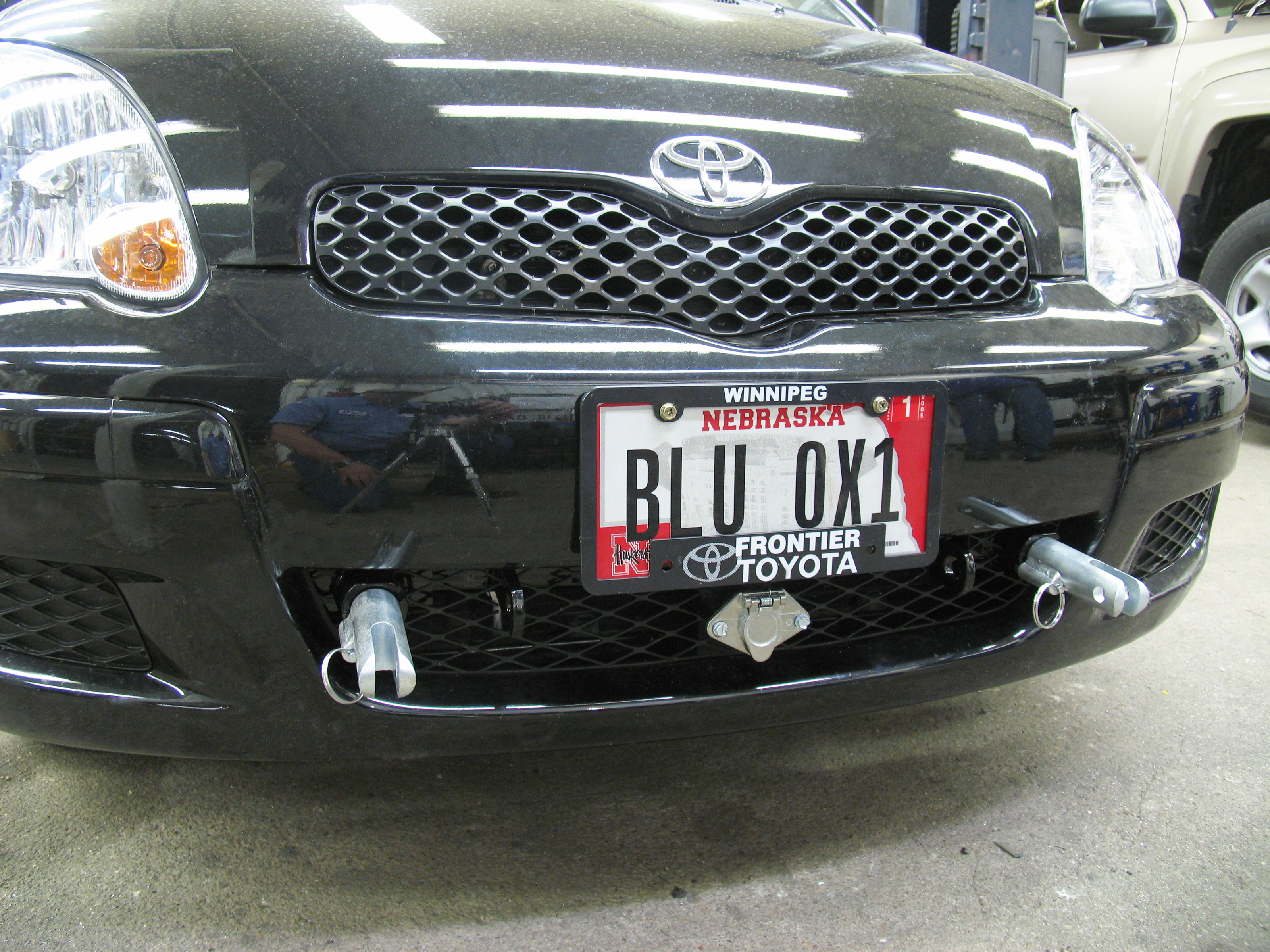

Align the front fascia as close to its original position as possible. Cut an opening in the lower grille to allow the attachment receivers and convenience links to come through on both sides. Reinstall the fascia and ensure all electrical components are plugged in properly.
The manual states that all bolts must be torqued according to the torque chart in the General Instruction sheet, which is not included in this installation manual. Contact your Blue Ox dealer or distributor for the specific torque values.
Two drill bit sizes are required: a 13/32" drill bit for drilling the upper back hole on the driver's side and the three holes on the passenger's side, and a 1½" hole saw for drilling holes in the end of the frame rail on both sides.
The attachment tabs are 24 inches center to center with a height of 14½ inches.
Yes, Loctite Red must be used on all bolts before tightening. This is required for both the initial installation and any future bolt replacements.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Two 36" Class III baseplate safety cables are included with the baseplate. These cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must remain installed as long as the baseplate is installed. The cables must not be mounted against wires, hoses or brake lines. Permanent baseplate safety cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts some time after installation. Do not mount permanent baseplate safety cables against wires, hoses or brake lines.
Do not substitute other devices if the tow bar pin and clip are lost. Obtain replacement parts from your Blue Ox dealer or distributor.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes, remove the attachment tabs when not in use, if applicable.
Use a replacement bolt of the same grade (usually Grade 5). Repair parts may be ordered through your nearest Blue Ox dealer or distributor. Do not substitute homemade or non-typical parts. For your safety and the preservation of your baseplate, ensure the replacement bolt is of the same grade as the original.
Yes, it is crucial to register your baseplate online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes, it is the dealer or installer's responsibility to be certain the user receives the instruction sheet.
Yes, the BX3764 is designed specifically for the 2005 Toyota Echo with attachment tabs 24 inches center to center and 14½ inches high.
Yes, drilling is required. You must drill holes using a 13/32" drill bit on the frame rails and a 1½" hole saw in the end of the frame rail on both sides.
Yes, the air dam must be trimmed. Measure down 1⅞" from the edge below where the metal bumper sits, cut and remove the area below the bumper back to the first rib down to the 1⅞" mark, and cut a line forward to the front edge.
You need: 10MM, 12MM, 14MM and 9/16" sockets, Loctite Red, vise grip, utility knife, and small flat screw driver.
Yes, Loctite Red must be used on all bolts before tightening.
Yes, two 36" Class III baseplate safety cables are included and strongly recommended. They must be connected from the baseplate to the frame rail or cross member and used in conjunction with legally required safety cables.
Inspect all towing equipment for cracked welds, missing or worn parts and loose bolts. Ensure all bolts are tightened to the recommended specifications with Loctite Red.
