Custom Design: Each Blue Ox BX1010 Tow Bar Bracket is custom designed for each specific towed vehicle, ensuring a perfect, secure fit every time.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

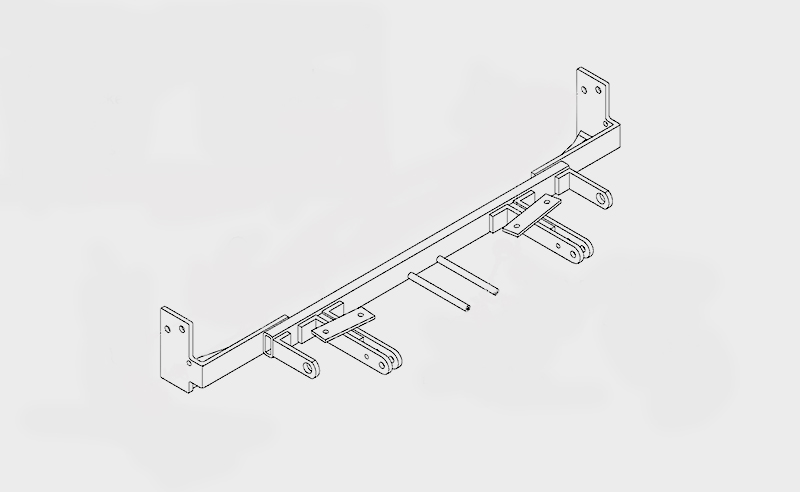

Blue Ox BX1010 Tow Bar Bracket is a premium quality, custom designed base plate made for strength and durability. Tailored to fit each specific towed vehicle, this bracket is crafted from robust steel, ensuring it can handle heavy-duty usage. Coated with a black powder finish, it not only boasts visual appeal but also resistance to rust and corrosion, extending its lifespan. The BX1010 is easy to install with a convenient bolt-on mounting type and includes all the necessary hardware for a straightforward, do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2002 - 2003 | Acura TL | Comes with Removable Attachment Tabs Install Rating 3 Not For Use w/Fog Lights Baseplate Has Non 24 in. Spaced Attachment Tabs Bumper Fascia And Headlights Must Be Removed/Replaced During Install Minor Drilling Required Req. Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Verify Headlight Projection Correct After Reinstalling |
No. The BX1010 is designed specifically for 2002-03 Acura TL models without fog lights. The manual does not cover installation on vehicles with fog lights, so compatibility cannot be confirmed.
Motorhome mount tow bars are recommended for use with the BX1010. The RangeFinderII, Adventurer, and Ambassador tow bars cannot be used. The Acclaim tow bar may be used but will not fold and store on the front of the vehicle. Adapters except the BX8833 and BX88151 cannot be used with this baseplate.
The attachment tab height is 15 inches and the attachment tab width is 20 inches.
The following tools are required: 8MM socket, 10MM socket, 12MM socket, 3/4" socket, 9/16" socket, 13/32" socket, 17/32" socket, vise grips, and LOCTITE Red.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do 'fit work'. Blue Ox Dealers can be found at www.blueox.us or by contacting Blue Ox Customer Care at (402) 385-3051 or toll free (888) 425-5382.
The front fascia and metal bumper must be removed for baseplate installation. The fascia is held by ten pushpins on the top edge, one metric bolt on each corner (removed with 8MM socket), metric bolts on the bottom edge (removed with 10MM socket), and four pushpins on the bottom side. The metal bumper is held by two metric bolts on top and one on the bottom of each side (removed with 12MM socket).
Yes. Drilling is required. Using the baseplate as a template, you must mark and drill 13/32" holes into the bottom of the metal bumper and end plate, and 17/32" holes into the frame. The manual notes that dimensional variations between vehicles can be considerable, and minor adjustments may include filing holes slightly, bending electrical rods, and/or bending end plates to compensate for manufacturer tolerances.
The torque specification for 1/2-13 Grade 5 bolts is 78 foot-pounds.
The torque specification for 3/8-16 Grade 5 bolts is 33 foot-pounds.
1. Remove ten pushpins from the top edge of the front fascia. 2. Remove one metric bolt from each corner of the fascia using an 8MM socket. 3. Remove metric bolts from the bottom edge of the fascia using a 10MM socket on both sides. 4. Remove four pushpins from the bottom of the fascia and pull it forward to release. 5. Clamp the baseplate to the bottom of the metal bumper and use it as a template to mark and drill 13/32" holes in the bumper and end plate, and 17/32" holes in the frame. 6. Remove the metal bumper using a 12MM socket. 7. Insert 1/2" nut plates into the frame and hand-tighten 1/2-13 x 1 1/2" hex bolts with lock washers, then reinstall the metal bumper and tighten the bolts with a 3/4" socket. 8. Insert 3/8-16 x 1 1/4" hex bolts into the lower end plate holes and tighten with lock washers and hex nuts. 9. Insert 3/8" bolt plates with 18" wire into the bumper end and tighten with lock washers and hex nuts. 10. Reinstall the fascia. Apply LOCTITE Red to all bolts before tightening and torque according to the chart on page 1.
Yes. LOCTITE Red must be applied to all bolts before tightening. This is emphasized multiple times in the installation instructions and is critical for safety.

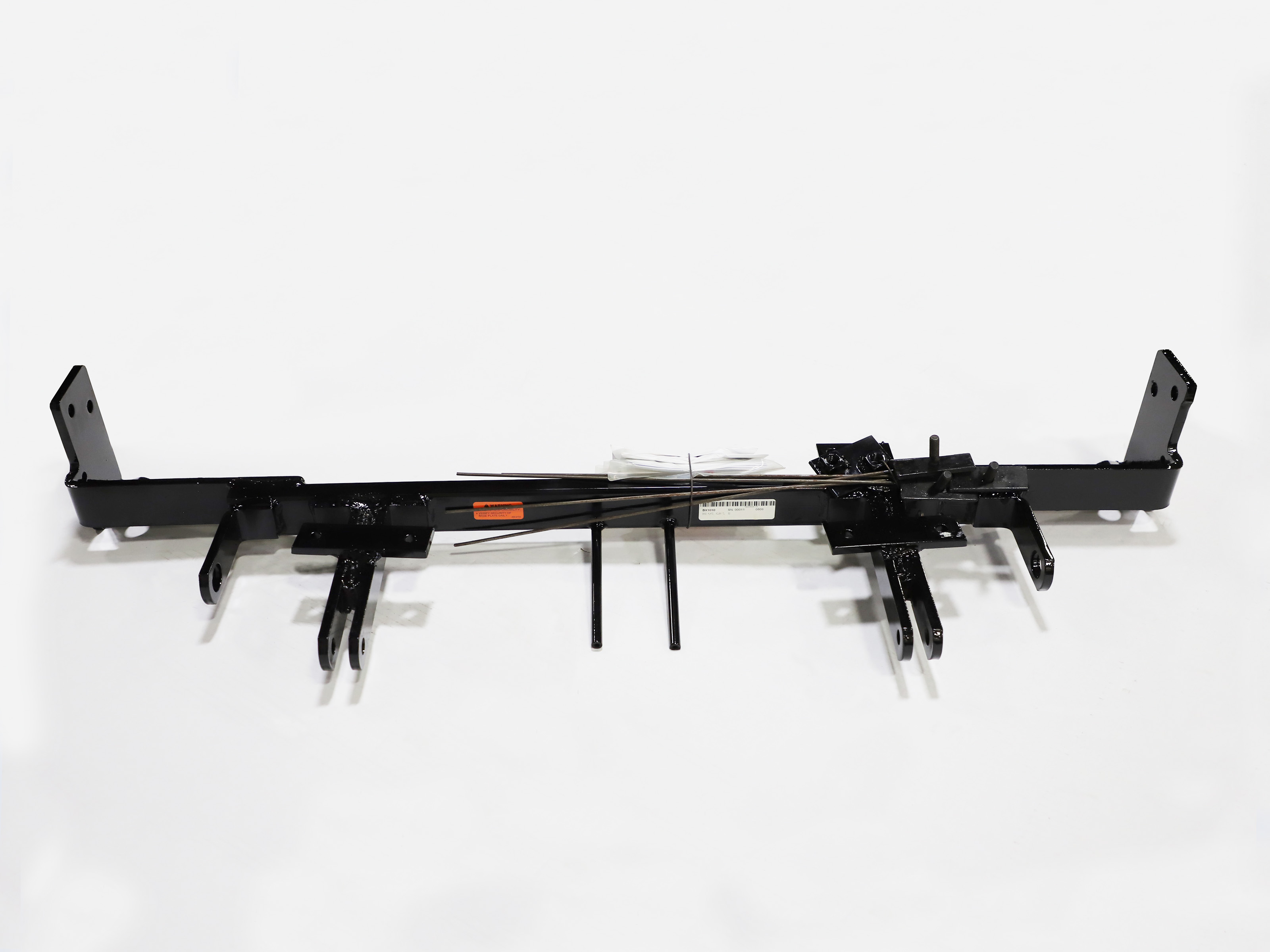

The kit includes: one baseplate weldment (61-5689), one driver's side 1/2" nut plate weldment (61-5288), one passenger's side 1/2" nut plate weldment (61-5289), four 3/8" bolt plate weldments with 18" wire (61-5676), four 1/2-13 x 1 1/2" Grade 5 hex bolts (201-0051), four 1/2" lock washers (203-0012), two 3/8-16 x 1 1/4" Grade 5 hex bolts (201-0368), six 3/8" lock washers (203-0010), six 3/8-16 hex nuts (202-0003), two #12-14 x 1" self-drilling screws (201-0979), two #10-32 hex nuts (202-0047), two #10 lock washers (203-0054), two #10-32 x 1/2" slot round head screws (201-0192), and two 4-way connector adapters (101-5822).
Failure to read and follow the installation instructions could result in separation of the towed vehicle from the tow bar, causing property damage, loss of towed vehicle, personal injury or death. Additionally, do not substitute other devices if the tow bar pin and clip are lost.
No. If a bolt is lost or needs replacement, you must use a replacement bolt of the same grade. In most cases the bolts are Grade 5. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor, or by calling Blue Ox Customer Care at (402) 385-3051.
The factory bolts that hold the fascia and bumper should be set aside during removal and reinstalled after baseplate installation. The manual specifies that you remove and set aside ten pushpins from the fascia top edge, one metric bolt from each corner, metric bolts from the bottom edge, four pushpins from the bottom, and the metal bumper bolts, then reinstall them after the baseplate is mounted.
The BX8869 Bulb and Socket Wiring Kit is recommended for use with the 2002-03 Acura TL, but the manual does not state whether it is required or optional.
Yes, the BX1010 is designed for 2002-03 Acura TL models without fog lights only.
Motorhome mount tow bars are recommended. RangeFinderII, Adventurer, and Ambassador tow bars cannot be used. Acclaim tow bar may be used but will not fold and store on the front. Most adapters are not compatible except BX8833 and BX88151.
Yes. You must drill 13/32" holes in the metal bumper and end plate, and 17/32" holes in the frame using the baseplate as a template.
You need: 8MM, 10MM, 12MM, 3/4", 9/16", 13/32", and 17/32" sockets, vise grips, and LOCTITE Red.
Yes. The front fascia and metal bumper must be removed for baseplate installation.
78 foot-pounds. Apply LOCTITE Red to all bolts before tightening.
33 foot-pounds. Apply LOCTITE Red to all bolts before tightening.
Failure to follow instructions could result in separation of the towed vehicle from the tow bar, causing property damage, loss of vehicle, personal injury or death. Do not substitute other devices if the tow bar pin and clip are lost.
