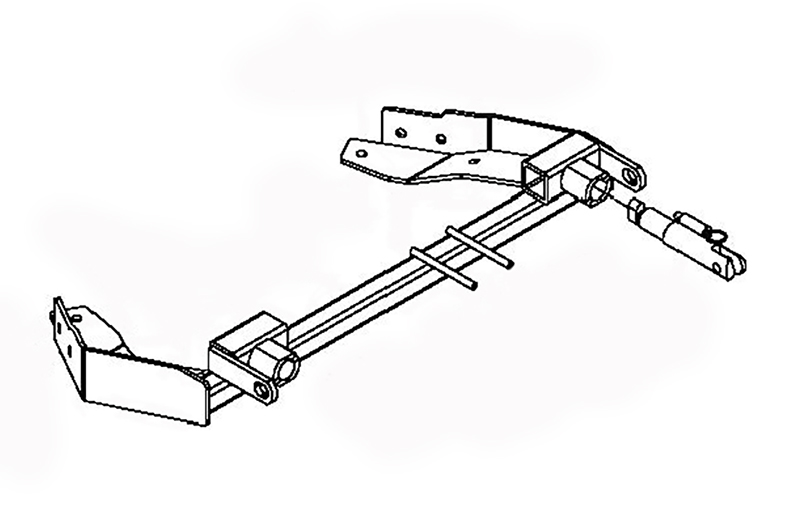

1. High-Quality Material: Made from superior-grade steel, the Blue Ox BX1669 Tow Bar Bracket guarantees durability and long-lasting performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Experience the ultimate towing solution with the Blue Ox BX1669 Tow Bar Bracket. Crafted from high-grade steel, this robust bracket is custom designed to perfectly fit your specific towed vehicle. It boasts a sleek black powder coat finish that not only enhances its aesthetic appeal but also adds a layer of protection against corrosion and wear. The bracket comes with a convenient bolt-on mounting system and includes all the requisite hardware, making installation a breeze even for the do-it-yourself enthusiast. Never compromise on the safety and efficiency of your towing tasks with the Blue Ox BX1669 Tow Bar Bracket.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2006 - 2007 | Cadillac STS | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CADILLAC STS E13 (Part #FDRWBX1669) is designed to fit the 2006-2007 Cadillac STS.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CADILLAC STS E13 (Part #FDRWBX1669) fits 2006-2007 Cadillac STS models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CADILLAC STS E13 (Part #FDRWBX1669) fits the following vehicles: 2006-2007 Cadillac STS. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CADILLAC STS E13 (Part #FDRWBX1669) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1669 is designed specifically for 2006-07 Cadillac STS vehicles. However, dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments may be necessary to compensate for manufacturer tolerances. These may include filing holes slightly, bending electrical rods, and/or bending end plates.
No. Due to the design of the removable tabs on the BX1669, the RangeFinderII tow bar cannot be used with this baseplate.
Most adapters cannot be used with the BX1669 baseplate. Only the BX8833 and BX88151 adapters are compatible.
The attachment tab height is 11 inches and the attachment tab width is 24 inches.
The following tools are required: 7mm socket, 10mm socket, 3/4" socket, diagonal cutters, 17/32" drill bit, large vise grips, and Loctite RED.
The kit includes: one weldment baseplate (61-6264), eight 1/2-13 nut plates with 10" wire (61-3799), eight 1/2-13 x 1 1/2" hex bolts Grade 5 zinc plated (201-0051), eight 1/2" lock washers zinc plated (203-0012), two #12-14 x 1" self-drilling screws zinc plated (201-0979), two 10-32 x 1/2" slot round head screws (201-0192), two #10 lock washers (203-0054), two #10-32 hex nuts (202-0047), two 4-way connector adapters (101-5822), two attachment assemblies SF/SB right (62-3468), two 36" Class IV baseplate safety cables (226-0049), two 1/2" quicklinks zinc plated (229-0512), and two black cap plugs (290-0437).
The engine compartment covers, fascia, and belly pan must be removed for installation. The grille must be trimmed. All pushpins and bolts removed during disassembly should be set aside for reinstallation.
Yes, drilling is required. Using the baseplate as a template, you must drill two holes into the bottom of the frame and two holes into the side of the frame on each side of the vehicle using a 17/32" drill bit.
Yes, the grille must be trimmed. After holding the fascia up to its original location, you must mark and trim the grille with diagonal cutters as necessary to allow the attachment tabs, convenience links, and electrical rods to come through.
The top of the crosstube should be four inches from the bottom of the bumper. Align the baseplate against the lower frame extensions to this height and clamp it in place with large vise grips before drilling.
Use a 17/32" drill bit to drill all frame holes. Drill two holes into the bottom of the frame and two holes into the side of the frame on each side of the vehicle, using the baseplate as a template.
The manual references a torque chart on the front page and page 3 of the Baseplate Towing General Instructions, but the specific torque value is not provided in this installation document. For Grade 5 bolts of 1/2" size, consult the referenced torque chart or contact Blue Ox Customer Care at (888) 425-5382.
Yes, Loctite RED must be applied to all bolts before tightening. This is required for safety and proper fastener retention.
The BX8848 Diode Wiring Kit is recommended for this vehicle.
All electrical connections must be plugged in properly and functioning before installing the fascia. This ensures the system is working correctly before the vehicle is reassembled.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Their function is to prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails or becomes disconnected. The BX1669 kit includes two 36" Class IV baseplate safety cables (part 226-0049) and two 1/2" quicklinks (part 229-0512) for this purpose.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables should be secured to a solid piece of the vehicle's frame. Do not mount the cables against wires, hoses, or brake lines, as this could cause fluid leaks or electrical shorts. If the vehicle has additional options that interfere with mounting, secure the cable to a solid frame piece as described in the instructions included with the safety cables.
Failure to read and follow these instructions could result in separation of the towed vehicle from the tow bar, causing property damage, loss of towed vehicle, personal injury or death. Additionally, if the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after installation.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended specifications using Loctite Red. Verify that all electrical connections are plugged in properly and functioning. Ensure that air dams are tucked behind the baseplate.
Yes, the attachment tabs should be removed when not in use.
No. Even though factory bolts may be present, do not assume they are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit or existing hardware specified in the Baseplate Installation Instructions. Using improper fasteners could result in baseplate failure and separation of the towed vehicle.
Use a replacement bolt of the same grade as the original. In most cases, BX1669 bolts are Grade 5. For your safety and preservation of the baseplate, do not substitute homemade or non-typical parts. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor.

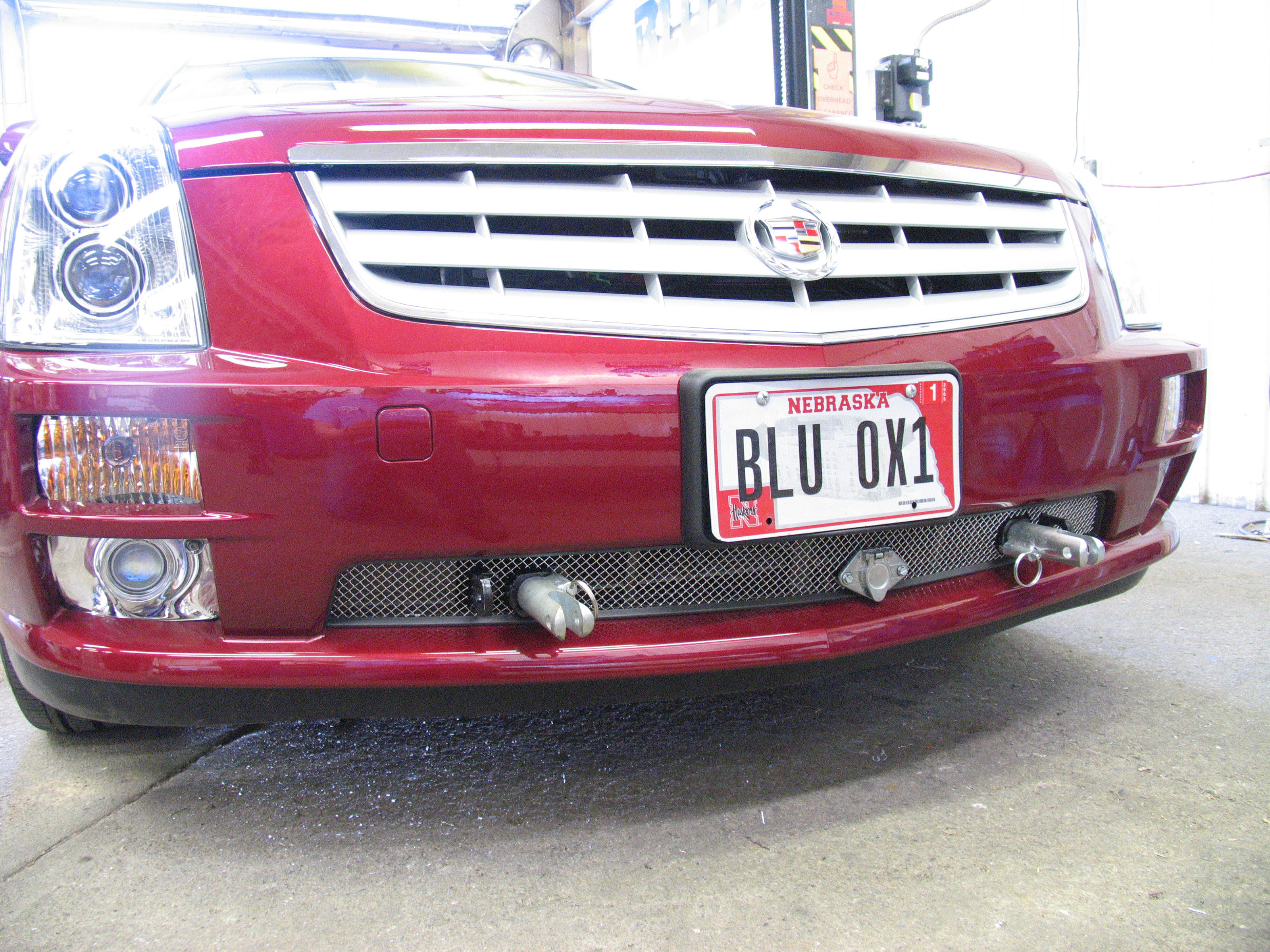

Yes, the BX1669 is designed for 2006-07 Cadillac STS. Minor adjustments may be needed due to manufacturer tolerances.
RangeFinderII tow bar cannot be used. Only BX8833 and BX88151 adapters are compatible; most other adapters cannot be used.
Yes. Drill four holes total (two in frame bottom, two in frame side per side) using a 17/32" drill bit. Grille trimming is also required.
Required tools: 7mm socket, 10mm socket, 3/4" socket, diagonal cutters, 17/32" drill bit, large vise grips, and Loctite RED.
Engine compartment covers, fascia, and belly pan must be removed. All pushpins and bolts should be saved for reinstallation.
Yes, Loctite RED must be applied to all bolts before tightening. Tighten to specifications in the torque chart referenced in the manual.
Yes, two 36" Class IV permanent baseplate safety cables and two 1/2" quicklinks are included. They are strongly recommended and must be attached to the baseplate and vehicle frame.
Minor adjustments may be necessary to compensate for manufacturer tolerances. These adjustments may include filing a hole slightly, bending electrical rods, and/or bending end plates. The dimensional variations between otherwise identical vehicles can be considerable, so tailor the baseplate slightly as needed for proper fit.
