Custom-Fit Design: Each bracket is engineered for a specific towed vehicle, ensuring a seamless fit and optimal functionality.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX1671 Tow Bar Bracket is a top-tier solution engineered for your towing needs. This heavy-duty bracket is meticulously designed for specific towed vehicles, ensuring a perfect fit and seamless performance. The bracket is constructed from robust steel, finished with a black powder coat to ensure durability and resistance against rust, corrosion, and daily wear. This bolt-on mounting type bracket comes with all the requisite hardware, making installation a breeze right in your own garage. All instructions are included with your purchase, providing a step-by-step guide for a do-it-yourself installation. The Blue Ox BX1671 Tow Bar Bracket is your ideal choice for towing with confidence and ease.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 | Cadillac DeVille | Comes with Removable Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |

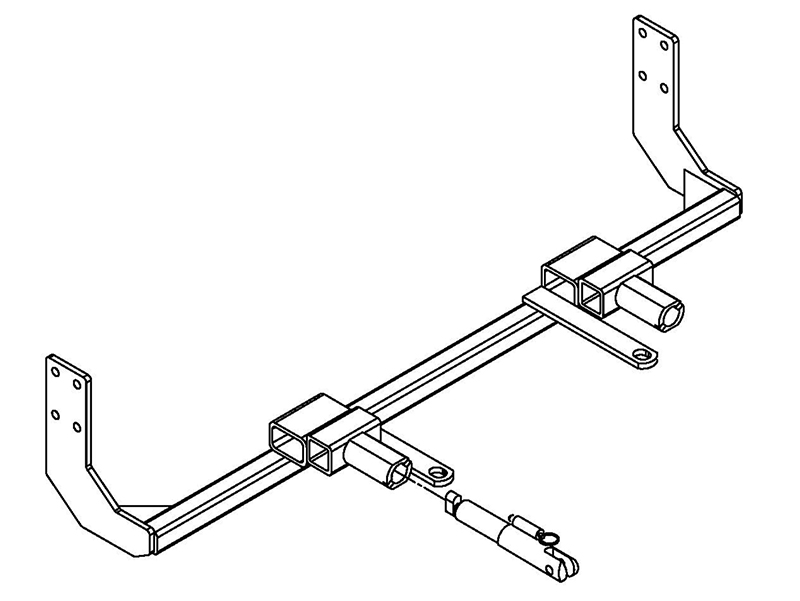

The BX1671 is a baseplate designed specifically for the 2003 Cadillac DTS. It is used to mount a tow bar to the vehicle for towing purposes. The baseplate includes an attachment tab with a height of 11" and width of 22".
Yes, the BX1671 is designed specifically for the 2003 Cadillac DTS. However, dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments may be necessary to compensate for manufacturer tolerances. These may include filing holes slightly, bending electrical rods, and/or bending end plates.
No. Due to the design of the removable tabs on the BX1671, the RangeFinderII tow bar cannot be used with this baseplate.
Most adapters cannot be used with the BX1671 baseplate. Only the BX8833 and BX88151 adapters are compatible. All other adapters are not supported.
The following tools are required: 10MM socket, 3/4" socket, 7/16" socket, 17/32" drill bit, hack saw blade, vise grips, and Loctite RED. A drill is also needed to create the mounting holes.
The kit includes: 1 baseplate weldment (61-6339), 8 nut plates with 10" wire (61-3799), 8 Grade 5 hex bolts 1/2-13 x 2.5" (201-0153), 8 lock washers 1/2" (203-0012), 1 electrical bracket (101-6845), 2 hex bolts 1/4-20 x 3/4" (201-0050), 4 flat washers 1/4" (203-0001), 2 Whiz Lock nuts 1/4-20 (202-0069), 2 slot round head screws #10-32 x 1/2" (201-0192), 2 lock washers #10 (203-0054), 2 hex nuts #10-32 (202-0047), 2 4-way connector adapters (101-5822), 2 self-drilling screws #10-16 x 1" (201-0654), 2 attachment assemblies SF/SB (62-3468), 2 safety cables 36" Class IV (226-0049), and 2 quicklinks 1/2" (229-0512).
The BX8848 Diode Wiring Kit is recommended for this vehicle, but the manual does not state it is required. Consult with your Blue Ox Dealer for specific wiring requirements for your installation.
The engine compartment covers, fascia, and belly pan must be removed for installation. Additionally, the grille must be trimmed. Specific fasteners must be removed in sequence: four christmas trees from the top edge of fascia between the headlights, three pushpins from inside each wheel well, two pushpins from the lower edge of each wheel well, two pushpins from the bottom of the fascia on each side, three pushpins and three christmas trees from the belly pan, one pushpin from the back edge of the belly pan on each side, one metric bolt from the fascia corner on each side, and one metric bolt from the horn bracket.
Yes. You must disconnect wiring from the area in front of the frame rail before drilling the mounting holes. Additionally, fog and side marker lights must be disconnected from the fascia corners on both sides of the vehicle.
Yes, drilling is required. Four holes must be drilled through the frame rail on each side of the vehicle using a 17/32" drill bit. The baseplate is used as a template for drilling. Loctite RED must be applied to all bolts before tightening.
Yes, the grille must be trimmed. The fascia must be marked and cut on the outside edges of the receiver tube. Typically, only the two lower ribs on the fascia need to be cut, and the convenience links should come through the lower opening.
According to the torque chart on page 1, Grade 5 1/2" bolts should be torqued to 78 foot-pounds. The manual specifies that Loctite RED must be applied to all bolts before tightening, and all bolts must be tightened according to the torque chart on the front page or page 3 of the Baseplate Towing General Instructions.
According to the torque chart on page 1, Grade 5 1/4" bolts should be torqued to 10 foot-pounds. Loctite RED must be applied before tightening.
The attachment tab height is 11" and the attachment tab width is 22".
The electrical bracket (part 101-6845) should be attached to the top of the metal bumper just inside the bumper area on the driver's side using two #10-16 x 1" self-drilling screws and two 1/4" flat washers. The electrical connector should be installed per the parts list diagram. All electrical connections must be plugged in properly and functioning before reinstalling the fascia.
Two 4-way connector adapters (part 101-5822) are included. The manual also references 6-way round and 4-way round electrical connectors in the diagram on page 2.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Two safety cables (226-0049, 36" Class IV) are included with the kit. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. They must not be mounted against wires, hoses, or brake lines. These cables should remain installed as long as the baseplate is installed and are to be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
It is the installer's responsibility to watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after installation. Permanent baseplate safety cables must not be mounted against wires, hoses, or brake lines.
Before towing, confirm the towability and pre-towing procedures for your vehicle with the owner's manual or contact the vehicle's manufacturer for specific towing procedures. You can also contact REMCO for additional information at 1(800)228-2481. It is the owner's responsibility to hook up all towing equipment per manufacturer's instructions and recommendations.
Before installing the fascia, ensure that all electrical connections are plugged in properly and functioning. After installation is complete, verify that the horn bracket, belly pan, fascia, pushpins, and bolts have been reinstalled. It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended specifications. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. Remove the attachment tabs when not in use.
No. Even though bolts may exist in the vehicle, do not assume they are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit or existing hardware specified in the Baseplate Installation Instructions. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts.
Use a replacement bolt of the same grade. In most cases it will be Grade 5. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Do not substitute homemade or non-typical parts, as this could affect the safety and preservation of your baseplate.
Slide the baseplate up so its 1/4" below the top edge of the frame rail and 1/8" away from the nut plate built for the bumper bracket. Use vise grips to clamp the baseplate to the frame rail through the hole in the frame before drilling.
After drilling and mounting the baseplate, reinstall the horn bracket, belly pan, fascia, pushpins, and bolts. Before reinstalling the fascia, ensure that all electrical connections are plugged in properly and functioning. The baseplate is then fully installed.
Yes, the BX1671 is designed specifically for the 2003 Cadillac DTS. Minor adjustments may be necessary to compensate for manufacturer tolerances.
Yes. Four holes per side must be drilled through the frame rail using a 17/32" drill bit. The grille must also be trimmed.
Required tools: 10MM socket, 3/4" socket, 7/16" socket, 17/32" drill bit, hack saw blade, vise grips, Loctite RED, and a drill.
Grade 5 1/2" bolts should be torqued to 78 foot-pounds. Apply Loctite RED to all bolts before tightening.
Yes. Ensure that all electrical connections are plugged in properly and functioning before installing the fascia.
Yes. Two 36" Class IV safety cables are included and strongly recommended. They must be connected from the baseplate to the frame rail or cross member and must not be mounted against wires, hoses, or brake lines.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red and tighten bolts to specification. Register your product at www.blueox.com for safety bulletins and recalls.
Before reinstalling the fascia, ensure that all electrical connections are plugged in properly and functioning. If connections are not working, verify that all connectors are fully seated and that no wires were damaged during removal of the fascia or installation of the baseplate. Reconnect any disconnected fog and side marker lights.
The manual notes that dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may be necessary to compensate for manufacturer tolerances. These adjustments may include filing a hole slightly, bending electrical rods, and/or bending end plates. If alignment issues persist, contact your Blue Ox Dealer for assistance.
