{'feature': 'Custom Fit Design', 'description': 'The BX2127 Tow Bar Bracket is custom designed for each specific towed vehicle, ensuring a perfect fit and seamless integration.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Experience the ultimate combination of durability and convenience with the BX2127 Tow Bar Bracket by Blue Ox. Custom designed for each specific towed vehicle, this product ensures a perfect fit and smooth towing experience. The bracket is made of high-quality steel, promising long-lasting performance and the ability to withstand harsh conditions. It features a sleek black powder coat finish that not only enhances its aesthetics, but also offers excellent resistance to rust and corrosion. With its bolt-on mounting type, installation is a breeze. The package includes all necessary hardware and clear instructions, allowing you to set it up yourself without any hassle.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1992 - 1997 | Ford Aerostar | Comes with Standard Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required |
Yes, the BX2127 is designed specifically for 1992-97 Ford Aerostar models. The manual confirms this is the correct baseplate for your vehicle.
A Class III (5000 lb) rated tow bar is required. The Aerostar weighs over 3500 lbs and must use a Class III rated tow bar, hitch and accessories. Using a Blue Ox baseplate with any tow bar not approved by Automatic Equipment Mfg. Company will invalidate the limited warranty.
You will need: Torax T40 driver, 9/16" wrench, 9/16" socket, 1" hole saw, 13/32" drill bit, drill, and utility knife. The Torax T40 is specifically required to remove the bumper bolts.

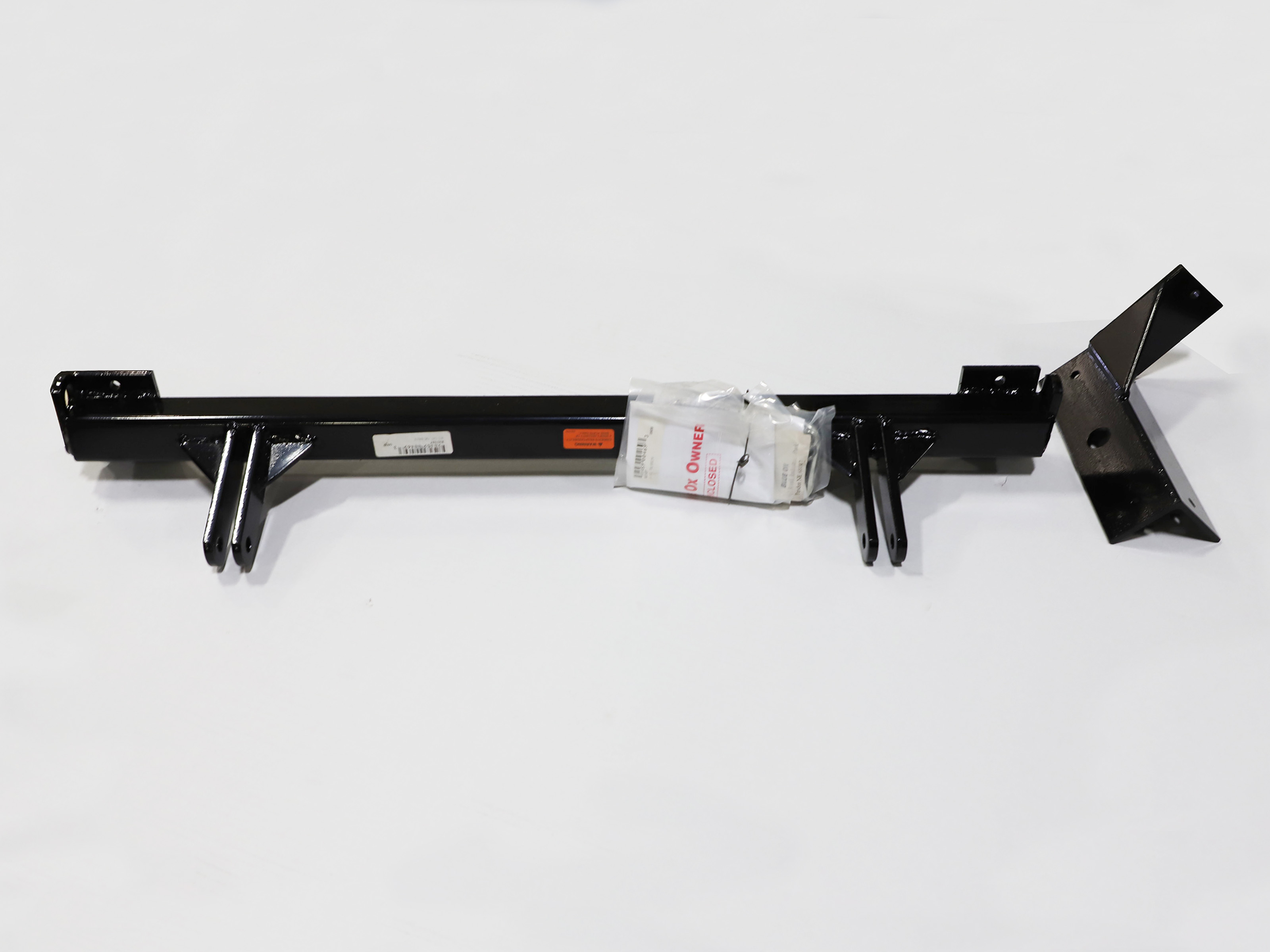

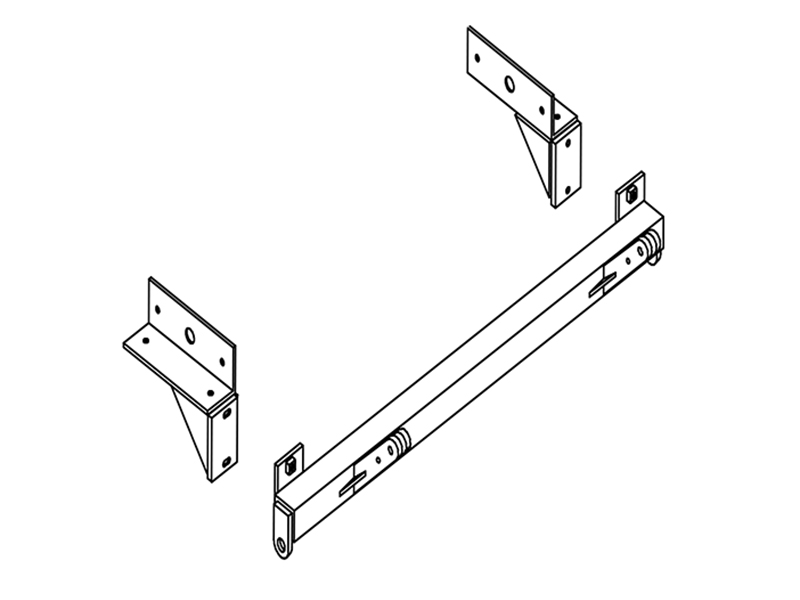

The kit includes: one cross tube (61-4912), passenger and driver side frame mounts (61-4913, 61-4914), two 3/8-16 hex nuts, two 3/8-16 flat washers, four 3/8-16 x 1½" Grade 5 hex bolts, eight weldments with 3/8 nuts and 14-wire leads, twelve 3/8 lock washers, eight 3/8-16 x 1¼" Grade 5 hex head bolts, two 36" Class III baseplate safety cables, and two 3/8" zinc-plated quicklinks.
Yes, bumper removal is required. The installation instructions state that the baseplate installation requires removing the bumper. The bumper is held by seven bolts (three on the front and four on the bottom) that must be removed using a Torax T40 driver before the bumper can be pulled forward and removed.
Yes, drilling is required. You must drill five holes on each side of the vehicle's frame rails: four 13/32" holes for bolts and one 1" hole for access. Use a 13/32" drill bit for the bolt holes and a 1" hole saw for the access hole.
Yes, notching is required. The air dam behind the bumper must be notched to allow the cross tube to bolt to the frame mounts. On some vehicles, the bottom lip of the bumper may also need to be notched. The notch should be just slightly wider than the frame mounts and as high as the colored part of the bumper. Mark the notch position with the bumper in place, then remove the bumper and cut the notches using a utility knife.
Hold each frame mount in position and slide it as far forward as possible until the top outside corner hits the back of the bumper. Then slide the frame mount back about 3/4" until the two 3/8" bolt holes align with the tops of the frame's corrugation. Mark all four 3/8" holes and the 1" access hole, then repeat for the opposite side.
Eight 3/8-16 x 1¼" Grade 5 hex head bolts are used to attach the frame mounts to the frame (four per side). Each bolt must have a 3/8 lock washer placed under its head. The bolts thread into the nut wires (weldments with 3/8 nuts and 14-wire leads) on the inside of the frame.
Four 3/8-16 x 1½" Grade 5 hex bolts are used to attach the cross tube to the frame mounts. Flat washers must be placed over the slotted holes. Two 3/8-16 hex nuts and two 3/8-16 flat washers are also included for this assembly.
The manual does not provide specific torque values. It states that all bolts must be tightened completely after they are started, and that Loctite must be applied to all nuts and bolts. Consult the General Instruction Sheet included with the baseplate or contact the manufacturer for the correct torque specification.
The manual requires Loctite on all nuts and bolts but does not specify the type or strength. Refer to the General Instruction Sheet included with the baseplate or contact Automatic Equipment Mfg. Company for the correct Loctite specification.
The 1" access hole allows access to the nut wires (weldments with 3/8 nuts and 14-wire leads) on the inside of the frame. This hole is drilled on each side of the vehicle and is used when bolting the frame mounts to the frame.
Yes. The manual states that dimensional variations between otherwise identical vehicles can be considerable. While the baseplate holes were designed for easy installation, it may be necessary to file a hole slightly to allow a bolt to clear.
Do not substitute other devices if the tow bar pin and clip are lost. You must obtain the correct replacement pin and clip from the tow bar manufacturer or Automatic Equipment Mfg. Company.
The manual references a General Instruction Sheet that is included with the baseplate but is not reproduced in this document. You must read this sheet before beginning installation. It likely contains additional safety information and general procedures for baseplate installation.
Yes, the BX2127 is designed for 1992-97 Ford Aerostar. A Class III (5000 lb) rated tow bar is required.
Yes. You must drill five holes per side: four 13/32" bolt holes and one 1" access hole. The air dam and possibly the bumper bottom lip must also be notched.
Torax T40 driver, 9/16" wrench and socket, 1" hole saw, 13/32" drill bit, drill, and utility knife.
Yes, the bumper must be removed. It is held by seven bolts (three front, four bottom) removed with a Torax T40 driver.
Four 3/8-16 x 1½" Grade 5 hex bolts with flat washers over slotted holes. Loctite must be applied to all nuts.
Class III (5000 lb) rated tow bar, hitch and accessories are required. Using an unapproved tow bar invalidates the warranty.
