Custom Designed: Each Blue Ox BX2177 Tow Bar Bracket is uniquely designed for each specific towed vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Blue Ox BX2177 Tow Bar Bracket is a top-tier solution for those who need a reliable and sturdy mount for their towed vehicles. Each base plate is custom designed to perfectly fit your specific vehicle, ensuring maximum safety and efficiency. This product is made from high-quality steel with a black powder coat finish, which not only guarantees durability but also provides a sleek and professional look. The bolt-on mounting type allows for a straightforward installation process that you can do by yourself. The BX2177 Tow Bar Bracket comes with all necessary hardware and a set of clear instructions, eliminating the need for additional purchases or professional help.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
5 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 | Ford Excursion | Comes with Standard Attachment Tabs Install Rating 2 Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Will Not Fit the Harley Davidson or STX Special Edition Trim Package for 2003: 2005 Model Years |
| 2005 - 2007 | Ford F-250 | Comes with Standard Attachment Tabs Install Rating 2 Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Will Not Fit the Harley Davidson or STX Special Edition Trim Package for 2003: 2005 Model Years Height Deviation up to 4” higher on the Towing Vehicle Allowed When Used for Utility Applications Only with an Allure Tow Bar |
| 2005 - 2007 | Ford F-250 Super Duty | Comes with Standard Attachment Tabs Install Rating 2 Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Will Not Fit the Harley Davidson or STX Special Edition Trim Package for 2003: 2005 Model Years Height Deviation up to 4” higher on the Towing Vehicle Allowed When Used for Utility Applications Only with an Allure Tow Bar |
| 2005 - 2007 | Ford F-350 | Comes with Standard Attachment Tabs Install Rating 2 Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Will Not Fit the Harley Davidson or STX Special Edition Trim Package for 2003: 2005 Model Years Height Deviation up to 4” higher on the Towing Vehicle Allowed When Used for Utility Applications Only with an Allure Tow Bar |
| 2005 - 2007 | Ford F-350 Super Duty | Comes with Standard Attachment Tabs Install Rating 2 Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Will Not Fit the Harley Davidson or STX Special Edition Trim Package for 2003: 2005 Model Years Height Deviation up to 4” higher on the Towing Vehicle Allowed When Used for Utility Applications Only with an Allure Tow Bar |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD F-250 SD (Part #FDRWBX2177) fits 2005 Ford Excursion models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD F-250 SD (Part #FDRWBX2177) is designed to fit the 2005 Ford Excursion.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD F-250 SD (Part #FDRWBX2177) fits the following vehicles: 2005 Ford Excursion; 2005-2007 Ford F-250; 2005-2007 Ford F-250 Super Duty; 2005-2007 Ford F-350; 2005-2007 Ford F-350 Super Duty. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD F-250 SD (Part #FDRWBX2177) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX2177 baseplate is designed for 2005-2007 Ford F-250/F-350 (2WD/4WD) including Super Duty models. It also fits 2005-2006 Ford Excursion. Ensure your tow bar is compatible with the baseplate attachment tab width of 28-3/8".
The BX2177 baseplate has an attachment tab width of 28-3/8" and a height of 25". Ensure your tow bar is compatible with this tab width before purchasing.
Yes, the BX2177 is designed for towing behind a motorized vehicle. However, towing behind a non-motorized vehicle will void the warranty.
Blue Ox recommends that installation be performed by Blue Ox Dealers who are familiar with their products and have the equipment and knowledge necessary for fit work. If you need to find a dealer, visit www.blueox.com or contact Blue Ox Customer Care at (402) 385-3051.
Required tools are: large vise grips, 6MM socket, torque wrench, 15MM socket, drill, 18MM socket, Loctite Red, 17/32" drill bit, 21MM socket, and 3/4" socket.

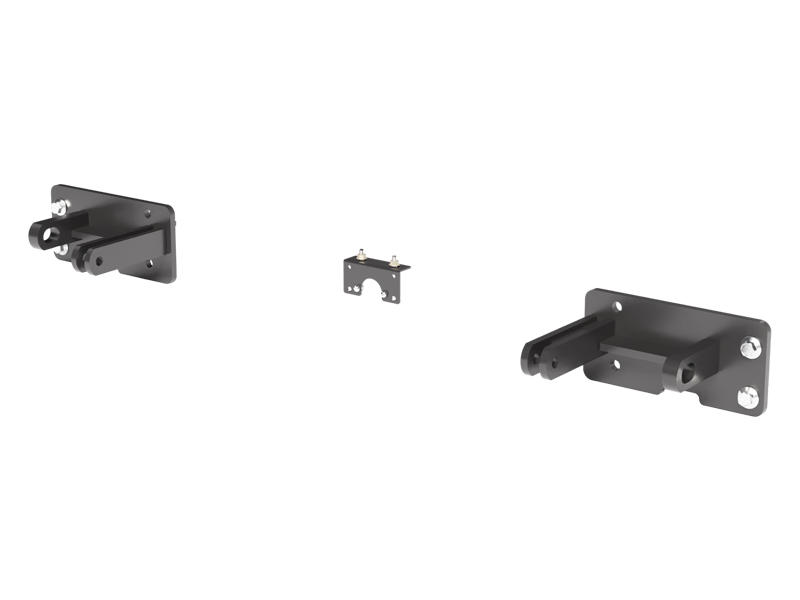

The kit includes: two baseplates (driver and passenger side), one electrical bracket, four 1/4"-20 x 3/4" Grade 5 hex head bolts, ten 1/2"-13 x 1-3/4" Grade 5 hex head bolts, two #10-32 x 1/2" slot round head screws, four 1/2"-13 hex nuts, two #10-32 hex nuts, four 1/4"-20 hex whiz lock nuts, two 1/4" flat washers, four 1/4" lock washers, ten 1/2" lock washers, two #10 lock washers, two Class IV safety cables, and four 1/2" quicklinks. Four existing metric bolts from the vehicle are also reused.
No. The tow hooks are removed during installation and will NOT be reinstalled. They are replaced by the baseplate.
Yes. The cross member and lower air dam are removed during installation and then reinstalled after the baseplate is installed. All other removed items will be reinstalled unless otherwise noted.
Yes, some drilling is required. You will use a 17/32" drill bit to drill out remaining holes in the frame using the baseplate as a template. The drill bit size is critical; be aware of the dangers of torque and drill bit length when using power drills.
A 17/32" drill bit is used to drill out the remaining holes in the frame using the baseplate as a template.
For 1/2" Grade 5 bolts, torque to 78 foot-pounds. For 1/2" Grade 8 bolts, torque to 119 foot-pounds. The BX2177 kit includes Grade 5 bolts. Always apply Loctite Red to all bolt threads before tightening.
For 1/4" Grade 5 bolts, torque to 10 foot-pounds. For 1/4" Grade 8 bolts, torque to 14 foot-pounds. The BX2177 kit includes Grade 5 bolts. Always apply Loctite Red to all bolt threads before tightening.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. Consult with your installer or Blue Ox to determine if it is necessary for your specific application.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX2177 kit includes two Class IV safety cables and four 1/2" quicklinks. These cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses or brake lines. Safety cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts and loose bolts. Use Loctite Red on all bolts and tighten to the recommended specifications. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Register your product at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
If the baseplate is in an accident, it must be replaced. Do NOT use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Yes. Use a sufficient amount of Loctite Red on all bolt threads before tightening. Tighten all bolts according to the torque chart provided unless specified otherwise.
Yes. Four existing metric bolts from the vehicle are reused as part of the installation. However, do not assume existing holes and hardware are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit and existing hardware as specified in the installation instructions. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (typically Grade 5).
Handling of some cosmetic parts when installing this product may require the use of protective covers, rags, specialty tools, etc. to prevent damage.
Yes. Use a good quality paint to spray cut edges of frame to prevent rusting.
It is the installer's responsibility to watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. Do not mount the permanent baseplate safety cables against wires, hoses or brake lines.
Yes, the BX2177 fits 2005-2007 Ford F-250/F-350 (2WD/4WD) including Super Duty and 2005-2006 Ford Excursion. Verify your tow bar is compatible with the 28-3/8" tab width.
You will need: large vise grips, 6MM/15MM/18MM/21MM/3/4" sockets, torque wrench, drill, 17/32" drill bit, and Loctite Red.
Yes, you will drill holes in the frame using a 17/32" drill bit and the baseplate as a template. Paint the cut edges to prevent rust.
Torque 1/2" Grade 5 bolts to 78 foot-pounds (the kit includes Grade 5). Apply Loctite Red to all bolt threads before tightening.
Yes, two Class IV safety cables and four 1/2" quicklinks are included and strongly recommended. Connect them from the baseplate to the vehicle's frame rail or cross member, not against wires or hoses.
No, the tow hooks are removed and NOT reinstalled. The baseplate replaces them.
The baseplate is tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications.
