Custom Designed For Your Vehicle
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Blue Ox base plates are custom designed for each specific towed vehicle. When you purchase a Blue Ox base plate, it includes all the necessary hardware and instructions for a do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
Yes, the BX2106 is designed for 1988-93 Ford Festiva models. The baseplate mounts to the front underside of the vehicle using six existing bolts—three on each side. However, dimensional variations between otherwise identical cars can be considerable, so you may need to file a hole slightly to allow a bolt to clear during installation.
Two components must be removed: (1) the two tie down brackets from the car (these are stamped metal plates with an oblong hole facing downward), and (2) the front innermost bolt from both sway bar mounting plates. Inspect all removed bolts for reuse. The sway bar brackets themselves remain in place; only the front innermost bolt is removed from each mounting plate.
Three tools are required: a 3/4" socket, a 14mm socket, and a socket extension.
Position the baseplate so that the holes in the side plates align with the tie down holes in the car and the baseplate tubes align with the sway bar mounting plate holes. Hand start the previously removed bolts to check alignment. Use Locktite but do not tighten yet. The dimensional variations between cars can be considerable, so you may need to file a hole slightly to allow a bolt to clear. When all bolts align, tighten securely.
No drilling is required. The baseplate uses six existing bolts on the vehicle. However, due to dimensional variations between cars, it may be necessary to file a hole slightly to allow a bolt to clear during alignment.
Locktite is a thread-locking compound applied to bolts during installation. The manual specifies using Locktite when hand-starting the previously removed bolts to check alignment, before final tightening. This helps prevent bolts from loosening due to vibration during towing.

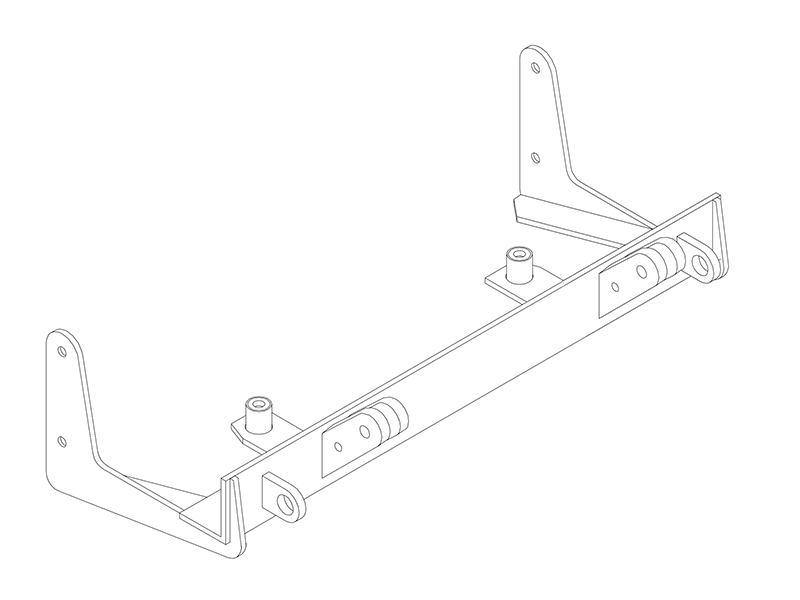

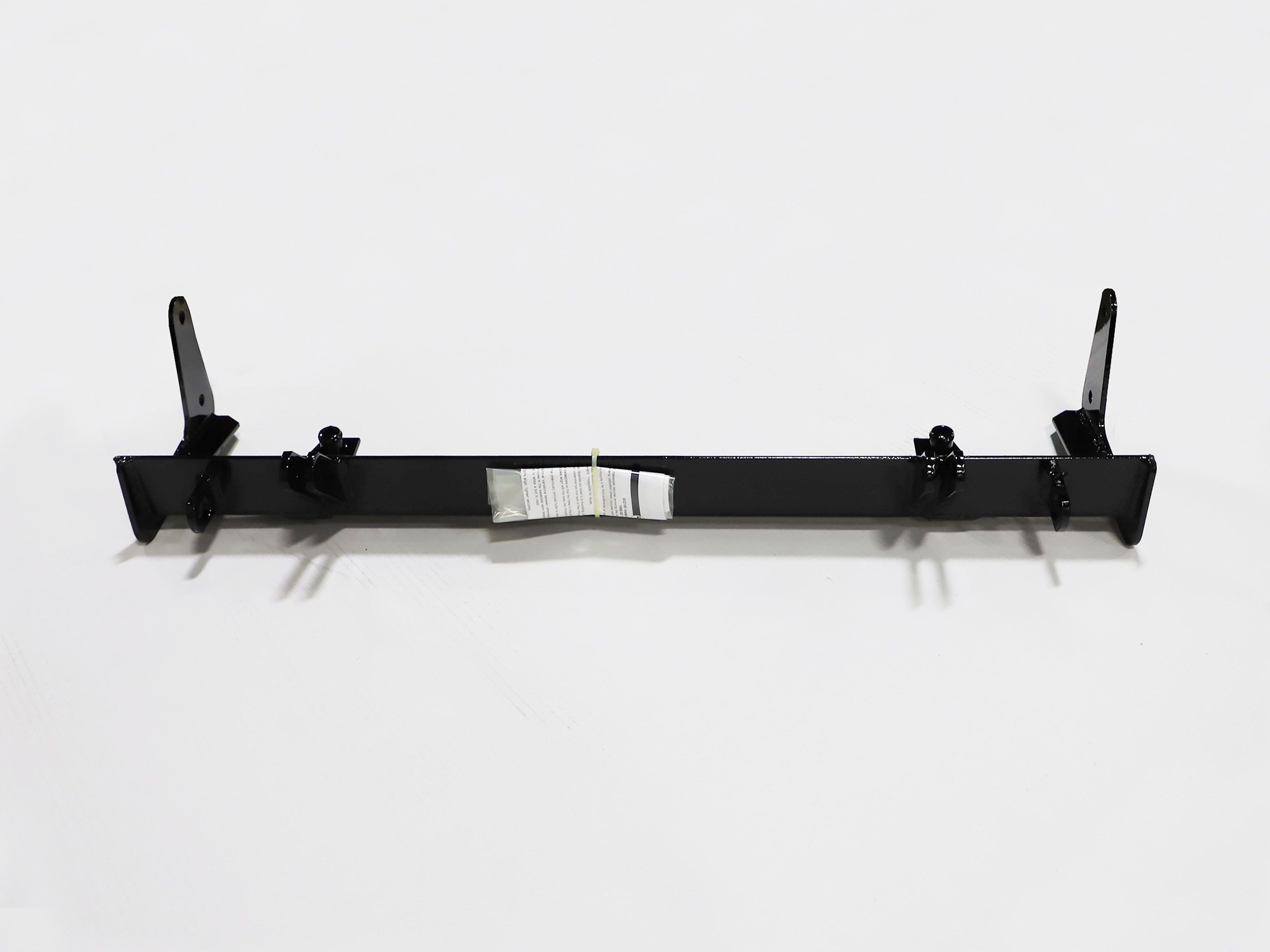

The BX2106 baseplate (part number 61-3496) is a weldment assembly. The package includes the baseplate itself. A General Instruction Sheet is also included with the baseplate and must be read before installation. The tow bar and safety cables are installed separately according to their own instructions.
The manual instructs you to inspect all removed bolts for reuse (from both the tie down brackets and the sway bar mounting plates), and to hand-start these previously removed bolts when checking alignment. This indicates they are reused in the baseplate installation, but the manual does not explicitly state where each bolt is reinstalled.
Do not substitute other devices if the tow bar pin and clip are lost. Use only the original tow bar pin and clip specified by the manufacturer.
Yes. After the baseplate is installed and tightened securely, install the tow bar and safety cables according to the instructions included in their packages. Additionally, read the General Instruction Sheet included with the baseplate before beginning installation.
The BX2106 baseplate is designed for 1988-93 Ford Festiva models.
Yes. You must remove the two tie down brackets and the front innermost bolt from each sway bar mounting plate. Inspect all removed bolts for reuse.
No drilling is required. You may need to file a baseplate hole slightly to allow a bolt to clear, depending on dimensional variations in your vehicle.
You need a 3/4" socket, a 14mm socket, and a socket extension.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1988 - 1993 | Ford Festiva | Comes with Standard Attachment Tabs Install Rating 2 |
