Custom Design: The tow bar bracket is specially designed for each specific towed vehicle, ensuring a perfect fit and optimum performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

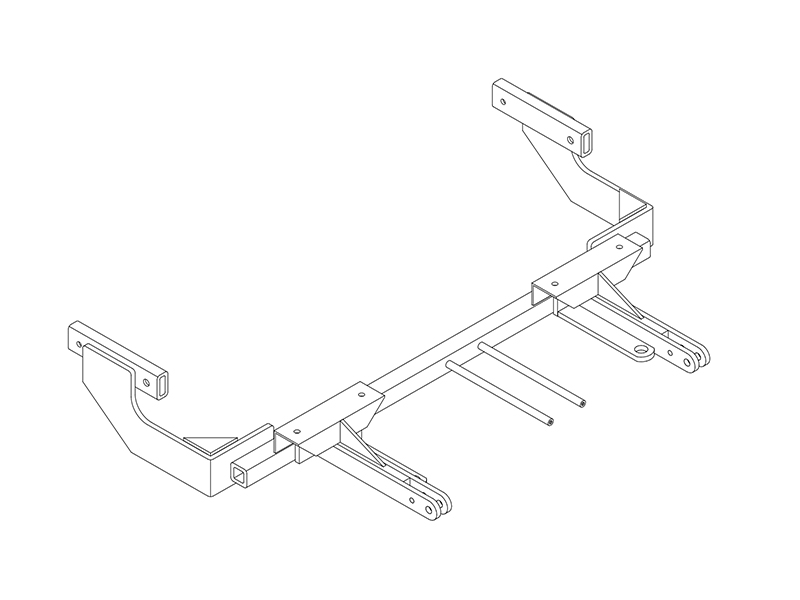

The Blue Ox BX2159 Tow Bar Bracket is a premium, high-strength accessory designed specifically for your towed vehicle. Made from durable steel with a black powder coat finish, this tow bar bracket guarantees exceptional longevity and corrosion resistance. This bracket is engineered for a bolt-on mounting type, making installation a breeze. What's more, it comes with all necessary mounting hardware and a detailed instruction guide, empowering you with a straightforward, do-it-yourself installation process. Upgrade your towing setup with the Blue Ox BX2159 Tow Bar Bracket for a secure, reliable, and durable solution.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1999 - 2004 | Ford Mustang | Also GT & Convertible Comes with Standard Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD MUSTANG GT (Part #FDRWBX2159) is designed to fit the 1999-2004 Ford Mustang.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD MUSTANG GT (Part #FDRWBX2159) fits 1999-2004 Ford Mustang models. The 2004 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD MUSTANG GT (Part #FDRWBX2159) fits the following vehicles: 1999-2004 Ford Mustang. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD MUSTANG GT (Part #FDRWBX2159) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX2159 is designed for the 1999–04 Ford Mustang GT. The manual does not specify compatibility with other Mustang model years or non-GT variants.
Yes. The front fascia must be removed for baseplate installation. The removal process involves removing six phillips head push pins from the top of the grill, two push pins from the underside of the fascia and belly pan, one phillips head screw from the front of each wheel well, and two 10 mm nuts from inside each fender. After installation, the fascia is trimmed where needed and reinstalled.
Yes. Holes must be drilled in the drive side frame and underside of the metal bumper. The manual specifies that a 17/32" drill bit and 13/32" drill bit are required tools. Exact hole locations are referenced to a drawing on page 2 of the manual. Some trimming is also needed on the back of the fascia.
Required tools are: 10 mm wrench, 17/32" drill bit, 13/32" drill bit, 3/4" socket, 9/16" socket, phillips screwdriver, vise grips, and Loctite Red. The vise grips are used to clamp the base plate to the bumper during drilling.
The kit includes: one weldment base plate (61-5592), two 1/2-13 x 2 bolts with 20-inch wire (61-5593), two 3/8-16 nut plates with 14-inch wire (61-5208), four 3/8-16 x 1 1/4 bolt plates with 13-inch wire (61-5383), two 1/2 lock washers (203-0012), two 1/2-13 hex nuts (202-0005), two 3/8-16 x 2 1/2 hex bolts Grade 5 (201-0336), six 3/8 lock washers (203-0010), four 3/8 flat washers (203-0003), four 3/8-16 hex nuts (202-0003), two #12-14 x 1" self-drilling screws (201-0979), two #10-32 hex nuts (202-0047), two #10 lock washers (203-0054), two #10-32 x 1/2 slot round head screws (201-0192), two 4-way connectors (101-5822), two 36" Class III baseplate safety cables (226-0046), and four 3/8 quicklinks (229-0359).
1. Remove six phillips head push pins from the top of the grill. 2. Remove two push pins from the underside of the fascia and belly pan. 3. Remove one phillips head screw from the front of each wheel well. 4. Pull the front wheel well away from the fascia and remove two 10 mm nuts from inside each fender; remove and set aside the fascia. 5. On the passenger side, insert items 2 and 3 (bolts and nut plates) into existing holes on the underside of the frame; snug items 5, 6, 7, and 8 (lock washers, hex nuts, hex bolts, and lock washers) into place but do not tighten yet; use Loctite on all bolts. 6. Clamp the base plate to the bumper with vise grips; drill holes in the drive side frame and underside of the metal bumper; tighten all fasteners and use Loctite on all fasteners. 7. Hold the fascia into place, trim where needed, and reinstall; reconnect all electrical devices. 8. Install the tow bar and safety cables per their respective instructions.
Yes. On the passenger side, there are existing holes on the underside of the frame that align with the baseplate. Items 2 and 3 (1/2-13 x 2 bolts with wire and 3/8-16 nut plates with wire) are inserted into these holes. The drive side requires drilling.
The attachment tabs are centered at 24 inches.
Yes. The kit includes two 4-way connectors (part 101-5822). After installation, all electrical devices must be reconnected to the fascia.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The kit includes two 36" Class III baseplate safety cables (226-0046) and four 3/8 quicklinks (229-0359). The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses, or brake lines. These cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended specifications and use Loctite Red on all bolts.
Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines. The installer must watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts some time after installation.
Yes. The attachment tabs should be removed when not in use.
If a bolt is lost or in need of replacement, use a replacement bolt of the same grade (usually Grade 5). Do not substitute homemade or nontypical parts. Repair parts may be ordered through your nearest Automatic Blue Ox dealer or distributor. Refer to the parts list for the correct part number and specifications.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Do not substitute other devices. Use only Blue Ox replacement parts.
Yes, the BX2159 is designed for the 1999–04 Ford Mustang GT.
Yes. Holes must be drilled in the drive side frame and underside of the metal bumper using 17/32" and 13/32" drill bits. Some trimming of the fascia back is also required.
Yes. The front fascia must be removed for baseplate installation and then reinstalled after drilling and trimming.
10 mm wrench, 17/32" and 13/32" drill bits, 3/4" and 9/16" sockets, phillips screwdriver, vise grips, and Loctite Red.
Yes. Two 36" Class III safety cables and four 3/8 quicklinks are included and strongly recommended for use. They must be connected from the baseplate to the frame rail or cross member and not mounted against wires, hoses, or brake lines.
Yes. Use Loctite Red on all bolts and fasteners during installation and before each towing trip.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Tighten all bolts to recommended specifications using Loctite Red. Remove attachment tabs when not in use.
