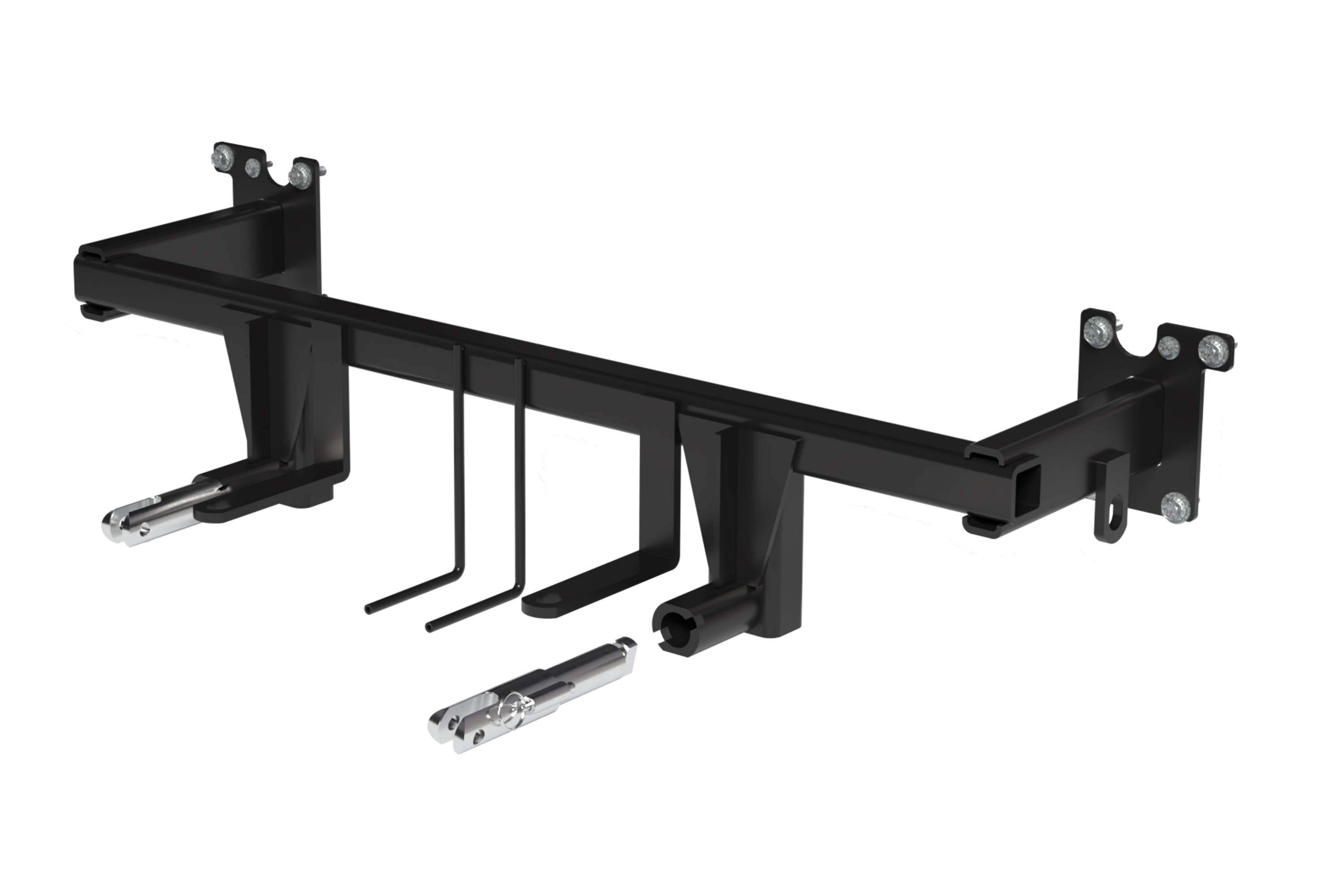

Custom Designed: The Blue Ox BX2264 Tow Bar Bracket is specifically designed for each towed vehicle, ensuring a seamless fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2264 Tow Bar Bracket is a top-of-the-line automotive accessory designed for your towing needs. This custom designed part ensures a perfect fit for your specific towed vehicle. Crafted from high-quality steel, it promises durability and long-lasting performance. The sleek black, powder-coated finish not only adds an aesthetic appeal but also provides superior resistance to rust and corrosion. Its bolt-on mounting type makes the installation process a breeze, and with the included mounting hardware, you can easily set it up yourself following the provided instructions.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 | Honda Civic | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Headlights Must be Removed and Replaced During Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BX2264 is designed specifically for the 2016 Honda Civic LX. Before purchasing, verify that the front of your vehicle matches the reference image in the installation instructions. If it does not, contact Blue Ox at (402) 385-3051.
The BX2264 is designed specifically for the 2016 Honda Civic LX. The manual does not confirm compatibility with other model years or trim levels. Contact Blue Ox at (402) 385-3051 to verify fitment for your specific vehicle.
The BX2264 attachment tab height is 12-1/2" and the width is 22".
Required tools are: flat screwdriver, utility knife, Phillips screwdriver, torque wrench, reciprocating saw, 10MM socket, 12MM socket, 14MM socket, and T30 Torx. You will also need Loctite Red to apply to all bolt threads before tightening.
The kit includes: 1 BX2264 baseplate, 2 attachment tab assemblies with holes, 1 Grade 5 1/4"-20 x 1" hex head bolt, 2 #10-32 1/2" round slotted head screws, 2 #12-14 x 1" self-drilling screws, 2 #10-32 hex nuts, 1 1/4"-20 hex nylon nut, 1 1/4" flat washer, 2 #10 lock washers, 1 4-way bracket, 2 Class III safety cables, 2 3/8" quicklinks, 2 black cap plug receivers, and 2 13" nylon zip ties. The baseplate also uses 2 existing 6MM bolts and 8 existing 10MM bolts from the vehicle.
The BX8869 Tail Light Wiring Kit is recommended for the 2016 Honda Civic LX. The manual states you must drill a hole according to the tail light wiring kit instructions, but does not explicitly state whether the kit is mandatory or optional. Contact your Blue Ox dealer for clarification.
Blue Ox recommends that baseplates be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work". Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051. The manual does not state that professional installation is mandatory, but it is strongly recommended.
The fascia cover, fascia, and headlights are removed and reinstalled after baseplate installation. The bumper is removed and NOT reinstalled. Plastic shielding is removed and NOT reinstalled. The temperature sensor is removed from the bumper and later zip-tied to the baseplate. All other removed components are set aside on a flat, sturdy surface and reinstalled unless otherwise noted.
Yes, drilling is required. You must drill a hole according to the BX8869 Tail Light Wiring Kit instructions. Additionally, if you choose to install the optional breakaway switch, you must drill a 1/4" hole through the fascia lip. The manual also notes that some drilling and trimming is required as part of the standard installation.
Yes, trimming is required. In step 10, you must use a reciprocating saw to trim the hook at the lower bumper bolt location flush with the frame on both sides of the vehicle. In step 14, you must mark and trim the fascia around the convenience links and attachment tabs before reinstalling it. After trimming, use a good quality paint to spray cut edges of the frame to prevent rusting.
The hook at the lower bumper bolt location must be trimmed flush with the frame using a reciprocating saw to allow proper baseplate installation. This trimming is performed on both sides of the vehicle in step 10.
The installation sequence is: (1) Remove fascia cover push pins and chrome strip; (2) Remove wheel well screws and fascia fasteners; (3) Disconnect fascia electrical connections and remove fascia; (4) Remove temperature sensor from bumper; (5) Remove headlight screws and electrical connections; (6) Remove bumper bolts and fasteners; (7) Remove plastic shielding; (8) Trim the hook at the lower bumper bolt location with a reciprocating saw; (9) Install baseplate using existing hardware and apply Loctite Red to all bolt threads; (10) Attach permanent baseplate safety cables; (11) Reinstall headlights, fascia, and fascia cover with trimming as needed; (12) Optionally install breakaway switch.
Remove the ten (10) push pins from the fascia cover—there are five (5) on each side. Set the cover aside. Then remove the push pin from the corner of the chrome strip and unsnap it from the vehicle on both sides.
Using a 10MM socket, remove the five (5) screws from each headlight. Disconnect all electrical lines from each headlight. Do this on both sides of the vehicle and set the headlights aside.
Using a 14MM socket, remove the four (4) bolts from the bumper (two on the top side and two on the underside). Using a 12MM socket, remove the bolt from the side of the bumper. Using a 10MM socket, remove the bolt from the top side of the bumper. Do this on both sides of the vehicle. Set the bumper aside—it will not be reinstalled.
Remove the plastic shielding from the vehicle by removing the four (4) push pins: one (1) on top, two (2) along the side, and one (1) at the bottom. Do this on both sides of the vehicle. The shielding will not be reinstalled.
Install the baseplate to the vehicle using the existing hardware. Apply Loctite Red to all bolt threads before tightening. Fully tighten all fasteners according to the torque chart provided (see torque specifications for bolt grades and sizes). The baseplate uses 2 existing 6MM bolts and 8 existing 10MM bolts from the vehicle.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Secure the cables to a solid piece of the frame as described in the General Information sheet. Be sure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle. The cables must remain installed as long as the baseplate is installed.
Hold the fascia as close to its original position as possible, then mark and trim the fascia around the convenience links and attachment tabs. Reinstall the headlights, fascia, and fascia cover. Before reinstalling, ensure that all electrical connections are plugged in and accessories are functioning properly.
Remove the temperature sensor from the bumper in step 6 and set it aside. After the baseplate is installed, zip tie the temperature sensor to the baseplate in step 13.
Torque specifications for Grade 5 inch bolts are: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs, 5/8" = 154 ft-lbs, 3/4" = 257 ft-lbs.
Torque specifications for Grade 8 inch bolts are: 1/4" = 14 ft-lbs, 5/16" = 29 ft-lbs, 3/8" = 47 ft-lbs, 7/16" = 78 ft-lbs, 1/2" = 119 ft-lbs, 5/8" = 230 ft-lbs, 3/4" = 380 ft-lbs.
Torque specifications for Grade 8.8 metric bolts are: 6MM = 6 ft-lbs, 8MM = 16 ft-lbs, 10MM = 31 ft-lbs, 12MM = 54 ft-lbs, 14MM = 89 ft-lbs, 16MM = 161 ft-lbs, 18MM = 222 ft-lbs.
Torque specifications for Grade 10.9 metric bolts are: 6MM = 8 ft-lbs, 8MM = 22 ft-lbs, 10MM = 40 ft-lbs, 12MM = 70 ft-lbs, 14MM = 117 ft-lbs, 16MM = 230 ft-lbs, 18MM = 318 ft-lbs.
The manual does not specify the grade of the existing 6MM and 10MM bolts used to mount the baseplate. You must determine the bolt grade and apply the appropriate torque from the torque specification tables. If the grade is unknown, contact Blue Ox at (402) 385-3051 for guidance. Always apply Loctite Red to all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for your vehicle's GVWR specification. Do not exceed this weight when towing.
If the baseplate is involved in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not rub against wires, hoses, or brake lines. These cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
When using a reciprocating saw, be aware of objects behind the cutting surface. The manual specifically warns of this hazard when trimming the hook at the lower bumper bolt location.
When using power drills, be aware of the dangers of torque and drill bit length. The manual warns of these hazards when drilling holes for the tail light wiring kit and optional breakaway switch.
Yes, use a good quality paint to spray cut edges of the frame to prevent rusting. This should be done after trimming the hook at the lower bumper bolt location with the reciprocating saw.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. This includes verifying that the headlights and any other electrical components are working correctly.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure that Loctite Red has been used on all bolts and that they are tightened to the recommended specifications. This is the owner's responsibility.
Yes, remove the attachment tabs when not in use, if applicable. This is recommended in the General Information section.
Yes, it is crucial to register your product online at www.blueox.com. Registration ensures that you will be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
The BX2264 has a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. To activate the warranty, the customer warranty card must be returned within 30 days of purchase, and a copy of the original invoice showing date and place of purchase must accompany any warranty claim. The warranty is non-transferable.
The warranty does not cover incorrect or improper installation, improper use, modification or neglect, failure to properly service and maintain, misuse, act of God, accident, or failure to follow guidelines in the instructional material. It also does not cover normal wear and tear, paint, or rust. The warranty does not cover loss of use, loss of time, inconvenience, mileage, transportation expense, return shipping, mechanic travel time, telephone, road service, towing, rental during repairs, travel, lodging, or loss of earnings.
Yes, towing behind a non-motorized vehicle will void the warranty.
If a bolt is lost or needs replacement, use a replacement bolt of the same grade as the original. In most cases, this will be Grade 5. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Using a replacement bolt of a different grade could compromise safety and void the warranty.
No, do not substitute homemade or non-typical parts on the baseplate. Use only genuine factory replacement parts. Failing to follow this requirement will void the manufacturer's warranty.
Yes, the BX2264 is designed for the 2016 Honda Civic LX. Verify that the front of your vehicle matches the reference image in the instructions; if not, contact Blue Ox at (402) 385-3051.
You need: flat screwdriver, utility knife, Phillips screwdriver, torque wrench, reciprocating saw, 10MM/12MM/14MM sockets, T30 Torx, and Loctite Red.
Yes. You must drill a hole for the tail light wiring kit and optionally drill a 1/4" hole for the breakaway switch. Trimming with a reciprocating saw is also required.
No, the bumper is removed and not reinstalled. The fascia cover, fascia, and headlights are removed and reinstalled.
Tighten 1/4" Grade 5 bolts to 10 foot-pounds. Always apply Loctite Red to all bolt threads before tightening.
The baseplate is tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for the GVWR specification.
The baseplate must be replaced. Do not reuse it. Accident damage can be unseen and cause serious injury or additional damage.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Verify that bolts are tightened to specification with Loctite Red applied.
If the cables rub against hoses or moving parts, they could cause fluid leaks or electrical shorts. Ensure that the safety cables are routed to avoid contact with any hoses, brake lines, or moving parts. Secure them to a solid piece of the frame as described in the General Information sheet.
If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. It is the installer's responsibility to watch for oil cooler and air conditioner lines, electrical wires, hoses, and missing parts or attaching points on the frame.
