Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
1998, 2002 Lexus LX470
Confirmed to Fit
1999 - 2001, 2003 - 2004 Lexus LX470
Confirmed to Fit
1999 - 2002 Toyota Land Cruiser
Confirmed to Fit
1998, 2003 Toyota Land Cruiser
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

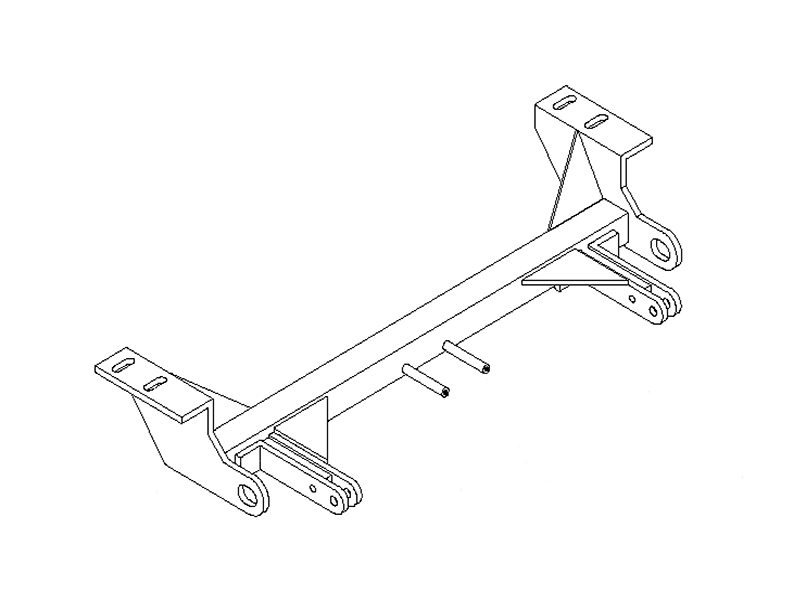

Custom-Designed: Each Blue Ox BX2907 Tow Bar Bracket is specifically engineered for a precise fit on your towed vehicle, promising excellent performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Blue Ox's BX2907 Tow Bar Bracket is the pinnacle of craftsmanship and durability. This custom-designed base plate is engineered specifically for your towed vehicle, ensuring a perfect fit and reliable performance. Made from high-quality steel and finished with a protective powder coat, this sturdy bracket is built to last. The black color adds a touch of elegance to your vehicle. With the BX2907 Tow Bar Bracket, you get all the necessary mounting hardware included, making installation a breeze. This bolt-on base plate ensures secure, reliable attachment, keeping your towed vehicle firmly in place.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1998, 2002 | Lexus LX470 | Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Install Rating 2 Comes with Standard Attachment Tabs |
| 1999 - 2001, 2003 - 2004 | Lexus LX470 | Comes with Standard Attachment Tabs Install Rating 2 Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight |
| 1999 - 2002 | Toyota Land Cruiser | Comes with Standard Attachment Tabs Install Rating 2 Specific Dingy Towing Restrictions Apply Confirm the Towability and the Pre: towing Procedures of you Vehicle with the Owner's Manual or Contact the Vehicle's Manufacturer for Specific Towing Procedures |
| 1998, 2003 | Toyota Land Cruiser | Confirm the Towability and the Pre: towing Procedures of you Vehicle with the Owner's Manual or Contact the Vehicle's Manufacturer for Specific Towing Procedures Specific Dingy Towing Restrictions Apply Install Rating 2 Comes with Standard Attachment Tabs |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, LEXUS LX470 E13 (Part #FDRWBX2907) fits 1998-2004 Lexus LX470 models. The 2004 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, LEXUS LX470 E13 (Part #FDRWBX2907) is designed to fit the 1998-2004 Lexus LX470.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, LEXUS LX470 E13 (Part #FDRWBX2907) fits the following vehicles: 1998-2004 Lexus LX470; 1998-2003 Toyota Land Cruiser. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, LEXUS LX470 E13 (Part #FDRWBX2907) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX2907 is designed for 1998–2004 Lexus LX470 models. It is also compatible with 1998–2003 Toyota Land Cruiser. The baseplate uses the existing factory tow hook bolt holes, so no drilling is required.
Yes, the BX2907 is designed for 1998–2003 Toyota Land Cruiser models. It is also compatible with 1998–2004 Lexus LX470. The baseplate uses the existing factory tow hook bolt holes, so no drilling is required.
No. The BX2907 uses existing factory tow hook bolt holes. No holes need to be drilled and no trimming is needed.
You will need a 17MM socket and Loctite Blue. The 17MM socket is used to remove and reinstall the factory tow hook bolts. Loctite Blue must be applied to all bolts before tightening to prevent loosening.
The kit includes two #12–14 × 1" self-drilling screws, two #10–32 × 1/2" slot round-head screws, two #10 lock washers, two #10–32 hex nuts, two 4-way connector adapters, two 36" Class III baseplate safety cables, and four 3/8" quicklinks. Installation reuses the four existing factory tow hook bolts.
No. The tow hook and tie down brackets are removed for baseplate installation. The tie down brackets will not be reinstalled.
1. Using a 17MM socket, remove the metric bolts from the driver's-side tie down bracket (which will not be reinstalled). 2. Remove two metric bolts from the tow hook/tie down bracket on the passenger's side (which will not be reinstalled). 3. Hold the baseplate to align with the holes of the tie down bracket on the driver's side and fasten with the existing bolts; do not tighten yet. Apply Loctite Blue to all bolts before tightening. 4. On the passenger's side, install the baseplate, the vehicle's factory tow hook, the two existing metric bolts, and tighten all bolts with Loctite Blue applied. 5. Install the tow bar and safety cables according to their own instructions.
Do not tighten the driver's-side bolts immediately. Hold the baseplate in alignment and fasten the bolts loosely first. Tighten all bolts only after the passenger's-side installation is complete and all bolts are in place. Apply Loctite Blue to all bolts before final tightening.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate holes were designed for easy installation, it may be necessary to file a hole slightly to allow a bolt to clear. Do not force bolts or drill new holes.
Two 4-way connector adapters (part number 101-5822) are included in the kit. The manual does not specify their exact function or installation location. Refer to the tow bar instructions for guidance on connector installation and wiring.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX2907 kit includes two 36" Class III baseplate safety cables (part number 226-0046) and four 3/8" quicklinks (part number 229-0359) for this purpose. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses or brake lines.
The permanent baseplate safety cables prevent the towed vehicle from breaking loose in the event the connection between the frame of the towed vehicle and the baseplate fails or becomes disconnected. Each cable must have an adequate weight rating for the towing system. The weight rating of the two cables together will not qualify as a single cable. These cables should remain installed as long as the baseplate is installed on the vehicle.
No. Permanent baseplate safety cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle. Both sets of cables are necessary for safe towing.
It is the installer's responsibility to watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed and comes into contact with a wire or hose, it could cause fluid leaks or electrical shorts some time after installation. Do not mount permanent baseplate safety cables against wires, hoses or brake lines.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Ensure all bolts are tightened to the recommended specifications and apply Loctite Red to all bolts.
Yes. Remove the attachment tabs when not in use, if applicable. This helps protect the baseplate and towing equipment when the vehicle is not being used for towing.
Do not substitute other devices if the tow bar pin and clip are lost. Contact your Blue Ox dealer or distributor for genuine replacement parts. Using non-genuine substitutes could compromise the safety of your towing system.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or nontypical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (usually Grade 5). Repair parts may be ordered through your nearest Blue Ox dealer or distributor.
Yes. Ensure that your BX2907 is registered online at www.blueox.com. Registration is crucial so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
The attachment tabs are 24 inches center to center and have a height of 15 inches.
Use Loctite Blue when initially installing the baseplate. The manual recommends Loctite Red for all bolts during pre-towing inspections and maintenance.
The permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses or brake lines. Refer to the illustrations in the manual for recommended cable arrangements.
After baseplate installation, install the tow bar and safety cables according to the instructions included in their packages. Ensure all bolts are tightened with Loctite applied. Inspect all towing equipment for cracked welds, missing or worn parts and loose bolts. Register your baseplate online at www.blueox.com to receive product updates and safety bulletins.
