1. Custom Design: The BX1841 Tow Bar Bracket is specifically crafted for each towed vehicle, ensuring a perfect fit and enhanced performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX1841 Tow Bar Bracket is a custom designed, sturdy and reliable solution for your towing needs. Made from high-quality steel with a black powder coat finish, this bracket effortlessly combines durability and style. It is designed for a bolt-on mounting type, ensuring easy installation. Plus, with every purchase, you will receive all the necessary mounting hardware along with step-by-step instructions, enabling a hassle-free, do-it-yourself installation. Enhance your towing capabilities with the Blue Ox BX1841 Tow Bar Bracket.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008, 2010, 2012 | Nissan Altima | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2007, 2009, 2011 | Nissan Altima | Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Requires Some Trimming of the Air Dam Minor Drilling Required Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Bumper Fascia Must Be Removed/Replaced During Install Install Rating 3 Comes with Removable Attachment Tabs |

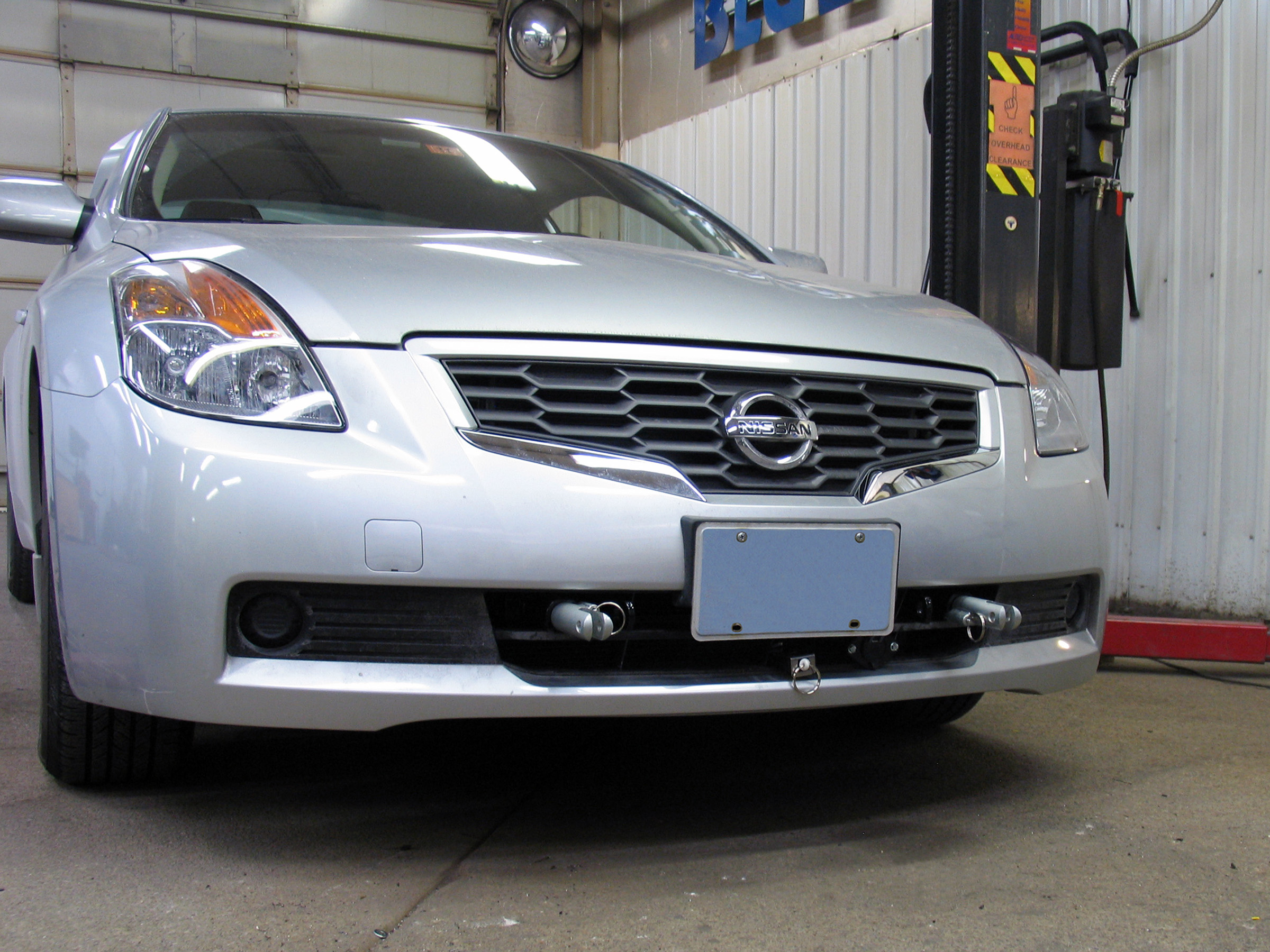

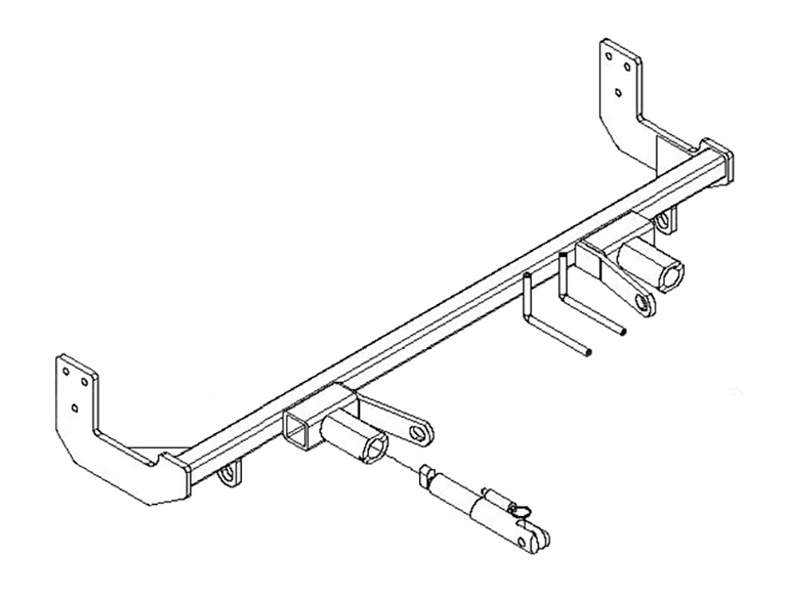

The BX1841 is a baseplate designed specifically for 2008-12 Nissan Altima vehicles. It is used to mount a tow bar to the vehicle for towing purposes. The attachment tab height is 14 inches and width is 24 inches.
The BX1841 is designed specifically for 2008-12 Nissan Altima vehicles only. The manual states that dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments may be necessary to compensate for manufacturer tolerances, which may include filing a hole slightly, bending electrical rods, or bending end plates.
No. Due to the design of the removable tabs on the BX1841, the RangeFinderII tow bar cannot be used with this baseplate.
Most adapters cannot be used with the BX1841 baseplate. Only the BX8833 and BX8815 adapters are compatible with this baseplate.
The following tools are required: 10MM socket, 13MM socket, utility knife, 13/32" drill bit, Loctite RED, Phillips screwdriver, flat screwdriver, 9/16" socket, reciprocating saw, and large vise grips.
The kit includes: 1 welded baseplate (61-6492), 4 nut plates (61-5208), 2 whiz nuts with 14-inch wire (61-4978), 6 3/8-16 x 1.5" hex bolts Grade 5 (201-0440), 6 3/8" lock washers (203-0010), 2 self-drilling screws (201-0979), 2 round head screws (201-0192), 2 #10 lock washers (203-0054), 2 #10-32 hex nuts (202-0047), 2 4-way connector adapters (101-5822), 2 removable attachment tab assemblies (62-3469), 6 6MM-1.0 x 30MM hex bolts Grade 8.8 (201-0655), 15 1/4" flat washers (203-0001), 2 36-inch Class III baseplate safety cables (226-0046), 2 3/8" quicklinks (229-0359), and 2 receiver cap plugs (290-0437).
The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle, but the manual does not explicitly state whether it is required or optional. Contact Blue Ox Customer Care at (402) 385-3051 for clarification on whether this kit is necessary for your specific installation.
The front fascia, bumper, horn, and windshield washer reservoir must be removed for baseplate installation. The installation process involves removing push pins and bolts from these components in a specific sequence before the baseplate can be positioned and secured.
Blue Ox towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary for fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051.
Yes. Drilling is required. Using a 13/32" drill bit, you must drill holes into the lower hole of the baseplate to align with the lower frame webbing. Additionally, a reciprocating saw is used to make a cut at the edge of the opening, and the metal is bent inward. A utility knife is used to cut black plastic at a specified angle.
A 13/32" drill bit is required to drill holes into the lower hole of the baseplate to align with the lower frame webbing.
Yes, the installation involves permanent modifications. Holes are drilled into the vehicle frame, and metal is cut and bent using a reciprocating saw. These modifications cannot be easily reversed. The manual also notes that dimensional variations between vehicles may require minor adjustments such as filing holes, bending electrical rods, or bending end plates.
Torque specifications depend on bolt size and grade. For 3/8" Grade 5 bolts: 33 foot-pounds. For 3/8" Grade 8 bolts: 47 foot-pounds. For 6MM Grade 8.8 bolts: 8 foot-pounds. For 10MM Grade 8.8 bolts: 31 foot-pounds. For 12MM Grade 8.8 bolts: 54 foot-pounds. The manual also directs readers to the torque chart on page 1 or page 3 of the General Instructions for additional specifications. All bolts must have Loctite RED applied before tightening.
The lower holes of the baseplate are secured using 1.5" hex bolts with 3/8" lock washers and 3/8" whiz nuts. The top two holes are secured using 1.5" hex bolts with 3/8" lock washers fastened to 1" nut plates. All bolts must have Loctite RED applied before tightening.
The attachment tab height is 14 inches and the attachment tab width is 24 inches.
The horn must be unplugged on the driver's side. On the passenger side, the windshield washer reservoir must be disconnected, including releasing two wire clips from the electrical wires and disconnecting the hose. Additionally, a sensor must be unplugged by pulling the tabs out of the lower bumper. All components must be reconnected before reinstalling the fascia, and all electrical connections must be plugged in properly and functioning before installing the fascia.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The kit includes 2 36-inch Class III baseplate safety cables (226-0046) and 2 3/8" quicklinks (229-0359). The cables must not be mounted against wires, hoses, or brake lines. These cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is in an accident, it must be replaced and not reused. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
When using power drills, be aware of the dangers of torque and drill bit length. The manual recommends using large vise grips to clamp the baseplate in position before drilling to ensure stability and safety.
Before towing, ensure all electrical connections are plugged in properly and functioning. Reinstall the front fascia, bumper, horn, screws, push pins, and bolts. Reconnect the horn, sensor, and windshield washer reservoir. Install the tow bar and safety cables according to the tow bar instructions. Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite RED on all bolts and tighten to the recommended specifications. Remove the attachment tabs when not in use. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Yes. The manual recommends removing the attachment tabs when not in use.
Failing to follow and/or altering these installation instructions in either installation or required equipment will void the manufacturer's warranty. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts.
If a bolt is lost or needs replacement, use a replacement bolt of the same grade. In most cases it will be Grade 5; reference the parts list to confirm. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor, or by calling Blue Ox Customer Care at (402) 385-3051. For your safety and the preservation of your baseplate, be sure to use a replacement bolt of the same grade.
Yes, the BX1841 is designed specifically for 2008-12 Nissan Altima vehicles. The RangeFinderII tow bar cannot be used; only BX8833 and BX8815 adapters are compatible.
Required tools include 10MM and 13MM sockets, 13/32" drill bit, utility knife, Phillips and flat screwdrivers, 9/16" socket, reciprocating saw, large vise grips, and Loctite RED.
Yes. A 13/32" drill bit is required to drill holes into the frame. A reciprocating saw is also needed to cut metal, and a utility knife is used to cut plastic. These are permanent modifications.
Torque 3/8" Grade 5 bolts to 33 foot-pounds. All bolts must have Loctite RED applied before tightening.
Yes. Two 36-inch Class III baseplate safety cables and two 3/8" quicklinks are included. These must be connected to the frame and are strongly recommended for towing safety.
The front fascia, bumper, horn, and windshield washer reservoir must be removed. These are reinstalled after baseplate installation.
Ensure all electrical connections are plugged in and functioning. Verify the tow bar and safety cables are installed per instructions. Inspect for cracked welds, missing parts, and loose bolts.
The manual states that dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may be necessary to compensate for manufacturer tolerances. These adjustments may include filing a hole slightly, bending electrical rods, or bending end plates. If alignment issues persist, contact Blue Ox Customer Care at (402) 385-3051.
Ensure all electrical connections are plugged in properly and functioning before installing the fascia. Verify that the horn, sensor, and windshield washer reservoir are properly reconnected. If connections are still not functioning, do not proceed with towing. Contact Blue Ox Customer Care at (402) 385-3051 for assistance.
