Made from robust steel for enhanced durability and longevity.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

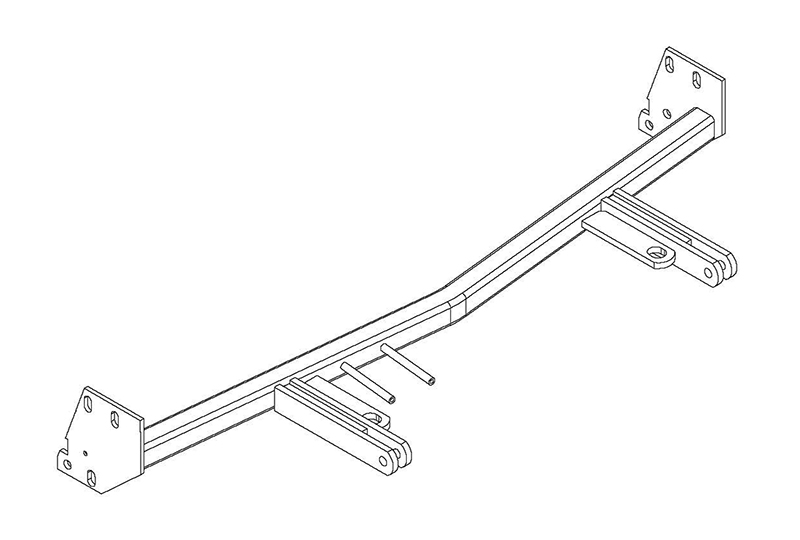

Experience the Blue Ox advantage with the BX1822 Tow Bar Bracket. It is expertly crafted from robust steel and finished with a sleek black powder coat for superior durability and longevity. This base plate is custom designed for each specific towed vehicle, promising a perfect fit every time. The kit also includes all the necessary hardware and step-by-step instructions for a hassle-free, do-it-yourself installation. Upgrade your towing experience with the reliable and robust Blue Ox BX1822 Tow Bar Bracket.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1999 | Nissan Sentra | Comes with Standard Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install |
Yes, the BX1822 is designed specifically for the 1999 Nissan Sentra. The baseplate attaches to existing frame holes using the vehicle's original tie-down bracket bolts.
Yes, the plastic bumper must be removed. The installation instructions require removal of the center grill molding, bumper molding fasteners, and the bumper itself before the baseplate can be installed. The bumper is then reinstalled after the baseplate is secured.
You will need: 12mm wrench, 10mm wrench, 14mm wrench, 8mm wrench, Phillips screwdriver, and Loctite. These tools are used to remove and reinstall bumper fasteners and to secure the baseplate bolts.
The kit includes: one weldment baseplate (61-5311), two 8mm-1.25 x 25mm Grade 8.8 bolts, two 5/16" flat washers, two 8mm lock washers, two #12-14 x 1" self-drilling screws, two 4-way electrical connectors, two 10-32 x 1/2" slot round-head screws, two #10-32 hex nuts, two #10 lock washers, two 36" Class III baseplate safety cables, and two 3/8" zinc-plated quicklinks. The installation also reuses existing vehicle bolts from the tie-down bracket.
1. Open the hood. 2. Remove the center grill molding by squeezing the button ends on the back and gently pulling it off. 3. Remove the Phillips screws holding the bumper molding under the grill molding. 4. Remove screws from the front area of the wheel well molding. 5. Pull the black plastic back and locate the bolt on each side at the top corner of the bumper molding. 6. Remove the two 10mm bolts on the underside of the bumper molding. 7. Gently pull the bumper off.
Hold the baseplate up to the existing holes in the frame. Use the existing bolts that were removed from the tie-down bracket (three 14mm bolts per side). Replace the 12mm bolt that held the bumper plastic for the tie-down bracket with new bolts from the bolt bag. Apply Loctite to all bolts to prevent loosening during towing. Tighten all bolts according to the Torque Guide Chart in the General Instruction Sheet.
The installation instructions state that all bolts must be tightened according to the Torque Guide Chart in the General Instruction Sheet, but specific torque values are not provided in this manual. You will need to consult the General Instruction Sheet or contact the manufacturer for the exact torque specifications.
Permanent baseplate safety cables are strongly recommended. The BX1822 kit includes two 36" Class III safety cables (part 226-0046) and two 3/8" quicklinks (part 229-0359). These cables must be connected from the baseplate to the frame rail or cross member and serve to prevent the towed vehicle from breaking loose if the baseplate connection fails. However, these cables are in addition to, not a replacement for, legally required safety cables that attach the towed vehicle to the towing vehicle.
The permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The manual states that possible arrangements are shown in illustrations, but does not specify exact mounting points for the Sentra. Do not mount the cables against wires, hoses, or brake lines, as improper installation could cause fluid leaks or electrical shorts.
Before each towing trip, inspect all towing equipment for: cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended specifications and that Loctite Red has been applied. Verify that all towing equipment is hooked up per manufacturer's instructions.
Yes, Blue Ox strongly recommends registering your product online at www.blueox.com. Registration ensures you will be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Remove the attachment tabs when the baseplate is not in use.
Yes. After the baseplate is installed, you must install the tow bar and safety cables according to the instructions included in their packages. Do not substitute other devices if the tow bar pin and clip are lost.
It is the installer's responsibility to watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines. If the baseplate is improperly installed and comes into contact with a wire or hose, it could cause fluid leaks or electrical shorts some time after installation.
Yes, the BX1822 is designed for the 1999 Nissan Sentra and attaches to existing frame holes.
Yes, the plastic bumper must be removed before installation and reinstalled afterward.
You will need 12mm, 10mm, 14mm, and 8mm wrenches, a Phillips screwdriver, and Loctite.
Yes, two 36" Class III safety cables and two 3/8" quicklinks are included and strongly recommended for installation.
Yes, Loctite must be applied to all baseplate bolts to prevent them from loosening during towing.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to specifications.
