Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
1986 - 1994 Nissan D21
Confirmed to Fit
1995 - 1997 Nissan Pickup
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
High-quality Steel construction ensures durability and long service life.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

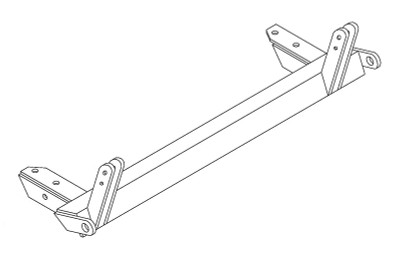

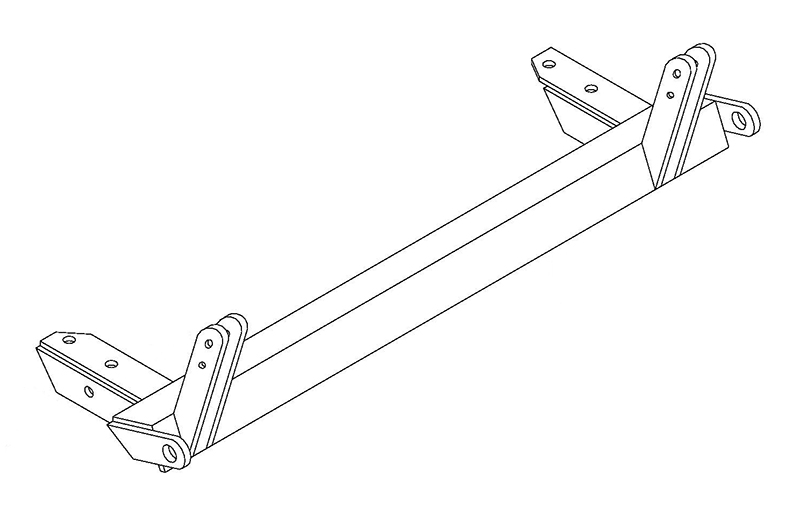

Enhance your towing experience with the Blue Ox BX1810 Tow Bar Bracket. Expertly crafted from durable steel, this robust accessory is custom-designed to suit your specific towed vehicle for a perfect fit. The bracket boasts a sleek black powder coat finish, ensuring long-lasting performance by resisting rust and corrosion. The bolt-on mounting style is straightforward and easy to install, making it ideal for do-it-yourself enthusiasts. Moreover, it comes complete with all necessary mounting hardware and comprehensive instructions, eliminating the need for additional purchases.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1986 - 1994 | Nissan D21 | Comes with Standard Attachment Tabs Install Rating 2 Vehicle May Accumulate Miles When Flat Towing. Consult Your Vehicle’s Owner’s Manual. |
| 1995 - 1997 | Nissan Pickup | Comes with Standard Attachment Tabs Install Rating 2 Vehicle May Accumulate Miles When Flat Towing. Consult Your Vehicle’s Owner’s Manual. |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, NISSAN PICKUP (4WD) E13 (Part #FDRWBX1810) is designed to fit the 1986-1994 Nissan D21.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, NISSAN PICKUP (4WD) E13 (Part #FDRWBX1810) fits the following vehicles: 1986-1994 Nissan D21; 1995-1997 Nissan Pickup. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, NISSAN PICKUP (4WD) E13 (Part #FDRWBX1810) fits 1986-1994 Nissan D21 models. The 1997 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, NISSAN PICKUP (4WD) E13 (Part #FDRWBX1810) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX1810 baseplate is designed for 1986 1/2 through 1995 Nissan Pickup 4WD models only. If your vehicle is outside this model year range or is not 4WD, this baseplate will not fit.
You will need a 17mm socket, 3/4" socket, 19mm socket, and 3/4" open-end wrench. These are the only tools listed as required for installation.
The kit includes: one main baseplate assembly (61-3789), two tie-down spacers (61-3790), two 1/2-13 x 1 1/2" Grade 5 hex bolts (201-0051), two 12mm-1.25 x 40mm Grade 8.8 hex bolts (201-0411), two 1/2-13 hex nuts (202-0005), two 1/2" lock washers (203-0012), two 12mm lock washers (203-0105), two 36" Class IV baseplate safety cables (226-0049), and four 1/2" zinc-plated quicklinks (229-0512).
Yes. You must remove the factory tow hook from the passenger side of the vehicle. The baseplate will mount to the same bolt holes where the tow hook was attached. Note that similar bolt holes exist on the driver's side, but you only remove the passenger-side hook.
The manual instructs you to inspect the bolts removed from the tow hook for reuse and to hand-start them during baseplate installation. However, the manual references a General Instruction Sheet for specific reuse criteria, which is not included in this document. Consult that sheet or contact the manufacturer for guidance on which bolts are safe to reuse.
1. Remove the passenger-side tow hook and inspect its bolts. 2. Position the baseplate to align its holes with the frame holes where the tow hook was. 3. Hand-start the removed bolts and the four supplied 12mm bolts with lock washers, applying Loctite but not tightening yet. 4. Insert the small raised portion of each tie-down clamp into the oblong hole of each tie-down bracket. 5. Install a 1/2" bolt through the clamp, bracket, and baseplate, securing loosely with the 1/2" nuts and lock washers. 6. Once all bolts align, apply Loctite and tighten securely. 7. Install the tow bar and safety cables per their included instructions.
No drilling is required. The baseplate uses existing factory tow hook holes. However, due to dimensional variations between vehicles, you may need to file a baseplate hole slightly to allow a bolt to clear. This is a minor adjustment, not a permanent modification to the vehicle.
Torque specifications are not provided in this installation manual. The manual references a General Instruction Sheet that may contain this information. Contact Automatic Equipment Mfg. Co. or consult the General Instruction Sheet for the correct torque values.
No. The manual instructs you to hand-start all bolts and apply Loctite without tightening them initially. Only after all bolts align properly should you apply Loctite and tighten them securely. This ensures proper alignment before final tightening.
Loctite is a threadlocker compound that prevents bolts from loosening due to vibration. The manual requires you to apply Loctite to the bolts during installation, but does not specify which type or strength. Consult the General Instruction Sheet or contact the manufacturer for the correct Loctite product and application method.
Insert the small raised portion of each tie-down clamp into the oblong hole of each tie-down bracket. Then install a 1/2" bolt through the clamp, tie-down bracket, and baseplate. Secure loosely with the 1/2" nuts and lock washers provided. Do not tighten until all bolts align.
After the baseplate is securely tightened, install the tow bar and safety cables according to the instructions included in their packages. The baseplate alone is not functional without these components.
Do not substitute other devices if the tow bar pin and clip are lost. You must obtain the correct replacement parts from the manufacturer. Using substitutes could compromise safety.
Yes, if it is a 1986 1/2 through 1995 4WD model. Other model years and 2WD trucks are not compatible.
17mm socket, 3/4" socket, 19mm socket, and 3/4" open-end wrench.
Yes, remove the factory tow hook from the passenger side. The baseplate mounts to the same holes.
No. The baseplate uses existing tow hook holes. Minor filing of a baseplate hole may be needed for bolt clearance due to vehicle variations.
No. Hand-start all bolts with Loctite first, then tighten only after all bolts align properly.
No. Do not substitute other devices if the tow bar pin and clip are lost. Use only the correct replacement parts.
