1. Custom-Fit Design: The Blue Ox BX3226 Tow Bar Bracket is specifically designed for each vehicle type, ensuring a precise fit and seamless integration with your vehicle's structure.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX3226 Tow Bar Bracket is a robust and reliable towing solution, custom-designed to perfectly fit your vehicle. Made with high-quality steel and finished with a durable black powder coat, this bracket ensures optimal strength and long-lasting resilience against time and the elements. It boasts a bolt-on mounting type for easy installation and comes complete with all necessary mounting hardware. With this Blue Ox Tow Bar Bracket, you get a superior towing aid that combines function, fit, and durability.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 - 2002 | Pontiac Sunfire | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
The BlueOx Tow Bar Base Plate For Select PONTIAC SUNFIRE BX3226 (Part #FDRWBX3226) fits the following vehicles: 2000-2002 Pontiac Sunfire. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate For Select PONTIAC SUNFIRE BX3226 (Part #FDRWBX3226) fits 2000-2002 Pontiac Sunfire models. The 2002 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate For Select PONTIAC SUNFIRE BX3226 (Part #FDRWBX3226) is designed to fit the 2000-2002 Pontiac Sunfire.
The BlueOx Tow Bar Base Plate For Select PONTIAC SUNFIRE BX3226 (Part #FDRWBX3226) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX3226 is designed for 2000-02 Pontiac Sunfire models. The attachment tabs are 24 inches center to center with a height of 13 3/4 inches. The manual notes that dimensional variations between otherwise identical cars can be considerable, so some hole filing may be necessary during installation.
The BX8869 is available for the 2000-02 Pontiac Sunfire. The manual shows its location on the driver's side tail light assembly, but does not provide details about its function or whether it is required or optional.
Required tools are: 7MM socket, 10MM socket, 11MM socket, 13MM socket, 13/32" drill bit, Phillips screwdriver, pry bar, utility knife, vise grips, and 9/16" socket. Loctite is also required for all bolts.
The following must be removed: six push pins from the black plastic cover on top of the fascia, headlight assemblies (both sides), front fascia, horn bracket, and windshield washer reservoir. These are removed to access the mounting points and must be reinstalled after baseplate installation.
Yes, drilling is required. You must drill two holes in the bottom side of the metal bumper using a 13/32" drill bit (step 12), then four additional holes with the same 13/32" drill bit on both sides (step 14). The baseplate is used as a template for all drilling.
Yes, trimming is required. The black plastic air dam attached to the front of the metal bumper must be trimmed even with the bottom edge of the metal bumper using a utility knife. The metal bumper is used as a template for this trim line.
1. Trim the black plastic air dam even with the bottom edge of the metal bumper (step 10). 2. Secure the baseplate to the bottom of the metal bumper and opening of the front of the bumper with clamps, sliding it back to the ribbing on the front edge of the frame (step 11). 3. Drill two holes in the bottom side of the metal bumper using the baseplate as a template with a 13/32" drill bit (step 12). 4. Insert nut plates into the end of the front bumper, align with drilled holes, and tighten 3/8" bolts and lock washers with Loctite (step 13). 5. Drill four remaining holes with the 13/32" drill bit on both sides (step 14). 6. Insert nut plates into the opening of the lower frame, align with drilled holes, and tighten 3/8" bolts and lock washers with Loctite (step 15).
Yes, Loctite must be used on all bolts before tightening. This is required for both the 3/8" bolts in the front bumper (step 13) and the 3/8" bolts in the lower frame (step 15).
The manual states that all bolts must be tightened according to the Torque Chart in the General Instruction Sheet, which is not included in this document. You must consult the separate General Instruction Sheet for specific torque values.
The manual notes that dimensional variations between otherwise identical cars can be considerable. If a bolt does not clear, it may be necessary to file the hole slightly to allow proper alignment (step 17).
Reinstall the horn bracket, windshield washer reservoir, fascia, and headlight assemblies in reverse order of removal (step 16). Ensure all electrical components and hoses are plugged in properly. Some models may require items 11 and 12 (self-drilling screws and hex nuts) to reinstall the washer reservoir.

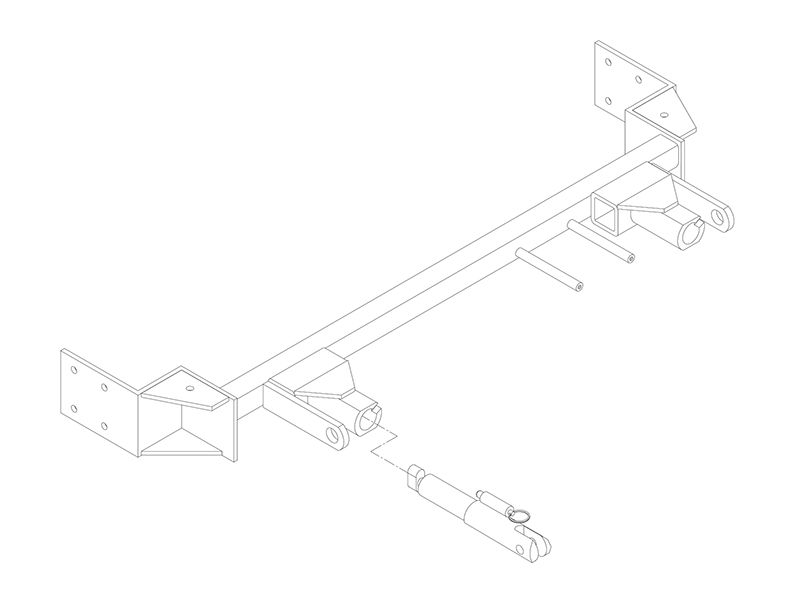

The BX3226 includes: one baseplate weldment (61-5886), ten 3/8" nut plates with wire, ten 3/8-16 x 1 1/2" Grade 5 bolts, ten 3/8" lock washers, two #12-14 x 1" self-drilling screws, two #10-32 hex nuts, two #10 lock washers, two #10-32 x 1/2" slot round head screws, two 4-way connector adapters, two attachment assemblies, two 6MM-1 x 45MM Grade 8.8 hex bolts, two 1/4" schedule 40 x 3/4" pipes, two 36" Class III baseplate safety cables, two 3/8" quicklinks, and two receiver cap plugs.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. They must not be mounted against wires, hoses, or brake lines. Permanent baseplate safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended specifications and use Loctite Red on all bolts.
Watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts some time after installation. Do not mount permanent baseplate safety cables against wires, hoses, or brake lines.
Use a replacement bolt of the same grade as the original. The bolts included with the BX3226 are typically Grade 5. For your safety and preservation of the baseplate, use only genuine factory replacement parts or bolts of the same grade. Repair parts may be ordered through your nearest Blue Ox dealer or distributor.
Yes, it is crucial to register your product online at www.blueox.com. Registration ensures you are alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Yes, the attachment tabs should be removed when not in use.
Yes. Attachment tabs are 24 inches center to center, 13 3/4 inches high. Dimensional variations may require minor hole filing.
Yes. Drill six holes total (two in bumper bottom, four in frame) using 13/32" drill bit. Trimming of the black plastic air dam with a utility knife is also required.
7MM, 10MM, 11MM, and 13MM sockets; 13/32" drill bit; Phillips screwdriver; pry bar; utility knife; vise grips; 9/16" socket; and Loctite.
Headlight assemblies, front fascia, horn bracket, windshield washer reservoir, and the black plastic cover on top of the fascia. All must be reinstalled after baseplate installation.
Yes, Loctite must be used on all bolts before tightening. Use Loctite Red and tighten to specifications in the General Instruction Sheet.
Strongly recommended. They prevent the towed vehicle from breaking loose if the baseplate connection fails. Mount them from baseplate to frame rail or cross member, never against wires, hoses, or brake lines. They supplement, not replace, legally required safety cables.
Refer to the Torque Chart in the General Instruction Sheet (not included in this manual). All bolts must be tightened according to that chart.
Inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to specification and use Loctite Red on all bolts.
