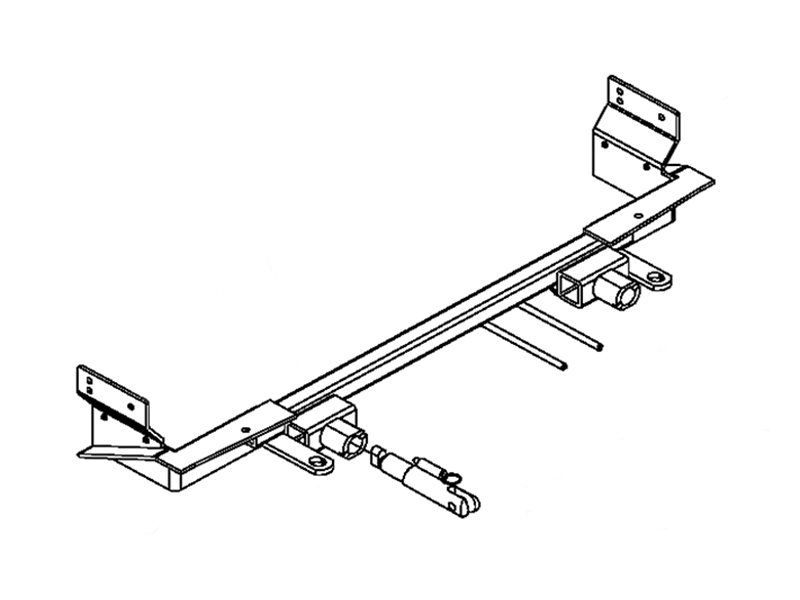

Custom Design: The Blue Ox BX3231 Tow Bar Bracket is uniquely designed for each specific towed vehicle, ensuring a perfect fit and superior performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX3231 Tow Bar Bracket is a superior quality, custom-designed solution for your towing needs. Crafted from durable steel with a sleek black powder coat finish, this product offers unmatched strength and longevity. The bracket is designed for a bolt-on mounting type, offering ease of installation. With the inclusion of all necessary hardware and comprehensive instructions, this do-it-yourself installation process becomes a breeze. Ensure a secure and reliable connection for your towed vehicle with the Blue Ox BX3231 Tow Bar Bracket.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2009 | Pontiac G6 | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Requires Some Trimming of the Belly Pan Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BX3231 is designed for 2005-08 Pontiac G6 GT and Solstice G6 GT models. Before installation, confirm the towability and pre-towing procedures for your specific vehicle with the owner's manual or contact the vehicle's manufacturer for specific towing procedures and weight capacity.
No. Due to the design of the removable tabs, the RangeFinderII, Adventurer and Ambassador tow bars cannot be used with the BX3231 baseplate.
Only the BX8833 and BX88151 adapters can be used with the BX3231 baseplate. All other adapters are not compatible.
Required tools include: 7/16" socket, 9/16" socket, 13/32" drill bit, 7MM socket, 10MM socket, 13MM socket, 15MM socket, 6MM socket, hack saw blade, utility knife, and Loctite RED. A 5/16" nut driver is also needed for one step.
The kit includes: 1 weldment base plate (61-6087), 3 weldments with 3/8" nut plates and 14-inch wire (61-5208), 2 weldments with 3/8" nut plates and 12-inch wire (61-5556), 4 3/8-16 x 1" hex bolts Grade 5 (201-0443), 5 3/8-16 x 1.5" hex bolts Grade 5 (201-0440), 9 3/8" lock washers (203-0010), 4 3/8-16 hex nuts (202-0003), 1 6MM-1 x 30MM hex bolt Grade 8.8 (201-0655), 1 6MM lock washer (203-0161), 1 1/4" flat lock washer (203-0001), 2 #12-14 x 1" self-drilling screws (201-0979), 2 #10-32 x 1/2" slot round head screws (201-0192), 2 #10 lock washers (203-0054), 2 #10-32 hex nuts (202-0047), 2 4-way connector adapters (101-5822), 2 attachment assemblies SF/SB right (62-3468), 1 #10-16 x 1" self-drilling screw (201-0654), 2 36" Class III baseplate safety cables (226-0046), 4 3/8" quicklinks (229-0359), and 2 receiver cap plugs (290-0437).
The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle, though not stated as required. The manual shows a possible location for the BX8869 on the driver's side tail light assembly.
The front fascia, horn bracket, and air baffle must be removed for baseplate installation. The installation process involves removing push pins and bolts from these components in a specific sequence before the baseplate can be mounted.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work. Blue Ox Dealers can be found at www.blueox.us or by contacting Customer Care at (888) 425-5382. The installation involves drilling, trimming, and precise alignment, and dimensional variations between vehicles may require minor adjustments.
Yes, drilling is required. You will drill holes into the frame rail and the bottom of the metal bumper using a 13/32" drill bit. The baseplate is used as a template to mark the drilling locations. An opening must also be cut into the lower belly pan to gain access to the bottom of the frame rail for nut plate insertion.
Trimming of the air dam and fascia is required. Specifically: mark and cut plastic 1/2" back from the front edge of the air dam on both sides; cut and remove small tabs of the air dam using a utility knife to open the area below the metal bumper; cut 1/2" from the outer edge of the fascia opening on both sides; and cut a horizontal rib in the fascia to allow receivers to come through. These modifications are permanent.
Yes. The inside portion of the frame end plate must be tapped and bent toward the radiator 1/4" on both sides using a hammer. Additionally, due to dimensional variations between vehicles, minor adjustments may be necessary, which may include filing a hole slightly, bending electrical rods, adding shims, and/or bending endplates.
For 3/8" Grade 5 bolts, the torque specification is 33 foot-pounds. All bolts must have Loctite RED applied before tightening.
For 6MM Grade 8.8 bolts, the torque specification is 16 foot-pounds. The 6MM-1 x 30MM hex bolt (part 201-0655) used to reinstall the horn bracket must have Loctite RED applied before tightening.
The attachment tab height is 13" and the attachment tab width is 23".
The fascia removal sequence is: (1) Remove six push pins from the top edge of fascia between headlight assemblies; (2) Remove two push pins and one metric bolt from the edge of the wheel well forward of the front tire on both sides; (3) Using a 10MM socket, remove the back metric bolt from the corner of fascia above the front tire and loosen the front metric bolt on the inside of the wheel well on both sides; (4) Remove two push pins on the lower edge of fascia forward of the front tire on both sides; (5) Remove five metric bolts from the lower edge of fascia, pull corners of fascia to the side, pull fascia forward and set aside.
Slide the baseplate onto the frame rail up to the bottom of the metal bumper and clamp it with a vise grip on both sides. Align the baseplate to the existing bolt location for the horn bracket on the driver's side and replace and tighten the existing metric bolt to hold the baseplate in place. Align the lower holes of the baseplate to the center of the lower frame webbing before drilling. Align the passenger's side to the frame at the same location as the driver's side and clamp to the bottom edge of the metal bumper. Using the baseplate as a template, drill the two lower holes and the top front hole with a 13/32" drill bit.
Insert 3/8-16 x 1" hex bolts into the two lower drilled holes of the baseplate and tighten the 3/8-16 hex nut and lock washer with a 9/16" socket. Insert the nut plate into the opening in the bottom of the frame to align with the upper front drilled hole, then tighten the 3/8-16 x 1.5" hex bolt and lock washer into the upper front drilled hole. Apply Loctite RED on all bolts before tightening and tighten according to the torque chart (33 foot-pounds for 3/8" Grade 5 bolts).
Using the baseplate as a template, drill a hole into the bottom of the metal bumper with a 13/32" drill bit on both sides. Insert the 3/8" nut plate with the 12" wire into the open end of the metal bumper to align with the drilled hole. Tighten the 3/8-16 x 1.5" hex bolt and lock washer with a 9/16" socket on both sides. Apply Loctite RED on all bolts before tightening and tighten according to the torque chart (33 foot-pounds for 3/8" Grade 5 bolts).
Remove the rubber grommet from the front bolt location on the air baffle. Reinstall the air baffle on the passenger's side to its original position using the existing metric bolt and lower push pin. Slide the front bolt location over the top of the front bolt of the baseplate. Using a 5/16" nut driver and drill, install the #10 x 1" self-drilling screw through the air baffle webbing and into the frame to help stabilize the air baffle. Do not drill into the baseplate.
Remove the existing metric bolt from the horn bracket on the driver's side that was installed in step 15. Reinstall the horn bracket using the 6MM-1 x 30MM hex bolt, 6MM lock washer, and 1/4" flat washer. Apply Loctite RED before tightening and tighten to 16 foot-pounds (6MM Grade 8.8 torque specification).
Hold the fascia as close to its original position as possible on the vehicle and mark the horizontal rib that needs to be cut to allow the receivers to come through the fascia. Cut this rib using a utility knife. If dimensional variations between vehicles prevent proper fit, minor adjustments may be necessary, including filing a hole slightly, bending electrical rods, adding shims, and/or bending endplates.
Ensure that all electrical connections are plugged in properly and functioning before installing the fascia. The manual recommends the BX8869 Bulb and Socket Wiring Kit for this vehicle.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The two included 36" Class III safety cables (part 226-0046) and four quicklinks (part 229-0359) can be used for this purpose. The cables must not be mounted against wires, hoses, or brake lines. These cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts some time after installation. Do not mount permanent baseplate safety cables against wires, hoses, or brake lines.
Do not substitute other devices if the tow bar pin and clip are lost. Obtain replacement pins and clips from the tow bar manufacturer or your Blue Ox Dealer.
Before towing, ensure all electrical connections are plugged in properly and functioning. Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Verify that all bolts are tightened to the recommended torque specifications using Loctite RED. Confirm the tow bar and safety cables are installed according to their package instructions.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite RED on all bolts and tighten to the recommended specifications. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Remove the attachment tabs when not in use.
If a bolt is lost or in need of replacement, use a replacement bolt of the same grade. In most cases, Grade 5 bolts are used. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Do not substitute homemade or non-typical parts.
Yes, it is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Blue Ox customer service can be reached at 1-800-228-9289 to speak with the customer care team. For dealer locations and additional information, visit www.blueox.us or contact the Customer Care Department at (888) 425-5382. Blue Ox is located at One Mill Road, Industrial Park, Pender, Nebraska 68047.
Yes, the BX3231 is designed for 2005-08 Pontiac G6 GT and Solstice G6 GT. Confirm towing capacity with your vehicle's owner's manual before installation.
RangeFinderII, Adventurer and Ambassador tow bars cannot be used. Only BX8833 and BX88151 adapters are compatible. All other adapters are not compatible.
Required tools: 7/16", 9/16", 13MM, 15MM, 10MM, 7MM, and 6MM sockets; 13/32" drill bit; hack saw blade; utility knife; and Loctite RED.
The front fascia, horn bracket, and air baffle must be removed. Installation requires drilling, trimming the air dam and fascia, and may require minor adjustments to compensate for vehicle tolerances.
Torque 3/8" Grade 5 bolts to 33 foot-pounds. Apply Loctite RED to all bolts before tightening.
Verify all electrical connections are plugged in and functioning, all bolts are tight and torqued correctly, there are no cracked welds or missing parts, and the tow bar and safety cables are installed per their instructions.
Hold the fascia as close to its original position as possible and mark the horizontal rib that needs to be cut to allow receivers to come through. Cut this rib with a utility knife. If dimensional variations between vehicles prevent proper fit, minor adjustments may be necessary, including filing a hole slightly, bending electrical rods, adding shims, and/or bending endplates.
Due to dimensional variations between vehicles, minor adjustments may be necessary. These may include filing a hole slightly, bending electrical rods, adding shims, and/or bending endplates to compensate for auto manufacturer tolerances.
