Built with high quality steel for maximum strength and durability. This rugged material ensures the tow bar bracket can withstand the rigors of regular use.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

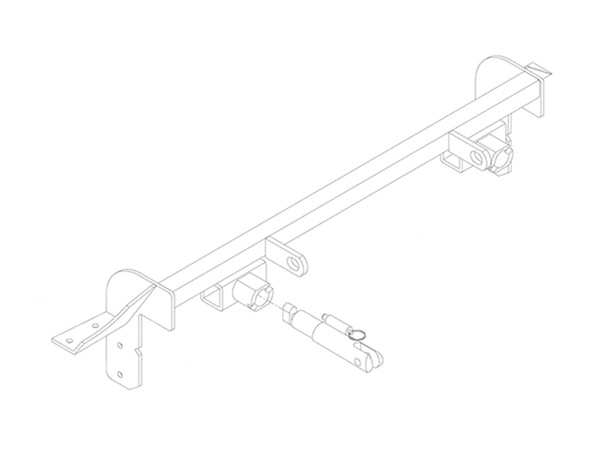

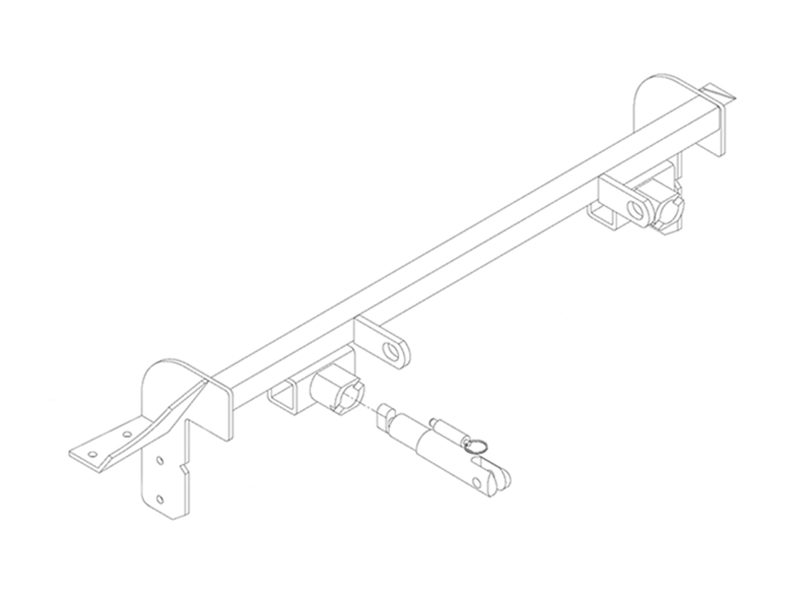

The Blue Ox BX3321 Tow Bar Bracket is the ultimate solution for secure and reliable towing needs. Expertly constructed from robust steel, this base plate guarantees lasting durability and performance. Its black powder coat finish not only offers an elegant look but also provides maximum resistance to rust and corrosion. The custom design ensures a perfect fit for your specific vehicle, making installation a breeze. With the inclusion of all necessary mounting hardware, this bolt-on tow bar bracket is ready for a hassle-free, do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2006 | Saturn Vue | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Headlights Must be Removed and Replaced During Installation Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BX3321 is designed specifically for the 2004-05 Saturn Vue Red Line. The attachment tabs are 22 inches center to center with a height of 22 inches.
Required tools are: 6MM socket, 10MM socket, 13MM socket, 13MM wrench, 6MM socket, 13/32" drill bit, 9/32" drill bit, 9/16" socket, 1 1/2" hole saw, diagonal cutters, utility knife, vise grips, and Loctite. A 15 Torx tool is also needed for taillight assembly removal.
The kit includes: one weldment base plate (61-6010), six 3/8" bolt plates with wire (61-5383), two 3/8-16 x 1 bolts Grade 5 (201-0443), eight 3/8 lock washers (203-0010), eight 3/8-16 hex nuts (202-0003), one electrical bracket (101-6135), two 1/4-20 x 3/4 bolts Grade 5 (201-0569), two 1/4 flat washers (203-0001), two 1/4 lock washers (203-0008), two 1/4-20 hex whiz nuts (202-0069), two #10-32 x 1/2 slot round head screws (201-0192), two #10 lock washers (203-0054), two #10-32 hex nuts (202-0047), two attachment assemblies (62-3468), two 4-way connectors (101-5822), two 36" safety cables (226-0046), two 3/8 quicklinks (229-0359), and two receiver cap plugs (290-0437).
The headlight assembly, blinker assembly, front fascia, metal bumper, and air baffle on the passenger's side must be removed. The air dam must also be removed. These components are reinstalled after baseplate installation.
Yes, drilling is required. You must use a 1 1/2" hole saw to cut holes into the bumper bracket on both sides to gain access to the frame rail. You must also use a 13/32" drill bit to drill two holes on both sides of the baseplate, and a 9/32" drill bit to drill holes for the electrical bracket. These modifications are permanent.
Yes, trimming of the air dam is required. After baseplate installation, you must hold the air dam as close to its original position as possible, mark it, and trim as needed before reinstalling. Additionally, you may need to trim the lower mesh grille opening of the fascia with diagonal cutters, or alternatively remove the twelve retainer clips from the back of the fascia and completely remove the mesh grille.
1. After removing the required components, pull the radiator clips forward to release the radiator on both sides and allow it to slide up. 2. Rotate the baseplate behind the bumper brackets and slide it onto the frame rails on both sides. 3. Align the baseplate with existing holes on the frame, insert bolt plates into the 1 1/2" hole on the bumper bracket through to the existing holes and baseplate, then tighten 3/8" lock washers and hex nuts. 4. Using the baseplate as a template, drill two holes with a 13/32" drill bit on both sides, insert the bolt plate through the 1 1/2" hole into the drilled hole, and tighten 3/8" lock washer and hex nut. 5. Insert hex bolt into the top of the baseplate and drilled hole on frame webbing, tighten 3/8" lock washer and hex nut on both sides. 6. Snap the radiator back to its original position.
The manual states that all bolts and hex nuts must be torqued according to the torque chart in the General Instruction sheet, which is not included in this installation manual. Contact your Blue Ox dealer or refer to the separate General Instruction sheet for specific torque values.
You must drill a 1 1/2" hole into the bumper bracket on both sides using a 1 1/2" hole saw. You must also drill two holes with a 13/32" drill bit on both sides using the baseplate as a template. For the electrical bracket, drill holes with a 9/32" drill bit.
Yes, Loctite must be used on all bolts and hex nuts before tightening. This is required in steps 15, 16, and 17 of the installation process.
The manual notes that dimensional variations between otherwise identical cars can be considerable. While the location and size of the holes in the baseplate were designed to allow for easy installation, it may be necessary to file a hole slightly to allow a bolt to clear.
Install the tow bar and safety cables according to the instructions included in their packages. Do not substitute other devices if the tow bar pin and clip are lost.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX3321 kit includes two 36" safety cables (226-0046) and two 3/8 quicklinks (229-0359). The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the permanent baseplate safety cables against wires, hoses or brake lines. These cables are to be used in conjunction with, and NOT a replacement for legally required safety cables attaching the towed vehicle to the towing vehicle.
Watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation.
After installation, ensure all electrical components are plugged in properly. Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts and loose bolts. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Remove the attachment tabs when not in use.
Yes, it is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
If a bolt is lost or in need of replacement, use a replacement bolt of the same grade (usually Grade 5, refer to the parts list). Do not substitute homemade or nontypical parts. Repair parts may be ordered through your nearest Blue Ox dealer or distributor. Only use genuine factory replacement parts on your baseplate.
Yes, the BX3321 is designed specifically for 2004-05 Saturn Vue Red Line with 22-inch center-to-center attachment tabs at 22 inches height.
Yes. You must drill a 1 1/2" hole in the bumper bracket on both sides, two 13/32" holes using the baseplate as a template, and 9/32" holes for the electrical bracket. Trimming of the air dam is also required.
Required tools: 6MM, 10MM, 13MM sockets, 13MM wrench, 13/32" and 9/32" drill bits, 1 1/2" hole saw, diagonal cutters, utility knife, vise grips, 9/16" socket, 15 Torx tool, and Loctite.
Headlight assembly, blinker assembly, front fascia, metal bumper, air baffle (passenger's side), and air dam must be removed. These are reinstalled after baseplate installation.
Yes, Loctite must be used on all bolts and hex nuts before tightening. This is required for all three main bolt attachment points.
Yes, two 36" safety cables and two 3/8 quicklinks are included. They are strongly recommended and must be connected from baseplate to frame rail or cross member. Do not mount against wires, hoses or brake lines.
Ensure all electrical components are plugged in properly. Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Retighten bolts with Loctite Red to recommended specifications.
The manual notes that dimensional variations between otherwise identical cars can be considerable. If a bolt does not align, it may be necessary to file the hole slightly to allow the bolt to clear. Do not force bolts or skip attachment points.
If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. Carefully inspect for oil cooler and air conditioner lines, electrical wires and hoses before final tightening.
