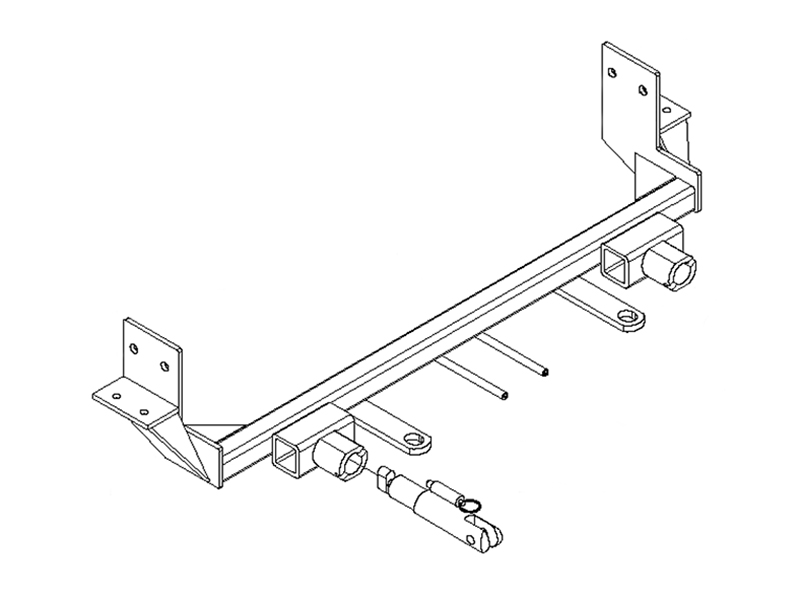

Custom Design: Each Blue Ox BX3759 Tow Bar Bracket is uniquely designed for a specific towed vehicle. This ensures a perfect fit and superior performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Introducing the reliable and durable Blue Ox BX3759 Tow Bar Bracket. This high-quality automotive accessory is custom designed for each specific towed vehicle, ensuring a perfect fit and superior performance. Constructed out of robust steel, it boasts a black powder coat finish for enhanced durability and resistance to wear and tear. The mounting type is bolt-on, making installation easy and straightforward. This product also comes with all the necessary mounting hardware included, so you can confidently install it yourself with the help of the included instructions.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 | Toyota Corolla | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2005 - 2007 | Toyota Matrix | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |

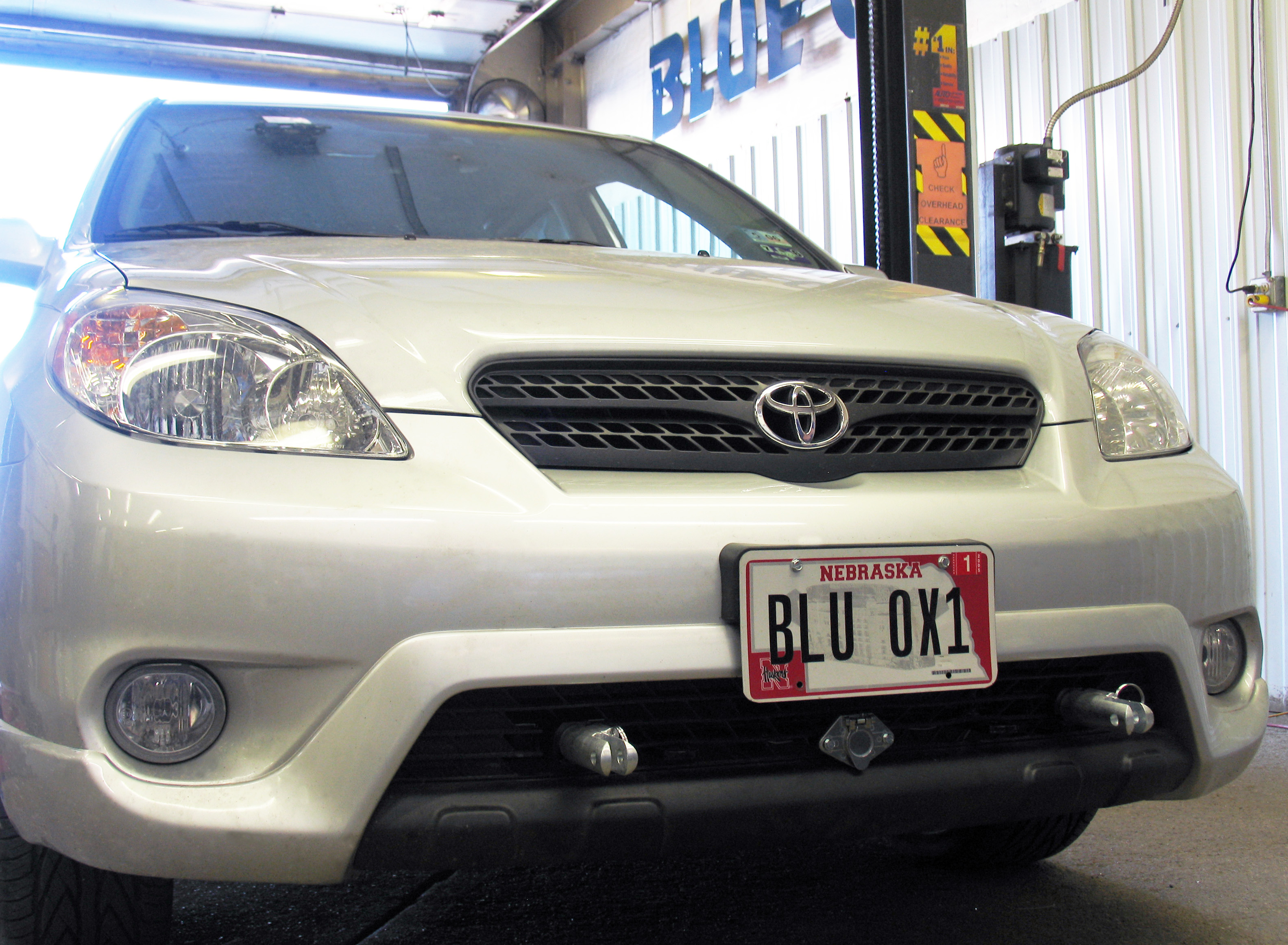

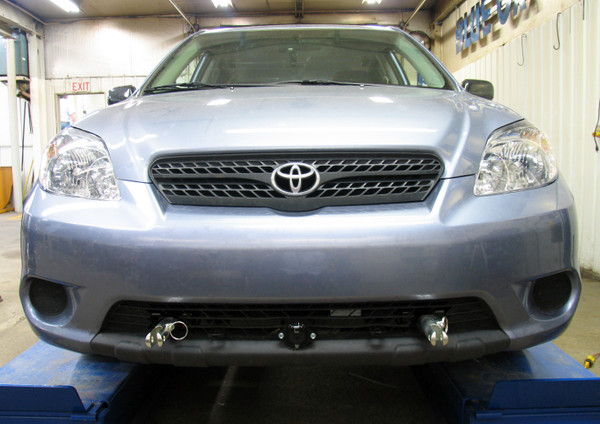

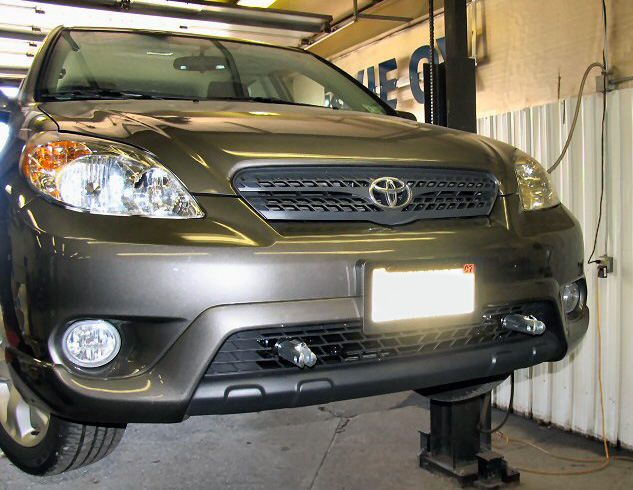

The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select,TOYOTA MATRIX (Part #FDRWBX3759) fits the following vehicles: 2007 Toyota Corolla; 2005-2007 Toyota Matrix. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select,TOYOTA MATRIX (Part #FDRWBX3759) fits 2007 Toyota Corolla models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.

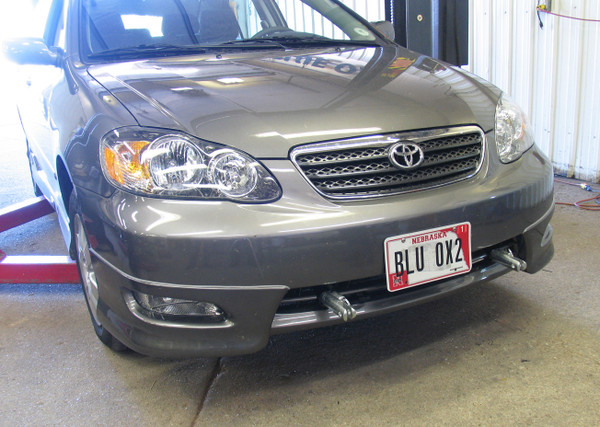

Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select,TOYOTA MATRIX (Part #FDRWBX3759) is designed to fit the 2007 Toyota Corolla.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select,TOYOTA MATRIX (Part #FDRWBX3759) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX3759 baseplate is designed for 2005-07 Toyota Matrix, 2005-07 Toyota Matrix XRS, 2007 Toyota Corolla S, and 2008 Toyota Matrix. However, before purchasing, confirm the towability and pre-towing procedures for your specific vehicle with your vehicle's owner's manual or contact the vehicle manufacturer. The manual notes that vehicle weight is near the Class III 5,000 lb rating limitation, and some models depending on options may exceed this rating, so verify your individual vehicle's weight before towing.
Yes, the BX3759 is compatible with the 2008 Toyota Matrix. However, the 2008 model has different removal and trimming steps than the 2005-07 models. For example, the 2008 Matrix requires removing Phillips screws from the top of the fascia outer edge and a center push pin (step 3), and requires trimming tabs on the inside of the fascia and trimming the fascia for the baseplate receivers to come through (steps 18A and 18B).
The BX3759 is designed for 2007 Toyota Corolla S only. The manual does not list compatibility with 2006 Corolla models or other Corolla trim levels. Contact Blue Ox at (888) 425-5382 or www.blueox.us to confirm fitment for your specific vehicle.
The BX3759 baseplate attachment tab height is 14.5 inches and the attachment tab width is 24 inches.
The following tools are required: Loctite Red, 1 1/4" hole saw, 10MM socket, 14MM socket, 9/16" socket, 3/4" socket, 13/32" drill bit, 17/32" drill bit, Phillips screwdriver, flat screwdriver, and utility knife.
The kit includes: 1 baseplate weldment (61-6036), 4 x 1/2" nut plates with 10" wire (61-5338), 4 x 3/8" nut plates with 14" wire (61-5208), 4 x 1/2-13 x 1 1/2" Grade 5 bolts (201-0051), 4 x 1/2" lock washers (203-0012), 4 x 3/8-16 x 1 1/2" Grade 5 bolts (201-0440), 4 x 3/8" lock washers (203-0010), 2 x #12-14 x 1" self-drilling screws (201-0979), 2 x #10-32 x 1/2" round head screws (201-0192), 2 x #10 lock washers (203-0054), 2 x #10-32 hex nuts (202-0047), 2 x 4-way connector adapters (101-5822), 2 x attachment assemblies (62-3468), 2 x 36" Class III baseplate safety cables (226-0046), 2 x 3/8" quicklinks (229-0359), and 2 x receiver cap plugs (290-0437).
Blue Ox recommends that towing products and accessories be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do "fit work." Blue Ox Dealers can be found at www.blueox.us or by contacting the Customer Care Department at (888) 425-5382. The manual notes that dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments may be necessary to tailor the baseplate to compensate for manufacturer tolerances.
Yes, drilling is required. The installation involves drilling a 1 1/4" hole in the frame rail on both sides (step 11), drilling two 13/32" holes into the bottom of the frame on both sides (step 14), and drilling two 17/32" holes in the side of the frame rail on both sides (step 13). The manual notes to be aware of the coolant line on the passenger side when drilling; slide a short piece of pipe or deep well socket over the drill bit to protect the coolant line.
Yes, trimming is required. For 2005-07 models, you must mark and cut the grill with a utility knife to allow the baseplate receivers to come through (step 16). For 2008 Matrix models, you must trim off a tab on the inside of the fascia on both sides (step 18A) and trim the fascia as needed for the baseplate receivers to come through (step 18B). The manual notes that minor adjustments may be necessary to compensate for manufacturer tolerances.
Yes. The metal bumper must be removed during installation and then reinstalled. The fascia (front cover) must also be removed and reinstalled. The manual notes that the fascia metal bumper and air baffle are removed and reinstalled during installation of the baseplate.
The manual states that all bolts must be tightened according to the torque chart on the front page of the instructions or on page 3 of the Baseplate Towing General Instructions. However, the specific torque value for the 1/2-13 bolts is not provided in this document. The manual includes a general torque chart for Grade 5 and Grade 8 bolts by size, but does not specify which grade or torque applies to the 1/2-13 bolts in this baseplate. Contact Blue Ox at (888) 425-5382 or consult the Baseplate Towing General Instructions for the correct torque specification.
The manual states that all bolts must be tightened according to the torque chart on the front page of the instructions or on page 3 of the Baseplate Towing General Instructions. However, the specific torque value for the 3/8-16 bolts is not provided in this document. The manual includes a general torque chart for Grade 5 and Grade 8 bolts by size, but does not specify which grade or torque applies to the 3/8-16 bolts in this baseplate. Contact Blue Ox at (888) 425-5382 or consult the Baseplate Towing General Instructions for the correct torque specification.
Yes. During removal of the fascia (step 7), you must unplug the electrical connection to the fog lights. When reinstalling the fascia, you must plug the fog lights back in. The manual emphasizes that all electrical connections must be plugged in properly and functioning before installing the fascia.
The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle, but the manual does not state that it is required. The manual notes that the BX8869 kit is recommended for 2005-08 Toyota Matrix, 2005-07 Toyota Matrix XRS, and 2007 Toyota Corolla S applications.
The BX3759 is rated for Class III towing, which has a 5,000 lb rating. However, the manual warns that the weight of the vehicle is near this Class III 5,000 lb rating limitation, and some models depending on options may well exceed this rating. You must confirm the weight of your individual vehicle before towing. If your vehicle exceeds 5,000 lbs, you must use the Aventa II (10,000 lbs) or Aventa LX tow bar instead. Tow Bar Adapters are not to be used with vehicles weighing over 5,000 lbs.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX3759 kit includes 2 x 36" Class III baseplate safety cables (part 226-0046) and 2 x 3/8" quicklinks (part 229-0359). The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The cables must not be mounted against wires, hoses or brake lines. Permanent baseplate safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Be sure to use Loctite Red on all bolts and tighten them to the recommended specifications. Also ensure that all towing equipment is hooked up per the manufacturer's instructions and recommendations.
After installation, ensure that all electrical connections are plugged in properly and functioning before installing the fascia. Verify that the baseplate receivers come through the fascia properly. Confirm that the permanent baseplate safety cables are securely attached to a solid piece of the vehicle's frame. Check that all bolts are tightened to the correct torque specifications using Loctite Red. Inspect that the bumper bracket, metal bumper, and styrofoam are properly reinstalled and that the wire loom is reattached to the top of the bumper.
Yes. The manual states that the attachment tabs should be removed when not in use (if applicable). The BX3759 includes 2 x attachment assemblies (part 62-3468) that can be removed.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes, the BX3759 is designed for 2005-07 Toyota Matrix, 2005-07 Toyota Matrix XRS, 2007 Toyota Corolla S, and 2008 Toyota Matrix. Confirm your vehicle's weight before towing, as some models may exceed the Class III 5,000 lb rating.
Yes. Installation requires drilling a 1 1/4" hole in the frame rail on both sides, plus 13/32" and 17/32" holes. Fascia trimming is also required to allow the baseplate receivers to come through. The metal bumper and fascia must be removed and reinstalled.
Required tools include: 1 1/4" hole saw, 13/32" and 17/32" drill bits, 10MM, 14MM, 9/16", and 3/4" sockets, Phillips and flat screwdrivers, utility knife, and Loctite Red.
The BX3759 is rated for Class III towing with a 5,000 lb capacity. However, verify your vehicle's weight before towing, as some models may exceed this rating. If your vehicle exceeds 5,000 lbs, use the Aventa II or Aventa LX tow bar instead.
Yes, the kit includes 2 x 36" Class III permanent baseplate safety cables and 2 x 3/8" quicklinks. These cables are strongly recommended and must be connected to the vehicle's frame rail or cross member, not against wires or hoses.
Yes, Blue Ox recommends installation by Blue Ox Dealers who have the equipment and knowledge to do "fit work." Find a dealer at www.blueox.us or call (888) 425-5382. Dimensional variations between vehicles can be considerable and may require minor adjustments.
Yes, the fog light electrical connection must be unplugged during fascia removal and plugged back in before reinstalling the fascia. Ensure all electrical connections are functioning before final fascia installation.
On Sale Today
Original price was $699.99. Current price is $639.00.You save $60.99 (9%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Sat, Aug 15 - Tue, Aug 18
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Total for 1 item:
$639.00$699.99
No reviews have been added for this product.
