Crafted from high-quality steel for ultimate strength and durability.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

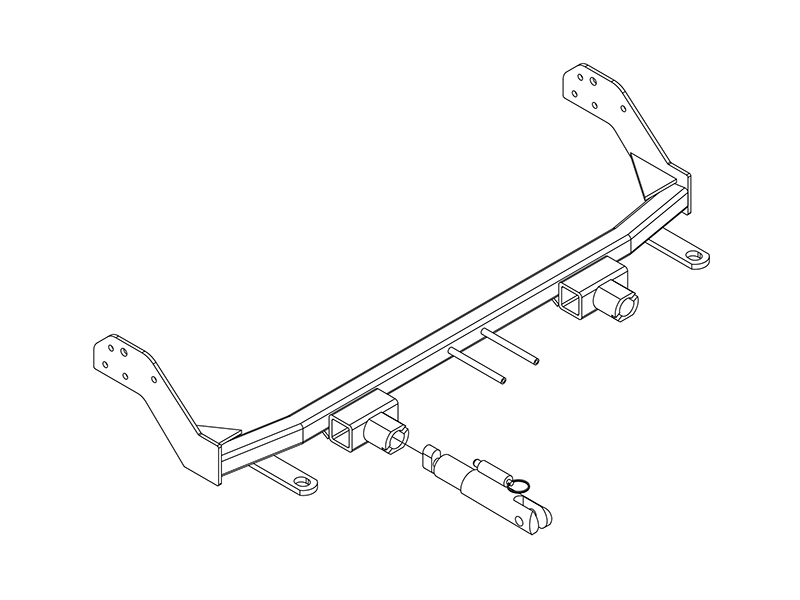

Experience the unrivaled strength and durability of the Blue Ox BX3823 Tow Bar Bracket. Designed with unmatched attention to detail, this essential automotive accessory is crafted from robust steel, offering unparalleled resilience and longevity. It features a sleek black finish with a protective powder coat, ensuring it stands up to the harshest of weather conditions. The Blue Ox BX3823 is specifically designed for each towed vehicle, ensuring a perfect fit every time. It comes with all the necessary hardware and comprehensive instructions, making installation a breeze. With its bolt-on mounting type, you can enjoy a secure and reliable attachment, enhancing your towing experience.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2010 | Volkswagen Jetta | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight |

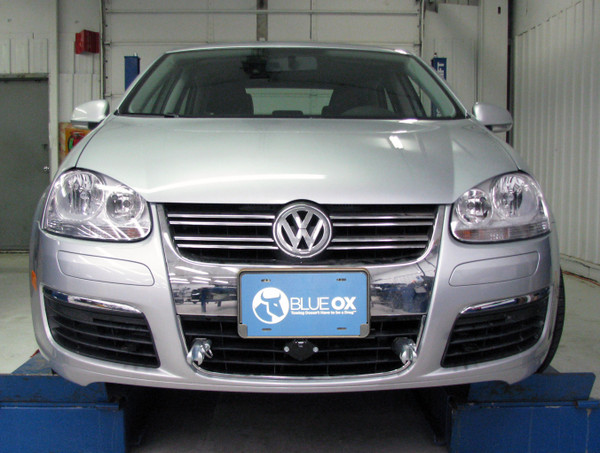

The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, VOLKSWAGEN JETTA (Part #FDRWBX3823) fits 2005-2010 Volkswagen Jetta models. The 2010 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, VOLKSWAGEN JETTA (Part #FDRWBX3823) fits the following vehicles: 2005-2010 Volkswagen Jetta. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, VOLKSWAGEN JETTA (Part #FDRWBX3823) is designed to fit the 2005-2010 Volkswagen Jetta.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, VOLKSWAGEN JETTA (Part #FDRWBX3823) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX3823 is designed for 2005-2010 VW Jetta New models. However, if the front of your vehicle looks different than shown in the manual, contact Blue Ox at (888) 425-5382 before proceeding with installation.
Motorhome mount tow bars are recommended for use with this baseplate. The RangeFinder II, Adventurer and Ambassador tow bars cannot be used due to the design of the removable tabs. The Acclaim tow bar may be used, but will not fold and store on the front of the vehicle. Most adapters cannot be used except the BX8833 and BX88151.
The attachment tab height is 13.5 inches and the attachment tab width is 20 inches.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Customer Care at (402) 385-3051. The installation involves removal and reinstallation of multiple vehicle components, trimming, drilling, and precise torque specifications.
Required tools include: 10MM socket, 14MM socket, 16MM socket, T25 Torx socket, T30 Torx socket, 9/16" socket, Phillips screwdriver, utility knife, hammer, vise grip, 13/32" drill bit, 1 1/4" hole saw, tape measure, and Loctite. A reciprocating saw is also needed for trimming frame webbing and air dam.
The kit includes: one baseplate weldment (61-6146), eight 3/8-16 nutplates with 14" wire (61-5208), eight 3/8-16 x 1.5" Grade 5 hex bolts, eight 3/8" lock washers, one 6MM-1.00 x 45MM Grade 8.8 hex bolt, one 6MM lock washer, seven 5/16" flat washers, one 1/4" schedule 40 pipe (3/4" length), two #12-14 x 1" self-drilling screws, two #10-32 x 1/2" slot round head screws, two #10 lock washers, two #10-32 hex nuts, two 4-way connector adapters (101-5822), two attachment assemblies SF/SB (R), two 36" Class III baseplate safety cables, two 3/8" zinc-plated quicklinks, and two black cap plugs.
The upper grille, front fascia, metal bumper, and windshield washer reservoir must be removed and reinstalled during installation. The horn and bracket must also be removed and reinstalled. These components are removed in a specific sequence to access the frame for baseplate mounting.
Yes, drilling is required. A 13/32" drill bit is used to drill holes in the side of the frame rail to align with the nutplates. Additionally, a 1 1/4" hole saw is used to cut a hole on the front of the metal bumper to allow access to the inside of the frame end for inserting the nut plates.
Trimming of the metal bumper and frame webbing is required. Specifically: (1) Frame webbing must be cut 2" to 5.5" down from the top edge, with a vertical cut flush with the frame side, on both sides. (2) The air dam below the metal bumper must be cut 3" up from the bottom edge on both sides. (3) The lower portion of the metal bumper must be trimmed 1 3/4" from the end on both sides. (4) The lower grille must be carefully cut with a utility knife or hacksaw blade to allow attachment receivers to come through. All cut edges should be coated with spray paint to prevent corrosion.
According to the torque chart on page 1 of these instructions, 3/8" Grade 5 bolts should be torqued to 33 foot-pounds. However, the manual also references a torque chart on page 3 of the Baseplate Towing General Instructions (not provided in this document). Loctite Red must be applied to all bolts before tightening. Consult the complete torque specifications in the General Instructions or contact Blue Ox Customer Care at (402) 385-3051 for confirmation.
According to the torque chart on page 1, a 6MM Grade 8.8 bolt should be torqued to 8 foot-pounds. Loctite Red must be applied to this bolt before tightening.
The removal sequence is: (1) Remove metric bolts inside headlight assemblies (T25 Torx). (2) Remove two Phillips screws from lower grille. (3) Release and remove upper grille. (4) Remove two Torx bolts from top of metal bumper (T30 Torx). (5) Remove three metric bolts from wheel well edge (T25 Torx, both sides). (6) Remove metric bolt from fascia corner above tire (T25 Torx, both sides). (7) Remove four metric bolts from lower fascia edge (T25 Torx, both sides). (8) Remove two Torx bolts above middle of metal bumper (T30 Torx). (9) Remove bolts above and below metal bumper, mark bumper height, then remove bumper. (10) Remove windshield washer reservoir bolts and nuts, disconnect electrical and fluid lines. (11) Remove horn bracket bolts and unplug electrical connections. All removed bolts and screws must be set aside for reinstallation.
The baseplate is slid onto the side of the frame with the attachment tabs pointing down. It is pushed back toward the rear of the vehicle while lifting the cross tube up. The bottom edge of the end plate should be even with the bottom edge of the frame. The top center hole is aligned with the existing bolt location for the front of the washer reservoir on the passenger's side, then the baseplate is clamped to the frame with vise grips. The baseplate is then used as a template to drill holes in the frame rail with a 13/32" drill bit on both sides. Nutplates are inserted into the drilled holes and 3/8" bolts with lock washers are tightened with Loctite Red applied to all bolts. The attachment tabs must be kept level with the vehicle.
After the baseplate is secured, the frame webbing is tapped back 3/8" with a hammer just behind the washer reservoir on the passenger's side. The washer reservoir is then placed on the back two studs and two hex nuts are installed but not tightened. The front metric bolt is replaced with the supplied 6MM hex bolt, spacer tube, flat washers and lock washer. Loctite Red must be applied before tightening. Ensure the webbing does not touch the back side of the reservoir to prevent rubbing a hole in the tank. All electrical and fluid lines are then reconnected.
After the baseplate is fully installed and all electrical connections are verified to be plugged in properly and functioning, the horns and their brackets are reinstalled, styrofoam is reinstalled on the front of the metal bumper, and the fascia is carefully repositioned. The lower grille must be cut with a utility knife or hacksaw blade to allow the attachment receivers to come through on both sides before the fascia is fully reinstalled. Once complete, the tow bar and safety cables are installed according to their package instructions.
If the baseplate is in an accident, it must be replaced and must not be used again. An accident can cause unseen damage, and using a damaged baseplate could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX3823 kit includes two 36" Class III baseplate safety cables and two 3/8" zinc-plated quicklinks. These cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses or brake lines. The cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle. The cables should remain installed as long as the baseplate is installed on the vehicle.
The installer must watch for and avoid: oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed and comes into contact with a wire or hose, it could cause fluid leaks or electrical shorts some time after installation. Do not mount permanent baseplate safety cables against wires, hoses or brake lines. The windshield washer reservoir must be positioned so that frame webbing does not touch the back side of the reservoir, which could rub a hole in the tank.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. All bolts should be treated with Loctite Red and tightened to the recommended torque specifications. The baseplate should be registered online at www.blueox.com to receive alerts about product offerings, updates, upgrades, maintenance and safety bulletins, and recalls. Removal of the attachment tabs when not in use is recommended if applicable.
Confirm the towing procedures and pre-towing procedures for your vehicle with the owner's manual or contact the vehicle's manufacturer directly. Blue Ox Customer Care is available at (402) 385-3051 or toll-free at (888) 425-5382 for questions about the baseplate installation and operation. For general customer care, call 1-800-228-9289.
No. The manual explicitly states that even though bolts may already be present on the vehicle, do not assume they are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit and existing hardware specified in the Baseplate Installation Instructions. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor, or by calling Customer Care at (402) 385-3051.
If the front of your vehicle looks different than the image shown in the manual, call Blue Ox at (888) 425-5382 before attempting installation. Dimensional variations between otherwise identical vehicles can be considerable, and the manual notes that minor adjustments may be necessary to compensate for auto manufacturer tolerances.
Due to dimensional variations between otherwise identical vehicles, minor adjustments may be necessary to compensate for auto manufacturer tolerances. These adjustments may include filing a hole slightly, bending electrical rods, adding shims, and/or bending end plates. These are normal and expected as part of the fit work required for baseplate installation.
The BX8869 Bulb & Socket Wiring Kit is recommended for the 2005-2010 VW Jetta. The manual shows a possible location for this kit but does not state it is required. Contact Blue Ox Customer Care at (402) 385-3051 or (888) 425-5382 for clarification on whether this kit is necessary for your specific installation.
Yes, the BX3823 is designed for 2005-2010 VW Jetta New models. If your vehicle's front looks different than shown in the manual, contact Blue Ox at (888) 425-5382 before installation.
Motorhome mount tow bars are recommended. RangeFinder II, Adventurer and Ambassador tow bars cannot be used. The Acclaim tow bar may be used but will not fold and store on the front. Most adapters cannot be used except BX8833 and BX88151.
Required tools include: 10MM, 14MM, 16MM sockets, T25 and T30 Torx sockets, 9/16" socket, Phillips screwdriver, utility knife, hammer, vise grip, 13/32" drill bit, 1 1/4" hole saw, tape measure, Loctite, and a reciprocating saw for trimming.
Yes. Drilling is required using a 13/32" drill bit for frame rail holes and a 1 1/4" hole saw for the bumper. Trimming is required on the frame webbing, air dam, metal bumper, and lower grille. All cut edges must be coated with spray paint to prevent corrosion.
Blue Ox recommends installation by Blue Ox Dealers who are familiar with the products and have the necessary equipment and knowledge. Find a dealer at www.blueox.com or call (402) 385-3051. Installation involves removing multiple components, precise drilling, trimming, and torque specifications.
3/8" Grade 5 bolts should be torqued to 33 foot-pounds. Apply Loctite Red to all bolts before tightening. Consult the complete torque chart in the Baseplate Towing General Instructions for all specifications.
If the baseplate is in an accident, it must be replaced and not used again. Accident damage can be unseen but could cause separation of the towed vehicle, resulting in property damage, loss of vehicle, personal injury or death.
Yes. Two 36" Class III baseplate safety cables and two 3/8" quicklinks are included. These are strongly recommended and must be connected from the baseplate to the frame rail or cross member. They must not touch wires, hoses or brake lines.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Tighten all bolts with Loctite Red to the recommended torque specifications. Register your baseplate at www.blueox.com for safety bulletins and recalls.
